4-30 — STEERING WHEEL AND COWL (#169216) — 18 parça

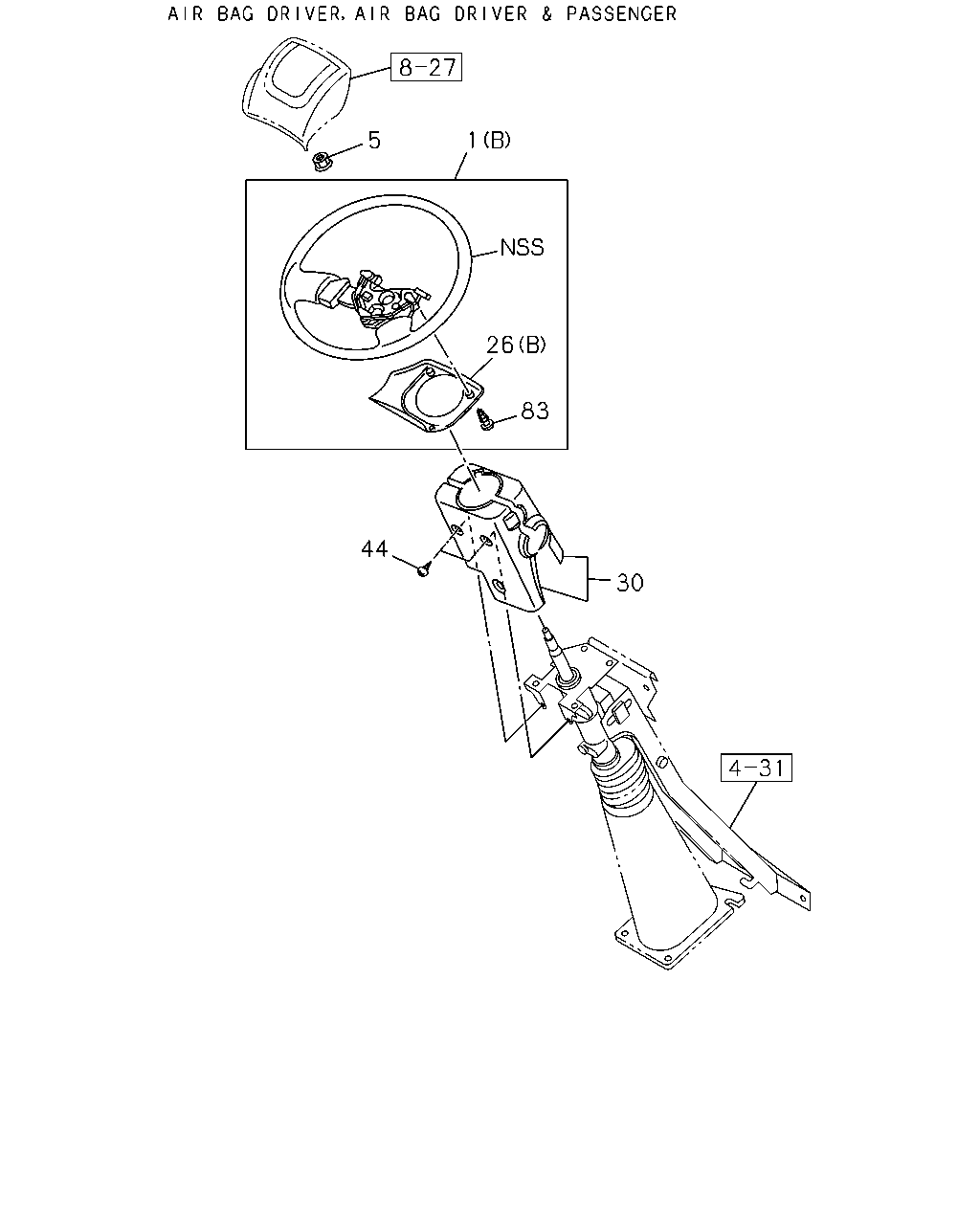

çizim 502051
5 1 26 83 44 30
BalonParca AdiParca NoAdetTipApplied Date A B C
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97428-392-3 01 1 1511- ● ● ●
1 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97466-377-0 01 1 1511- ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1511- ● ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97465-726-2 01 1 1511- ● ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97465-650-0 01 1 1511- ● ● ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 1511- ● ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1511- ● ● ●
83 SCREW; LWR COVER TO WHEEL
M4X10 TAPPING 		0-71240-410-0 03 1 1511- ● ● ●

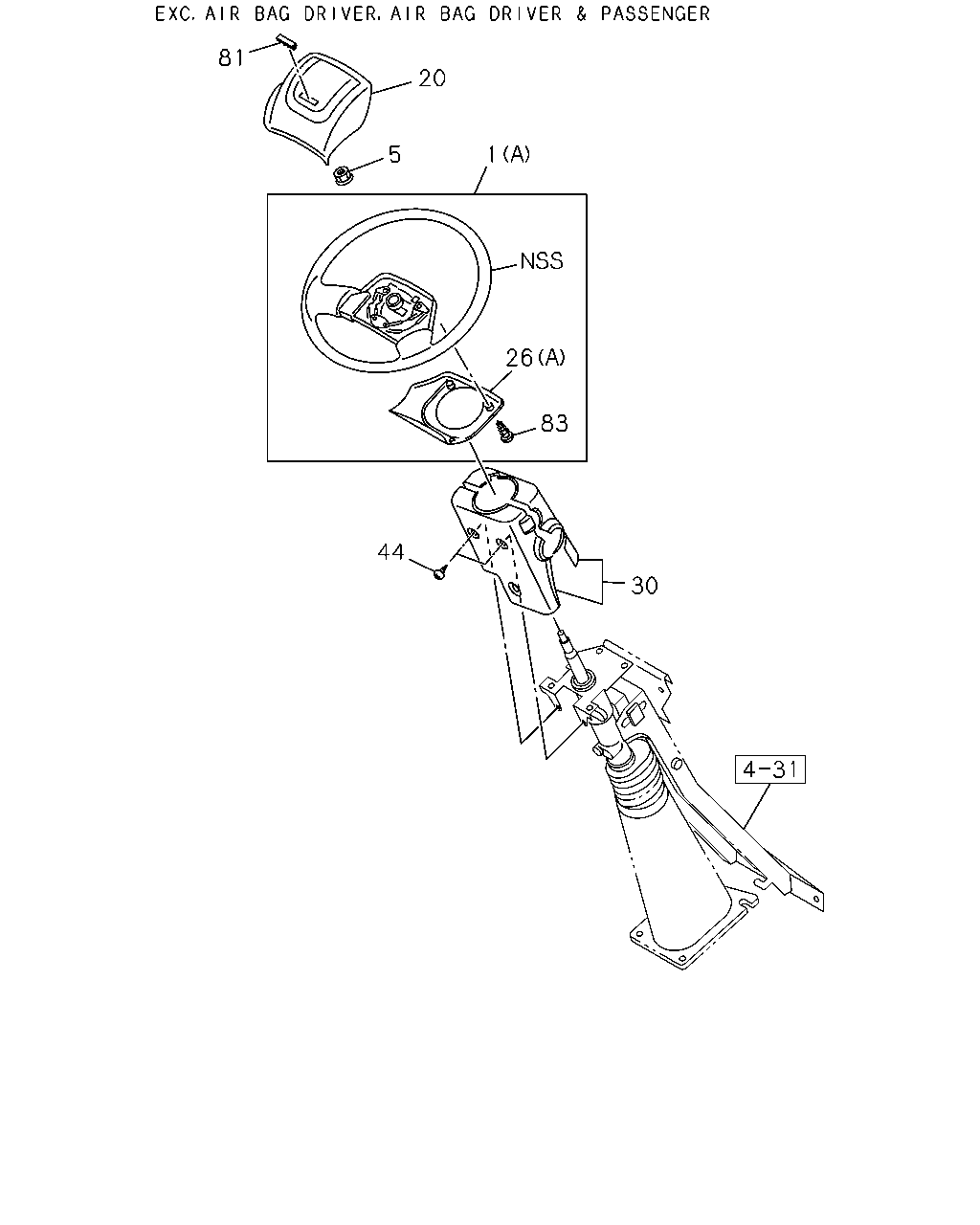

çizim 502359
81 20 5 1 26 83 44 30
BalonParca AdiParca NoAdetTipApplied Date A B C
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97428-392-3 01 1 1511- ● ● ●
1 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97466-377-0 01 1 1511- ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1511- ● ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97465-647-0 01 1 1511- ● ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97465-726-2 01 1 1511- ● ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97465-650-0 01 1 1511- ● ● ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 1511- ● ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1511- ● ● ●
81 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97465-648-0 01 1 1511- ● ● ●
83 SCREW; LWR COVER TO WHEEL
M4X10 TAPPING 		0-71240-410-0 03 1 1511- ● ● ●
