4-10 — FRONT AXLE (#169212) — 100 parça

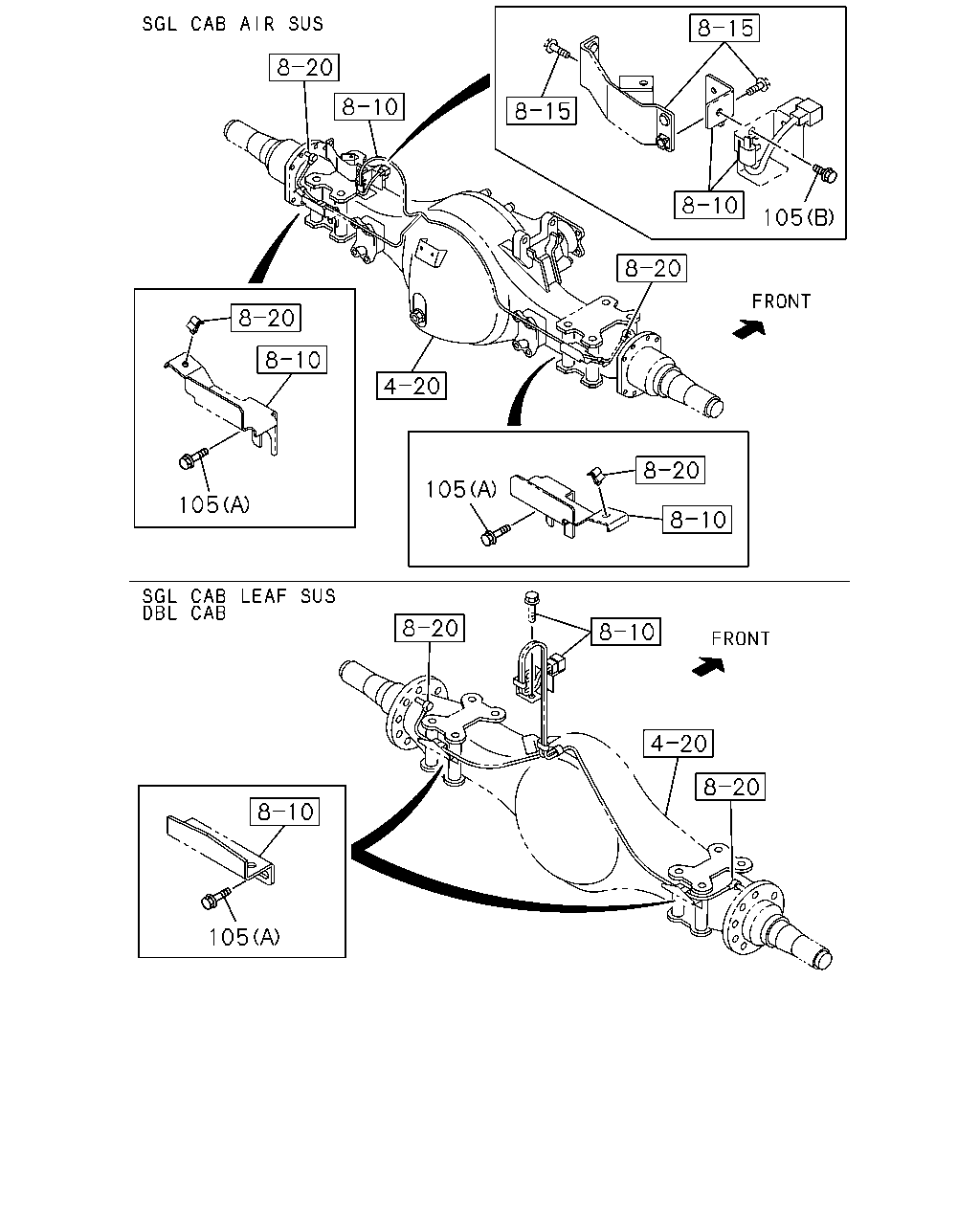

çizim 501054
105 105 105 105
BalonParca AdiParca NoAdetTipApplied Date A B C
105 BOLT; BRKT FIX
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1511- ●
105 BOLT; BRKT FIX
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1511- ●
105 BOLT; BRKT FIX
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1511- ● ●

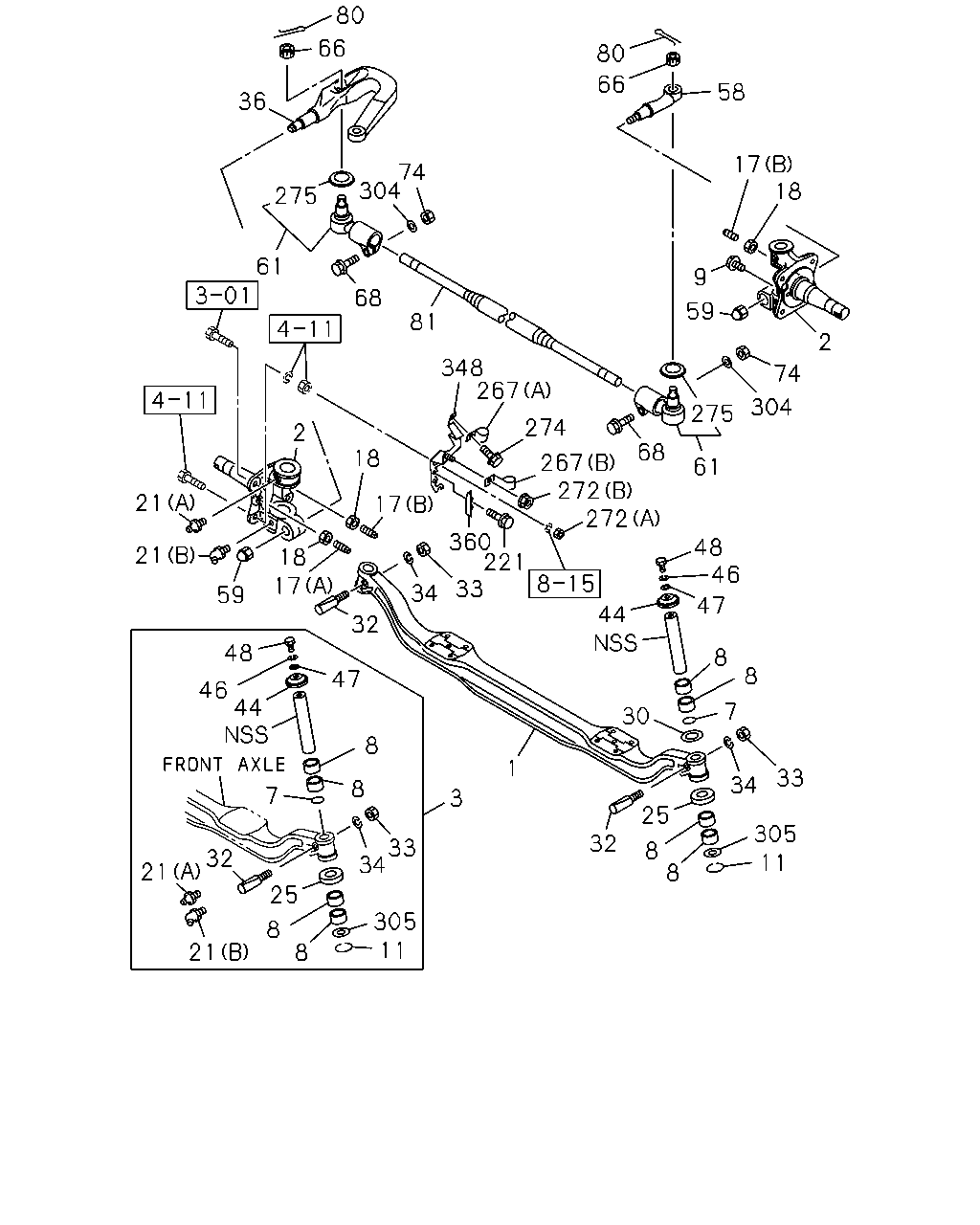

çizim 501619
21 21 8 8 32 11 305 34 33 3 8 8 47 44 46 48 7 25 21 21 59 18 17 32 34 33 17 18 2 30 25 32 8 8 11 305 34 33 7 8 8 44 48 275 81 348 274 267 61 68 267 272 272 68 46 47 275 61 304 74 2 59 9 360 221 304 74 36 66 80 80 66 58 17 18 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 AXLE; FRT 8-98057-479-2 01 1 1511- ● ● ●
2 KNUCKLE; FRT AXLE 1-43131-127-1 01 1 1511- ● ● ●
2 KNUCKLE; FRT AXLE 1-43132-127-1 01 1 1511- ● ● ●
3 KING PIN SET 1-87831-295-2 01 1 1511- ● ● ●
3 KING PIN SET 1-87831-296-2 01 1 1511- ● ● ●
7 SEAL; OIL,KING PIN 1-09625-005-1 02 1 1511- ● ● ●
8 BEARING; NEEDLE,KING PIN
NSK 		1-09811-339-0 08 1 1511- ● ● ●
9 PLUG; KNUCKLE
M14X14 		8-97329-621-0 01 1 1511- ● ● ●
11 RING; SNAP,KNUCKLE PLUG 1-09589-017-1 02 1 1511- ● ● ●
17 BOLT; STOPPER KNUCKLE
(A) M14X47 		1-09009-191-0 01 1 1511- ● ● ●
17 BOLT; STOPPER KNUCKLE
(B) M14X53 		8-98065-261-0 02 1 1511- ● ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M14 		0-91112-814-0 03 1 1511- ● ● ●
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1511- ● ● ●
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1511- ● ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-031-0 01 1 1511- ● ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-033-1 01 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=3.900 		1-43171-261-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=3.912 		1-43171-262-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=3.925 		1-43171-263-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=3.937 		1-43171-264-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=3.950 		1-43171-265-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=3.962 		1-43171-266-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=3.975 		1-43171-267-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=3.987 		1-43171-268-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.000 		1-43171-269-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.012 		1-43171-270-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.025 		1-43171-271-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.037 		1-43171-272-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.050 		1-43171-273-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.062 		1-43171-274-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.075 		1-43171-275-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.087 		1-43171-276-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.100 		1-43171-277-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.112 		1-43171-278-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.125 		1-43171-279-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.137 		1-43171-280-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.150 		1-43171-281-1 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.162 		1-43171-311-0 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.175 		1-43171-312-0 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.187 		1-43171-313-0 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.200 		1-43171-314-0 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.212 		1-43171-315-0 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.225 		1-43171-316-0 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.237 		1-43171-317-0 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.250 		1-43171-318-0 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.262 		1-43171-319-0 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.275 		1-43171-320-0 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.287 		1-43171-321-0 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.300 		1-43171-322-0 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.312 		1-43171-323-0 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.325 		1-43171-324-0 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.337 		1-43171-325-0 AR 1 1511- ● ● ●
30 WASHER; THRUST,KING PIN
T=4.350 		1-43171-326-0 AR 1 1511- ● ● ●
32 BOLT; KEY,KING PIN 1-43116-013-1 02 1 1511- ● ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1511- ● ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1511- ● ● ●
36 ARM; KNUCKLE 8-98037-304-1 01 1 1511- ● ● ●
44 COVER; KING PIN 1-43175-031-0 02 1 1511- ● ● ●
46 WASHER; LK,COVER
ID=12.2 		0-91510-812-0 02 1 1511- ● ● ●
47 WASHER; PL,COVER,KING PIN
ID=12.5 OD=32 		0-91614-712-0 02 1 1511- ● ● ●
48 BOLT; COVER
M12X25 		1-09009-081-0 02 1 1511- ● ● ●
58 ARM; TIE ROD 8-98037-296-2 01 1 1511- ● ● ●
59 NUT; TIE ROD ARM
M27 FLANGE 		1-09449-082-0 02 1 1511- ● ● ●
61 ROD END; TIE ROD 1-43150-748-1 01 1 1511- ● ● ●
61 ROD END; TIE ROD 1-43150-749-1 01 1 1511- ● ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		1-09442-031-0 02 1 1511- ● ● ●
68 BOLT; TIE ROD END
M12X45 FLANGE 		0-28061-245-0 02 1 1511- ● ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 02 1 1511- ● ● ●
80 PIN; SPLIT,ROD END
OD=3.7 L=22 		0-81124-022-0 02 1 1511- ● ● ●
81 ROD; TIE 8-98038-703-1 01 1 1511- ● ● ●
221 BOLT; BRKT,SENSOR
M8X16 FLANGE 		0-28050-816-0 04 1 1511- ● ● ●
267 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1511- ● ● ●
267 CLIP; HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 02 1 1511- ● ● ●
272 NUT; CLIP
(A) M14 		0-91110-514-0 02 1 1511- ● ● ●
272 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ● ●
274 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1511- ● ● ●
275 BOOT; ROD END,TIE 1-85574-046-0 02 1 1511- ● ● ●
304 WASHER; PL
ID=12.5 		0-91614-512-0 02 1 1511- ● ● ●
305 COVER; KNUCKLE 1-43175-030-0 02 1 1511- ● ● ●
348 BRACKET; CLIP 8-98055-138-1 01 1 1511- ● ● ●
348 BRACKET; CLIP 8-98055-137-1 01 1 1511- ● ● ●
360 COVER; SENSOR 8-98018-401-0 01 1 1511- ● ● ●
360 COVER; SENSOR 8-98018-400-0 01 1 1511- ● ● ●

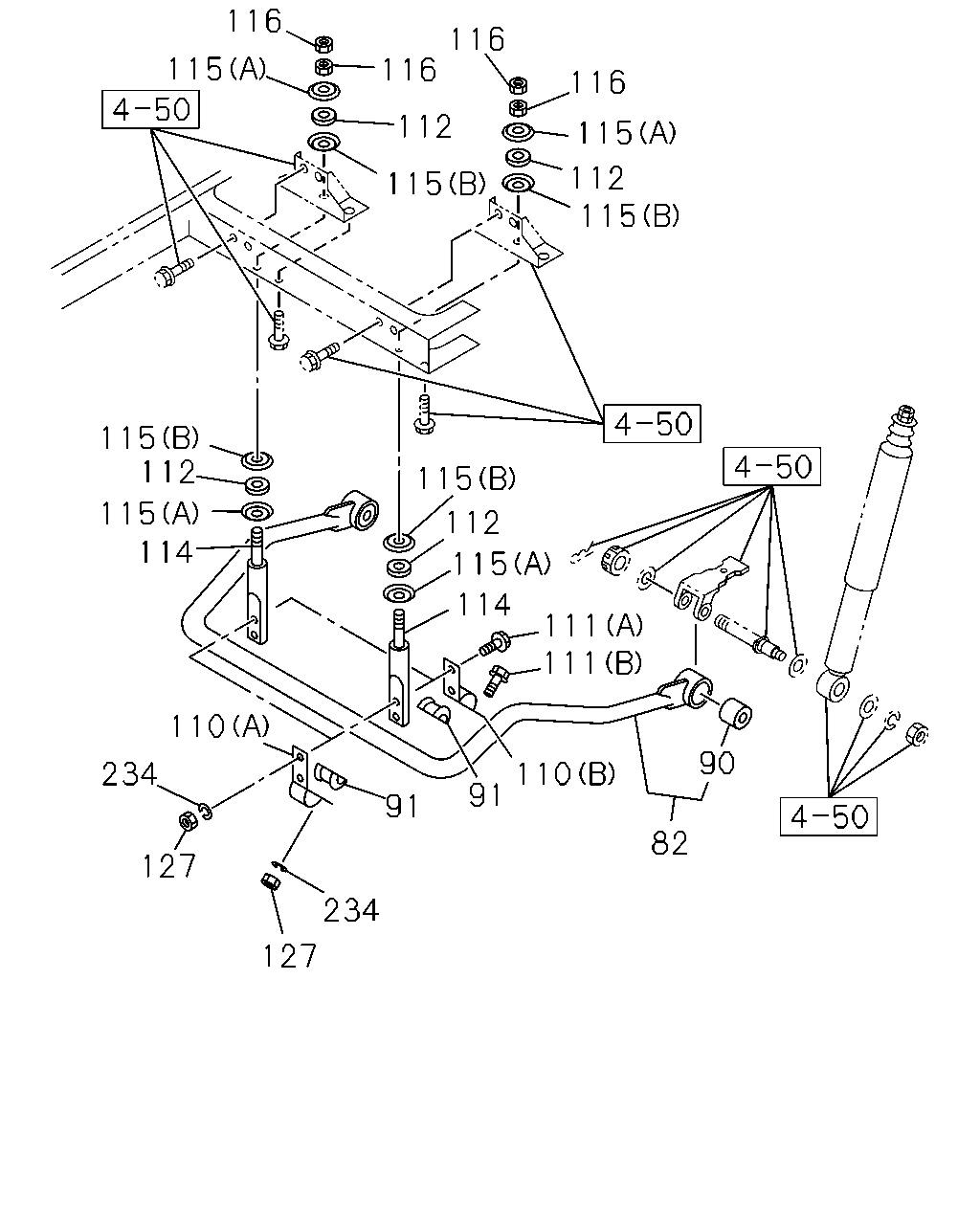

çizim 502482
116 115 116 116 115 112 115 115 114 110 234 127 127 91 91 111 114 112 115 115 111 82 90 115 112 115 116 234 110 112
BalonParca AdiParca NoAdetTipApplied Date A B C
82 BAR; STAB,FRT SUSP 1-51770-114-0 01 1 1511- ● ● ●
90 BUSHING; RUBBER,STAB BAR 1-51779-066-0 02 1 1511- ● ● ●
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 1511- ● ● ●
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1511- ● ● ●
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1511- ● ● ●
111 BOLT; CLAMP TO ROD
(B) M12X30 FLANGE 		0-28051-230-0 02 1 1511- ● ● ●
111 BOLT; CLAMP TO ROD
(A) M12X50 FLANGE 		0-28051-250-0 04 1 1511- ● ● ●
112 BUSHING; ROD 9-51631-050-0 04 1 1511- ● ● ●
114 ROD; STAB BAR 1-51773-082-0 02 1 1511- ● ● ●
115 WASHER; CENTER,STAB TO FRAME
(B) ID=16.8 		1-51631-022-0 04 1 1511- ● ● ●
115 WASHER; CENTER,STAB TO FRAME
(A) ID=14.5 		9-51631-051-0 04 1 1511- ● ● ●
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1511- ● ● ●
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1511- ● ● ●
234 WASHER; STAB
ID=12.2 		0-91510-812-0 06 1 1511- ● ● ●
