3-70 — BRAKE PIPING; AIR,AIR MASTER (#169207) — 96 parça

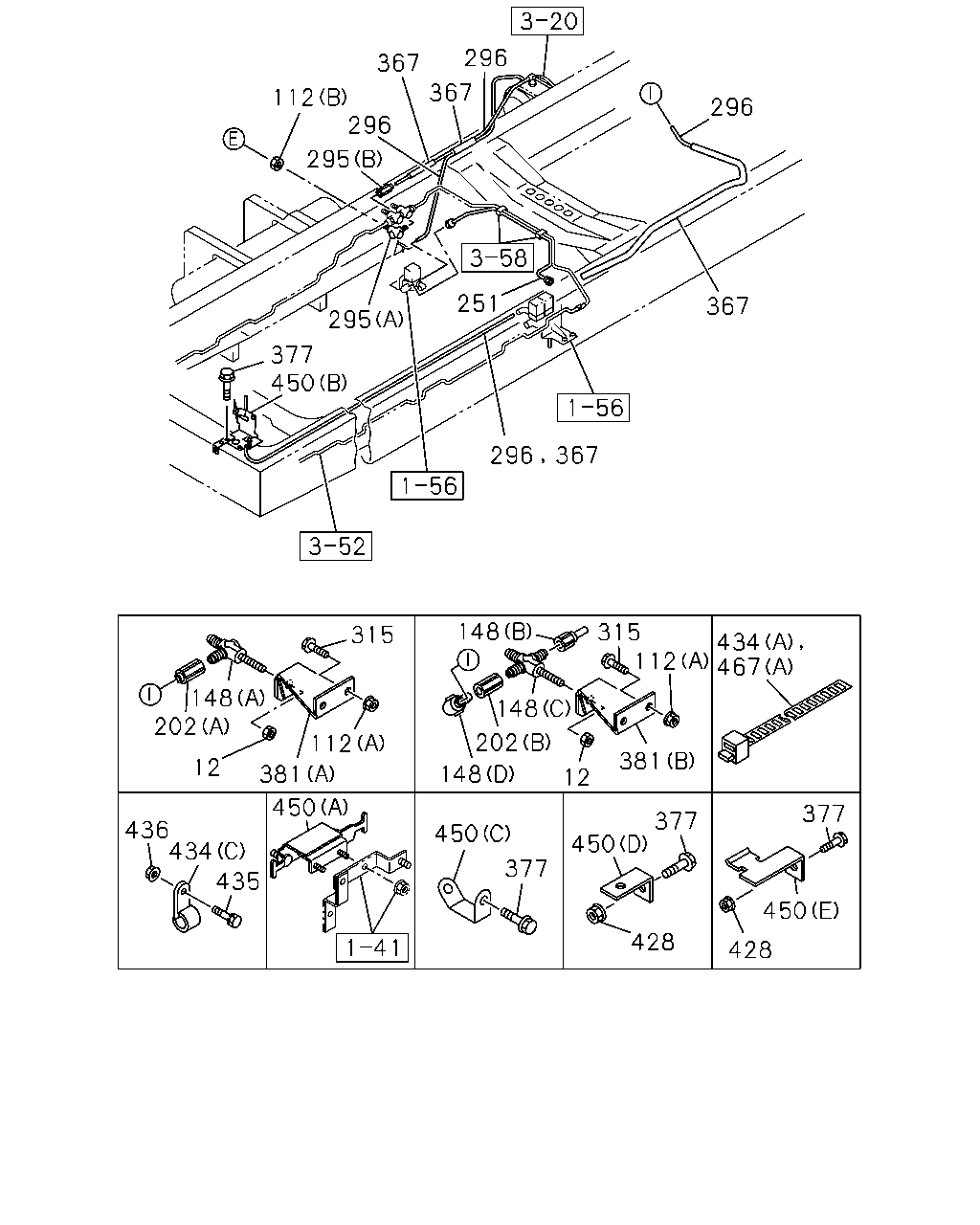

çizim 501026
296 367 367 367 112 295 296 251 295 377 450 296 367 296 315 202 450 450 450 450 434 467 377 377 377 148 148 148 148 202 381 315 112 12 428 428 435 381 112 12 436 434
BalonParca AdiParca NoAdetTipApplied Date A B C
12 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		0-91111-512-0 01 1 1511- ● ● ●
112 NUT
(B) M12 		9-09840-280-0 01 1 1511- ● ● ●
112 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ● ●
148 CONNECTOR; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 		0-92138-306-0 01 1 1511- ●
148 CONNECTOR; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1511- ●
148 CONNECTOR; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1511- ●
148 CONNECTOR; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 2WAY 		1-09654-059-2 01 1 1511- ● ●
202 ADAPTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1511- ●
202 ADAPTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1511- ● ●
251 PIPE; AIR,UNION TO MAG VLV
L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 1511- ● ● ●
295 CONNECTOR; NYLON TUBE
(A) M12 ELBOW 		0-92125-206-0 01 1 1511- ● ● ●
295 CONNECTOR; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1511- ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1511- ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1511- ● ● ●
315 BOLT; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE 		0-28651-030-0 02 1 1511- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 1511- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1511- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1511- ● ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 04 1 1511- ● ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 03 1 1511- ● ● ●
381 BRACKET
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		8-98128-396-0 01 1 1511- ●
381 BRACKET
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		8-98119-700-0 01 1 1511- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1511- ● ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1511- ● ● ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1511- ● ● ●
434 CLIP
(A) L=350 		1-09707-183-0 14 1 1511- ● ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ● ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ● ●
450 BRACKET; CLIP
(D) 		1-47477-694-0 01 1 1511- ● ● ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 1511- ● ● ●
450 BRACKET; CLIP
(A) 		8-98077-895-1 01 1 1511- ● ● ●
450 BRACKET; CLIP
(C) 		8-98117-686-0 03 1 1511- ● ● ●
450 BRACKET; CLIP
(E) 		8-98157-748-0 01 1 1511- ● ● ●
467 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1511- ● ● ●
467 CLIP; NYLON TUBE
(B) ID=10 & 15 		1-09709-279-1 01 1 1511- ● ● ●

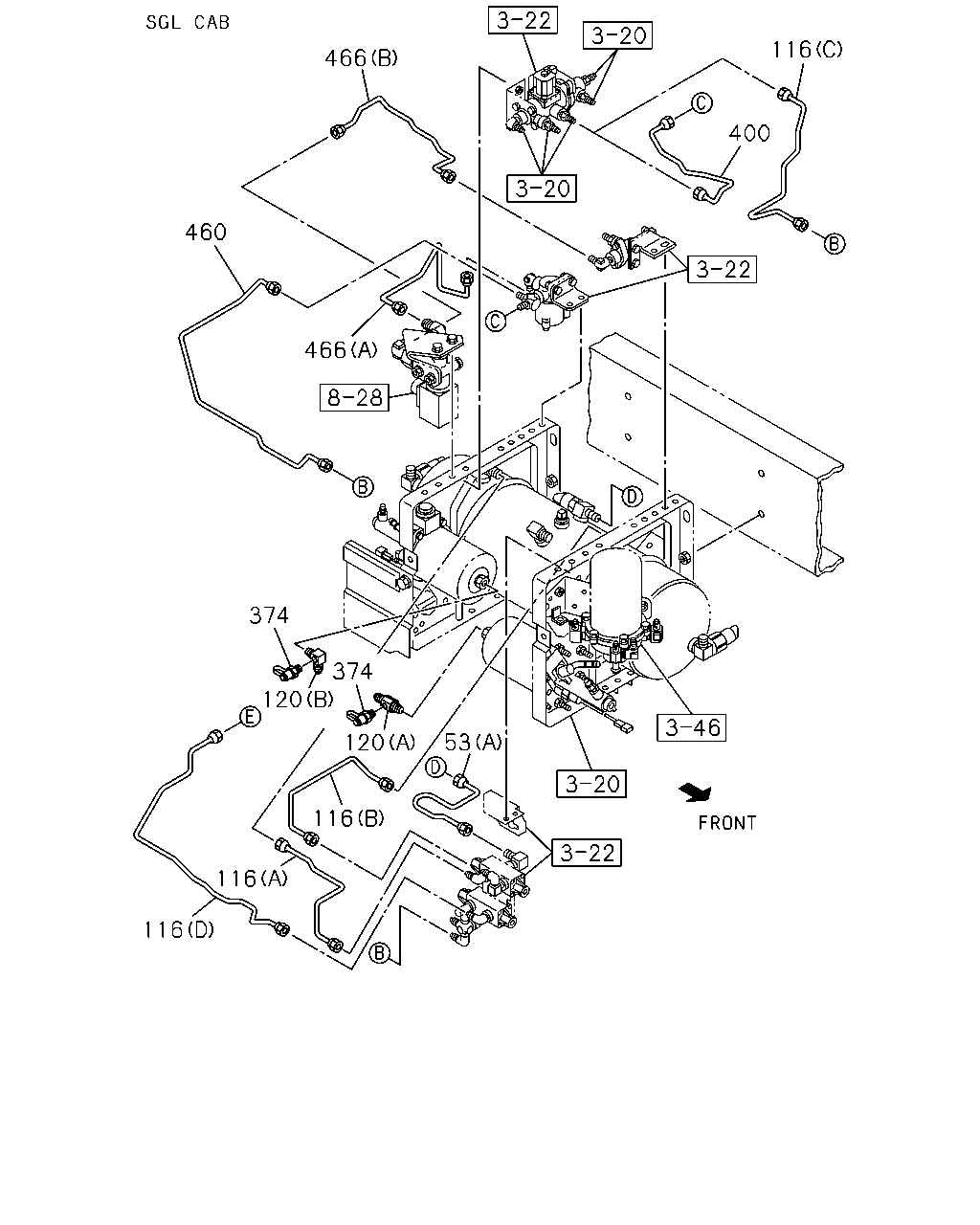

çizim 502349
466 460 466 374 374 120 120 116 116 116 53 400 116
BalonParca AdiParca NoAdetTipApplied Date A B C
53 PIPE; AIR,AIR TANK TO VALVE
THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98213-331-0 01 1 1511- ● ●
53 PIPE; AIR,AIR TANK TO VALVE
EXC. THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98276-838-0 01 1 1511- ● ●
53 PIPE; AIR,AIR TANK TO VALVE
(B) 		8-98087-332-0 01 1 1511- ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1511- ● ●
116 PIPE; AIR,PROTECTION VLV
THROTTLE CONTROL SYSTEM(6XH) (A) L=480 		8-98213-332-0 01 1 1511- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. THROTTLE CONTROL SYSTEM(6XH) (C) 		8-98276-839-0 01 1 1511- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1511- ● ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1291 SERVICED BY L=1370 		1-47428-818-0 01 1 1511- ●
116 PIPE; AIR,PROTECTION VLV
(E) 		8-98087-333-0 01 1 1511- ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1511- ● ●
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1511- ● ● ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1511- ●
374 CONNECTOR
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1511- ● ● ●
400 PIPE; AIR,HSA VLV
THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 1511- ● ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1511- ● ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> L=533 SERVICED BY L=550 		1-47428-808-0 01 1 1511- ●
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) L=1036 		8-98225-793-0 01 1 1511- ● ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700 		1-47428-870-0 01 1 1511- ● ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 1511- ● ●

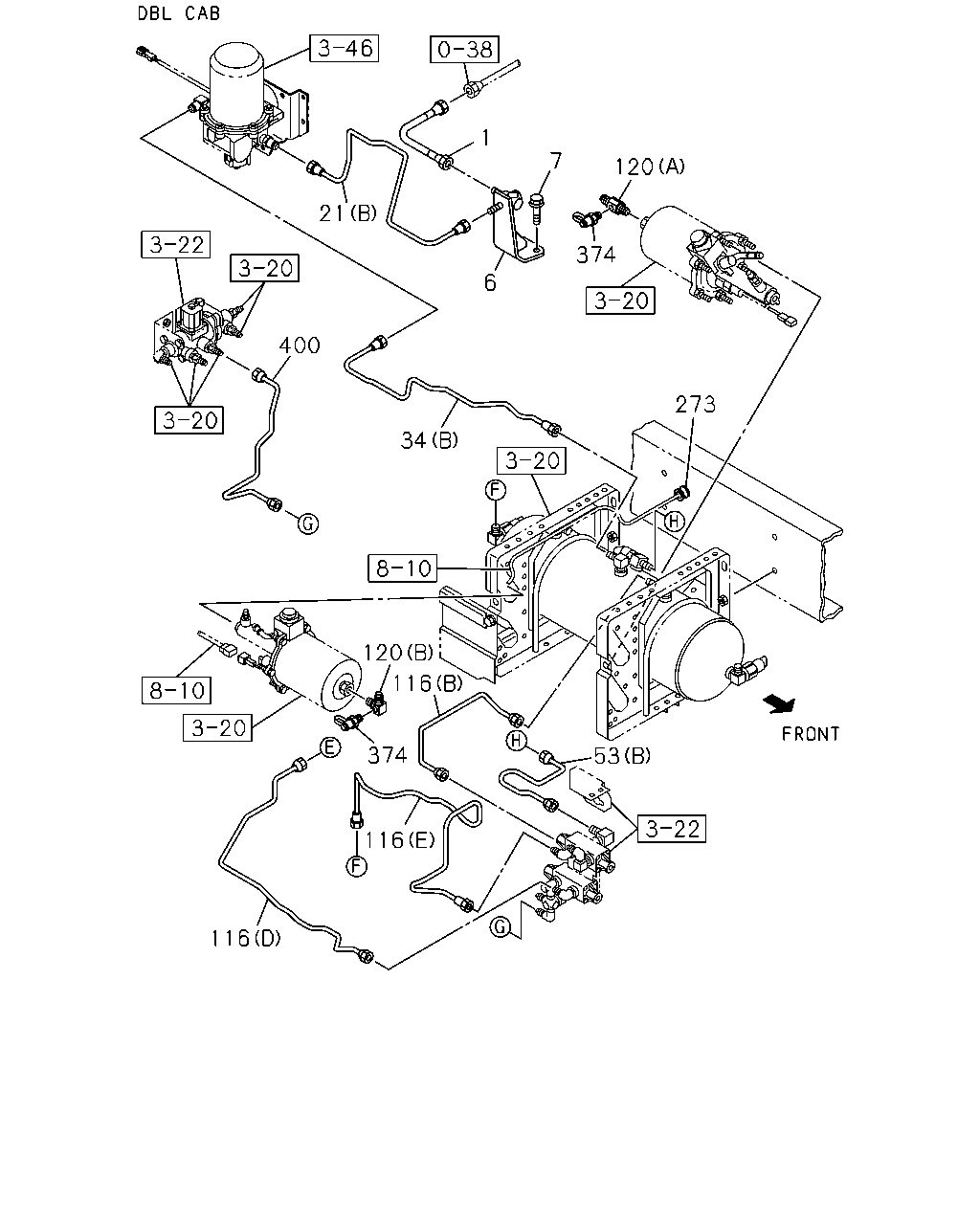

çizim 502452
21 1 7 374 6 400 34 273 120 116 53 374 116 116 120
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 1511- ● ●
1 HOSE; FLEX,AIR TANK 8-98079-973-0 01 1 1511- ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98079-987-1 01 1 1511- ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ● ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1816 		8-98083-100-0 01 1 1511- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
(B) L=1701 		8-98101-764-0 01 1 1511- ●
34 PIPE; AIR
(A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1511- ● ●
34 PIPE; AIR
(B) L=869 SERVICED BY L=900 		1-49115-484-0 01 1 1511- ●
53 PIPE; AIR,AIR TANK TO VALVE
THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98213-331-0 01 1 1511- ● ●
53 PIPE; AIR,AIR TANK TO VALVE
EXC. THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98276-838-0 01 1 1511- ● ●
53 PIPE; AIR,AIR TANK TO VALVE
(B) 		8-98087-332-0 01 1 1511- ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1511- ● ●
116 PIPE; AIR,PROTECTION VLV
THROTTLE CONTROL SYSTEM(6XH) (A) L=480 		8-98213-332-0 01 1 1511- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. THROTTLE CONTROL SYSTEM(6XH) (C) 		8-98276-839-0 01 1 1511- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1511- ● ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1291 SERVICED BY L=1370 		1-47428-818-0 01 1 1511- ●
116 PIPE; AIR,PROTECTION VLV
(E) 		8-98087-333-0 01 1 1511- ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1511- ● ●
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1511- ● ● ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1511- ●
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1511- ● ● ●
374 CONNECTOR
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1511- ● ● ●
400 PIPE; AIR,HSA VLV
THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 1511- ● ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1511- ● ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> L=533 SERVICED BY L=550 		1-47428-808-0 01 1 1511- ●

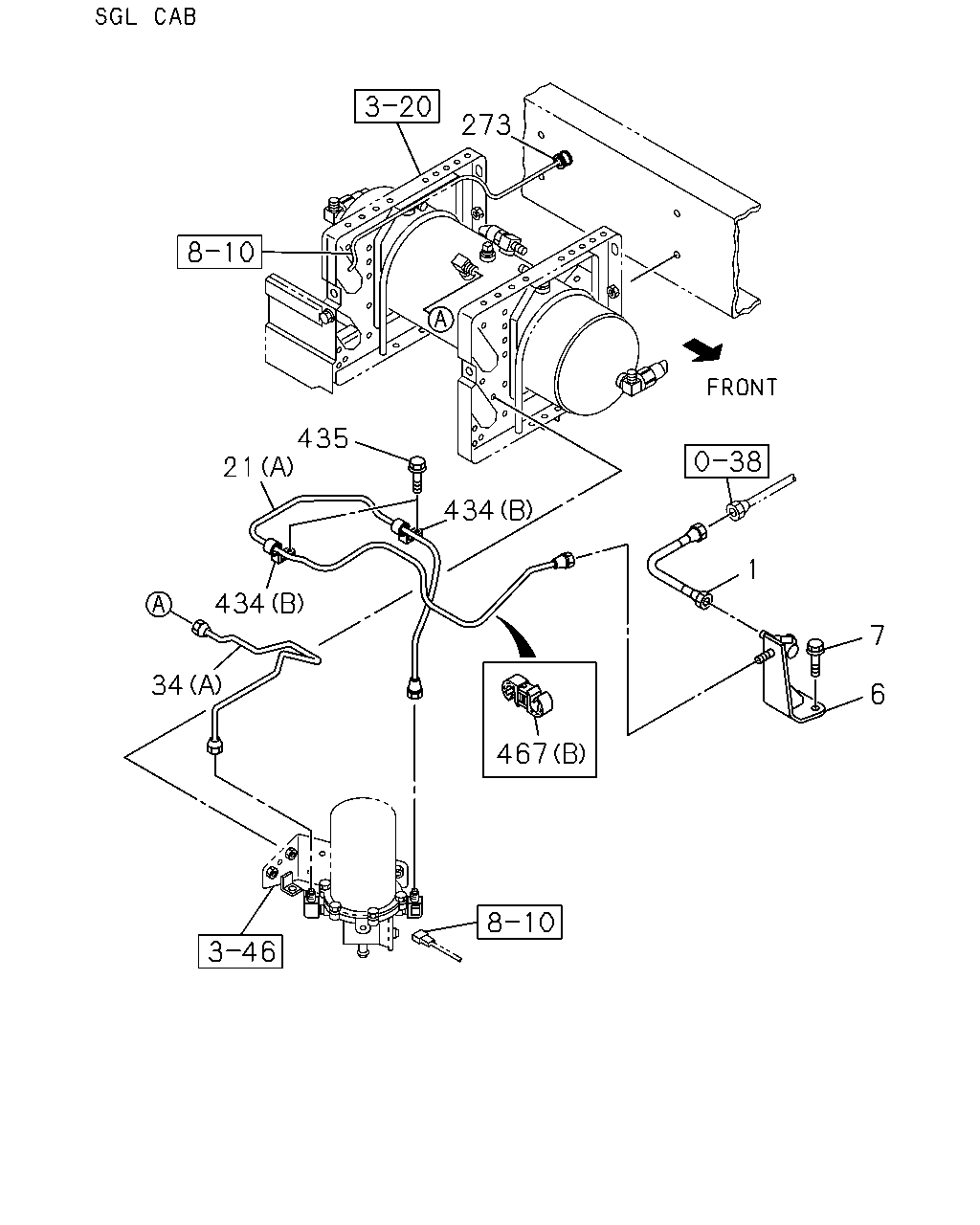

çizim 502586
273 435 21 434 34 467 6 7 1 434
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 1511- ● ●
1 HOSE; FLEX,AIR TANK 8-98079-973-0 01 1 1511- ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98079-987-1 01 1 1511- ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ● ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1816 		8-98083-100-0 01 1 1511- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
(B) L=1701 		8-98101-764-0 01 1 1511- ●
34 PIPE; AIR
(A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1511- ● ●
34 PIPE; AIR
(B) L=869 SERVICED BY L=900 		1-49115-484-0 01 1 1511- ●
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1511- ● ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1511- ● ● ●
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1511- ● ● ●
434 CLIP
(A) L=350 		1-09707-183-0 14 1 1511- ● ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ● ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ● ●
467 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1511- ● ● ●
467 CLIP; NYLON TUBE
(B) ID=10 & 15 		1-09709-279-1 01 1 1511- ● ● ●
