3-58 — FIXING PARTS; OIL PIPING (#169206) — 35 parça

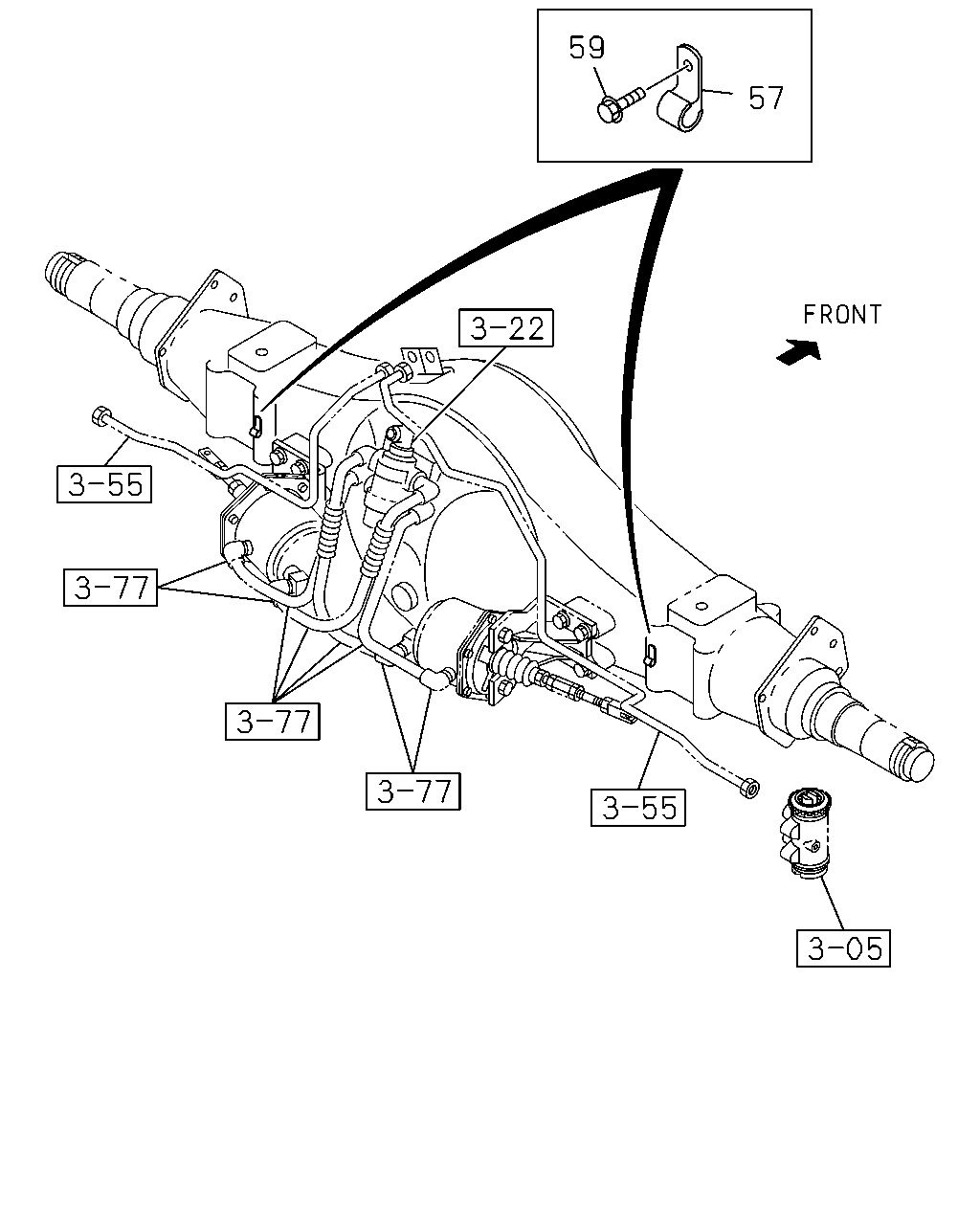

59 57

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	02	1	1511-	●	●	●
	59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	02	1	1511-	●	●	●

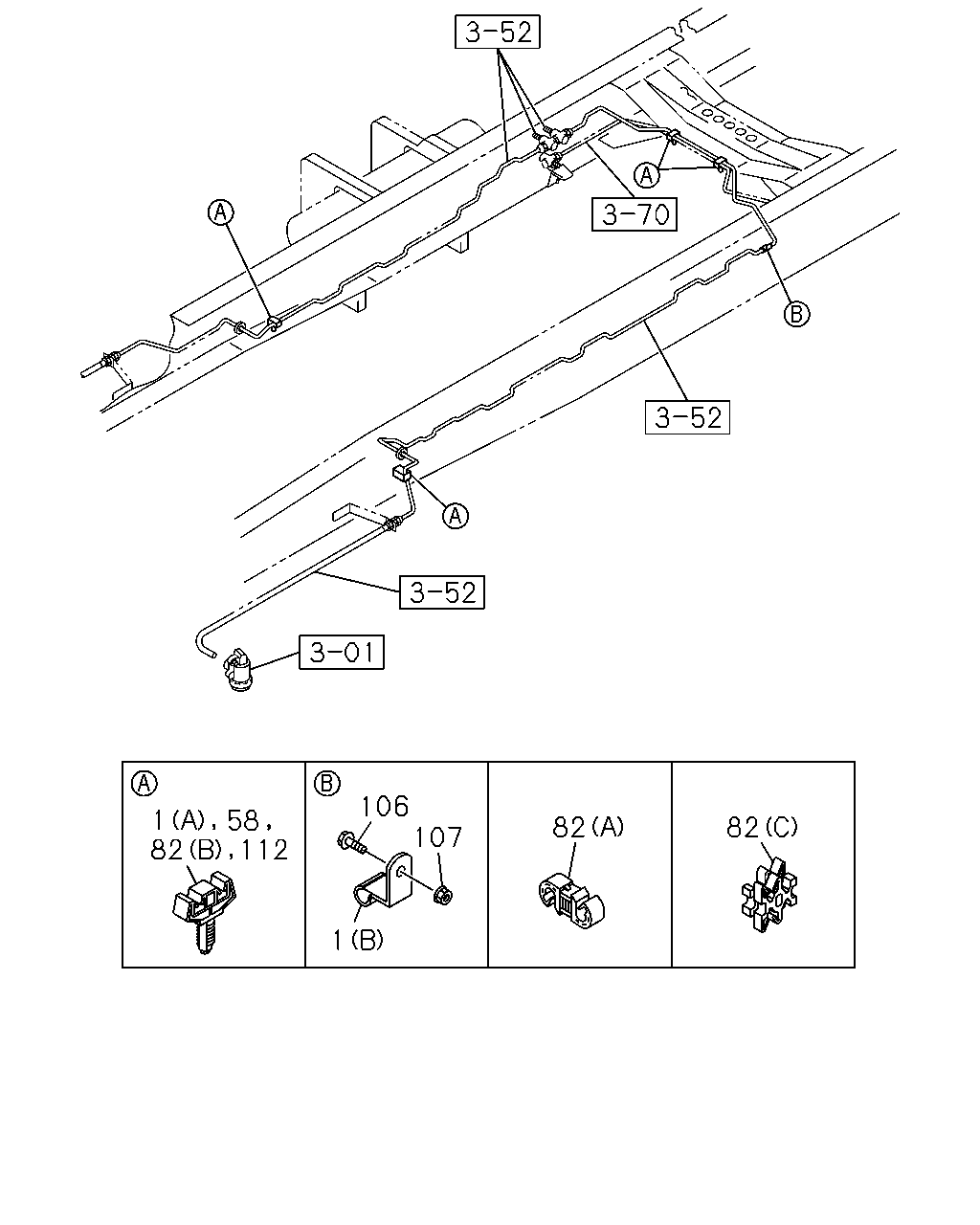

1 82 112 106 107 1 58 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLIP; OIL PIPE TO BODY (A)	8-98012-254-1	07	1	1511-	●	●
1	CLIP; OIL PIPE TO BODY (B) ID=6 H=20 L=20	8-98040-714-0	05	1	1511-	●	●
1	CLIP; OIL PIPE TO BODY (A)	8-98012-254-1	09	1	1511-			●
1	CLIP; OIL PIPE TO BODY (B) ID=6 H=20 L=20	8-98040-714-0	04	1	1511-			●
58	CLIP; OIL PIPE	8-98012-254-1	04	1	1511-	●
58	CLIP; OIL PIPE	8-98012-254-1	05	1	1511-		●	●
82	CLIP; OIL PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 12	1-09709-278-1	01	1	1511-	●	●
82	CLIP; OIL PIPE (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1511-	●	●
82	CLIP; OIL PIPE THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	06	1	1511-	●	●
82	CLIP; OIL PIPE THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	08	1	1511-	●	●
82	CLIP; OIL PIPE THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	03	1	1511-	●	●
82	CLIP; OIL PIPE (A) ID=4.76 & 10.0	1-09709-305-0	03	1	1511-			●
82	CLIP; OIL PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1511-	●	●
82	CLIP; OIL PIPE H.S.A SYSTEM<6EP> (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1511-			●
82	CLIP; OIL PIPE EXC. H.S.A SYSTEM<6EP> (A) ID=10 & 10	1-09709-277-1	05	1	1511-			●
82	CLIP; OIL PIPE EXC. H.S.A SYSTEM<6EP> (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1511-	●	●
82	CLIP; OIL PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	04	1	1511-	●	●
82	CLIP; OIL PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	02	1	1511-	●	●
82	CLIP; OIL PIPE (C) ID=4.7X4	1-09701-304-0	03	1	1511-	●	●	●
82	CLIP; OIL PIPE (B) ID=4.8X2	8-94316-410-0	01	1	1511-	●	●	●
82	CLIP; OIL PIPE (A) ID=6.35 & 12	1-09709-275-1	01	1	1511-			●
82	CLIP; OIL PIPE (A) ID=10 & 12	1-09709-278-1	02	1	1511-			●
82	CLIP; OIL PIPE (A) ID=4.76 & 6.35	1-09709-304-0	03	1	1511-			●
82	CLIP; OIL PIPE H.S.A SYSTEM<6EP> (A) ID=10 & 10	1-09709-277-1	06	1	1511-			●
82	CLIP; OIL PIPE EXC. H.S.A SYSTEM<6EP> (A) ID=6.35 & 10.0	1-09709-274-1	02	1	1511-			●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	05	1	1511-	●	●
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	04	1	1511-			●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	05	1	1511-	●	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	1511-			●
112	CLIP; OIL PIPE WHEEL BASE 4300MM(43W)	8-98012-254-1	04	1	1511-	●	●
112	CLIP; OIL PIPE WHEEL BASE 5100MM(51W)	8-98012-254-1	06	1	1511-	●	●
112	CLIP; OIL PIPE WHEEL BASE 5500MM(55W)	8-98012-254-1	07	1	1511-		●
112	CLIP; OIL PIPE WHEEL BASE 5100MM(51W)	8-98012-254-1	07	1	1511-			●
