Isuzu WW
▶
TRUCKS
▶
FRR
▶
11714 - FRR AUST/NZ EURO5 EXC.SPACECAB
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#169204) — 23 parça
Tümü
A - FCD5MS
B - FCR5MS
C - FCR5WS
◀

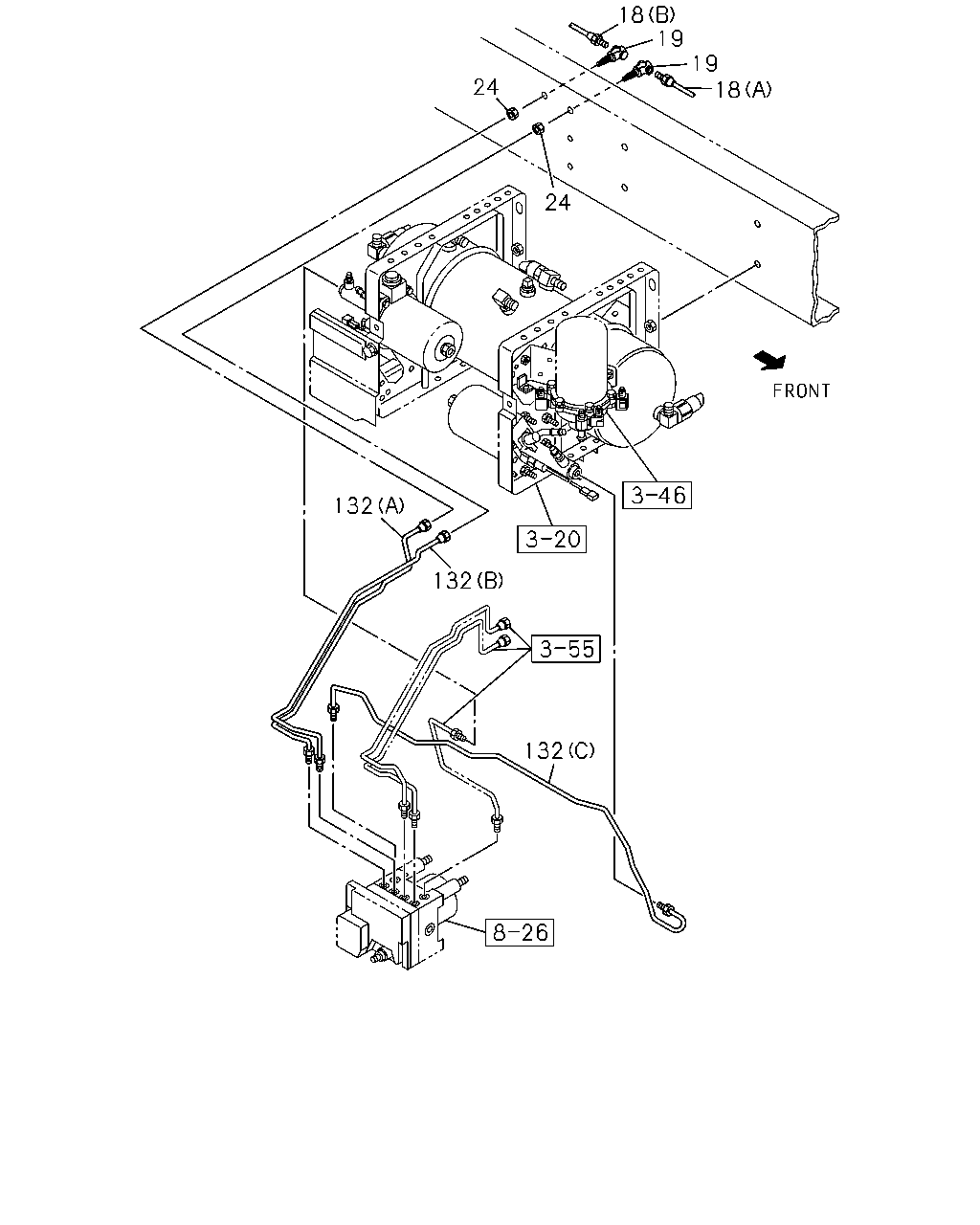

[352A] AIR TANK SIDE (12 parça)

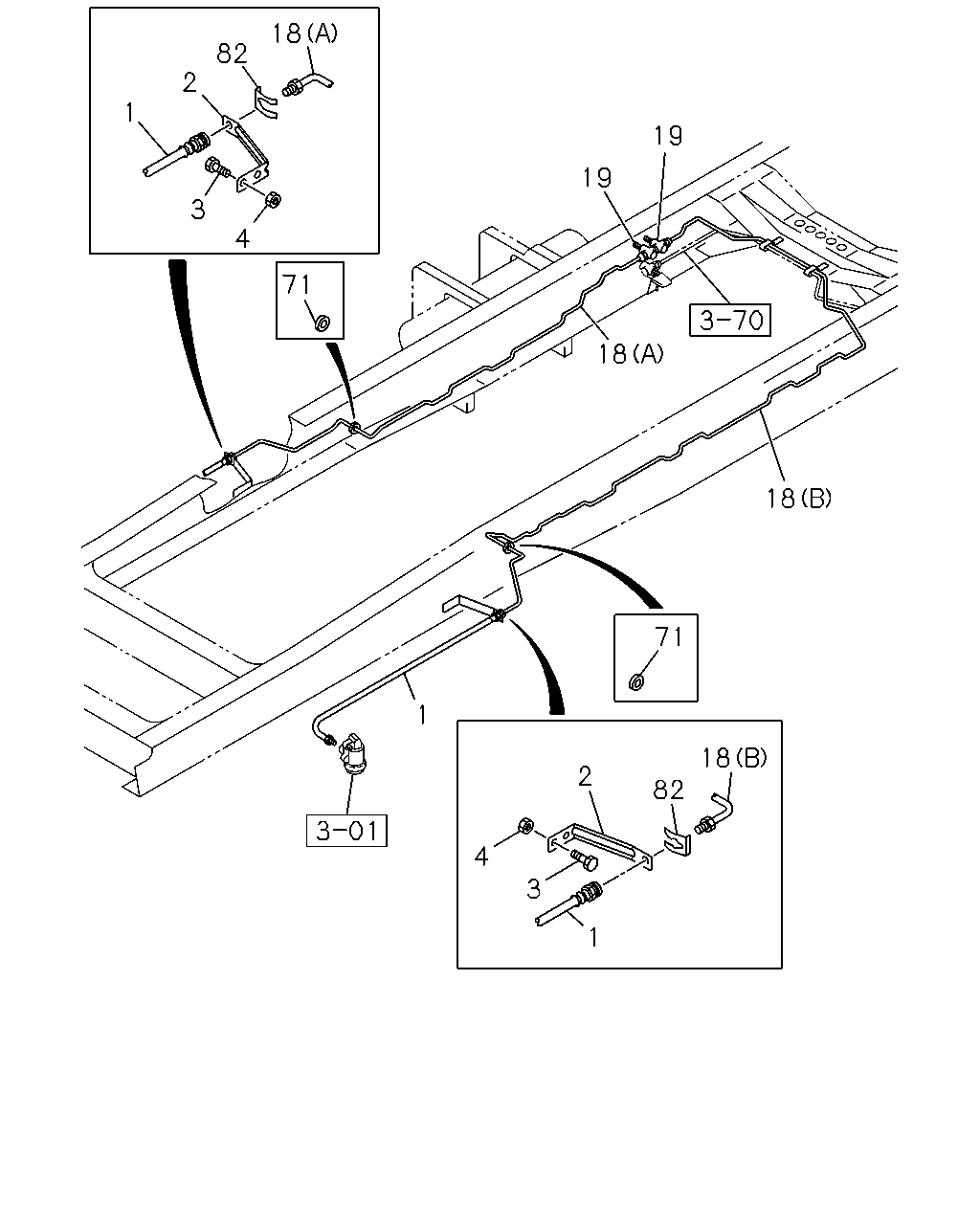

[352A] FRAME SIDE (11 parça)
▶
18
19
19
18
132
132
132
24
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=3127
8-98328-107-0
01
1
1511-
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1885
8-98242-375-0
01
1
1511-
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1454
8-98112-848-0
01
1
1511-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=3545
8-98253-322-1
01
1
1511-
●
19
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
1511-
●
●
●
24
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
02
1
1511-
●
●
●
132
PIPE; OIL,BRK,HYD UNIT
(A) L=625
8-98116-095-0
01
1
1511-
●
●
132
PIPE; OIL,BRK,HYD UNIT
(B) L=661
8-98213-363-0
01
1
1511-
●
●
132
PIPE; OIL,BRK,HYD UNIT
(C) L=948
8-98213-849-0
01
1
1511-
●
●
132
PIPE; OIL,BRK,HYD UNIT
(C) L=1039
8-98086-402-0
01
1
1511-
●
132
PIPE; OIL,BRK,HYD UNIT
(A) L=619
8-98086-403-0
01
1
1511-
●
132
PIPE; OIL,BRK,HYD UNIT
(B) L=648
8-98086-404-0
01
1
1511-
●
1
2
82
18
3
4
71
19
19
18
18
71
18
82
2
4
3
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
HOSE; FLEX,FRT BRK
L=450
8-98242-141-0
02
1
1511-
●
●
●
2
BRACKET; FLEX HOSE,FRT BRK
8-98011-947-1
02
1
1511-
●
●
●
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE
0-28650-825-0
04
1
1511-
●
●
●
4
NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE
0-91180-108-0
04
1
1511-
●
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=3127
8-98328-107-0
01
1
1511-
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1885
8-98242-375-0
01
1
1511-
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1454
8-98112-848-0
01
1
1511-
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=3545
8-98253-322-1
01
1
1511-
●
19
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
1511-
●
●
●
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
1511-
●
●
●
82
PLATE; FLEX HOSE
8-97360-054-0
02
1
1511-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
