Isuzu WW
▶
TRUCKS
▶
FRR
▶
11714 - FRR AUST/NZ EURO5 EXC.SPACECAB
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶

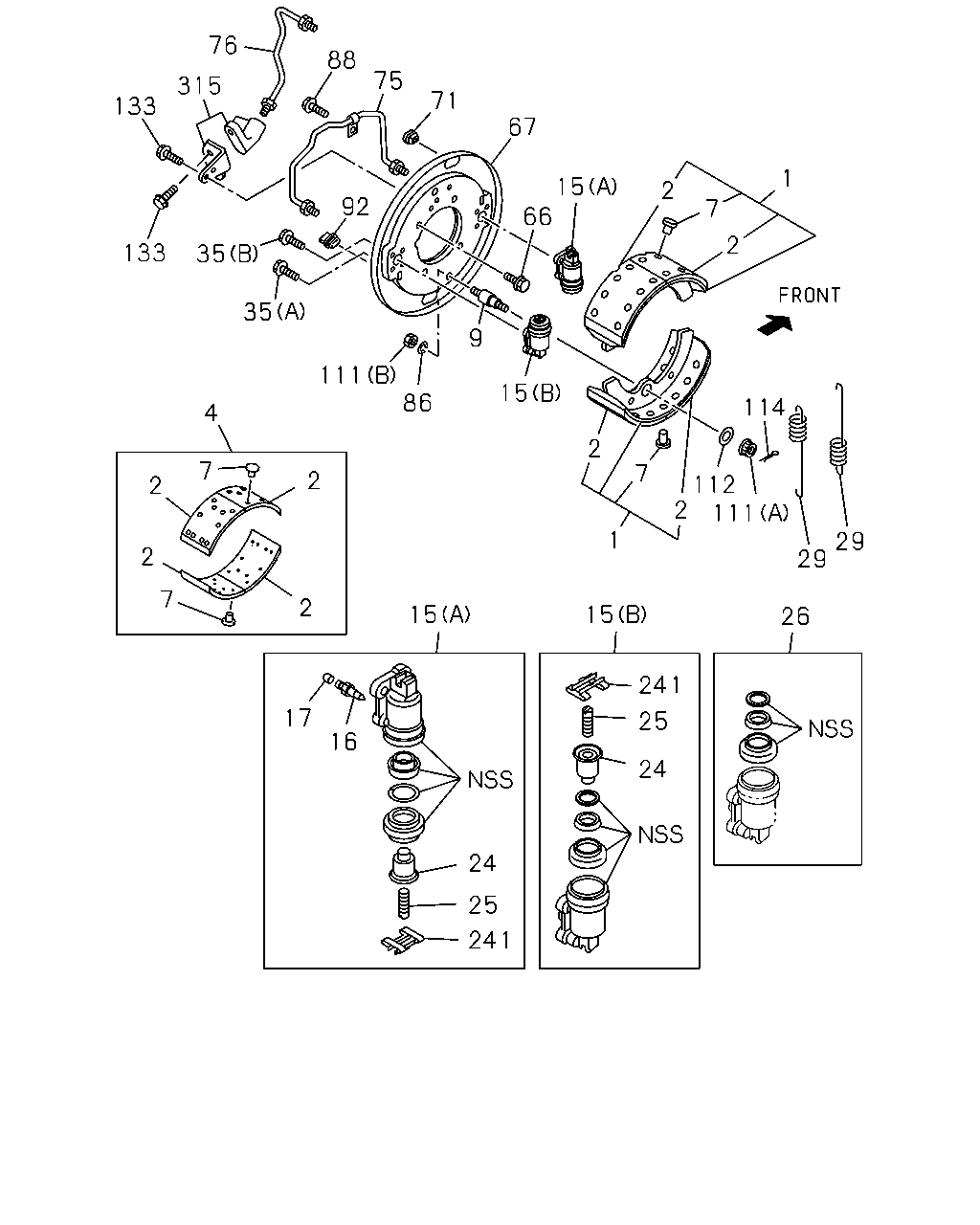

3-01 — FRONT WHEEL BRAKE
(#169192) — 35 parça
Tümü
A - FCD5MS
B - FCR5MS
C - FCR5WS
76
88
1
2
7
2
29
29
111
114
112
2
7
1
2
15
66
15
67
71
75
92
9
86
111
35
35
133
133
315
26
15
15
4
2
2
7
2
2
7
17
16
24
25
241
241
25
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
SHOE; BRK,FRT
1-47170-483-0
04
1
1511-
●
●
●
2
LINING; FRT BRK SHOE,STANDARD
1-47126-800-0
08
1
1511-
●
●
●
4
LINING SET; FRT BRK,STANDARD
1-88311-385-0
02
1
1511-
●
●
●
7
RIVET; LINING,FRT BRK
D6X11.5
1-09732-019-0
64
1
1511-
●
●
●
9
PIN; SHOE HOLDER
1-47162-046-0
04
1
1511-
●
●
●
15
CYLINDER; WHEEL,FRT BRK
(B) BACKWARD
1-47601-172-0
01
1
1511-
●
●
●
15
CYLINDER; WHEEL,FRT BRK
(A) FORWARD
1-47601-173-0
01
1
1511-
●
●
●
15
CYLINDER; WHEEL,FRT BRK
(B) BACKWARD
1-47601-174-0
01
1
1511-
●
●
●
15
CYLINDER; WHEEL,FRT BRK
(A) FORWARD
1-47601-175-0
01
1
1511-
●
●
●
16
SCREW; BLEEDER,FRT BRK
1-47615-009-0
02
1
1511-
●
●
●
17
CAP; BLEEDER,FRT WHEEL CYL
OD=12
1-47619-011-0
02
1
1511-
●
●
●
24
PISTON; FRT WHEEL CYL
1-47620-237-0
04
1
1511-
●
●
●
25
SCREW; ADJ,FRT WHEEL CYL
1-47622-070-0
04
1
1511-
●
●
●
26
CUP SET; FRT WHEEL CYL
1-87831-309-0
04
1
1511-
●
●
●
29
SPRING; RETURN,FRT BRK SHOE
1-09583-385-2
04
1
1511-
●
●
●
35
BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER
0-50551-025-0
08
1
1511-
●
●
●
35
BOLT; FRT WHEEL CYL
(B)
1-47159-227-0
08
1
1511-
●
●
●
66
BOLT; OIL SHIELD COVER
M14X60
0-20951-460-0
04
1
1511-
●
●
●
67
PLATE; BACK,FRT BRK
1-47150-716-1
01
1
1511-
●
●
●
67
PLATE; BACK,FRT BRK
1-47150-717-1
01
1
1511-
●
●
●
71
GROMMET; CHECK HOLE
1-09333-139-0
04
1
1511-
●
●
●
75
PIPE; OIL,FWD,FRT BRK
1-49167-859-0
02
1
1511-
●
●
●
76
PIPE; OIL,BACKWARD,FRT BRK
8-98242-030-0
01
1
1511-
●
●
●
76
PIPE; OIL,BACKWARD,FRT BRK
8-98242-031-0
01
1
1511-
●
●
●
86
WASHER; LK,FRT WHEEL CYL
1-47159-110-0
04
1
1511-
●
●
●
88
BOLT; BRK PIPE CLAMP
M6X10
9-01900-610-0
02
1
1511-
●
●
●
92
GROMMET; ADJ HOLE
1-09333-138-0
04
1
1511-
●
●
●
111
NUT; FLANGE,SHOE HOLD
(A)
1-09440-101-0
04
1
1511-
●
●
●
111
NUT; FLANGE,SHOE HOLD
(B)
1-47159-111-0
04
1
1511-
●
●
●
112
WASHER; PL,SHOE HOLD
1-47169-037-0
04
1
1511-
●
●
●
114
PIN; SPLIT,SHOE HOLD
1-47169-048-0
04
1
1511-
●
●
●
133
BOLT; BRKT
M8X20 W/LK WASHER
0-50540-820-0
04
1
1511-
●
●
●
241
HOLDER
1-47619-097-0
04
1
1511-
●
●
●
315
BRACKET; BRAKE FLEX HOSE
8-98256-819-0
01
1
1511-
●
●
●
315
BRACKET; BRAKE FLEX HOSE
8-98256-820-0
01
1
1511-
●
●
●
