Sayfa 2-53 - Isuzu EPC

2-53 — TRANSMISSION OIL COOLER SYSTEM (#169187) — 131 parça

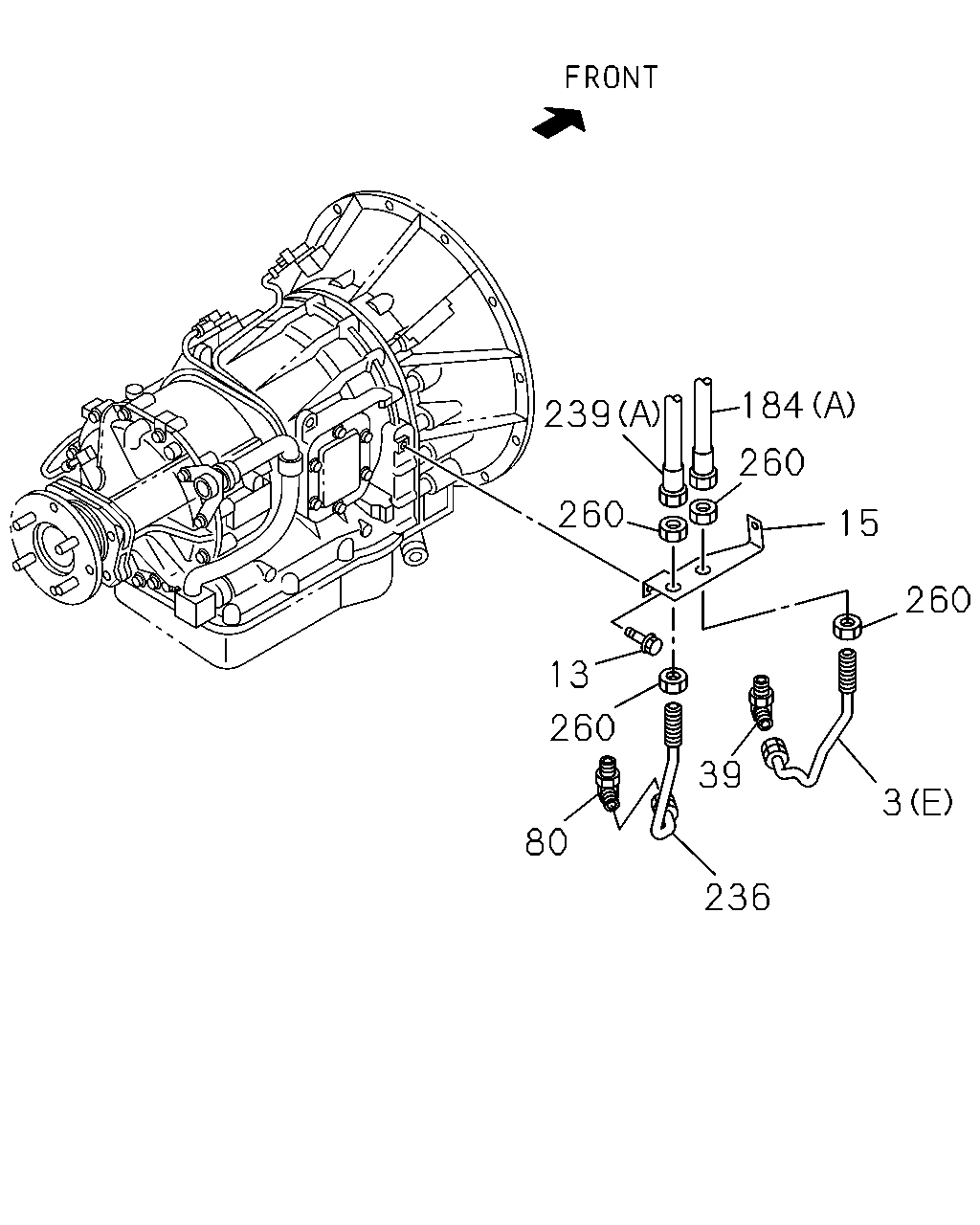

3 260 260 15 236 80 39 260 13 260 239 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	PIPE; OIL,A/T TO OIL COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98260-622-1	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98260-624-0	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1511-	●	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1511-		●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1511-		●
13	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	8-98105-048-0	01	1	1511-	●	●	●
15	BRACKET; ATF PIPE LCT2500 A/T ALLISON(Y5W)	8-98075-836-0	01	1	1511-	●	●	●
39	CONNECTOR; FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W)	1-09661-766-1	01	1	1511-	●	●	●
80	UNION; FLEX HOSE LCT2500 A/T ALLISON(Y5W)	1-09661-766-1	01	1	1511-	●	●	●
184	HOSE; FLEX,PIPE TO COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98080-165-0	01	1	1511-	●	●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98010-582-2	01	1	1511-	●	●	●
236	PIPE; OIL,OIL COOLER TO A/T LCT2500 A/T ALLISON(Y5W)	8-98158-384-1	01	1	1511-	●	●	●
239	HOSE; FLEX,COOLER TO PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98097-594-0	01	1	1511-	●	●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (B)	8-98010-583-2	01	1	1511-	●	●	●
260	NUT LCT2500 A/T ALLISON(Y5W) M30	1-09400-166-0	04	1	1511-	●	●	●

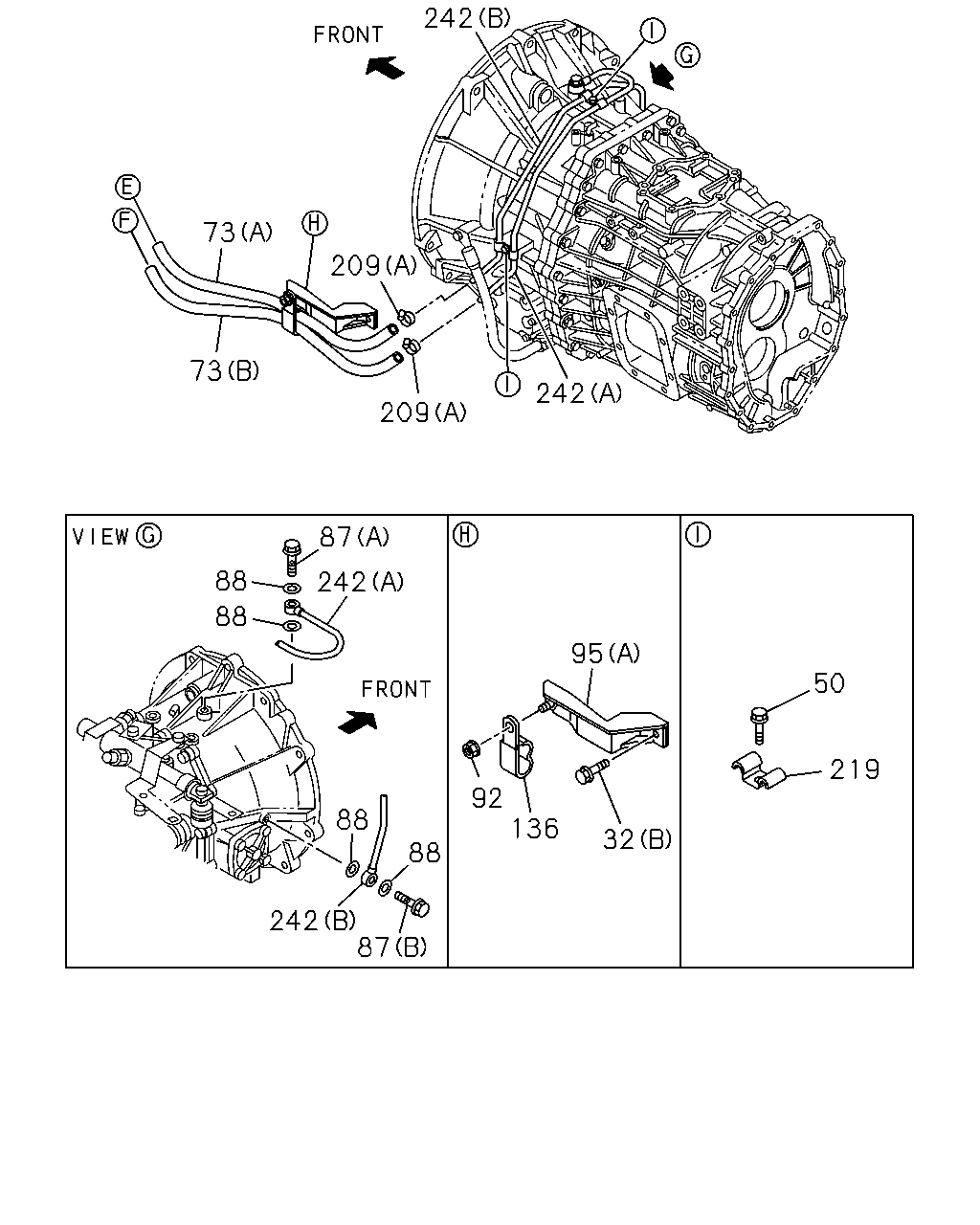

242 242 209 73 73 209 87 242 88 88 95 50 219 32 136 92 88 88 242 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1511-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1511-		●
32	BOLT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1511-		●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1511-		●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1511-		●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1511-		●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	1511-		●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1511-		●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1511-		●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) L=50	1-47475-299-2	02	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=68.5	1-47475-591-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) L=115 B=25	1-47476-758-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98245-750-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98245-751-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98245-752-0	01	1	1511-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1511-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1511-		●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-148-0	01	1	1511-		●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1511-	●	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1511-		●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1511-		●
242	PIPE; COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98260-619-1	01	1	1511-	●	●
242	PIPE; COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98260-620-0	01	1	1511-	●	●
242	PIPE; COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98269-403-0	01	1	1511-	●	●
242	PIPE; COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98269-404-0	01	1	1511-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1511-		●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1511-		●

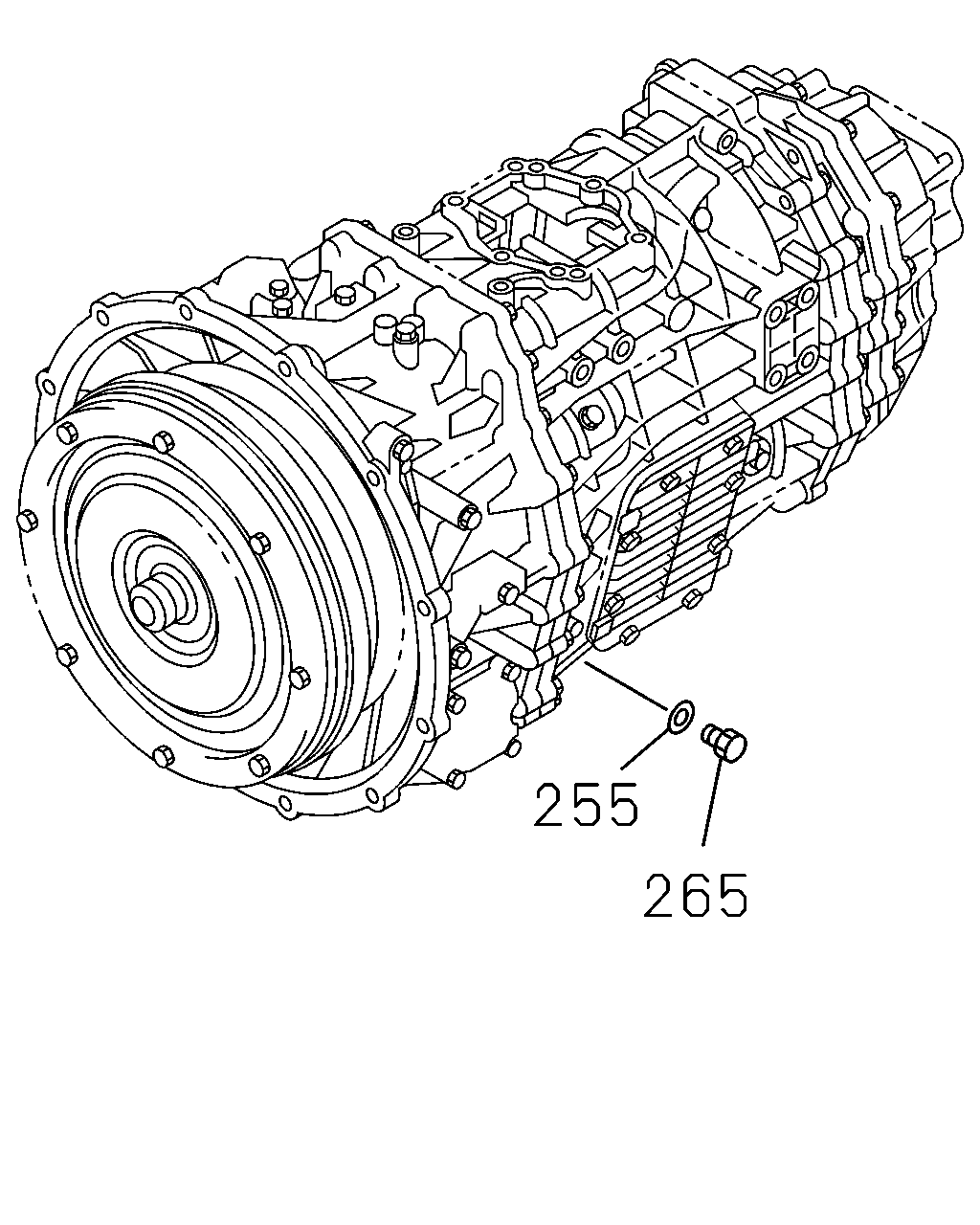

265 255

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	255	GASKET; SENSOR MZW6P M/T(RSZ) ID=12.2	9-09571-412-0	01	1	1511-	●	●	●
	265	PLUG; HOLE MZW6P M/T(RSZ) M12X9	0-92002-412-0	01	1	1511-	●	●	●

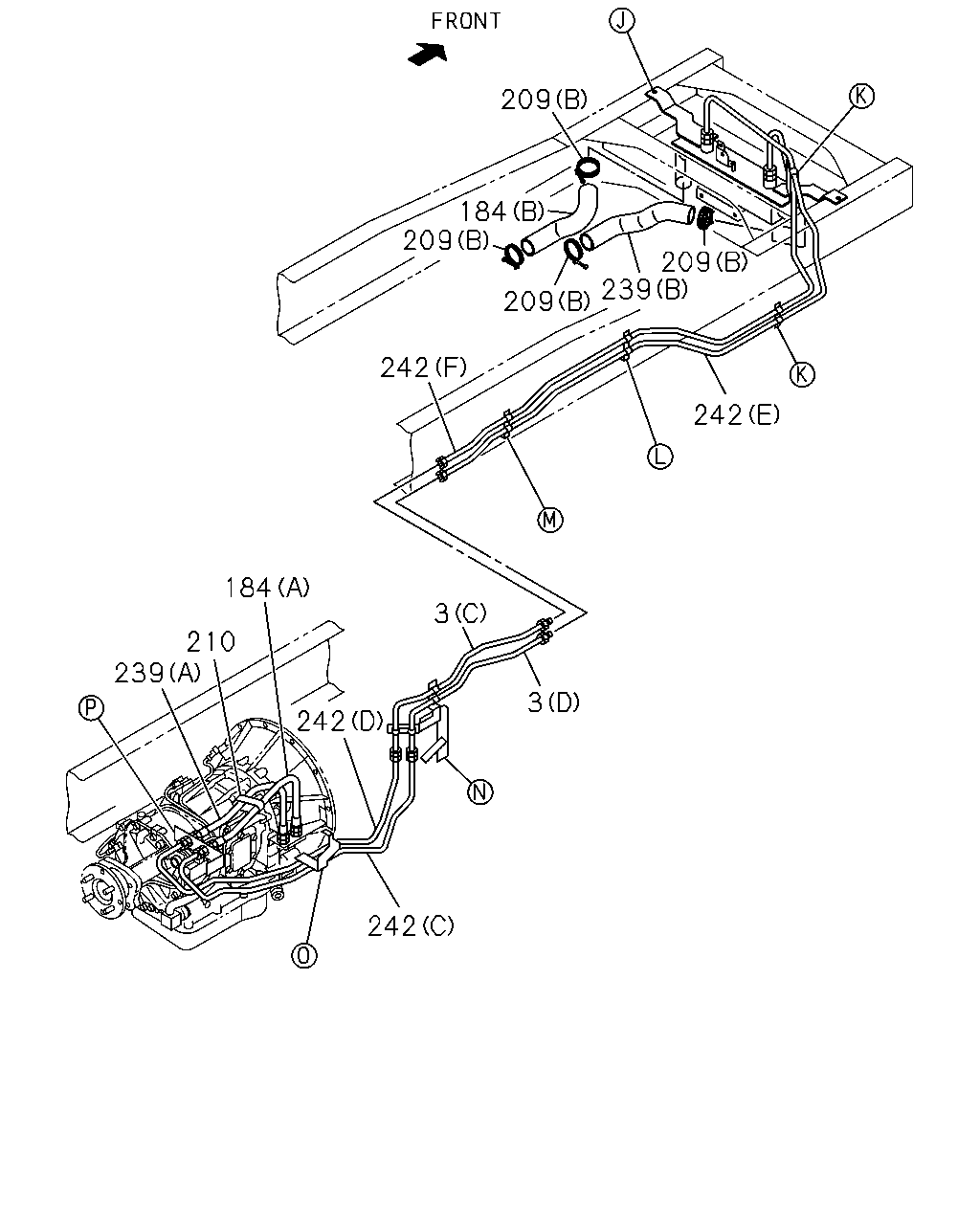

242 3 3 242 242 184 210 239 242 209 184 209 209 239 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	PIPE; OIL,A/T TO OIL COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98260-622-1	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98260-624-0	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1511-	●	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1511-		●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1511-		●
184	HOSE; FLEX,PIPE TO COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98080-165-0	01	1	1511-	●	●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98010-582-2	01	1	1511-	●	●	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1511-	●	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1511-		●
210	BAND; FLEX HOSE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=175	1-09707-178-0	01	1	1511-	●	●
239	HOSE; FLEX,COOLER TO PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98097-594-0	01	1	1511-	●	●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (B)	8-98010-583-2	01	1	1511-	●	●	●
242	PIPE; COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98260-619-1	01	1	1511-	●	●
242	PIPE; COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98260-620-0	01	1	1511-	●	●
242	PIPE; COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98269-403-0	01	1	1511-	●	●
242	PIPE; COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98269-404-0	01	1	1511-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1511-		●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1511-		●

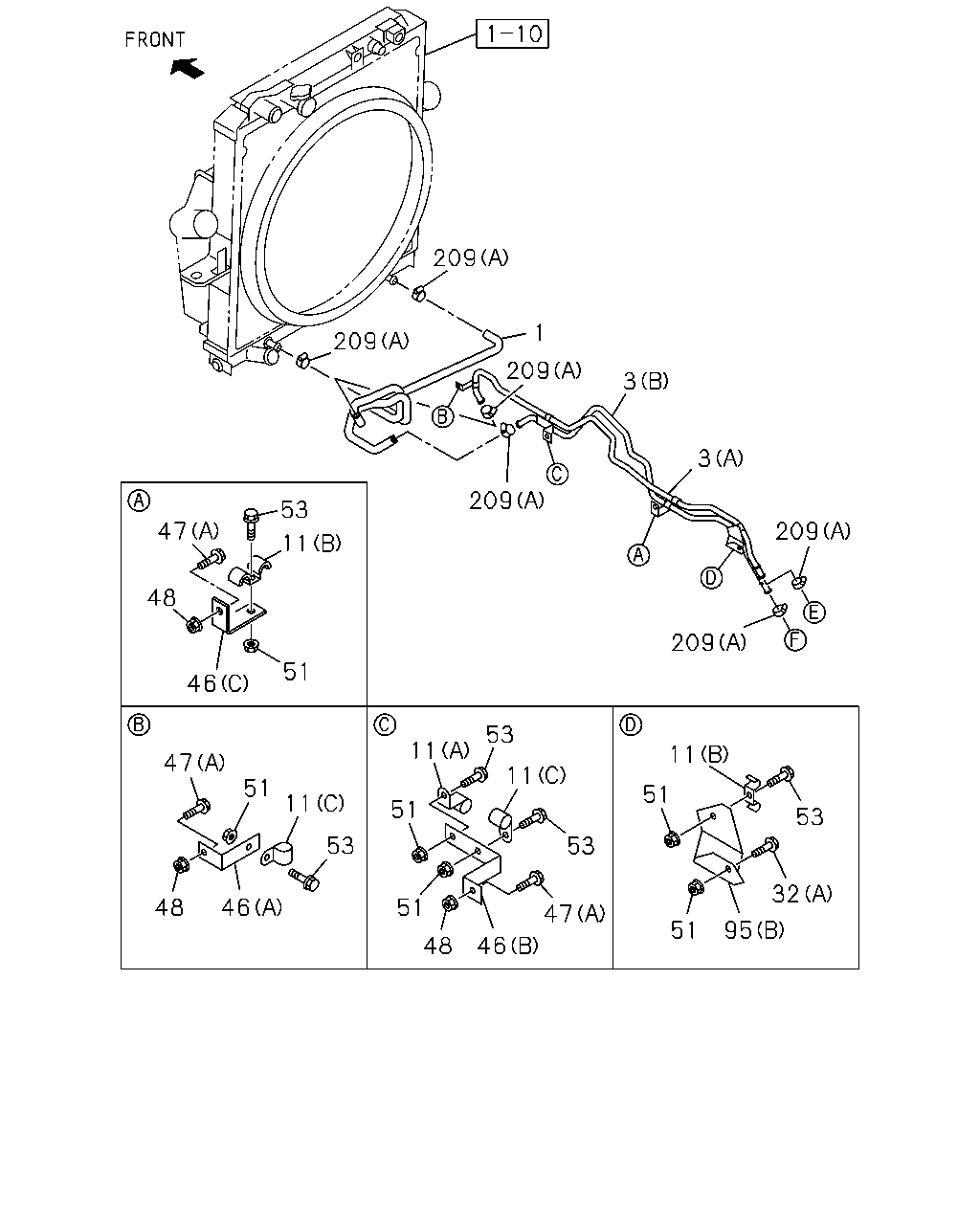

209 209 209 1 3 3 209 209 209 53 47 11 48 51 46 47 51 11 53 46 48 11 11 53 53 51 51 48 46 11 47 51 53 32 95 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1511-		●
3	PIPE; OIL,A/T TO OIL COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98260-622-1	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98260-624-0	01	1	1511-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1511-	●	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1511-		●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1511-		●
11	CLIP; PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=19 & 19 L=32.5 & 32.5	1-09701-034-1	02	1	1511-	●	●
11	CLIP; PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=19 & 19	1-09701-324-0	05	1	1511-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1511-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1511-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1511-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1511-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1511-		●
32	BOLT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1511-		●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1511-		●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1511-		●
47	BOLT; BRKT TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X25 FLANGE	0-28650-825-0	06	1	1511-	●	●
47	BOLT; BRKT TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M10X30 FLANGE	0-28651-030-0	03	1	1511-	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	03	1	1511-		●
48	NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1511-		●
51	NUT; CLIP TO BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1511-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE	0-28050-820-0	06	1	1511-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	1511-		●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) L=50	1-47475-299-2	02	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=68.5	1-47475-591-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) L=115 B=25	1-47476-758-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98245-750-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98245-751-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98245-752-0	01	1	1511-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1511-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1511-		●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1511-	●	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1511-		●

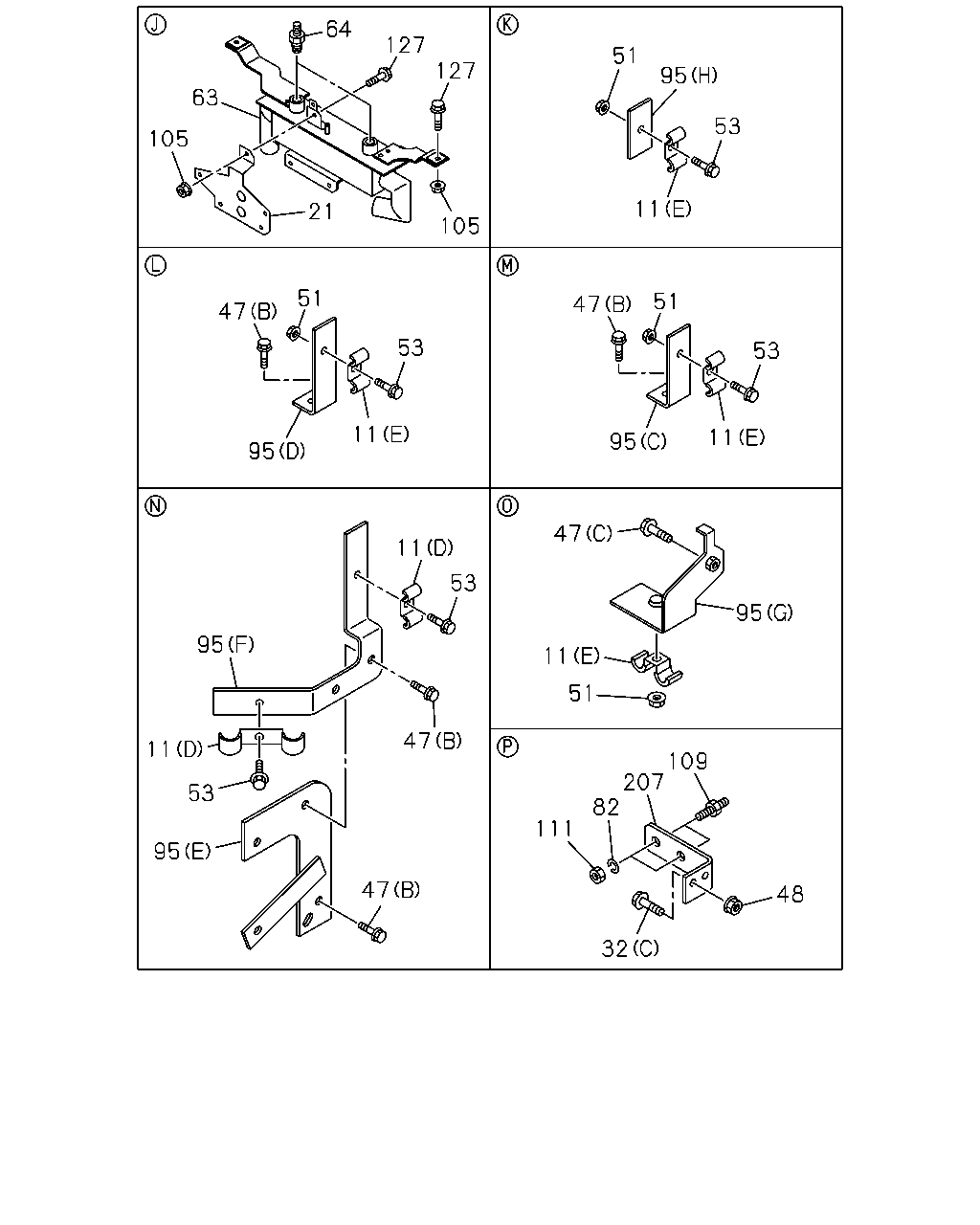

95 48 32 111 207 82 109 51 11 47 11 53 47 47 95 11 53 95 95 47 51 53 11 47 51 95 11 53 11 51 53 127 105 127 64 63 105 95 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	CLIP; PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=19 & 19 L=32.5 & 32.5	1-09701-034-1	02	1	1511-	●	●
11	CLIP; PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=19 & 19	1-09701-324-0	05	1	1511-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1511-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1511-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1511-		●
21	BRACKET; COOLER A/T<X9D>	8-98087-647-1	01	1	1511-	●	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1511-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1511-		●
32	BOLT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
47	BOLT; BRKT TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X25 FLANGE	0-28650-825-0	06	1	1511-	●	●
47	BOLT; BRKT TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M10X30 FLANGE	0-28651-030-0	03	1	1511-	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	03	1	1511-		●
48	NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1511-		●
51	NUT; CLIP TO BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1511-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE	0-28050-820-0	06	1	1511-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	1511-		●
63	COOLER; OIL A/T<X9D>	8-98233-275-0	01	1	1511-	●	●	●
64	CONNECTOR; OIL COOLER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09660-210-0	02	1	1511-	●	●
82	WASHER; LK,UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=30.5	9-09150-530-0	02	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) L=50	1-47475-299-2	02	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=68.5	1-47475-591-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) L=115 B=25	1-47476-758-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98245-750-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98245-751-0	01	1	1511-	●	●
95	BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98245-752-0	01	1	1511-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1511-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1511-		●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	07	1	1511-	●	●	●
109	UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M30 & M30 STRAIGHT	1-09664-191-0	02	1	1511-	●	●
111	NUT; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M30	9-09840-252-1	02	1	1511-	●	●
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	07	1	1511-	●	●	●
207	BRACKET; UNION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98240-233-0	01	1	1511-	●	●
