◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11714 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39A - POWER ASSISTOR ▶
2-39A — POWER ASSISTOR (#169182) — 27 parça

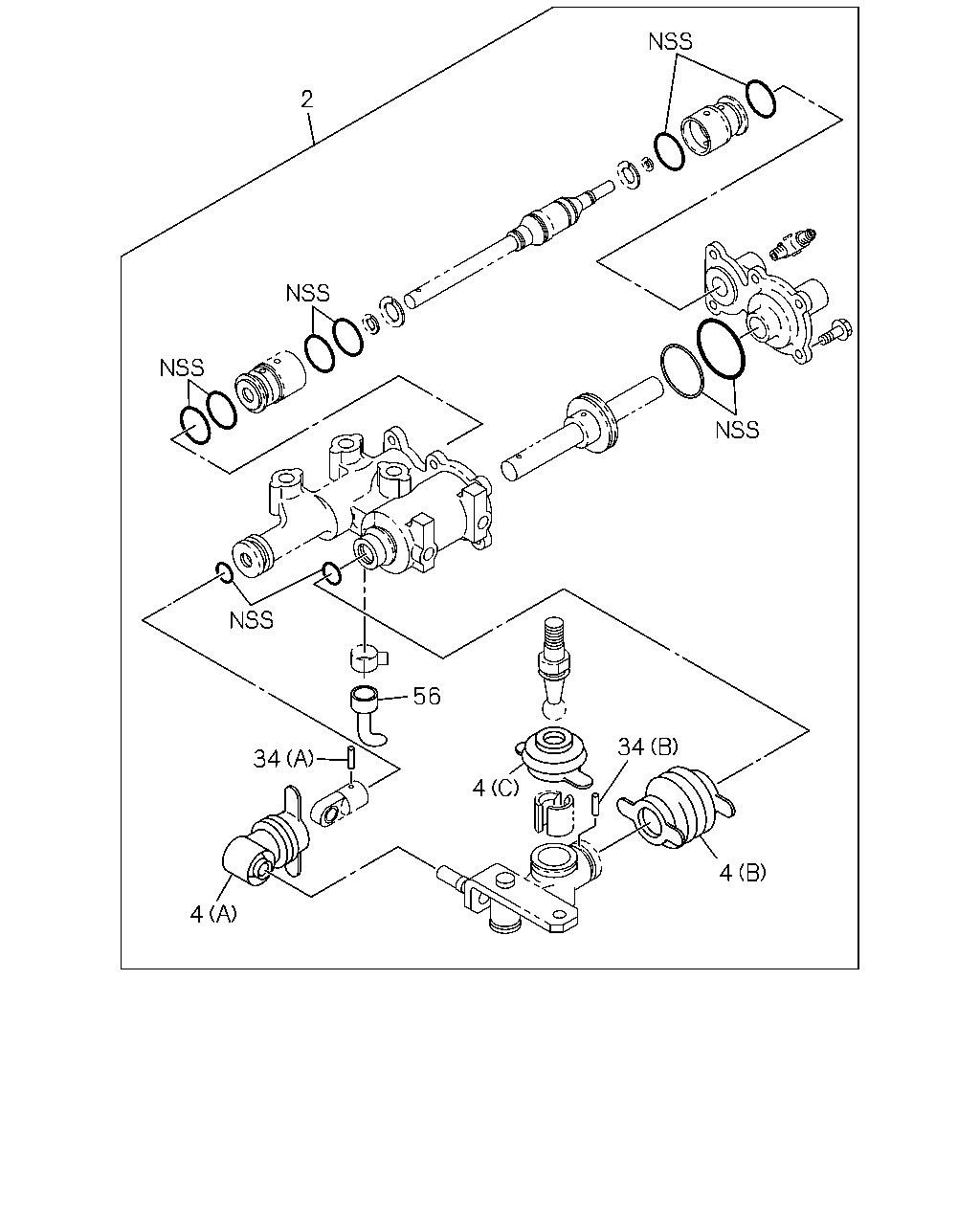

çizim 500678
2 56 34 4 4 34 4
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33738-028-0 01 1 1511-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-843-0 01 1 1511-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-844-0 01 1 1511-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33739-847-0 01 1 1511-
34 PIN; STRAIGHT,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-885-0 01 1 1511-
34 PIN; STRAIGHT,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-974-0 01 1 1511-
56 HOSE; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-848-0 01 1 1511-

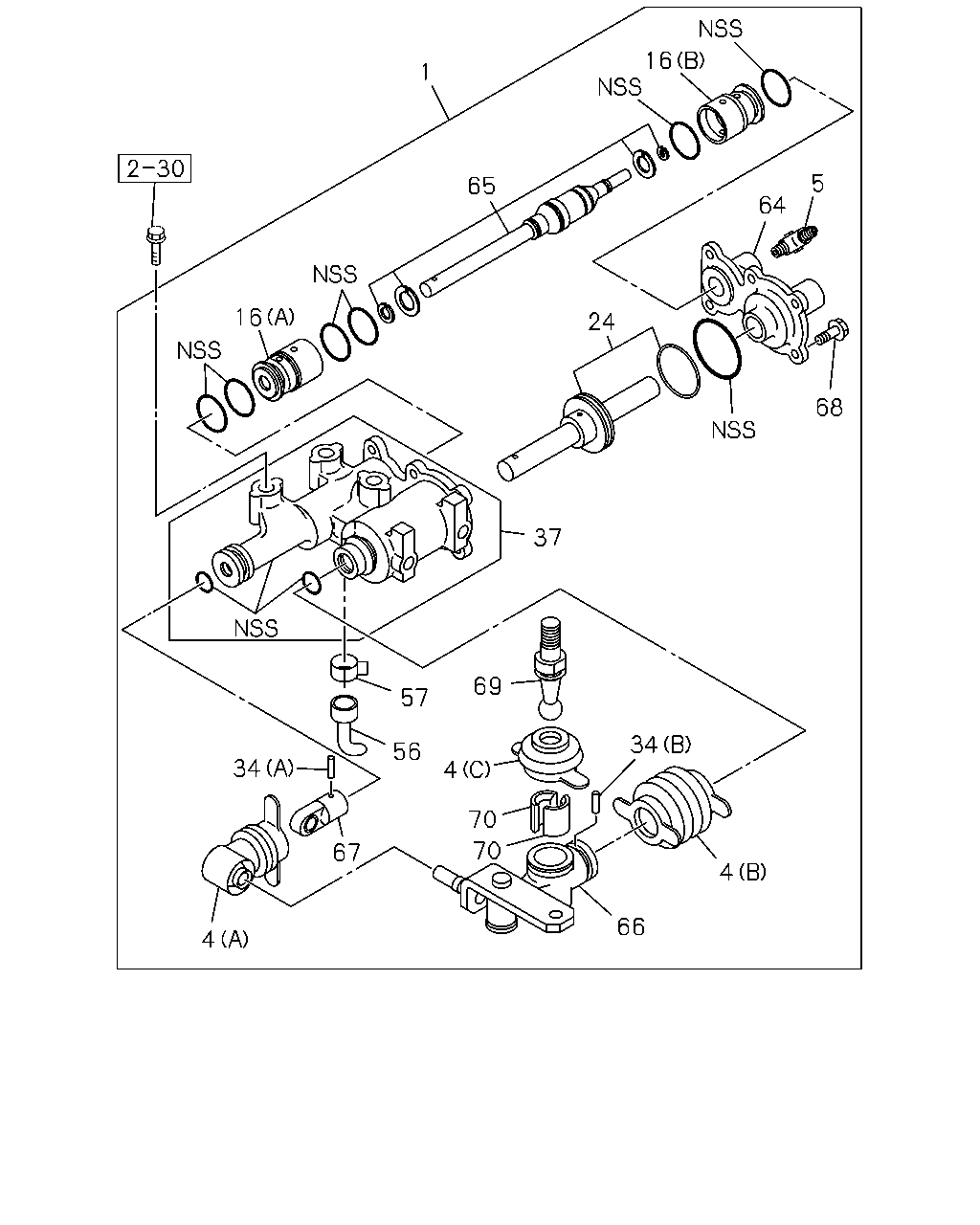

çizim 500848
16 1 65 16 24 64 5 68 37 57 56 34 67 4 70 70 4 69 34 66 4
BalonParca AdiParca NoAdetTipApplied Date
1 ASSISTOR ASM; POWER,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98022-843-0 01 1 1511-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-843-0 01 1 1511-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-844-0 01 1 1511-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33739-847-0 01 1 1511-
5 CONNECTOR; CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8 		0-92124-306-0 01 1 1511-
16 SEAT; VALVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-97388-032-0 01 1 1511-
16 SEAT; VALVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-97388-033-0 01 1 1511-
24 PISTON
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-836-1 01 1 1511-
34 PIN; STRAIGHT,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-885-0 01 1 1511-
34 PIN; STRAIGHT,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-974-0 01 1 1511-
37 HOUSING; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-969-0 01 1 1511-
56 HOSE; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-848-0 01 1 1511-
57 CLAMP; HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-849-0 01 1 1511-
64 COVER; HOUSING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-970-0 01 1 1511-
65 VALVE; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-97388-029-0 01 1 1511-
66 JOINT ASM; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-972-0 01 1 1511-
67 JOINT; BALL,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-973-0 01 1 1511-
68 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE 		1-33739-842-0 06 1 1511-
69 STUD; BALL,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-846-0 01 1 1511-
70 SEAT; BALL STUD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33659-118-0 02 1 1511-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
