2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#169181) — 11 parça

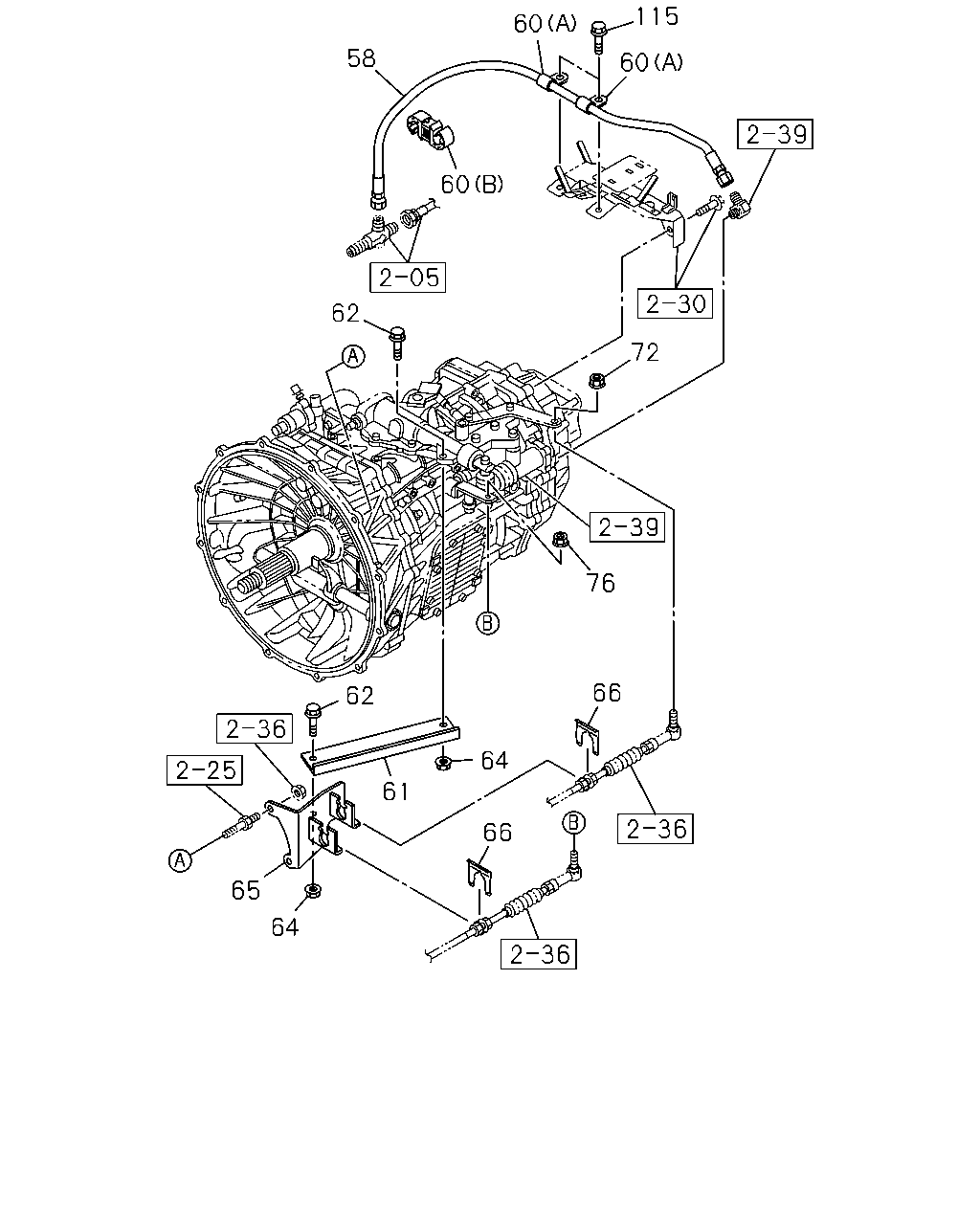

çizim 500853
115 60 60 58 60 62 76 72 66 64 66 61 62 65 64
BalonParca AdiParca NoAdetTipApplied Date A B C
58 HOSE; FLEX,POWER ASSISTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=640 		1-09363-626-1 01 1 1511- ● ● ●
60 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 L=20 		0-95235-235-0 02 1 1511- ● ● ●
60 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=10 & 10 		1-09709-277-1 01 1 1511- ● ● ●
61 STAY; BRKT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 1511- ● ● ●
62 BOLT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 1511- ● ● ●
64 NUT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-159-0 01 1 1511- ● ● ●
66 CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2 		1-09701-209-1 02 1 1511- ● ● ●
72 NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 1511- ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 1511- ● ● ●
115 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ● ● ●
