◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11714 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26A - MANUAL TRANSMISSION GEAR ▶
2-26A — MANUAL TRANSMISSION GEAR (#169177) — 116 parça

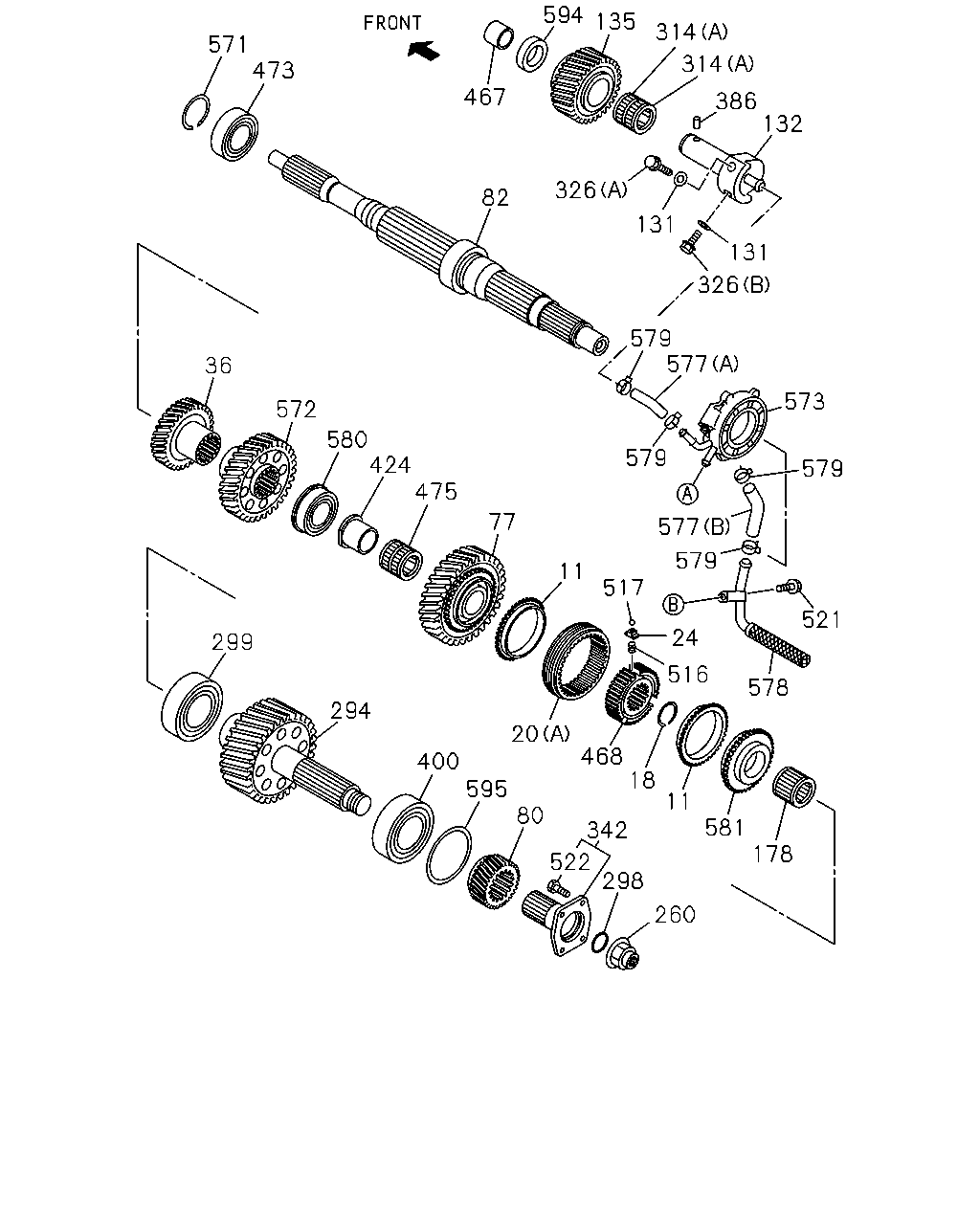

çizim 501489
571 473 594 135 314 314 386 467 132 326 82 131 131 326 579 577 573 579 521 579 577 579 578 516 24 517 11 77 475 424 580 572 36 299 294 400 20 468 18 11 581 178 595 80 342 522 298 260
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1511-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1511-
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45 		8-98034-769-0 01 1 1511-
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45 		8-98258-279-0 02 1 1511-
20 SLEEVE
15" CLUTCH(RE9) (A) Z=45 		8-98258-279-0 03 1 1511-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1511-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1511-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1511-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-1 01 1 1511-
82 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26 		8-98292-396-0 01 1 1511-
82 SHAFT; MAIN,TRANS
15" CLUTCH(RE9) Z=13-21-19-26 		8-98245-057-0 01 1 1511-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 		9-09571-410-0 02 1 1511-
132 SHAFT; REV 8-98009-372-0 01 1 1511-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1511-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1511-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1511-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1511-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1511-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1511-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1511-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1511-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1511-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1511-
342 FLANGE; OUTPUT 8-98155-334-0 01 1 1511-
386 PIN; REV SHAFT
OD=4 L=8 		9-08150-408-0 01 1 1511-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1511-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1511-
467 COLLAR; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 1511-
468 HUB; CLU,5TH & 6TH
Z=45 		8-98075-734-0 01 1 1511-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1511-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1511-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1511-
516 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98054-981-0 09 1 1511-
516 SPRING; SYNCHRO,INDEX
15" CLUTCH(RE9) 		8-98032-197-0 09 1 1511-
517 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97252-935-0 10 1 1511-
517 BALL; SYNCHRO,INDEX
15" CLUTCH(RE9) 		8-97252-935-0 09 1 1511-
521 BOLT
M8X12 FLANGE 		0-28050-812-0 01 1 1511-
522 BOLT; FLANGE
M14X43 KNURL 		8-98014-003-0 04 1 1511-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1511-
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1511-
573 PUMP ASM; OIL 8-98212-241-0 01 1 1511-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1511-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1511-
578 SCREEN; OIL PUMP 8-98009-345-0 02 1 1511-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1511-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1511-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1511-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1511-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1511-

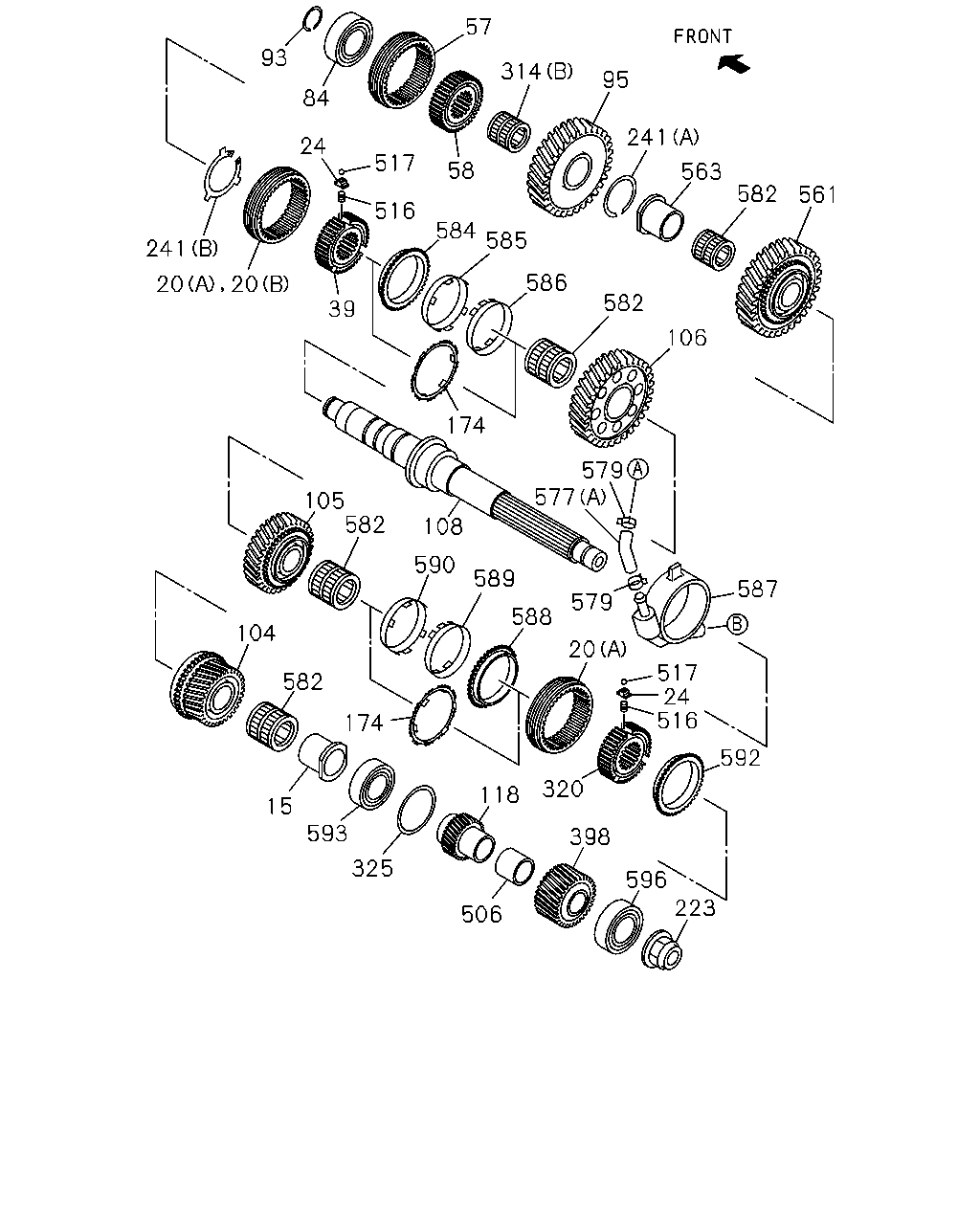

çizim 501603
223 596 398 320 118 506 325 593 15 174 582 104 105 108 582 589 590 588 20 579 517 24 516 592 587 579 577 106 582 586 174 39 516 517 584 58 585 241 95 314 57 563 561 582 84 93 24 20 20 241
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1511-
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45 		8-98034-769-0 01 1 1511-
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45 		8-98258-279-0 02 1 1511-
20 SLEEVE
15" CLUTCH(RE9) (A) Z=45 		8-98258-279-0 03 1 1511-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1511-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98309-852-0 01 1 1511-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1511-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1511-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-1 01 1 1511-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1511-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1511-
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1511-
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1511-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1511-
108 SHAFT; COUNTER
Z=27-42-26 		8-98303-643-0 01 1 1511-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1511-
174 SYNCHRONIZER ASM; 2ND-3RD
15" CLUTCH(RE9) 		8-98315-823-2 02 1 1511-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1511-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1511-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1511-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1511-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1511-
320 HUB; CLU,4TH & 3RD
Z=45 		8-98309-859-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1511-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1511-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1511-
516 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98054-981-0 09 1 1511-
516 SPRING; SYNCHRO,INDEX
15" CLUTCH(RE9) 		8-98032-197-0 09 1 1511-
517 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97252-935-0 10 1 1511-
517 BALL; SYNCHRO,INDEX
15" CLUTCH(RE9) 		8-97252-935-0 09 1 1511-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1511-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1511-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1511-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1511-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1511-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1511-
584 RING; BLOCK,2ND
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45 		8-98034-770-0 01 1 1511-
585 RING; OUTSIDE,2ND
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-309-1 01 1 1511-
586 RING; INSIDE,2ND
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-312-1 01 1 1511-
587 CASE; PUMP,COUNTER 8-98303-650-0 01 1 1511-
588 RING; BLOCK,3RD
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45 		8-97241-306-1 01 1 1511-
589 RING; OUTSIDE,3RD
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-309-1 01 1 1511-
590 RING; INSIDE,3RD
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-312-1 01 1 1511-
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1511-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1511-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1511-
