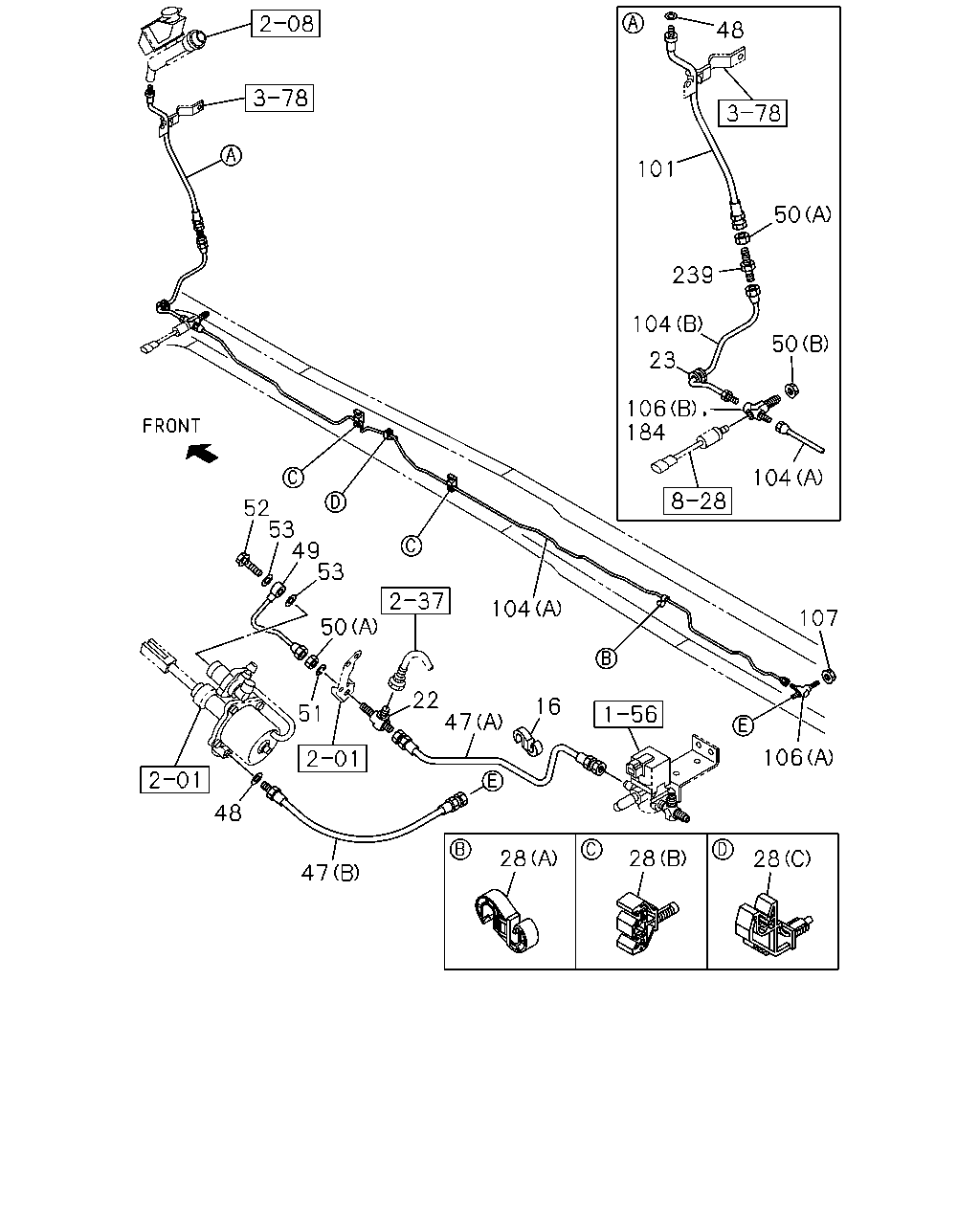

2-05 — CLUTCH PIPING (#169170) — 27 parça

48 101 239 104 23 106 184 104 50 50 52 53 49 53 50 51 48 47 22 47 104 16 28 28 28 106 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; FLEX HOSE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12	1-09709-278-1	02	1	1511-	●	●	●
22	UNION; CLU PIPE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	1511-	●	●	●
23	GROMMET; CLU PIPE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1511-	●	●	●
28	CLIP; OIL PIPE ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35	1-09701-247-1	01	1	1511-	●	●
28	CLIP; OIL PIPE ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98012-254-1	01	1	1511-	●	●
28	CLIP; OIL PIPE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1511-	●	●	●
28	CLIP; OIL PIPE ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=4.76 & 6.35	1-09709-304-0	01	1	1511-			●
28	CLIP; OIL PIPE ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98012-254-1	02	1	1511-			●
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=540	1-09363-612-1	01	1	1511-	●	●	●
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=470	8-98072-353-0	01	1	1511-	●	●	●
48	GASKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	02	1	1511-	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	1511-	●	●	●
50	NUT; UNION MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1511-	●	●	●
50	NUT; UNION MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1511-	●	●	●
50	NUT; UNION MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12	0-91111-512-0	01	1	1511-	●	●	●
51	WASHER; LK MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-812-0	01	1	1511-	●	●	●
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ) 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1511-	●	●	●
53	GASKET; JOINT BOLT MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1511-	●	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=500	8-98072-350-0	01	1	1511-	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2695	8-98078-148-2	01	1	1511-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336	8-98067-058-0	01	1	1511-	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) SERVICED BY L=2650	1-47428-743-0	01	1	1511-			●
106	UNION; OIL PIPE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 2WAY	1-09654-059-2	01	1	1511-	●	●	●
106	UNION; OIL PIPE MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY	8-98051-113-0	01	1	1511-	●	●	●
107	NUT; UNION,OIL PIPE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	0-91111-512-0	01	1	1511-	●	●	●
184	UNION; FLEX HOSE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1511-	●	●	●
239	UNION; CLU HOSE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 L=66.5	0-92113-306-0	01	1	1511-	●	●	●
