Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#169163) — 191 parça

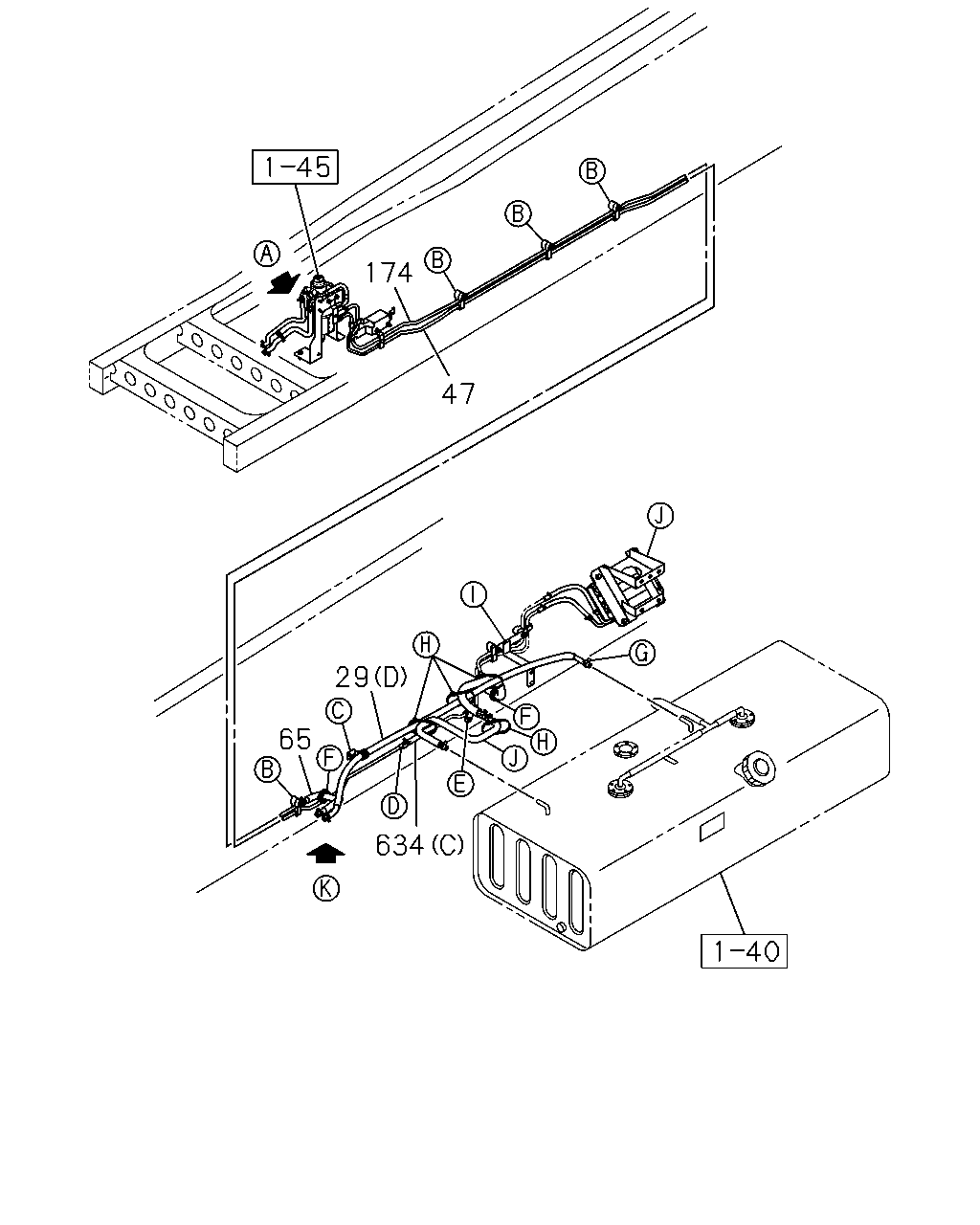

29 65 47 174 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	HOSE; FUEL (C) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1511-	●	●	●
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (D)	8-98306-416-2	01	1	1511-	●	●
29	HOSE; FUEL WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (D)	8-98306-418-2	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98078-197-1	01	1	1511-	●	●	●
29	HOSE; FUEL (B)	8-98156-579-0	01	1	1511-	●	●	●
29	HOSE; FUEL WHEEL BASE 5100MM(51W) (D)	8-98307-061-2	01	1	1511-			●
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W) L=1903	8-98306-355-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2316	8-98306-356-0	01	1	1511-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W)	8-98306-417-1	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)	8-98306-419-1	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5100MM(51W) L=320 SERVICED BY L=3000	0-01859-300-0	01	1	1511-			●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W)	8-98178-520-0	01	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)	8-98179-133-0	01	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT	8-98233-997-0	01	1	1511-			●
634	HOSE; RUBBER RETURN (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1511-	●	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) (B)	8-98319-643-1	01	1	1511-	●	●
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1511-	●	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B)	8-98319-644-1	01	1	1511-	●	●	●

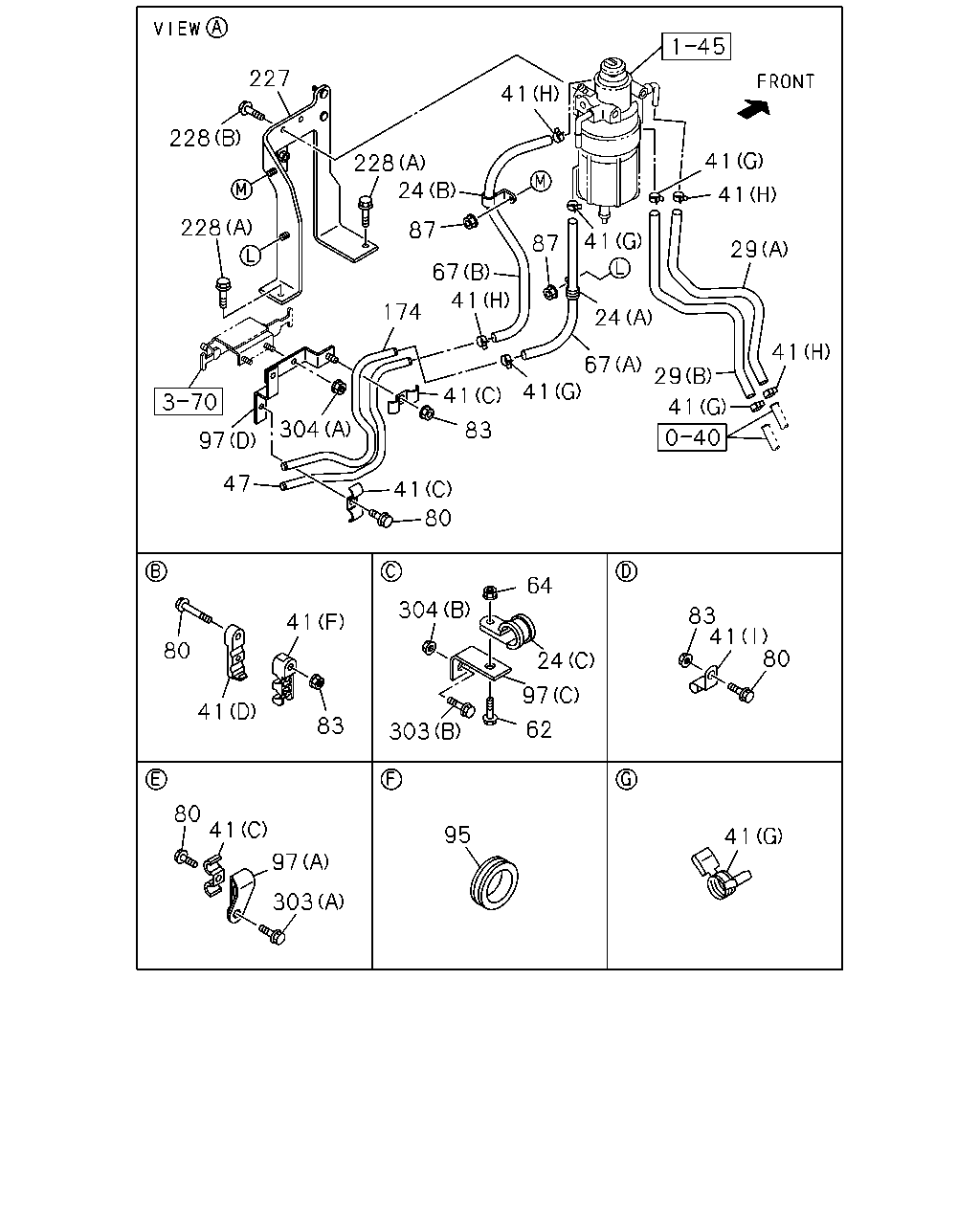

41 80 41 41 83 97 303 83 303 97 29 41 41 313 41 634 41 41 634 41 39 41 634 41 627 41 29 41 629 639 628

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	HOSE; FUEL (C) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1511-	●	●	●
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (D)	8-98306-416-2	01	1	1511-	●	●
29	HOSE; FUEL WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (D)	8-98306-418-2	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98078-197-1	01	1	1511-	●	●	●
29	HOSE; FUEL (B)	8-98156-579-0	01	1	1511-	●	●	●
29	HOSE; FUEL WHEEL BASE 5100MM(51W) (D)	8-98307-061-2	01	1	1511-			●
39	PIPE; FUEL (B)	8-98009-438-1	01	1	1511-	●	●	●
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W) (D) ID=10 & 10	1-09709-241-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W) (F) ID=10 & 10	1-09709-243-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (I) ID=11 H=20 L=25	1-09700-848-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (D) ID=10 & 10	1-09709-241-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (F) ID=10 & 10	1-09709-243-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=15.5	8-94221-519-0	01	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	02	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	09	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	02	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	07	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=16	8-97329-628-0	01	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (D) ID=10 & 10	1-09709-241-0	06	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (F) ID=10 & 10	1-09709-243-0	06	1	1511-	●	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W) M8X50 FLANGE	0-28050-850-0	05	1	1511-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W) M8X20 FLANGE	0-28650-820-0	03	1	1511-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X50 FLANGE	0-28050-850-0	04	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	01	1	1511-	●	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W) M8X50 FLANGE	0-28050-850-0	06	1	1511-	●	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	07	1	1511-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W) M8 FLANGE	0-91180-108-0	08	1	1511-	●	●	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A)	8-98117-691-0	01	1	1511-	●	●	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W) (A)	8-98117-691-0	02	1	1511-		●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) (B)	8-98239-701-0	01	1	1511-	●	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (B)	8-98239-701-0	01	1	1511-			●
97	BRACKET; CLIP (C) L=55	1-47476-177-0	01	1	1511-	●	●	●
97	BRACKET; CLIP (D)	8-98077-896-0	01	1	1511-	●	●	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W) (E)	8-98304-248-0	01	1	1511-		●
303	BOLT; BRKT WHEEL BASE 5500MM(55W) (A) M10X30 FLANGE	0-28651-030-0	03	1	1511-		●
303	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1511-	●	●
303	BOLT; BRKT (B) M10X25 FLANGE	0-28051-025-0	01	1	1511-	●	●	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (A) M10X30 FLANGE	0-28651-030-0	02	1	1511-	●	●	●
313	COOLER ASM; FUEL	8-98227-679-1	01	1	1511-	●	●	●
627	BOLT; FUEL CLR M6X25 FLANGE	0-28650-625-0	04	1	1511-	●	●	●
628	NUT; FUEL CLR M6 FLANGE	0-91180-106-0	04	1	1511-	●	●	●
629	BRACKET; FUEL CLR	8-98224-320-1	01	1	1511-	●	●	●
634	HOSE; RUBBER RETURN (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1511-	●	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) (B)	8-98319-643-1	01	1	1511-	●	●
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1511-	●	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B)	8-98319-644-1	01	1	1511-	●	●	●
639	BOLT; BRKT,FUEL CLR M10X35 FLANGE	0-28651-035-0	04	1	1511-	●	●	●

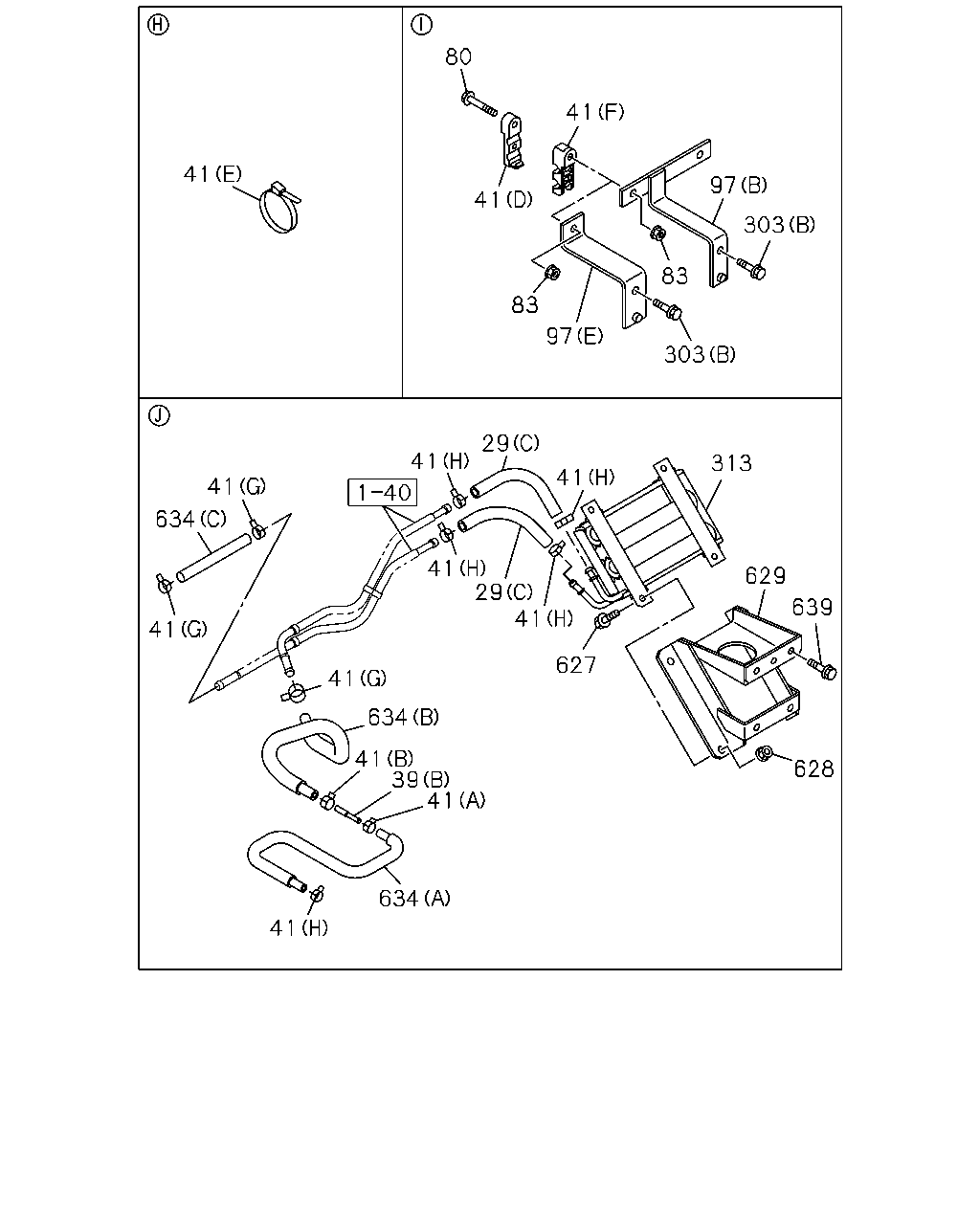

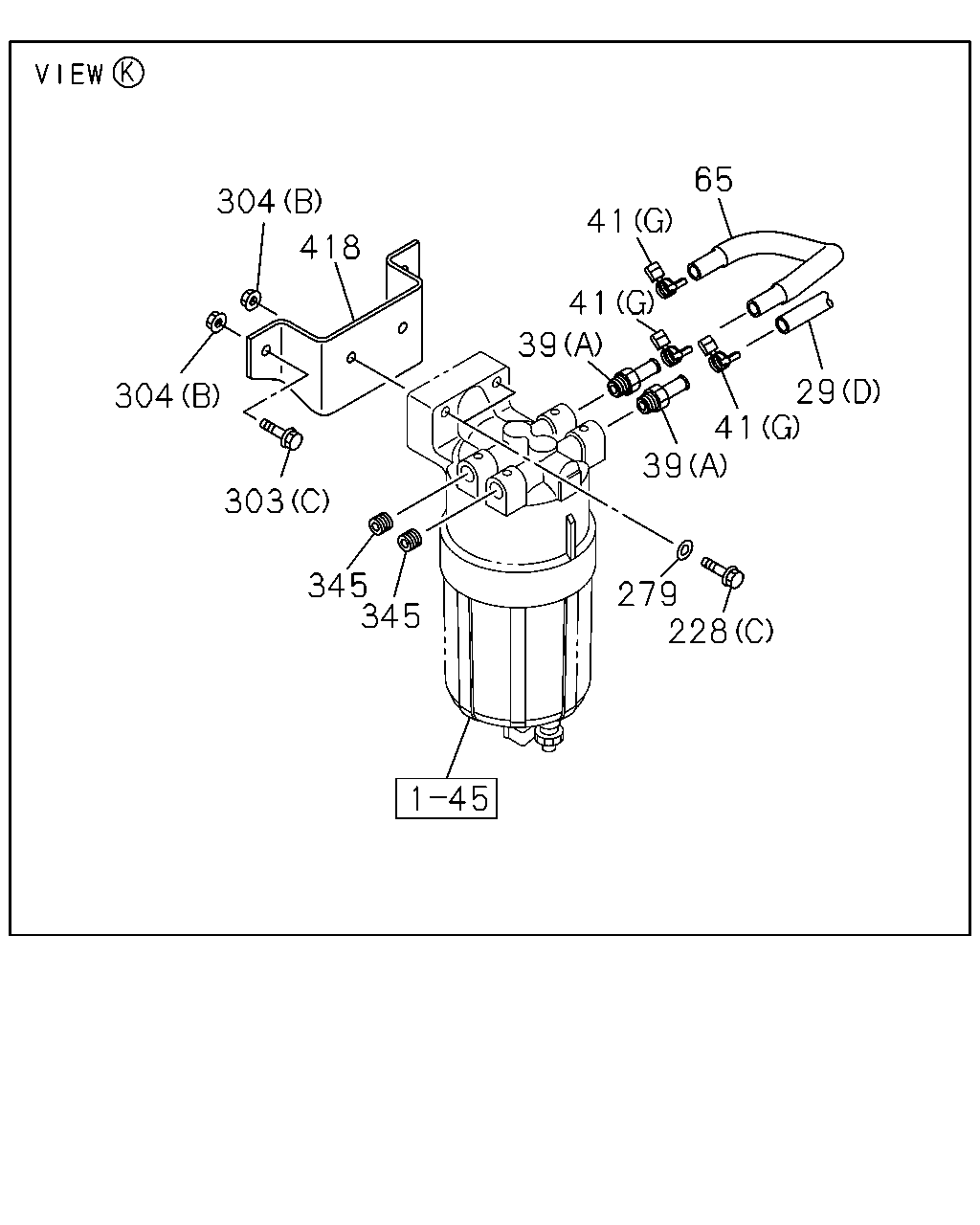

304 418 304 303 345 345 228 279 39 41 29 41 65 41 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	HOSE; FUEL (C) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1511-	●	●	●
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (D)	8-98306-416-2	01	1	1511-	●	●
29	HOSE; FUEL WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (D)	8-98306-418-2	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98078-197-1	01	1	1511-	●	●	●
29	HOSE; FUEL (B)	8-98156-579-0	01	1	1511-	●	●	●
29	HOSE; FUEL WHEEL BASE 5100MM(51W) (D)	8-98307-061-2	01	1	1511-			●
39	PIPE; FUEL (B)	8-98009-438-1	01	1	1511-	●	●	●
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W) (D) ID=10 & 10	1-09709-241-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W) (F) ID=10 & 10	1-09709-243-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (I) ID=11 H=20 L=25	1-09700-848-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (D) ID=10 & 10	1-09709-241-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (F) ID=10 & 10	1-09709-243-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=15.5	8-94221-519-0	01	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	02	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	09	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	02	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	07	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=16	8-97329-628-0	01	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (D) ID=10 & 10	1-09709-241-0	06	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (F) ID=10 & 10	1-09709-243-0	06	1	1511-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W)	8-98306-417-1	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)	8-98306-419-1	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5100MM(51W) L=320 SERVICED BY L=3000	0-01859-300-0	01	1	1511-			●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1511-	●	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1511-			●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1511-	●	●	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W) (A) M10X30 FLANGE	0-28651-030-0	03	1	1511-		●
303	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1511-	●	●
303	BOLT; BRKT (B) M10X25 FLANGE	0-28051-025-0	01	1	1511-	●	●	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (A) M10X30 FLANGE	0-28651-030-0	02	1	1511-	●	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1511-	●	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-		●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1511-	●	●	●
418	BRACKET; PRE FUEL FILTER	8-98114-787-0	01	1	1511-	●	●

41 41 80 83 64 24 97 62 303 304 41 83 41 80 80 41 97 303 95 41 29 67 24 29 41 41 41 41 228 87 67 174 41 41 41 83 41 87 227 228 228 97 304 41 47 80 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1511-	●	●	●
24	CLIP; FUEL HOSE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1511-	●	●	●
24	CLIP; FUEL HOSE (C) ID=21 L=24	8-98019-191-0	01	1	1511-	●	●	●
29	HOSE; FUEL (C) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1511-	●	●	●
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (D)	8-98306-416-2	01	1	1511-	●	●
29	HOSE; FUEL WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (D)	8-98306-418-2	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98078-197-1	01	1	1511-	●	●	●
29	HOSE; FUEL (B)	8-98156-579-0	01	1	1511-	●	●	●
29	HOSE; FUEL WHEEL BASE 5100MM(51W) (D)	8-98307-061-2	01	1	1511-			●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W) (D) ID=10 & 10	1-09709-241-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W) (F) ID=10 & 10	1-09709-243-0	05	1	1511-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (I) ID=11 H=20 L=25	1-09700-848-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (D) ID=10 & 10	1-09709-241-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (F) ID=10 & 10	1-09709-243-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W) (C) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=15.5	8-94221-519-0	01	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	02	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16	8-94238-568-0	09	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	02	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) ID=13	8-94238-571-0	07	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=16	8-97329-628-0	01	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (I) ID=11 H=20 L=25	1-09700-848-0	01	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (D) ID=10 & 10	1-09709-241-0	06	1	1511-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5100MM(51W) (F) ID=10 & 10	1-09709-243-0	06	1	1511-	●	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W) L=1903	8-98306-355-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2316	8-98306-356-0	01	1	1511-	●	●	●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●	●	●
67	HOSE; FUEL,DELIVERY (B) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●	●
67	HOSE; FUEL,DELIVERY (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1511-	●	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W) M8X50 FLANGE	0-28050-850-0	05	1	1511-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5500MM(55W) M8X20 FLANGE	0-28650-820-0	03	1	1511-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X50 FLANGE	0-28050-850-0	04	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	01	1	1511-	●	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W) M8X50 FLANGE	0-28050-850-0	06	1	1511-	●	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	07	1	1511-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W) M8 FLANGE	0-91180-108-0	08	1	1511-	●	●	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	1511-	●	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	1511-	●	●	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A)	8-98117-691-0	01	1	1511-	●	●	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W) (A)	8-98117-691-0	02	1	1511-		●
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) (B)	8-98239-701-0	01	1	1511-	●	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (B)	8-98239-701-0	01	1	1511-			●
97	BRACKET; CLIP (C) L=55	1-47476-177-0	01	1	1511-	●	●	●
97	BRACKET; CLIP (D)	8-98077-896-0	01	1	1511-	●	●	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W) (E)	8-98304-248-0	01	1	1511-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W)	8-98178-520-0	01	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)	8-98179-133-0	01	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT	8-98233-997-0	01	1	1511-			●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1511-	●	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1511-	●	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1511-			●
303	BOLT; BRKT WHEEL BASE 5500MM(55W) (A) M10X30 FLANGE	0-28651-030-0	03	1	1511-		●
303	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
303	BOLT; BRKT WHEEL BASE 4300MM(43W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1511-	●	●
303	BOLT; BRKT (B) M10X25 FLANGE	0-28051-025-0	01	1	1511-	●	●	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (A) M10X30 FLANGE	0-28651-030-0	02	1	1511-	●	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1511-	●	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●	●
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
