◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11714 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#169162) — 33 parça

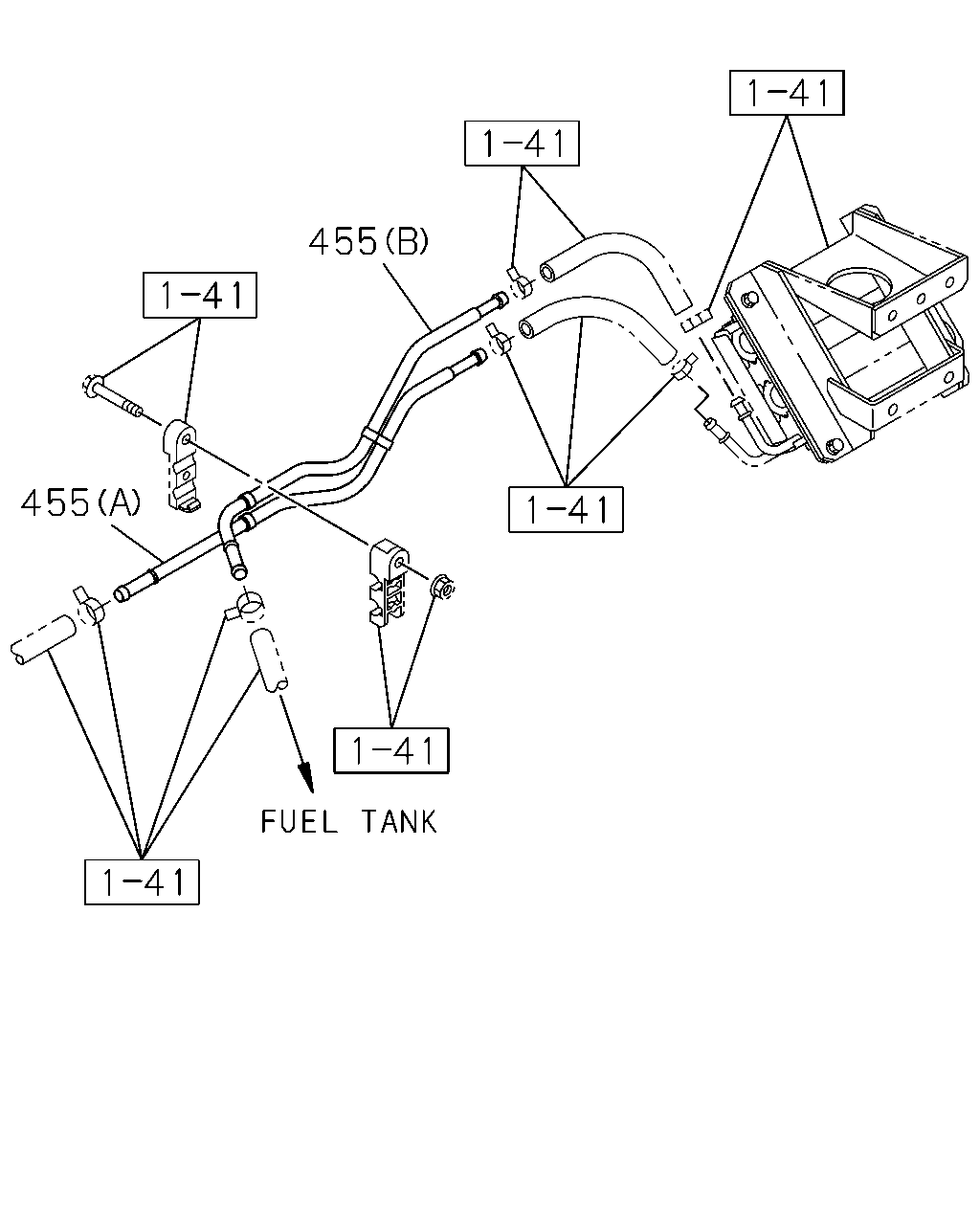

çizim 500558
455 455
BalonParca AdiParca NoAdetTipApplied Date A B C
455 PIPE; FUEL,RETURN
WHEEL BASE 4300MM(43W) (A) 		8-98306-348-0 01 1 1511- ● ●
455 PIPE; FUEL,RETURN
WHEEL BASE 4300MM(43W) (B) 		8-98306-349-1 01 1 1511- ● ●
455 PIPE; FUEL,RETURN
WHEEL BASE 5100MM(51W) (B) 		8-98306-352-1 01 1 1511- ● ● ●
455 PIPE; FUEL,RETURN
WHEEL BASE 5100MM(51W) (A) 		8-98322-908-0 01 1 1511- ● ● ●
455 PIPE; FUEL,RETURN
WHEEL BASE 5500MM(55W) (A) 		8-98306-351-0 01 1 1511- ●
455 PIPE; FUEL,RETURN
WHEEL BASE 5500MM(55W) (B) 		8-98306-353-1 01 1 1511- ●

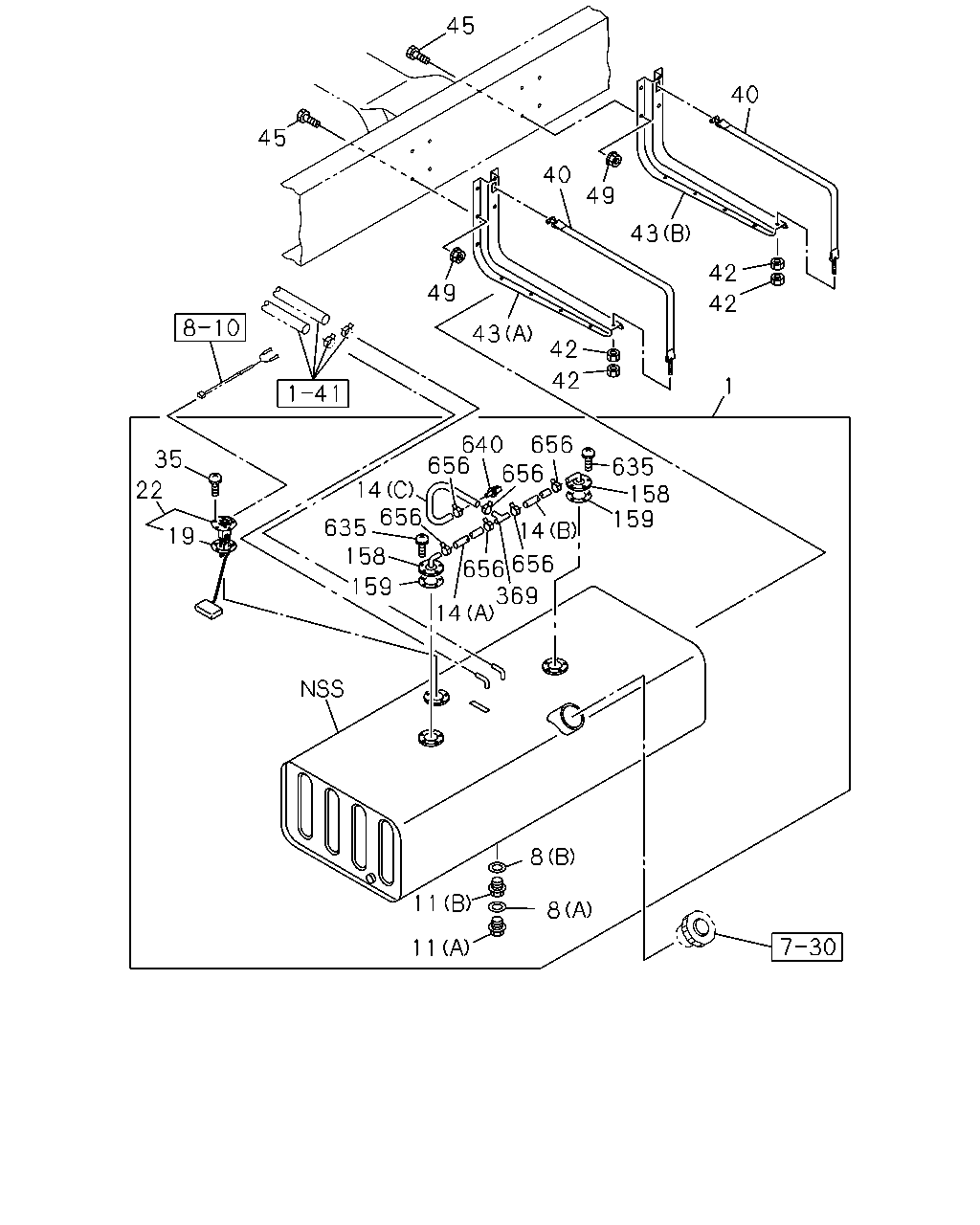

çizim 501602
8 8 11 11 14 656 656 369 159 158 635 656 14 35 22 19 656 640 656 656 635 158 159 14 1 42 42 43 49 42 42 43 49 40 40 45 45
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK; FUEL
1345X532X322 200L 		8-98271-186-0 01 1 1511- ● ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 1511- ● ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1511- ● ● ●
11 PLUG; DRAIN,FUEL TANK
(B) M30 		8-98067-038-0 01 1 1511- ● ● ●
11 PLUG; DRAIN,FUEL TANK
(A) M18 		8-98068-006-0 01 1 1511- ● ● ●
14 HOSE; BREATHER,OUTLET
(A) L=430 		8-98131-037-0 01 1 1511- ● ● ●
14 HOSE; BREATHER,OUTLET
(C) L=460 		8-98304-414-0 01 1 1511- ● ● ●
14 HOSE; BREATHER,OUTLET
(B) L=90 		8-98304-415-0 01 1 1511- ● ● ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1511- ● ● ●
22 UNIT; FUEL TANK 8-98099-320-0 01 1 1511- ● ● ●
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1511- ● ● ●
40 BELT; SUPPORT,FUEL TANK
L=880 		8-98042-715-1 02 1 1511- ● ● ●
42 NUT; SUPPORT BELT
M12 		0-91110-512-0 04 1 1511- ● ● ●
43 BRACKET; FUEL TANK
(A) 		8-98088-123-0 01 1 1511- ● ● ●
43 BRACKET; FUEL TANK
(B) 		8-98122-883-0 01 1 1511- ● ● ●
45 BOLT; BRKT,FUEL TANK
M10X35 FLANGE 		0-28651-035-0 12 1 1511- ● ● ●
49 NUT; BRKT
M10 FLANGE 		0-91180-210-0 12 1 1511- ● ● ●
158 VALVE; ROLL OVER & FLOAT 8-98067-039-0 02 1 1511- ● ● ●
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 02 1 1511- ● ● ●
369 JOINT; HOSE 8-98067-080-0 01 1 1511- ● ● ●
635 SCREW; ROLL OVER & FLOAT VALVE
M5X10 W/LK WASHER 		0-36220-510-0 10 1 1511- ● ● ●
640 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 1511- ● ● ●
656 CLAMP; FUEL TANK 8-98304-416-0 06 1 1511- ● ● ●

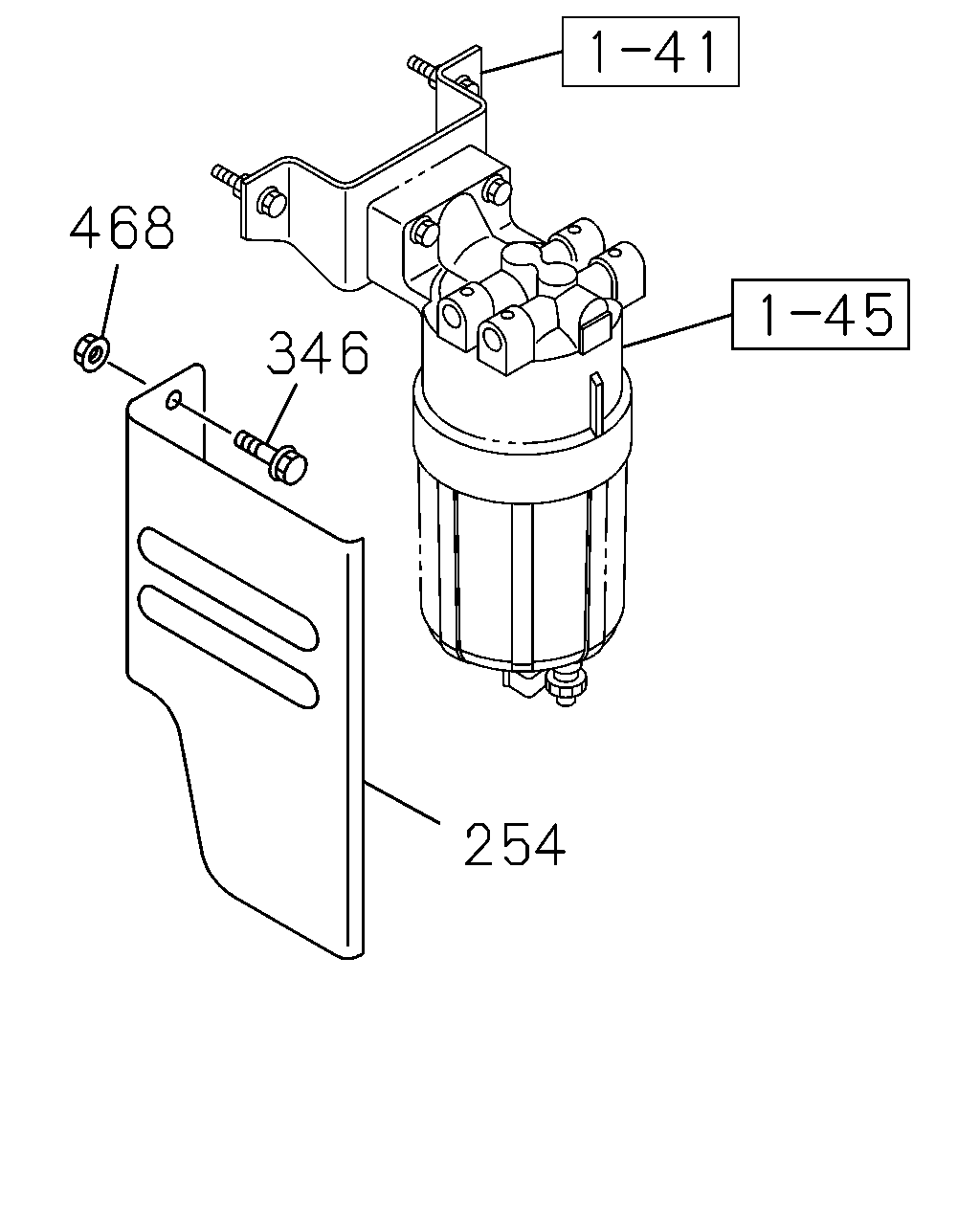

çizim 501756
468 346 254
BalonParca AdiParca NoAdetTipApplied Date A B C
254 GUARD 8-98232-427-3 01 1 1511- ● ● ●
346 BOLT; GUARD
M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ● ●
468 NUT
M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
468 NUT
M10 FLANGE 		0-91180-210-0 02 1 1511- ●
