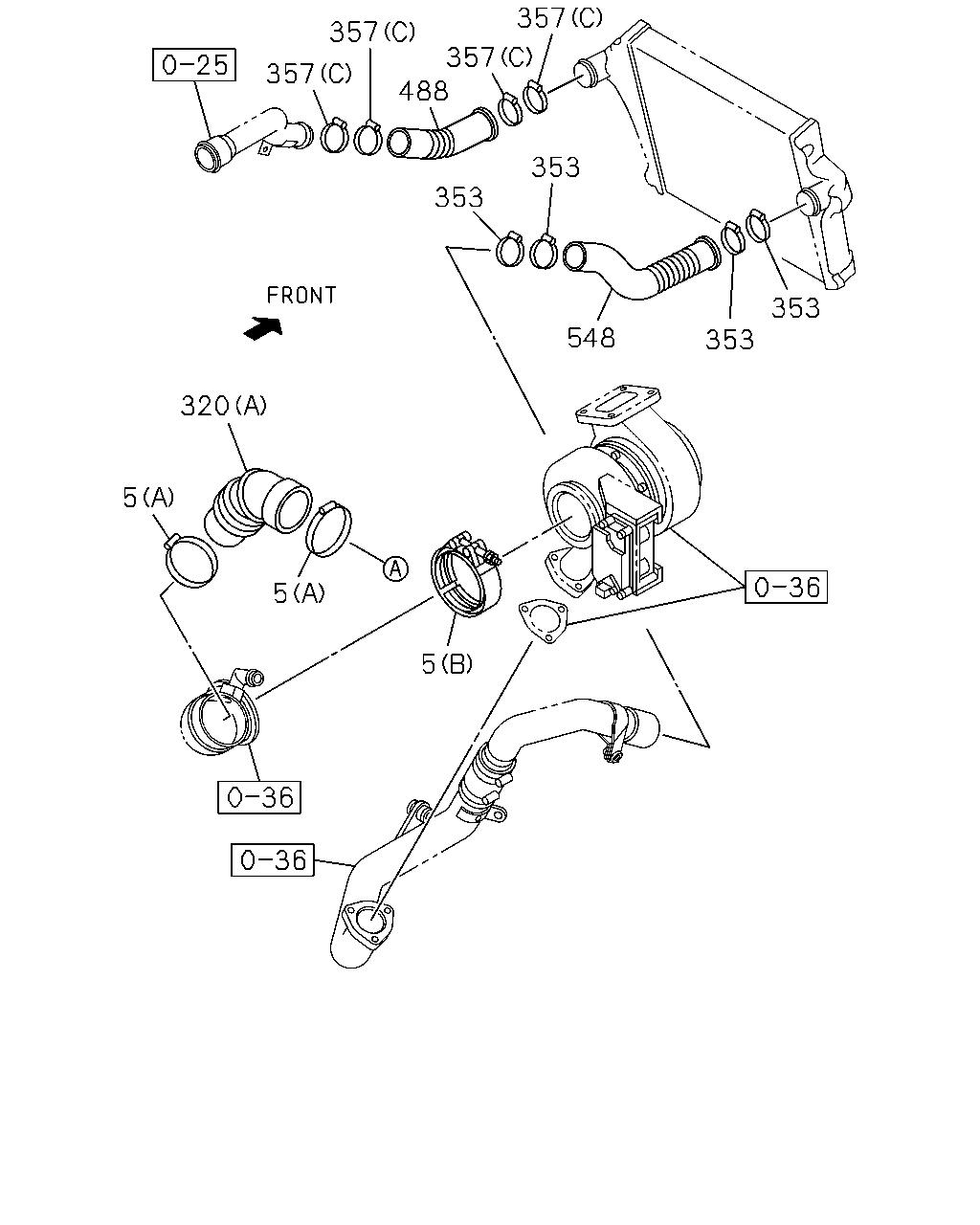

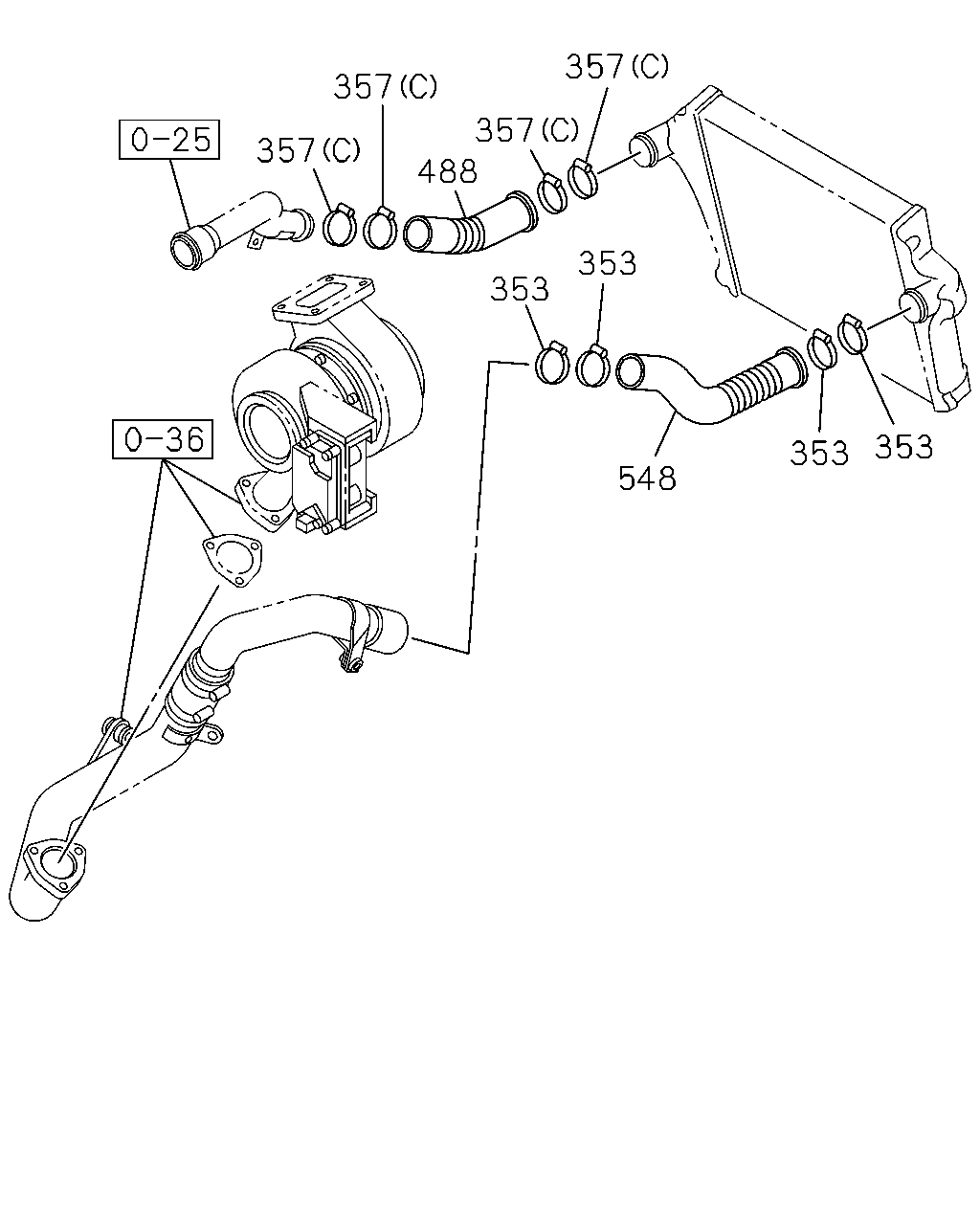

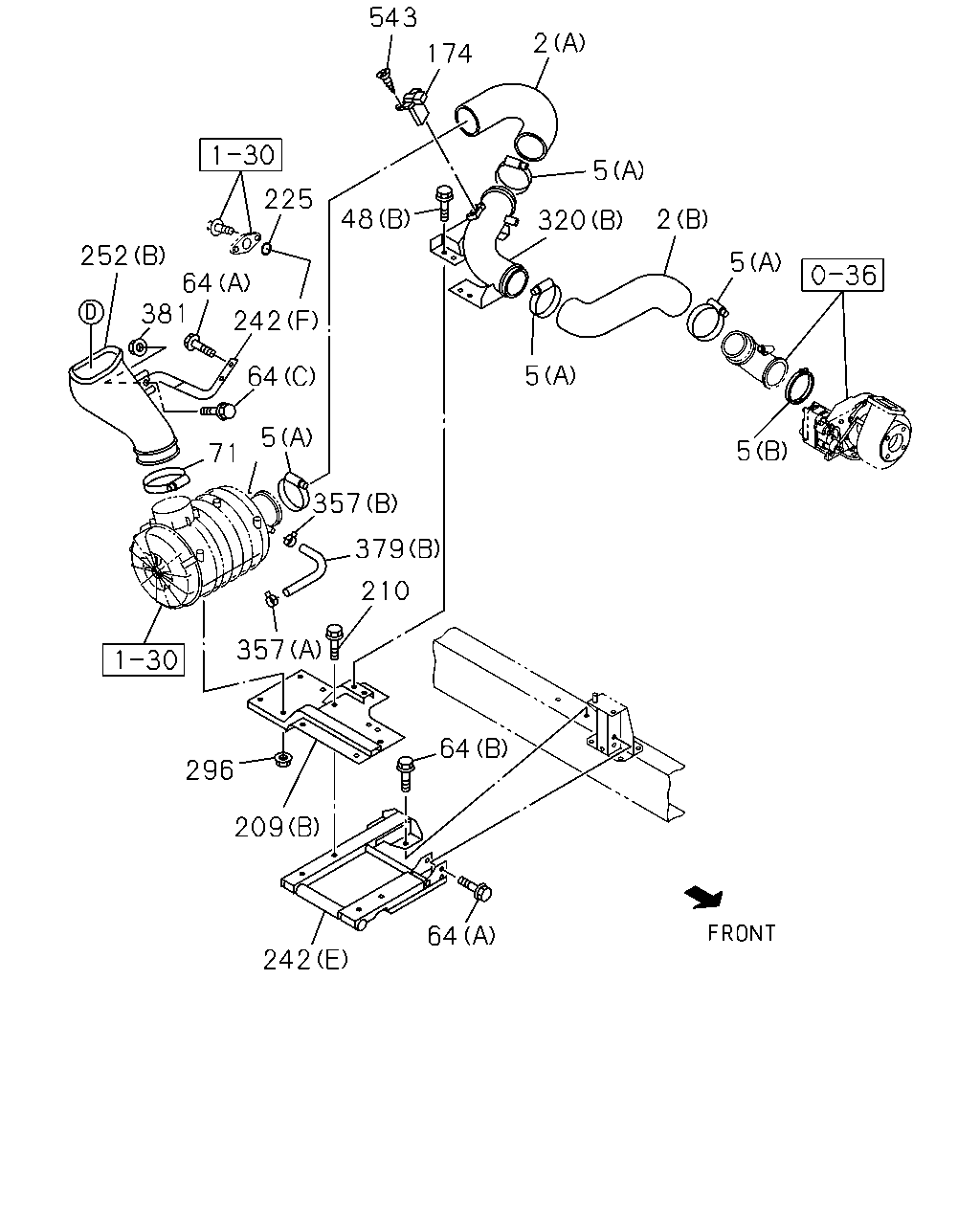

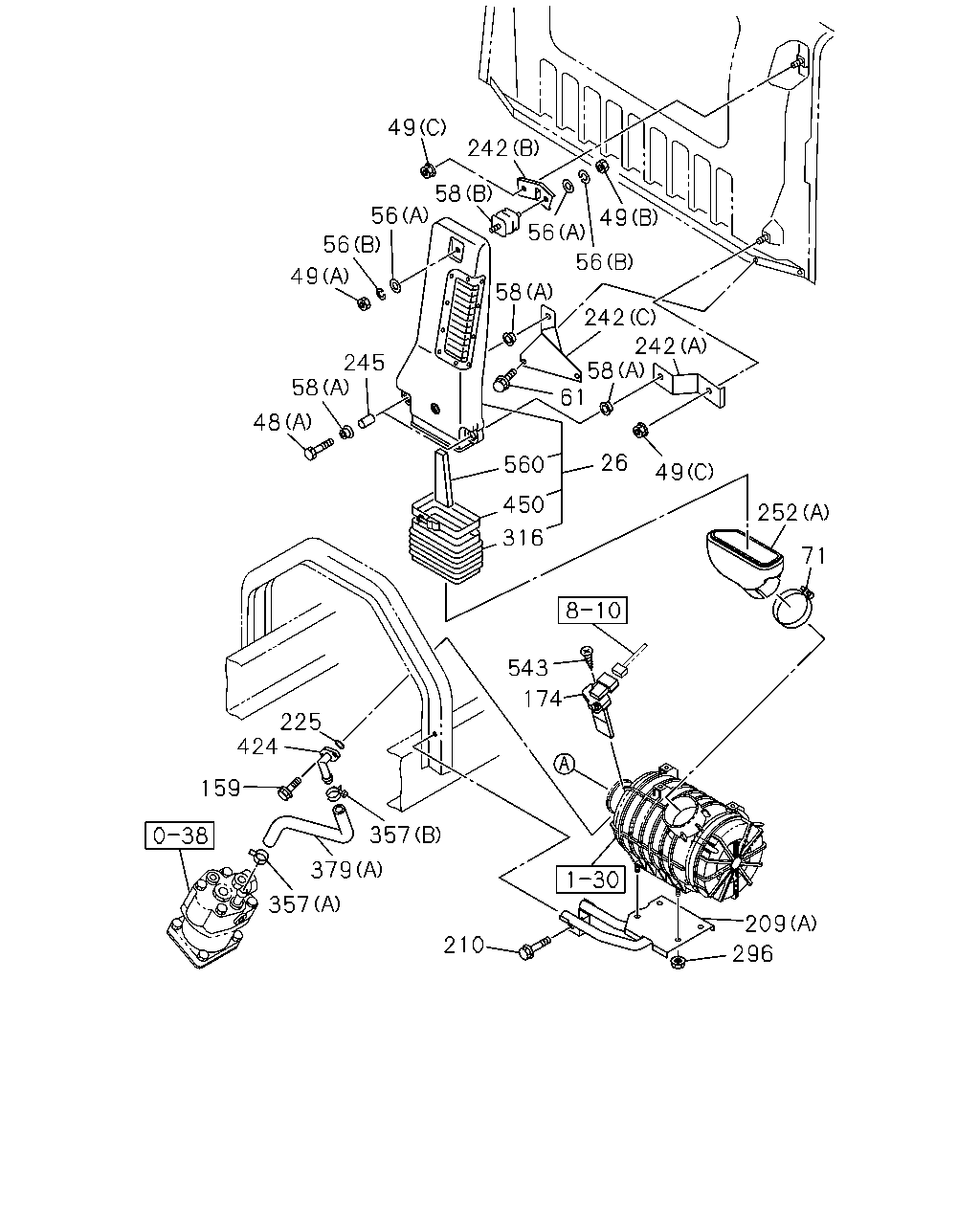

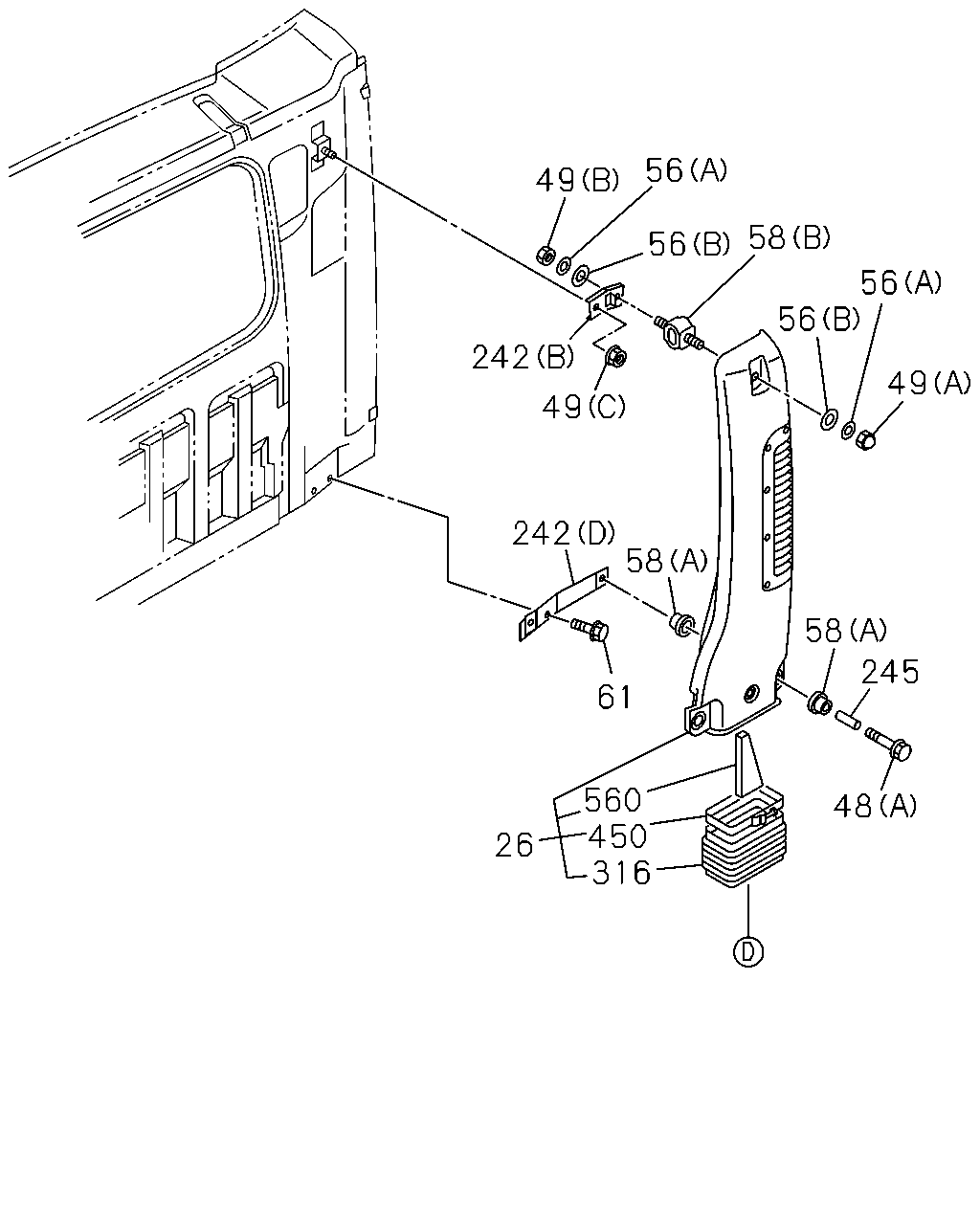

1-31 — AIR DUCT (#169160) — 116 parça

357 357 488 357 357 353 353 548 353 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
353	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	04	1	1511-
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	1511-
357	CLIP; RUBBER HOSE (C) ID=58-79	1-09707-136-0	04	1	1511-
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	1511-
488	HOSE; RUBBER,PIPE	8-98017-224-1	01	1	1511-
548	HOSE; RUBBER,TURBO TO INL PIPE	8-98017-223-2	01	1	1511-

357 357 357 357 488 353 353 548 353 353 5 5 5 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT (A) ID=104-142	1-09707-139-0	01	1	1511-
5	CLIP; AIR DUCT SGL CAB(FC*M) (A) ID=104-142	1-09707-139-0	01	1	1511-
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	1511-
5	CLIP; AIR DUCT DBL CAB(FC*W) (A) ID=104-142	1-09707-139-0	03	1	1511-
320	HOSE; CONN,ACL SGL CAB(FC*M) (A)	8-98077-619-1	01	1	1511-
320	HOSE; CONN,ACL DBL CAB(FC*W) (B)	8-98092-944-1	01	1	1511-
353	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	04	1	1511-
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	1511-
357	CLIP; RUBBER HOSE (C) ID=58-79	1-09707-136-0	04	1	1511-
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	1511-
488	HOSE; RUBBER,PIPE	8-98017-224-1	01	1	1511-
548	HOSE; RUBBER,TURBO TO INL PIPE	8-98017-223-2	01	1	1511-

543 2 174 5 320 2 5 5 5 48 225 252 64 242 381 64 5 71 357 379 210 357 296 209 64 64 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL DBL CAB(FC*W) (A)	8-98050-682-0	01	1	1511-
2	HOSE; ACL DBL CAB(FC*W) (B)	8-98065-313-0	01	1	1511-
5	CLIP; AIR DUCT (A) ID=104-142	1-09707-139-0	01	1	1511-
5	CLIP; AIR DUCT SGL CAB(FC*M) (A) ID=104-142	1-09707-139-0	01	1	1511-
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	1511-
5	CLIP; AIR DUCT DBL CAB(FC*W) (A) ID=104-142	1-09707-139-0	03	1	1511-
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	1511-
48	BOLT; AIR DUCT DBL CAB(FC*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	1511-
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	05	1	1511-
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (B) M10X35 FLANGE	0-28651-035-0	02	1	1511-
64	BOLT; BRKT,AIR DUCT DBL CAB(FC*W) (C) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1511-
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1511-
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1511-
209	BRACKET; ACL SGL CAB(FC*M) (A)	8-98099-677-0	01	1	1511-
209	BRACKET; ACL DBL CAB(FC*W) (B)	8-98089-455-1	01	1	1511-
210	BOLT; ACL BRKT SGL CAB(FC*M) M10X25 FLANGE	0-28651-025-0	03	1	1511-
210	BOLT; ACL BRKT DBL CAB(FC*W) M10X25 FLANGE	0-28651-025-0	04	1	1511-
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1511-
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1511-
242	BRACKET; AIR DUCT SGL CAB(FC*M) (C)	8-98019-302-1	01	1	1511-
242	BRACKET; AIR DUCT SGL CAB(FC*M) (A)	8-98019-303-1	01	1	1511-
242	BRACKET; AIR DUCT DBL CAB(FC*W) (D)	8-98050-679-1	01	1	1511-
242	BRACKET; AIR DUCT DBL CAB(FC*W) (E)	8-98089-456-1	01	1	1511-
242	BRACKET; AIR DUCT DBL CAB(FC*W) (F)	8-98092-771-0	01	1	1511-
252	DUCT; AIR INT SGL CAB(FC*M) (A)	8-98019-843-0	01	1	1511-
252	DUCT; AIR INT DBL CAB(FC*W) (B)	8-98050-681-0	01	1	1511-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1511-
320	HOSE; CONN,ACL SGL CAB(FC*M) (A)	8-98077-619-1	01	1	1511-
320	HOSE; CONN,ACL DBL CAB(FC*W) (B)	8-98092-944-1	01	1	1511-
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	1511-
357	CLIP; RUBBER HOSE (C) ID=58-79	1-09707-136-0	04	1	1511-
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	1511-
379	HOSE; RUBBER SGL CAB(FC*M) (A)	8-98063-172-0	01	1	1511-
379	HOSE; RUBBER DBL CAB(FC*W) (B)	8-98073-021-0	01	1	1511-
381	NUT; BRKT,AIR DUCT DBL CAB(FC*W) M8 FLANGE	0-91180-108-0	01	1	1511-
543	SCREW; SENSOR M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1511-

49 56 56 58 56 56 49 242 49 242 58 61 58 245 48 560 450 316 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	DUCT; AIR INT	8-98010-361-2	01	1	1511-
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	1511-
48	BOLT; AIR DUCT DBL CAB(FC*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	1511-
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1511-
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1511-
49	NUT; AIR DUCT SGL CAB(FC*M) (C) M8 FLANGE	8-94279-517-0	02	1	1511-
49	NUT; AIR DUCT DBL CAB(FC*W) (C) M8 FLANGE	8-94279-517-0	01	1	1511-
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1511-
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1511-
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1511-
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1511-
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1511-
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1511-
242	BRACKET; AIR DUCT SGL CAB(FC*M) (C)	8-98019-302-1	01	1	1511-
242	BRACKET; AIR DUCT SGL CAB(FC*M) (A)	8-98019-303-1	01	1	1511-
242	BRACKET; AIR DUCT DBL CAB(FC*W) (D)	8-98050-679-1	01	1	1511-
242	BRACKET; AIR DUCT DBL CAB(FC*W) (E)	8-98089-456-1	01	1	1511-
242	BRACKET; AIR DUCT DBL CAB(FC*W) (F)	8-98092-771-0	01	1	1511-
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1511-
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1511-
450	CLAMP; HOSE	9-09915-504-1	01	1	1511-
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1511-

49 58 242 56 56 49 245 58 48 61 58 242 58 56 49 56 242 26 560 316 450 49 252 71 543 174 225 424 159 357 357 379 210 209 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	DUCT; AIR INT	8-98010-361-2	01	1	1511-
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	1511-
48	BOLT; AIR DUCT DBL CAB(FC*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	1511-
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1511-
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1511-
49	NUT; AIR DUCT SGL CAB(FC*M) (C) M8 FLANGE	8-94279-517-0	02	1	1511-
49	NUT; AIR DUCT DBL CAB(FC*W) (C) M8 FLANGE	8-94279-517-0	01	1	1511-
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1511-
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1511-
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1511-
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1511-
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1511-
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1511-
159	BOLT; AIR PIPE SGL CAB(FC*M) M6X16 FLANGE	0-28050-616-0	02	1	1511-
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1511-
209	BRACKET; ACL SGL CAB(FC*M) (A)	8-98099-677-0	01	1	1511-
209	BRACKET; ACL DBL CAB(FC*W) (B)	8-98089-455-1	01	1	1511-
210	BOLT; ACL BRKT SGL CAB(FC*M) M10X25 FLANGE	0-28651-025-0	03	1	1511-
210	BOLT; ACL BRKT DBL CAB(FC*W) M10X25 FLANGE	0-28651-025-0	04	1	1511-
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1511-
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1511-
242	BRACKET; AIR DUCT SGL CAB(FC*M) (C)	8-98019-302-1	01	1	1511-
242	BRACKET; AIR DUCT SGL CAB(FC*M) (A)	8-98019-303-1	01	1	1511-
242	BRACKET; AIR DUCT DBL CAB(FC*W) (D)	8-98050-679-1	01	1	1511-
242	BRACKET; AIR DUCT DBL CAB(FC*W) (E)	8-98089-456-1	01	1	1511-
242	BRACKET; AIR DUCT DBL CAB(FC*W) (F)	8-98092-771-0	01	1	1511-
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1511-
252	DUCT; AIR INT SGL CAB(FC*M) (A)	8-98019-843-0	01	1	1511-
252	DUCT; AIR INT DBL CAB(FC*W) (B)	8-98050-681-0	01	1	1511-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1511-
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1511-
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	1511-
357	CLIP; RUBBER HOSE (C) ID=58-79	1-09707-136-0	04	1	1511-
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	1511-
379	HOSE; RUBBER SGL CAB(FC*M) (A)	8-98063-172-0	01	1	1511-
379	HOSE; RUBBER DBL CAB(FC*W) (B)	8-98073-021-0	01	1	1511-
424	PIPE; AIR,INL SGL CAB(FC*M)	8-98081-834-0	01	1	1511-
450	CLAMP; HOSE	9-09915-504-1	01	1	1511-
543	SCREW; SENSOR M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1511-
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1511-
