0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#169153) — 56 parça

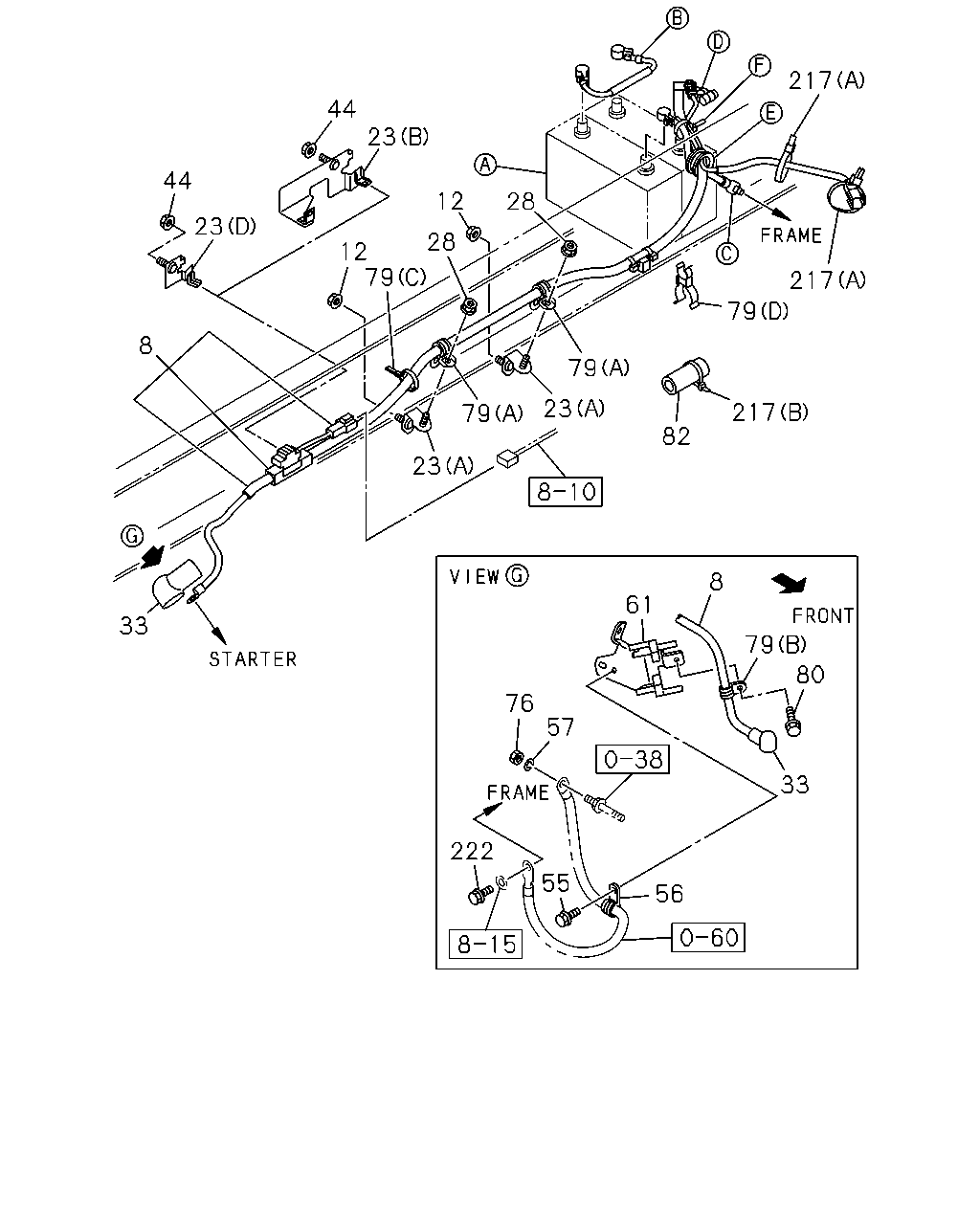

çizim 500470
217 217 79 217 82 23 79 79 23 12 79 28 28 12 23 44 44 23 8 33 8 61 76 57 222 55 56 33 80 79
BalonParca AdiParca NoAdetTipApplied Date A B C
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98304-456-0 01 1 1511- ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98304-455-0 01 1 1511- ● ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98304-458-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98304-457-0 01 1 1511- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98051-381-2 02 1 1511- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98147-440-0 01 1 1511- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=65 		1-47479-064-1 01 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98092-593-0 01 1 1511- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
33 CAP; INSULATOR 1-82699-431-0 01 1 1511- ● ● ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1511- ● ● ●
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 1511- ● ● ●
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 1511- ● ● ●
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1511- ● ● ●
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1511- ● ● ●
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 1511- ● ● ●
79 CLIP; BATTERY CABLE
(B) ID=15 L=28 		1-09701-216-0 01 1 1511- ● ●
79 CLIP; BATTERY CABLE
(A) ID=21 L=24 		8-98019-191-0 02 1 1511- ● ●
79 CLIP; BATTERY CABLE
(D) ID=25 & 11 		8-97068-799-0 01 1 1511- ● ● ●
79 CLIP; BATTERY CABLE
(B) ID=14.5 L=40 		1-09701-014-0 01 1 1511- ●
79 CLIP; BATTERY CABLE
(C) L=350 		1-09707-183-0 01 1 1511- ●
79 CLIP; BATTERY CABLE
(F) ID=13-18 L=14.5 		1-09709-290-0 01 1 1511- ●
79 CLIP; BATTERY CABLE
(E) ID=4.76 & 15 		1-09709-307-0 01 1 1511- ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1511- ● ● ●
82 PROTECTOR; HEAT,BATTERY CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=6 OD=10 L=70 		1-09376-512-0 01 1 1511- ● ●
217 CLIP; BAND,CABLE
(A) L=350 		1-09707-183-0 02 1 1511- ● ● ●
217 CLIP; BAND,CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=250 		5-09707-030-1 01 1 1511- ● ● ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1511- ● ● ●

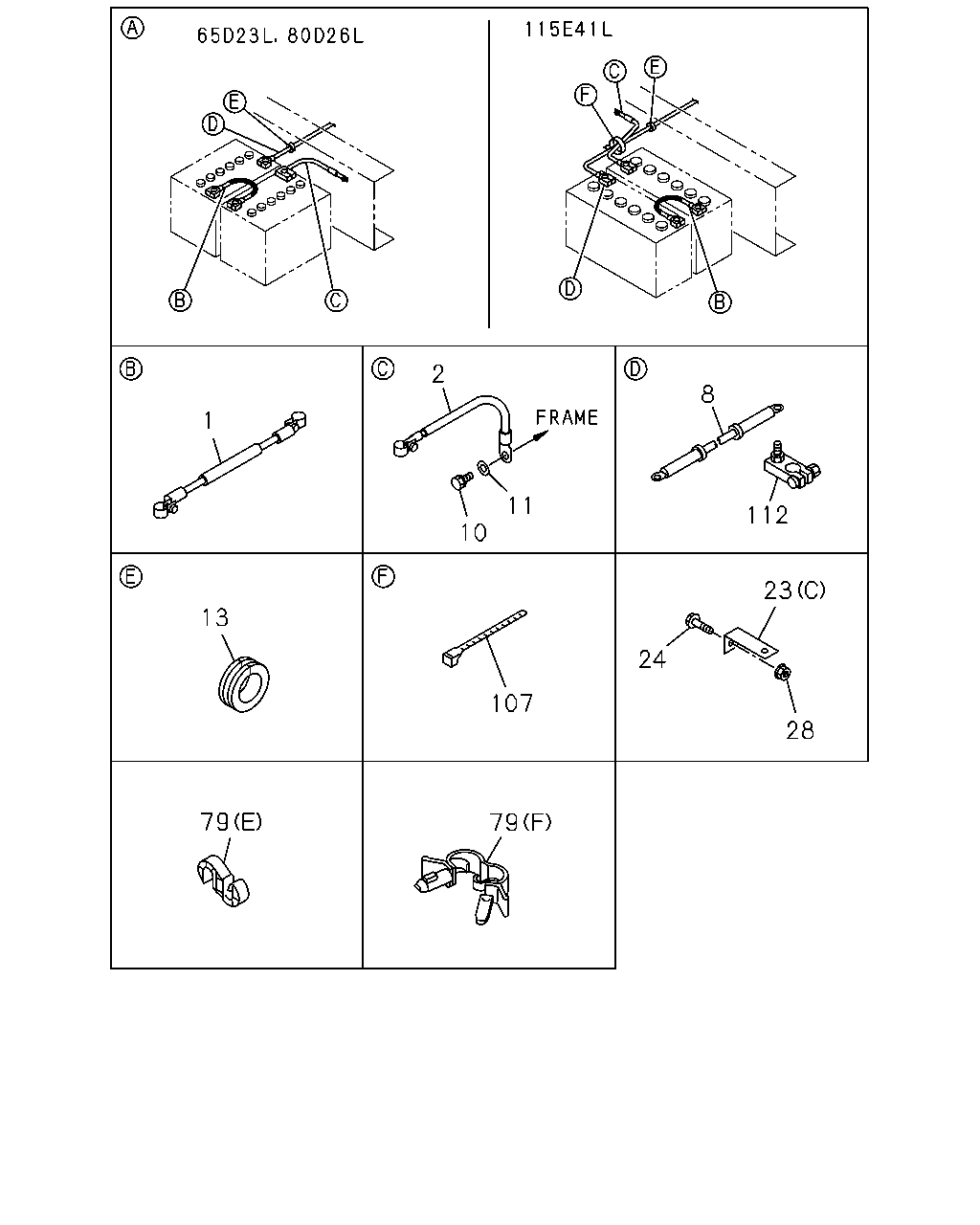

çizim 500478
1 2 11 10 8 112 23 28 24 107 13 79 79
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1511- ● ● ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=400 		8-97619-733-1 01 1 1511- ● ● ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=250 		8-97619-729-2 01 1 1511- ● ● ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98304-456-0 01 1 1511- ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98304-455-0 01 1 1511- ● ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98304-458-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98304-457-0 01 1 1511- ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1511- ● ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1511- ● ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1511- ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98051-381-2 02 1 1511- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98147-440-0 01 1 1511- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=65 		1-47479-064-1 01 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98092-593-0 01 1 1511- ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 01 1 1511- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
79 CLIP; BATTERY CABLE
(B) ID=15 L=28 		1-09701-216-0 01 1 1511- ● ●
79 CLIP; BATTERY CABLE
(A) ID=21 L=24 		8-98019-191-0 02 1 1511- ● ●
79 CLIP; BATTERY CABLE
(D) ID=25 & 11 		8-97068-799-0 01 1 1511- ● ● ●
79 CLIP; BATTERY CABLE
(B) ID=14.5 L=40 		1-09701-014-0 01 1 1511- ●
79 CLIP; BATTERY CABLE
(C) L=350 		1-09707-183-0 01 1 1511- ●
79 CLIP; BATTERY CABLE
(F) ID=13-18 L=14.5 		1-09709-290-0 01 1 1511- ●
79 CLIP; BATTERY CABLE
(E) ID=4.76 & 15 		1-09709-307-0 01 1 1511- ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1511- ● ● ●
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1511- ● ● ●
