0-39 — AIR COMPRESSOR; BRAKE (#169145) — 21 parça

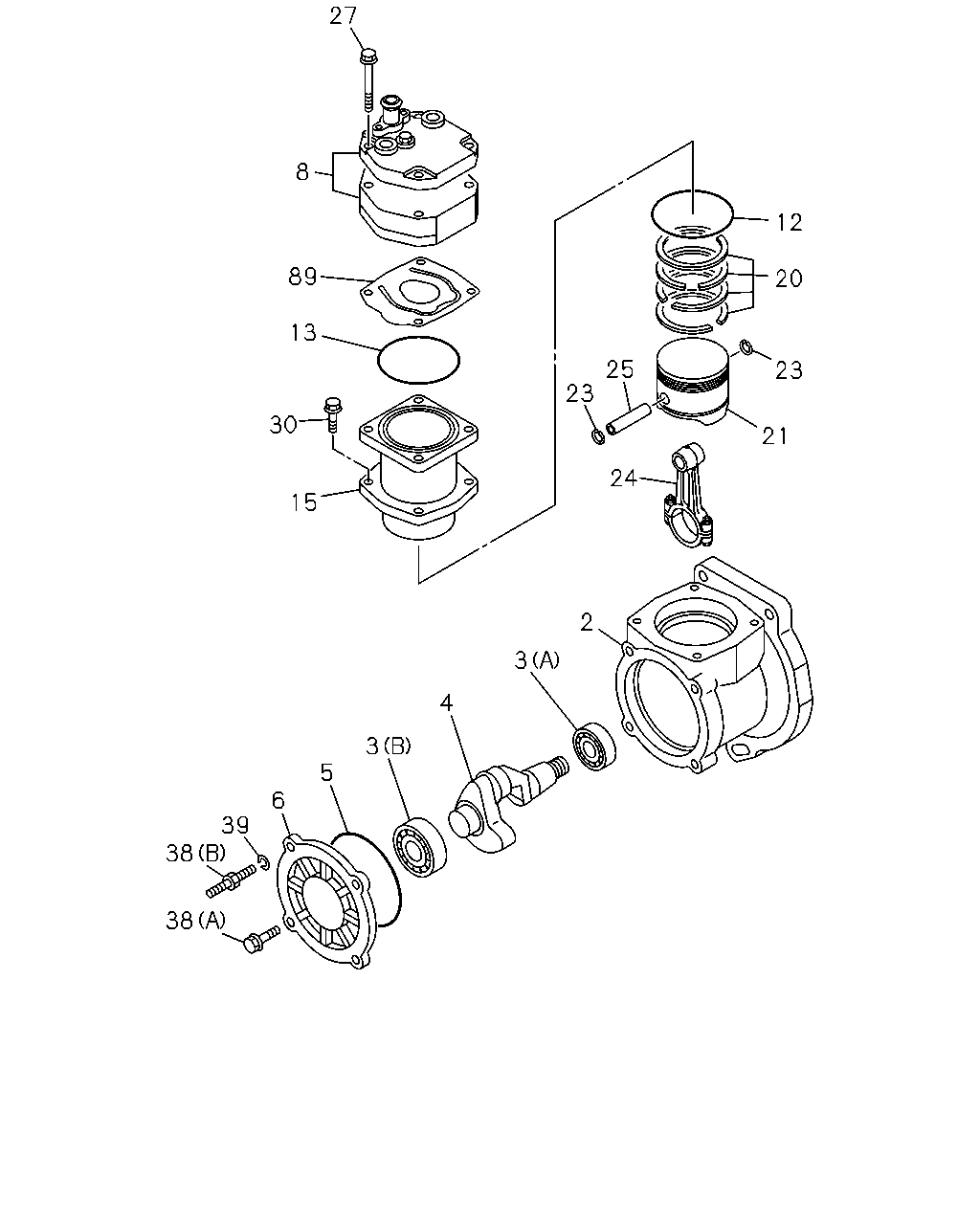

çizim 500345
12 20 23 21 25 23 24 2 3 4 3 5 6 39 38 38 15 30 13 89 8 27
BalonParca AdiParca NoAdetTipApplied Date
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 1511-
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 1511-
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 1511-
4 CRANKSHAFT; AIR CMPR 1-19171-096-0 01 1 1511-
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1511-
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 1511-
8 HEAD ASM; CYL,AIR CMPR 8-98167-015-0 01 1 1511-
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1511-
13 GASKET; AIR CMPR 8-98048-640-0 01 1 1511-
15 CYLINDER; AIR CMPR 8-98038-668-0 01 1 1511-
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 1511-
21 PISTON; AIR CMPR 1-19161-027-0 01 1 1511-
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 1511-
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 1511-
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 1511-
27 BOLT; HD
M10X75 		8-98167-018-0 04 1 1511-
30 BOLT; CYL TO CRANKCASE
M10X25 		8-98038-763-0 04 1 1511-
38 BOLT; COVER FIX
(B) 		8-97617-894-0 02 1 1511-
38 BOLT; COVER FIX
(A) M8X20 		8-97617-895-0 02 1 1511-
39 WASHER; LK,COVER FIX 8-97617-893-0 02 1 1511-
89 VALVE; SUCTION 1-19119-045-0 01 1 1511-
