0-12 — CYLINDER BLOCK (#169129) — 46 parça

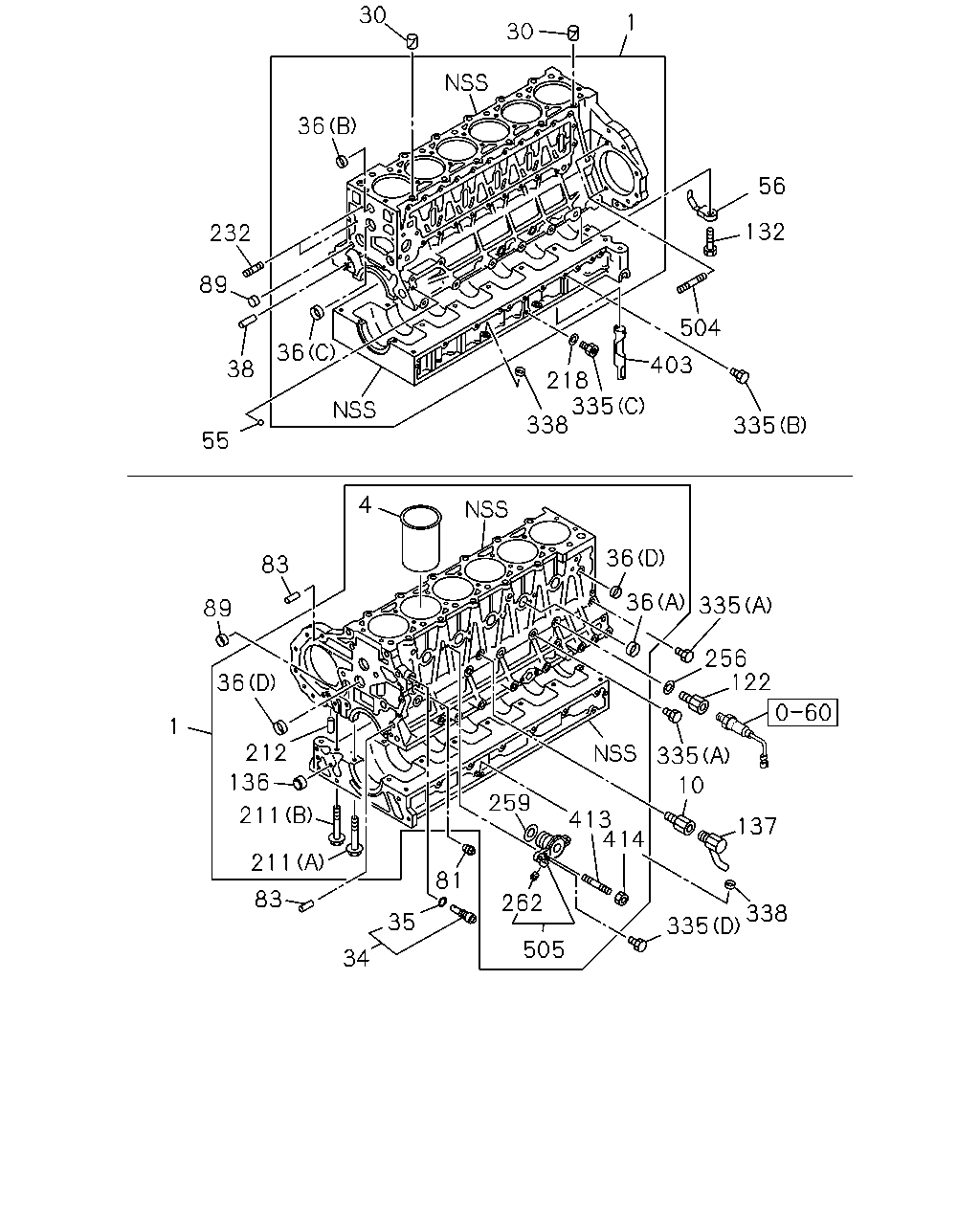

30 36 30 1 56 132 504 403 335 335 218 232 89 38 36 338 55 4 83 89 36 212 136 211 211 83 34 81 262 505 35 259 413 414 10 256 36 36 335 122 137 338 335 1 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	8-98206-967-0	01	1	1511-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1511-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1511-
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	1511-
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	1511-
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1511-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1511-
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	1511-
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	1511-
36	CUP; SEALING,WATER JACKET (C) OD=25	8-94399-005-0	01	1	1511-
36	CUP; SEALING,WATER JACKET (D) OD=40	8-97096-824-0	04	1	1511-
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	1511-
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	1511-
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1511-
81	PLUG; WATER JACKET PT3/8	8-94397-338-0	01	1	1511-
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	1511-
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1511-
122	ADAPTER; OIL PRESSURE SWITCH	8-97603-667-0	01	1	1511-
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1511-
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1511-
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	1511-
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1511-
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1511-
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1511-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1511-
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	1511-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	1511-
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	1511-
262	PLUG; ADAPTER	1-13163-002-0	01	1	1511-
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	1511-
335	PLUG; C/BL,SIDE (D) M14	8-94399-225-0	01	1	1511-
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1511-
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	1511-
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	1511-
403	GUIDE; GALLERY	8-94395-351-1	01	1	1511-
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	1511-
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	1511-
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	1511-
505	ADAPTER; WATER FEED	8-98145-412-1	01	1	1511-

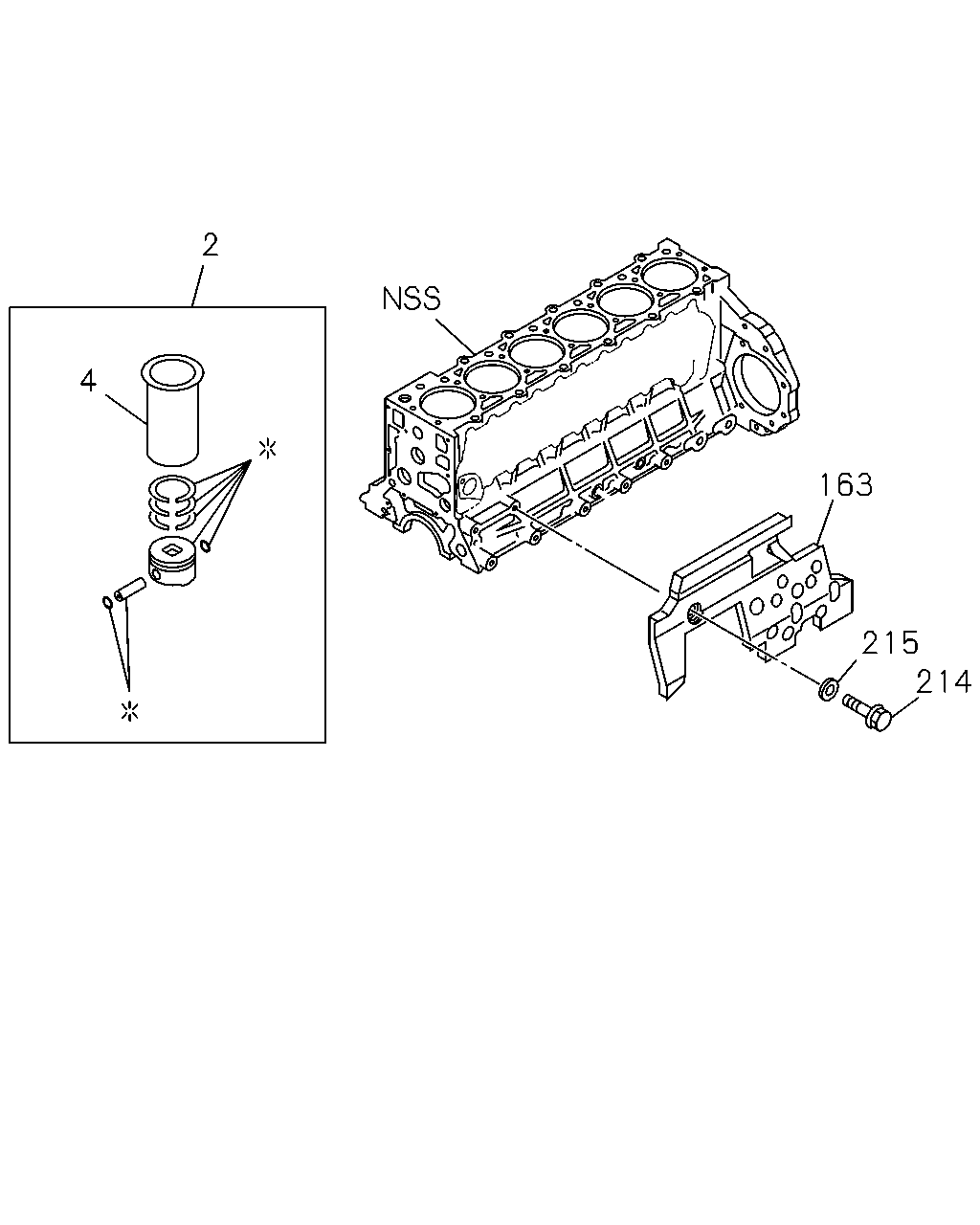

2 4 163 215 214

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	1511-
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	1511-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1511-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1511-
163	COVER ASM; C/BL SKIRT	8-97601-248-0	01	1	1511-
214	BOLT; NOISE COVER M10X16 FLANGE	0-28151-016-0	03	1	1511-
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	0-91614-810-0	02	1	1511-
