Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#169119) — 24 parça

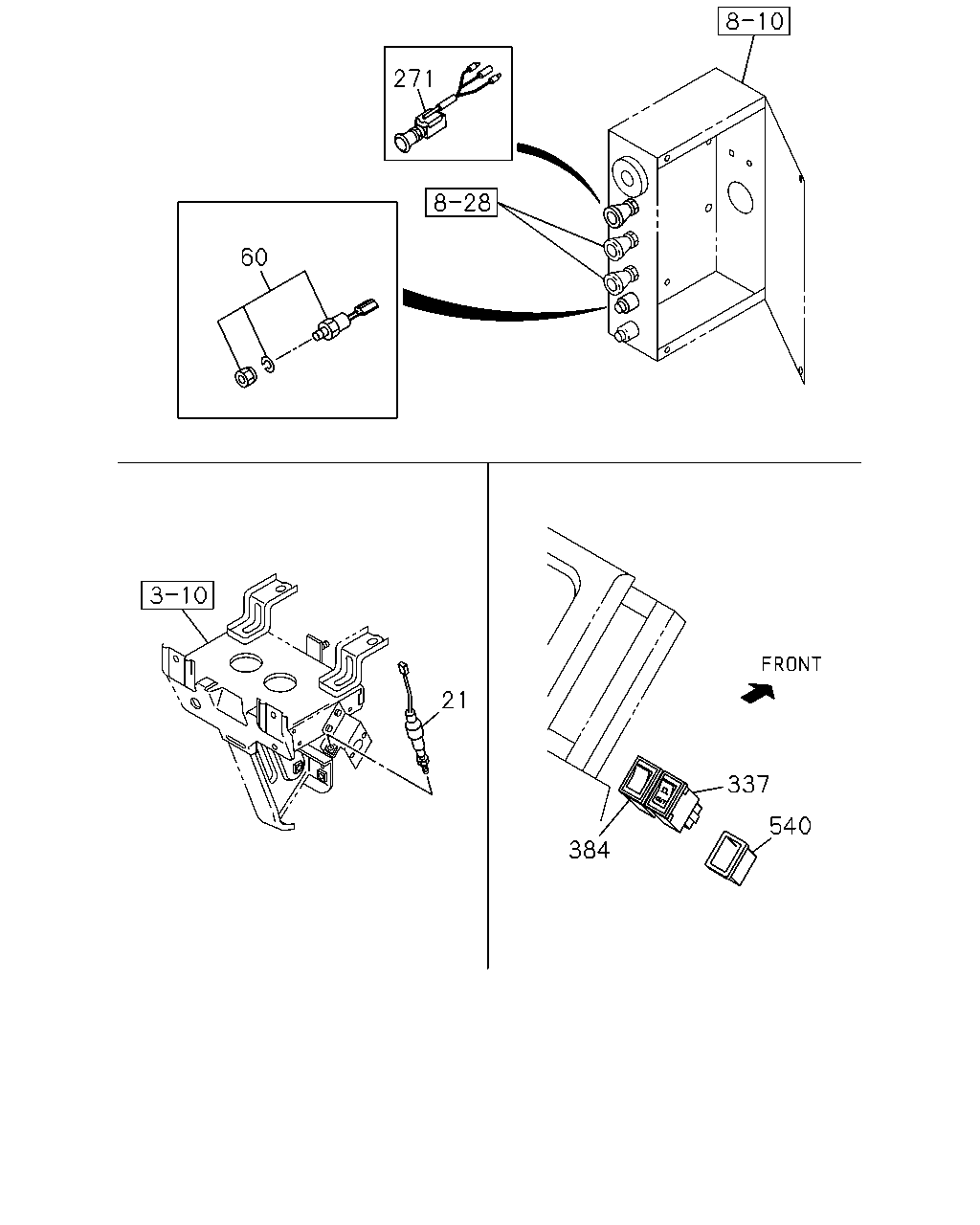

21 384 540 337 60 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	SWITCH; CLU	1-82380-114-3	01	1	1511-
60	SWITCH; STARTER SUB ELECTRIC SWITCH BOX ENGINE ROOM<TEK>	1-82380-107-1	01	1	1511-
271	SWITCH; OIL PRESS METER ELECTRIC SWITCH BOX ENGINE ROOM<TEK>	8-97621-401-0	01	1	1511-
337	SWITCH; EXH FOOT BRAKE W/EXHAUST BRAKE<SJB>	1-82350-220-2	01	1	1511-
384	SWITCH; IDLING CONT,ELEC	8-98013-418-0	01	1	1511-
540	BEZEL; SW	1-82490-017-0	01	1	1511-
540	BEZEL; SW LIGHTING SYSTEM ECE<SLC>	1-82490-017-0	01	1	1511-
540	BEZEL; SW FOOT BRAKE W/EXHAUST BRAKE<SJB>	1-82490-017-0	01	1	1511-
540	BEZEL; SW AUTO ENG SHUT DOWN(Q3G)	1-82490-017-0	01	1	1511-

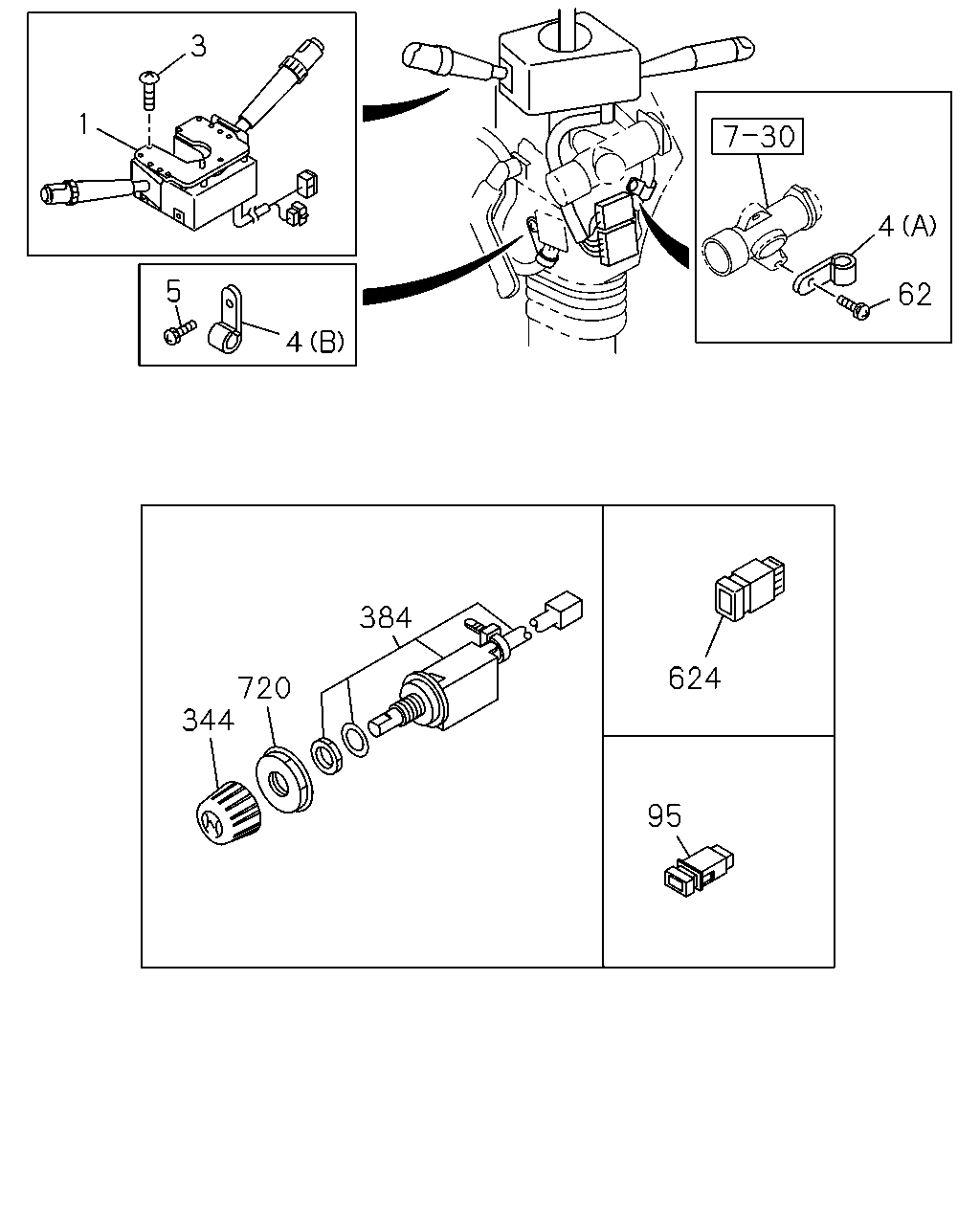

3 1 5 4 4 62 384 720 344 624 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SWITCH; COMB	1-82360-711-0	01	1	1511-
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74165-512-0	04	1	1511-
4	CLIP; COMB SW (A) ID=16 L=20	0-95235-535-0	01	1	1511-
4	CLIP; COMB SW (B) ID=14.5 L=30	9-09916-893-1	01	1	1511-
5	SCREW; COMB SW CABLE M6X12 W/PL WASHER	8-97806-950-0	01	1	1511-
62	BOLT; STARTER SW M8X30 TORQUE SHEAR BOLT	1-09980-621-1	02	1	1511-
95	SWITCH; RR FOG LAMP LIGHTING SYSTEM ECE<SLC>	1-82340-628-0	01	1	1511-
344	KNOB; SW,IDLE	8-98013-420-0	01	1	1511-
384	SWITCH; IDLING CONT,ELEC	8-98013-418-0	01	1	1511-
624	SWITCH; WARM UP	1-82340-697-0	01	1	1511-
720	HOLDER; SW,IDLE	8-97352-127-0	01	1	1511-

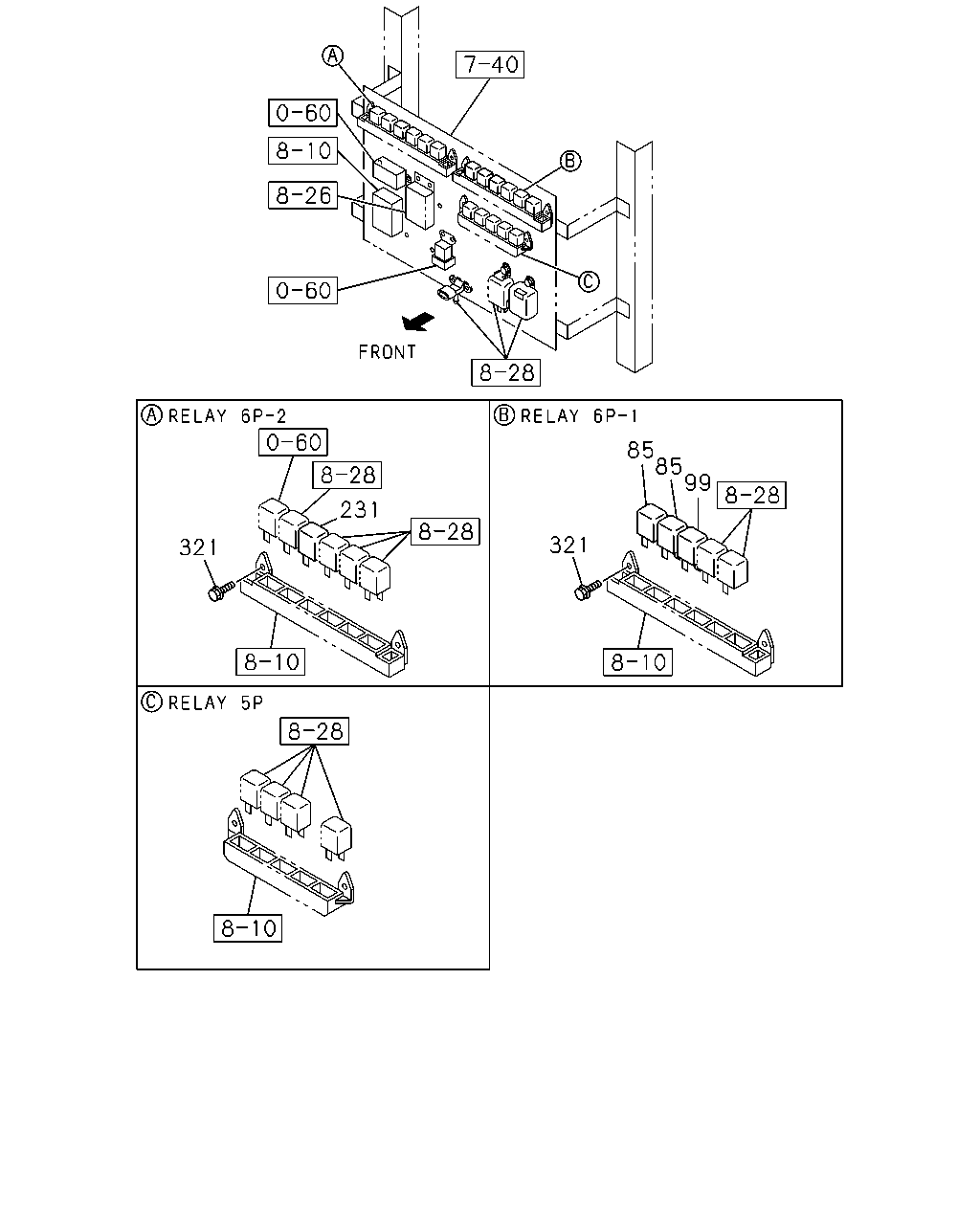

321 231 321 99 85 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
85	RELAY; HEADLAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	1511-
99	RELAY; FOG LAMP FOG LAMP<T96> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1511-
231	RELAY; NEUTRAL ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1511-
321	BOLT; RELAY M6X16 FLANGE	0-28650-616-0	06	1	1511-
