◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11698 - LT134 RHD EURO2 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#169118) — 43 parça

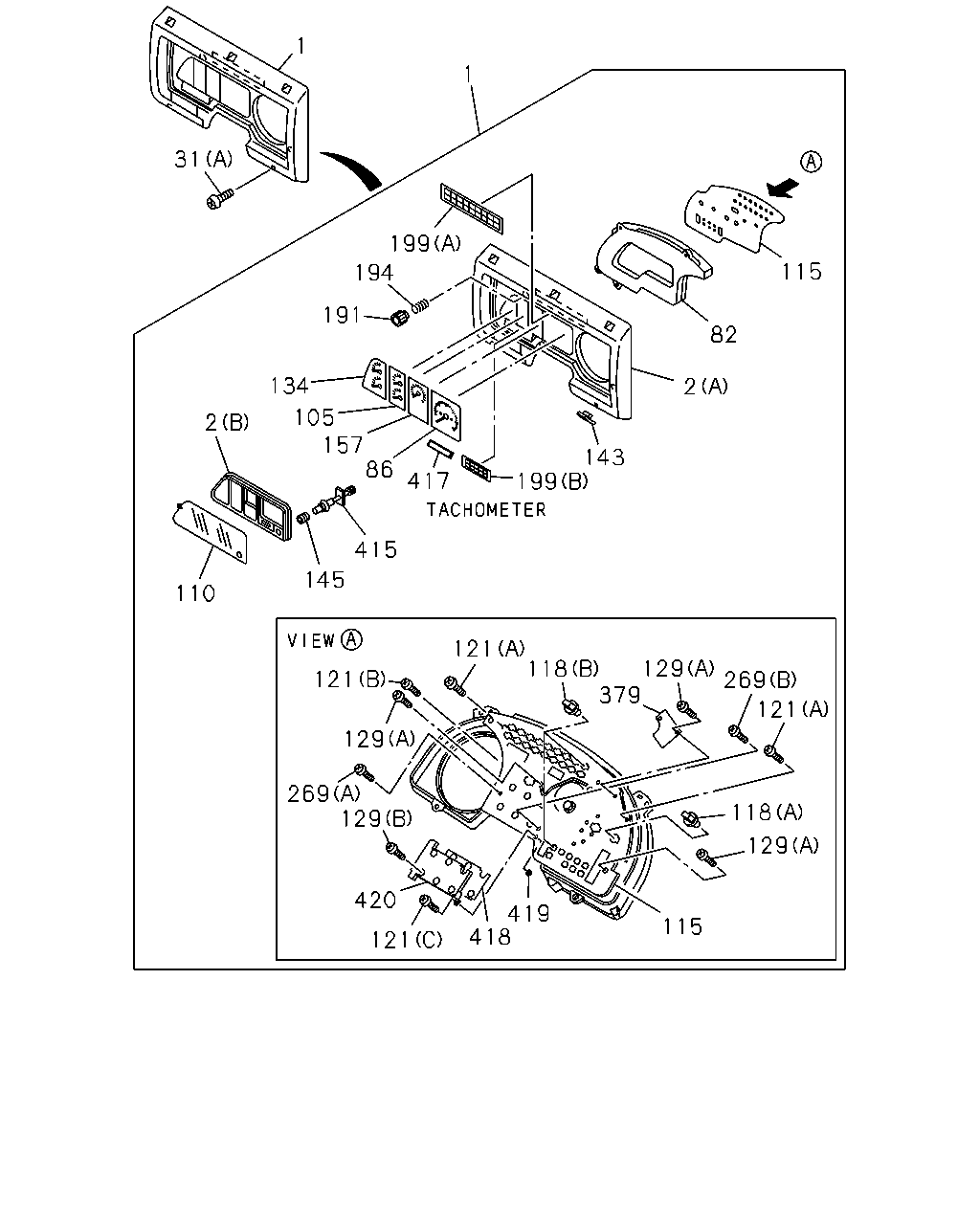

çizim 501905
1 31 199 194 191 115 82 2 143 199 417 86 157 105 134 2 110 145 415 121 118 129 269 129 420 121 418 115 419 129 118 121 269 129 379 121 1
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 8-98116-902-1 01 1 1511-
2 PANEL; CLUSTER
(B) 		1-83119-652-0 01 1 1511-
2 PANEL; CLUSTER
(A) 		8-98045-366-0 01 1 1511-
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER IDN 		0-36230-620-0 08 1 1511-
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M4X16 TAPPING 		0-71040-416-0 01 1 1511-
82 CASE ASM; CLUSTER METER 8-98045-367-0 01 1 1511-
86 TACHOMETER; CLUSTER METER 1-83119-937-0 01 1 1511-
105 GAUGE; THERMO & FUEL,CLUSTER METER 8-98054-833-0 01 1 1511-
110 GLASS; CLUSTER METER 1-83119-646-0 01 1 1511-
115 CIRCUIT; PRINTED,CLUSTER METER 8-98045-371-0 01 1 1511-
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 1511-
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 26 1 1511-
121 SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING 		1-83119-084-0 01 1 1511-
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-515-0 05 1 1511-
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING 		1-83119-676-0 02 1 1511-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-657-0 09 1 1511-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-675-0 06 1 1511-
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-284-0 01 1 1511-
143 COVER; CLUSTER METER 1-83119-516-0 05 1 1511-
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER 1-83119-680-0 01 1 1511-
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-261-0 01 1 1511-
191 KNOB; BULB CHECK 1-83119-672-0 01 1 1511-
194 SPRING; BULB CHECK KNOB 1-83119-673-0 01 1 1511-
199 LENS; WARNING LAMP
(A) 		8-98045-368-0 01 1 1511-
199 LENS; WARNING LAMP
(B) 		8-98045-369-1 01 1 1511-
269 SCREW; METER CLUSTER
(A) M3 		1-83119-273-0 02 1 1511-
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-677-0 05 1 1511-
379 CIRCUIT; DROP 1-83189-369-0 01 1 1511-
415 KNOB; TRIP,METER 1-83119-674-0 01 1 1511-
417 DISPLAY; ODO & TRIP,METER 1-83119-671-0 01 1 1511-
418 CIRCUIT; CONTROL,METER 1-83119-940-0 01 1 1511-
419 SPACER; CIRCUIT,METER 1-83119-678-0 02 1 1511-
420 HEAT SINK; METER 1-83119-679-0 01 1 1511-

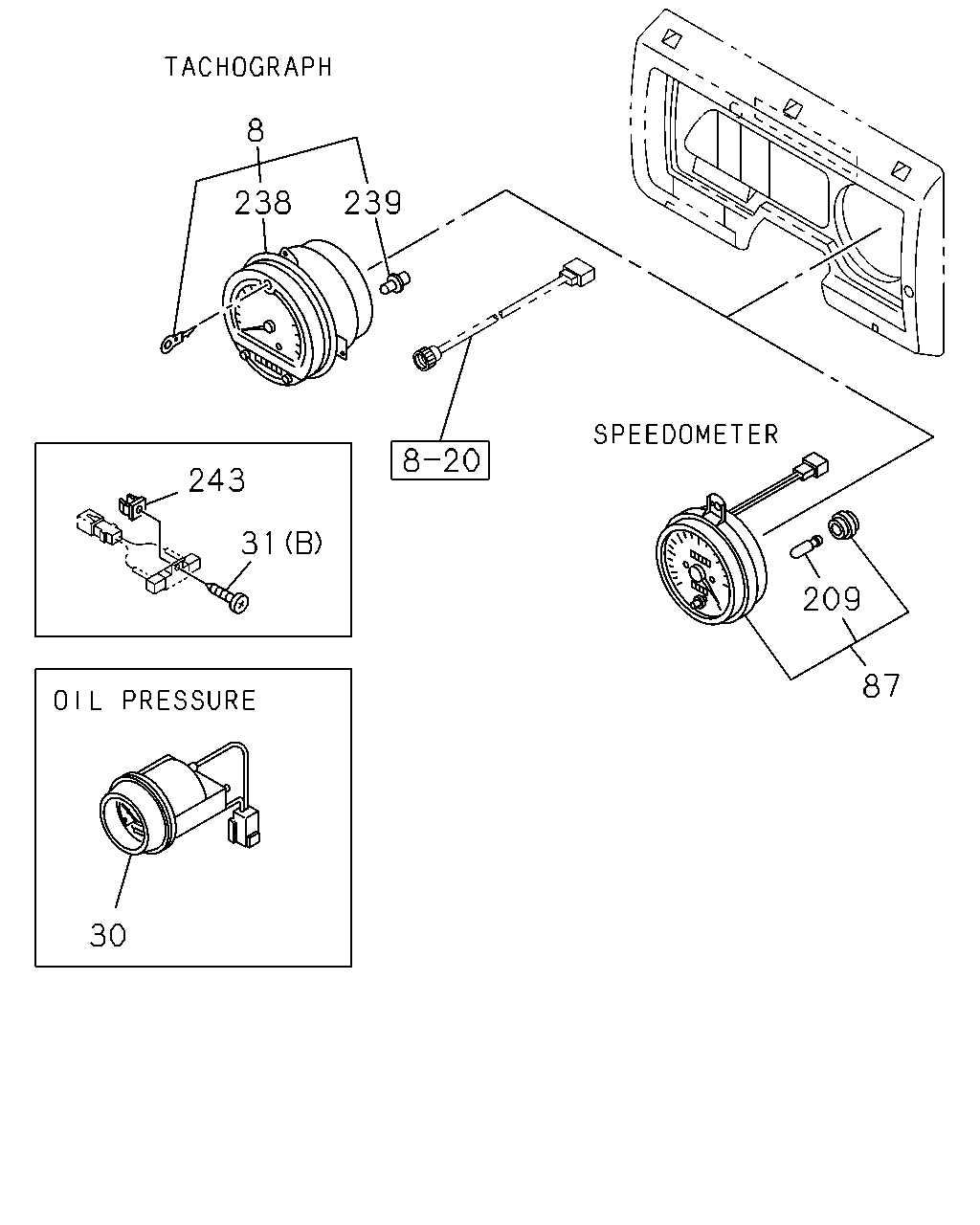

çizim 503083
8 238 239 243 31 30 87 209
BalonParca AdiParca NoAdetTipApplied Date
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 1DAY<SCX> 		8-98083-549-0 01 1 1511-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-98039-288-0 01 1 1511-
30 GAUGE; OIL PRESSURE
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-83150-232-0 01 1 1511-
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER IDN 		0-36230-620-0 08 1 1511-
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M4X16 TAPPING 		0-71040-416-0 01 1 1511-
87 SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> 		8-98039-480-0 01 1 1511-
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET 		1-82194-061-0 01 1 1511-
238 PANEL; TACHOGRAPH
TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> 		1-83129-311-0 01 1 1511-
239 BULB; TACHOGRAPH
TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W 		1-82194-101-0 03 1 1511-
243 GROMMET; SCREW
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> D=7.5X7.5 L=7 		8-94430-147-0 01 1 1511-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
