◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11698 - LT134 RHD EURO2 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#169116) — 250 parça

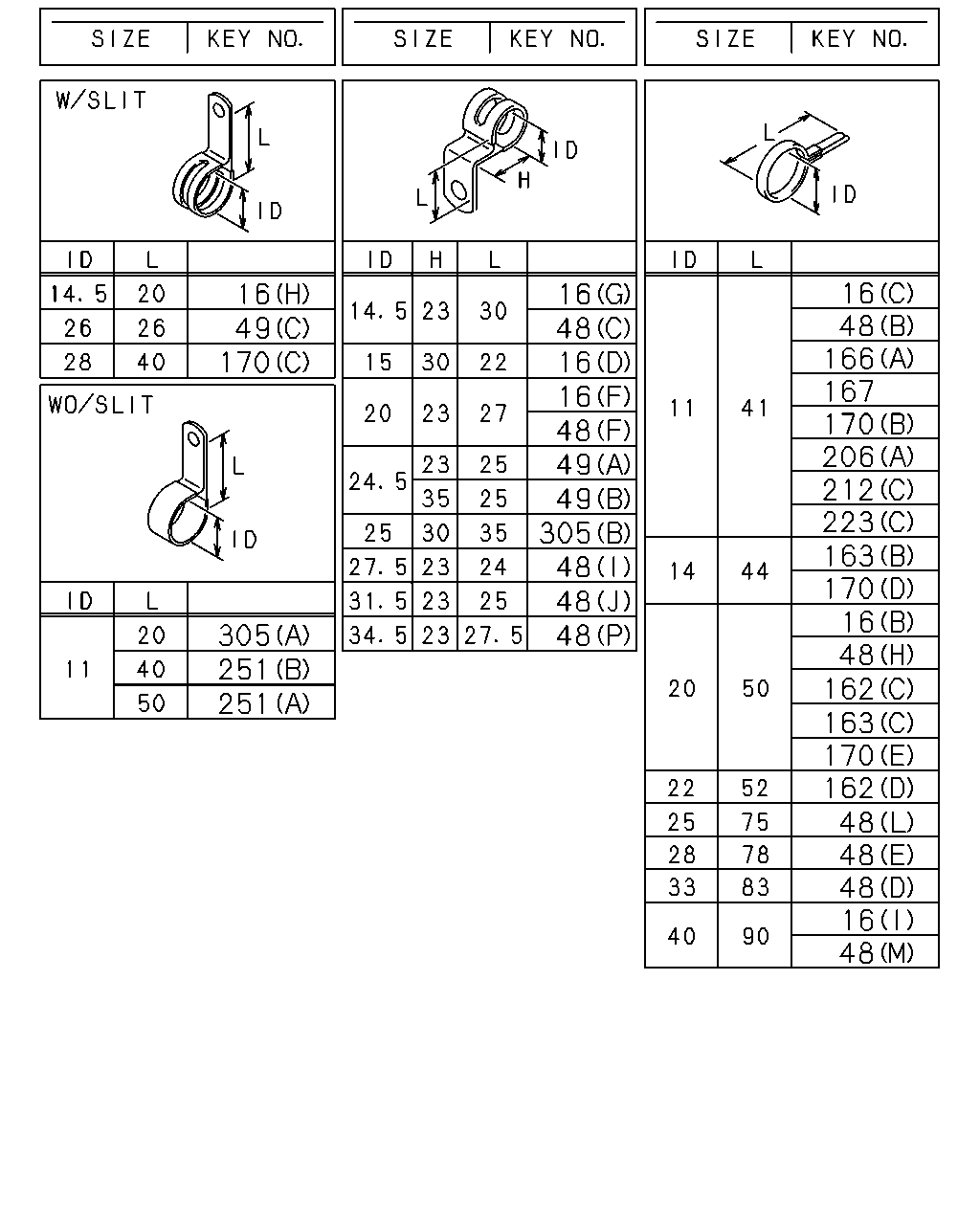

çizim 501913
16 170 49 305 251 251 16 16 48 16 49 48 49 305 48 48 48 16 166 170 167 206 223 212 163 16 170 48 162 163 170 48 162 48 48 48 16 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 1511-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 1511-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 1511-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1511-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1511-
16 CLIP; HARNESS
(H) ID=14.5 L=20 		1-09701-012-0 02 1 1511-
16 CLIP; HARNESS
(D) ID=15 L=22 H=30 		1-09701-215-1 01 1 1511-
16 CLIP; HARNESS
(I) ID=40 L=90 		1-09701-290-0 04 1 1511-
16 CLIP; HARNESS
(J) L=350 		1-09707-183-0 02 1 1511-
16 CLIP; HARNESS
(E) L=382 		1-09707-196-0 01 1 1511-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 1511-
16 CLIP; HARNESS
(K) L=250 IDN 		5-09707-030-1 05 1 1511-
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 02 1 1511-
16 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 07 1 1511-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 1511-
48 CLIP; FRAME HARNESS
(C) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1511-
48 CLIP; FRAME HARNESS
(C) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1511-
48 CLIP; FRAME HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 03 1 1511-
48 CLIP; FRAME HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 1511-
48 CLIP; FRAME HARNESS
(P) ID=34.5 H=23 L=27.5 		1-09700-905-0 06 1 1511-
48 CLIP; FRAME HARNESS
(G) ID=35 L=33 		1-09700-945-0 03 1 1511-
48 CLIP; FRAME HARNESS
(J) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1511-
48 CLIP; FRAME HARNESS
(K) ID=28 L=40 		1-09701-261-0 01 1 1511-
48 CLIP; FRAME HARNESS
(L) ID=25 L=75 		1-09701-275-0 04 1 1511-
48 CLIP; FRAME HARNESS
(M) ID=40 L=90 		1-09701-290-0 04 1 1511-
48 CLIP; FRAME HARNESS
(M) ID=40 L=90 		1-09701-290-0 04 1 1511-
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 22 1 1511-
48 CLIP; FRAME HARNESS
(N) L=180 		1-09707-162-1 01 1 1511-
48 CLIP; FRAME HARNESS
(O) L=350 		1-09707-183-0 01 1 1511-
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 1511-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (H) ID=20 L=50 		9-09917-430-0 01 1 1511-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=11 L=41 		1-09700-403-0 01 1 1511-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140 IDN 		5-09707-031-1 01 1 1511-
49 CLIP; GEN HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1511-
49 CLIP; GEN HARNESS
(B) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 1511-
49 CLIP; GEN HARNESS
(C) ID=26 L=26 		1-09701-236-0 01 1 1511-
49 CLIP; GEN HARNESS
(D) L=140 IDN 		5-09707-031-1 01 1 1511-
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 1511-
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 1511-
162 CLIP; SW HARNESS
(C) ID=20 L=50 		9-09917-430-0 03 1 1511-
162 CLIP; SW HARNESS
(D) ID=22 L=52 		9-09917-431-0 01 1 1511-
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 1511-
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 1511-
163 CLIP; METER HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 1511-
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 04 1 1511-
166 CLIP; HARNESS CLU SW
(B) L=140 IDN 		5-09707-031-1 01 1 1511-
167 CLIP; HARNESS ACCEL & STOP
ID=11 L=41 		1-09700-403-0 02 1 1511-
170 CLIP; ELEC HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 1511-
170 CLIP; ELEC HARNESS
(C) ID=28 L=40 		1-09700-995-1 01 1 1511-
170 CLIP; ELEC HARNESS
(A) L=350 		1-09707-183-0 01 1 1511-
170 CLIP; ELEC HARNESS
(D) ID=14 L=44 		9-09917-427-0 04 1 1511-
170 CLIP; ELEC HARNESS
(E) ID=20 L=50 		9-09917-430-0 02 1 1511-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1511-
206 CLIP; FUEL TANK HARNESS
(B) L=250 IDN 		5-09707-030-1 02 1 1511-
212 CLIP; HORN HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 1511-
212 CLIP; HORN HARNESS
(A) ID=5-12 L=18 		1-09709-287-0 01 1 1511-
212 CLIP; HORN HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511-
212 CLIP; HORN HARNESS
(D) L=140 IDN 		5-09707-031-1 01 1 1511-
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 1511-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=13.5 		1-09709-180-0 01 1 1511-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 01 1 1511-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=40 		0-95235-075-0 01 1 1511-
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 02 1 1511-
251 CLIP; WATER LEVEL HARNESS
(C) L=140 IDN 		5-09707-031-1 01 1 1511-
305 CLIP; ENG HARNESS
(A) ID=11 L=20 		0-95235-036-0 01 1 1511-
305 CLIP; ENG HARNESS
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 1511-
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-97367-985-1 02 1 1511-
305 CLIP; ENG HARNESS
(C) ID=21 L=24 		8-98019-191-0 03 1 1511-
çizim 503109
16 48 49 165 166 194 208 212 251 14 16 102 206 218 264 171 489 16 14 162 16 48 102 170 163 14 48 194 264
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=250 IDN 		5-09707-030-1 01 1 1511-
14 CLIP; BAND,HARNESS
(B) L=180 		8-98216-427-0 01 1 1511-
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 13 1 1511-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 1511-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 1511-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 1511-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1511-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1511-
16 CLIP; HARNESS
(H) ID=14.5 L=20 		1-09701-012-0 02 1 1511-
16 CLIP; HARNESS
(D) ID=15 L=22 H=30 		1-09701-215-1 01 1 1511-
16 CLIP; HARNESS
(I) ID=40 L=90 		1-09701-290-0 04 1 1511-
16 CLIP; HARNESS
(J) L=350 		1-09707-183-0 02 1 1511-
16 CLIP; HARNESS
(E) L=382 		1-09707-196-0 01 1 1511-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 1511-
16 CLIP; HARNESS
(K) L=250 IDN 		5-09707-030-1 05 1 1511-
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 02 1 1511-
16 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 07 1 1511-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 1511-
48 CLIP; FRAME HARNESS
(C) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1511-
48 CLIP; FRAME HARNESS
(C) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1511-
48 CLIP; FRAME HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 03 1 1511-
48 CLIP; FRAME HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 1511-
48 CLIP; FRAME HARNESS
(P) ID=34.5 H=23 L=27.5 		1-09700-905-0 06 1 1511-
48 CLIP; FRAME HARNESS
(G) ID=35 L=33 		1-09700-945-0 03 1 1511-
48 CLIP; FRAME HARNESS
(J) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1511-
48 CLIP; FRAME HARNESS
(K) ID=28 L=40 		1-09701-261-0 01 1 1511-
48 CLIP; FRAME HARNESS
(L) ID=25 L=75 		1-09701-275-0 04 1 1511-
48 CLIP; FRAME HARNESS
(M) ID=40 L=90 		1-09701-290-0 04 1 1511-
48 CLIP; FRAME HARNESS
(M) ID=40 L=90 		1-09701-290-0 04 1 1511-
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 22 1 1511-
48 CLIP; FRAME HARNESS
(N) L=180 		1-09707-162-1 01 1 1511-
48 CLIP; FRAME HARNESS
(O) L=350 		1-09707-183-0 01 1 1511-
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 1511-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (H) ID=20 L=50 		9-09917-430-0 01 1 1511-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=11 L=41 		1-09700-403-0 01 1 1511-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140 IDN 		5-09707-031-1 01 1 1511-
49 CLIP; GEN HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1511-
49 CLIP; GEN HARNESS
(B) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 1511-
49 CLIP; GEN HARNESS
(C) ID=26 L=26 		1-09701-236-0 01 1 1511-
49 CLIP; GEN HARNESS
(D) L=140 IDN 		5-09707-031-1 01 1 1511-
102 CLIP; BAND
(B) L=350 		1-09707-183-0 02 1 1511-
102 CLIP; BAND
(A) L=250 IDN 		5-09707-030-1 01 1 1511-
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 1511-
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 1511-
162 CLIP; SW HARNESS
(C) ID=20 L=50 		9-09917-430-0 03 1 1511-
162 CLIP; SW HARNESS
(D) ID=22 L=52 		9-09917-431-0 01 1 1511-
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 1511-
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 1511-
163 CLIP; METER HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 1511-
165 CLIP; BAND COMB SW
L=140 IDN 		5-09707-031-1 01 1 1511-
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 04 1 1511-
166 CLIP; HARNESS CLU SW
(B) L=140 IDN 		5-09707-031-1 01 1 1511-
170 CLIP; ELEC HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 1511-
170 CLIP; ELEC HARNESS
(C) ID=28 L=40 		1-09700-995-1 01 1 1511-
170 CLIP; ELEC HARNESS
(A) L=350 		1-09707-183-0 01 1 1511-
170 CLIP; ELEC HARNESS
(D) ID=14 L=44 		9-09917-427-0 04 1 1511-
170 CLIP; ELEC HARNESS
(E) ID=20 L=50 		9-09917-430-0 02 1 1511-
171 CLIP; STARTER HARNESS
L=152 		1-09707-193-0 04 1 1511-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 05 1 1511-
194 CLIP; BAND
(A) L=140 IDN 		5-09707-031-1 01 1 1511-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1511-
206 CLIP; FUEL TANK HARNESS
(B) L=250 IDN 		5-09707-030-1 02 1 1511-
208 CLIP; HARNESS,MAG VLV
L=140 IDN 		5-09707-031-1 01 1 1511-
212 CLIP; HORN HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 1511-
212 CLIP; HORN HARNESS
(A) ID=5-12 L=18 		1-09709-287-0 01 1 1511-
212 CLIP; HORN HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511-
212 CLIP; HORN HARNESS
(D) L=140 IDN 		5-09707-031-1 01 1 1511-
218 CLIP; BAND,RR COMB
L=250 IDN 		5-09707-030-1 02 1 1511-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=40 		0-95235-075-0 01 1 1511-
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 02 1 1511-
251 CLIP; WATER LEVEL HARNESS
(C) L=140 IDN 		5-09707-031-1 01 1 1511-
264 CLIP; HARNESS,HEADLAMP
(A) L=180 		1-09707-162-1 02 1 1511-
264 CLIP; HARNESS,HEADLAMP
(B) L=250 IDN 		5-09707-030-1 02 1 1511-
489 CLIP; HARNESS,OIL PRESS SW
L=202 		1-09707-194-0 02 1 1511-

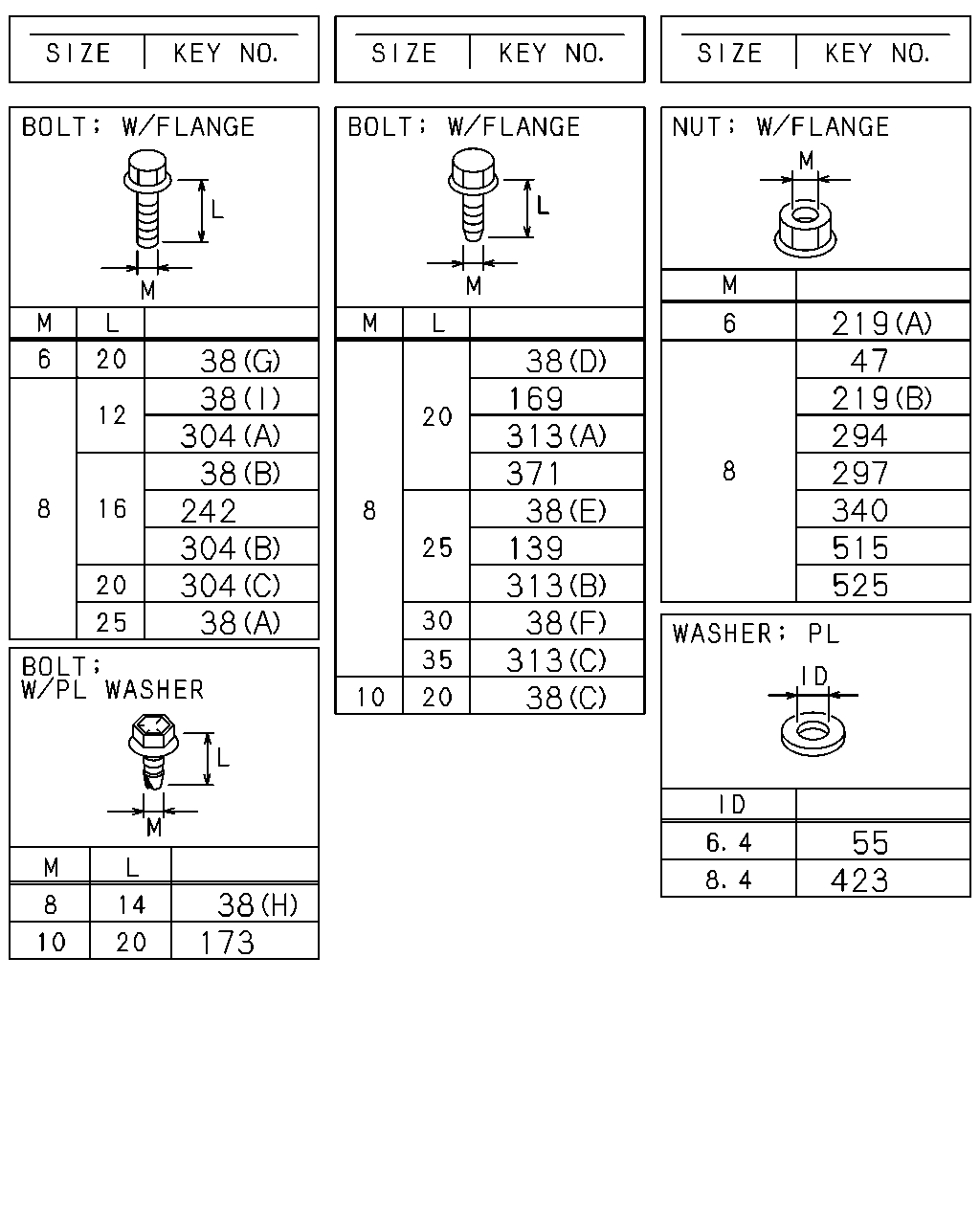

çizim 503173
38 304 38 38 304 242 304 38 38 38 173 169 371 313 38 313 139 38 313 38 219 219 47 294 340 525 515 55 423 297
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(I) M8X12 FLANGE 		0-28050-812-0 01 1 1511-
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1511-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28050-825-0 03 1 1511-
38 BOLT; CLIP,HARNESS
(G) M6X20 FLANGE IDN 		0-28650-620-0 02 1 1511-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1511-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE IDN 		0-28650-820-0 03 1 1511-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1511-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE IDN 		0-28650-825-0 03 1 1511-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE IDN 		0-28650-825-0 16 1 1511-
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 06 1 1511-
38 BOLT; CLIP,HARNESS
(C) M10X20 FLANGE 		0-28751-020-0 01 1 1511-
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1511-
47 NUT; GEN TERMINAL
M8 FLANGE 		0-91180-108-0 02 1 1511-
55 WASHER; PL,CLIP
ID=6.4 		0-91610-606-0 02 1 1511-
139 BOLT; BRKT
M8X25 FLANGE IDN 		0-28650-825-0 05 1 1511-
169 BOLT; ELEC HARNESS
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1511-
173 BOLT; STARTER EARTH
M10X20 W/PL WASHER 		8-98164-838-0 01 1 1511-
219 NUT
(A) M6 FLANGE 		0-91180-106-0 02 1 1511-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 03 1 1511-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 06 1 1511-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 21 1 1511-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 1511-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 1511-
242 BOLT; BRKT,HARNESS
M8X16 FLANGE 		0-28050-816-0 01 1 1511-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1511-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1511-
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91180-108-0 01 1 1511-
304 BOLT; ENG HARNESS CLIP
(A) M8X12 FLANGE 		0-28050-812-0 05 1 1511-
304 BOLT; ENG HARNESS CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1511-
304 BOLT; ENG HARNESS CLIP
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1511-
313 BOLT; BRKT
(A) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1511-
313 BOLT; BRKT
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1511-
313 BOLT; BRKT
(C) M8X35 FLANGE 		0-28650-835-0 01 1 1511-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1511-
371 BOLT; GEN HARNESS
M8X20 FLANGE IDN 		0-28650-820-0 03 1 1511-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 1511-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1511-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511-
çizim 503302
53 53 53 279 308 308 308 334 375 542 312 312 53
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 03 1 1511-
53 BRACKET; HARNESS
(B) L=90 		1-47477-755-1 01 1 1511-
53 BRACKET; HARNESS
(D) L=95 		1-82699-085-0 01 1 1511-
53 BRACKET; HARNESS
(C) L=120 		1-82699-963-0 02 1 1511-
279 STAY; HARNESS 1-82699-873-0 02 1 1511-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97612-280-1 01 1 1511-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-98032-178-0 01 1 1511-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98075-824-0 01 1 1511-
312 BRACKET; CLIP HARNESS
(A) L=60 		1-47475-455-0 01 1 1511-
312 BRACKET; CLIP HARNESS
(B) L=75 		1-47478-323-0 01 1 1511-
334 BRACKET 1-82698-495-2 02 1 1511-
375 BRACKET; AC GEN HARNESS CLIP
IDN 		1-47475-702-0 01 1 1511-
542 TUBE; DISTANCE,FUEL 8-97377-804-0 01 1 1511-
çizim 503413
16 223 205 235 305 48 48 212 223 212 162 305 253
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 1511-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 1511-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 1511-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1511-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1511-
16 CLIP; HARNESS
(H) ID=14.5 L=20 		1-09701-012-0 02 1 1511-
16 CLIP; HARNESS
(D) ID=15 L=22 H=30 		1-09701-215-1 01 1 1511-
16 CLIP; HARNESS
(I) ID=40 L=90 		1-09701-290-0 04 1 1511-
16 CLIP; HARNESS
(J) L=350 		1-09707-183-0 02 1 1511-
16 CLIP; HARNESS
(E) L=382 		1-09707-196-0 01 1 1511-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 1511-
16 CLIP; HARNESS
(K) L=250 IDN 		5-09707-030-1 05 1 1511-
16 CLIP; HARNESS
(A) L=140 IDN 		5-09707-031-1 02 1 1511-
16 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 07 1 1511-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 1511-
48 CLIP; FRAME HARNESS
(C) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1511-
48 CLIP; FRAME HARNESS
(C) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1511-
48 CLIP; FRAME HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 03 1 1511-
48 CLIP; FRAME HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 1511-
48 CLIP; FRAME HARNESS
(P) ID=34.5 H=23 L=27.5 		1-09700-905-0 06 1 1511-
48 CLIP; FRAME HARNESS
(G) ID=35 L=33 		1-09700-945-0 03 1 1511-
48 CLIP; FRAME HARNESS
(J) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1511-
48 CLIP; FRAME HARNESS
(K) ID=28 L=40 		1-09701-261-0 01 1 1511-
48 CLIP; FRAME HARNESS
(L) ID=25 L=75 		1-09701-275-0 04 1 1511-
48 CLIP; FRAME HARNESS
(M) ID=40 L=90 		1-09701-290-0 04 1 1511-
48 CLIP; FRAME HARNESS
(M) ID=40 L=90 		1-09701-290-0 04 1 1511-
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 22 1 1511-
48 CLIP; FRAME HARNESS
(N) L=180 		1-09707-162-1 01 1 1511-
48 CLIP; FRAME HARNESS
(O) L=350 		1-09707-183-0 01 1 1511-
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 1511-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (H) ID=20 L=50 		9-09917-430-0 01 1 1511-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=11 L=41 		1-09700-403-0 01 1 1511-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140 IDN 		5-09707-031-1 01 1 1511-
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 1511-
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 1511-
162 CLIP; SW HARNESS
(C) ID=20 L=50 		9-09917-430-0 03 1 1511-
162 CLIP; SW HARNESS
(D) ID=22 L=52 		9-09917-431-0 01 1 1511-
205 CLIP; BACK LAMP HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1511-
212 CLIP; HORN HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 1511-
212 CLIP; HORN HARNESS
(A) ID=5-12 L=18 		1-09709-287-0 01 1 1511-
212 CLIP; HORN HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511-
212 CLIP; HORN HARNESS
(D) L=140 IDN 		5-09707-031-1 01 1 1511-
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 1511-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=13.5 		1-09709-180-0 01 1 1511-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 01 1 1511-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=12 L=35 		5-09700-206-0 01 1 1511-
253 CLIP; CABLE FIX
ID=11 & 13 H=26 L=48 		1-09701-270-0 06 1 1511-
305 CLIP; ENG HARNESS
(A) ID=11 L=20 		0-95235-036-0 01 1 1511-
305 CLIP; ENG HARNESS
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 1511-
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-97367-985-1 02 1 1511-
305 CLIP; ENG HARNESS
(C) ID=21 L=24 		8-98019-191-0 03 1 1511-
çizim 503444
1 1 1 178 178 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1511-
1 SLEEVE; RUBBER
(C) ID=14 OD=18 L=60 		1-09337-030-0 02 1 1511-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 02 1 1511-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 02 1 1511-
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=12 		9-09956-093-1 01 1 1511-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1511-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
