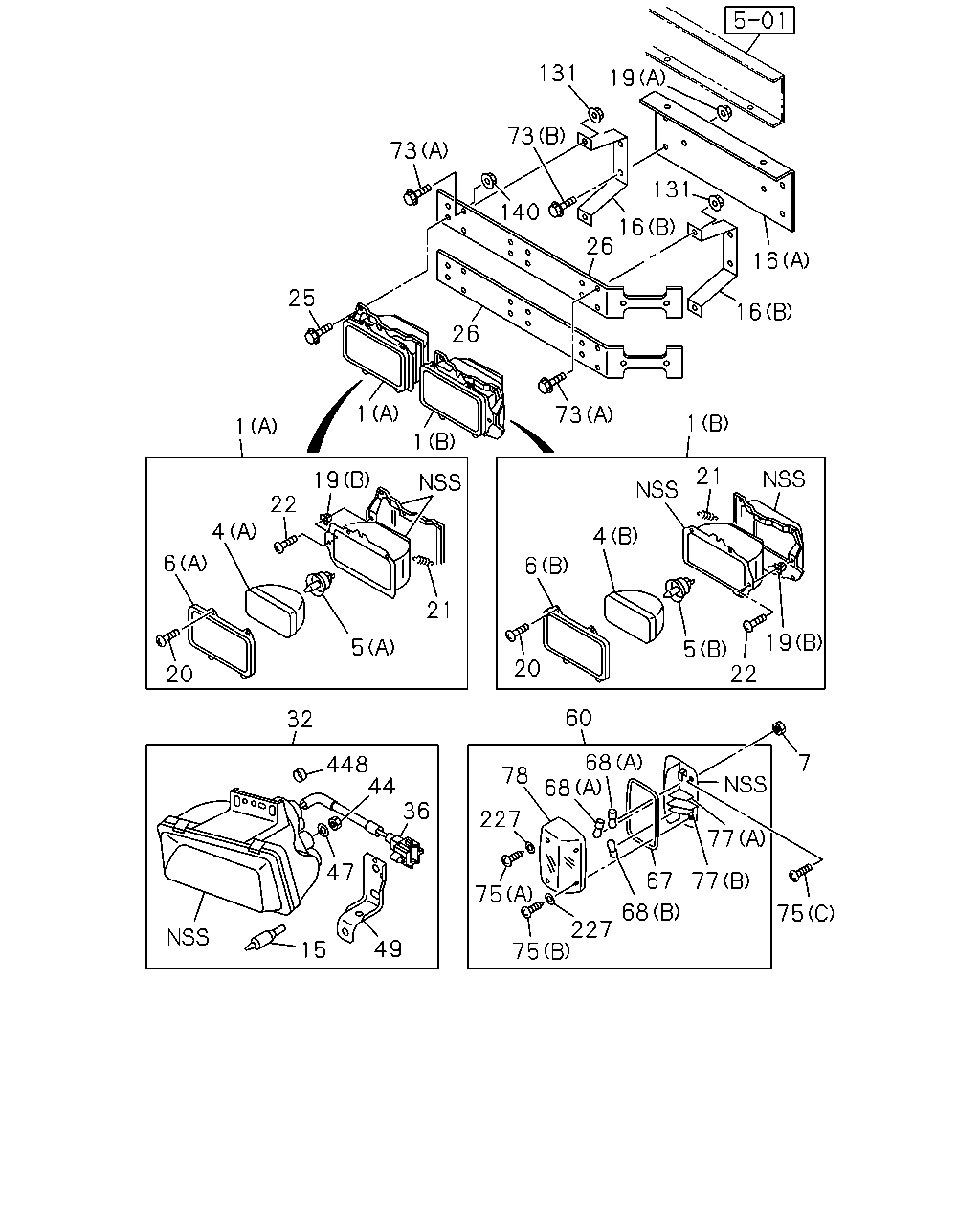

1 |
LAMP ASM; HEAD
(B) OUTER
TYPE 2 24V 75/70W
|
1-82110-258-2 |
01 |
1 |
1511- |
| |
1 |
LAMP ASM; HEAD
(B) OUTER
TYPE 2 24V 75/70W
|
1-82110-260-2 |
01 |
1 |
1511- |
| |
1 |
LAMP ASM; HEAD
(A) INNER
TYPE 1 24V 70W
|
1-82110-482-0 |
01 |
1 |
1511- |
| |
1 |
LAMP ASM; HEAD
(A) INNER
TYPE 1 24V 70W
|
1-82110-484-0 |
01 |
1 |
1511- |
| |
4 |
HEADLAMP UNIT
(B)
TYPE 2 24V 75/70W
|
1-82191-031-0 |
02 |
1 |
1511- |
| |
4 |
HEADLAMP UNIT
(A)
TYPE 1 24V 70W
|
1-82191-032-0 |
02 |
1 |
1511- |
| |
5 |
BULB; HEADLAMP
(B)
24V 75/70W
|
1-82193-006-0 |
02 |
1 |
1511- |
| |
5 |
BULB; HEADLAMP
(A)
24V 70W
|
1-82193-007-0 |
02 |
1 |
1511- |
| |
6 |
RIM; HEADLAMP
(A)
24V 70W
|
1-82114-018-0 |
02 |
1 |
1511- |
| |
6 |
RIM; HEADLAMP
(B)
24V 75/70W
|
1-82114-019-0 |
02 |
1 |
1511- |
| |
7 |
NUT; FRT COMB LAMP
M5
|
0-91110-505-0 |
08 |
1 |
1511- |
| |
15 |
BULB; FOG LAMP
FOG LAMP<T96>
24V 70W
|
1-82194-106-0 |
02 |
1 |
1511- |
| |
16 |
BRACKET; HEADLAMP
(A)
|
1-53456-310-0 |
02 |
1 |
1511- |
| |
16 |
BRACKET; HEADLAMP
(B)
|
9-82615-154-2 |
04 |
1 |
1511- |
| |
19 |
NUT; HEADLAMP
(A)
M6 FLANGE
|
0-91180-106-0 |
08 |
1 |
1511- |
| |
19 |
NUT; HEADLAMP
(B)
|
1-82119-056-0 |
04 |
1 |
1511- |
| |
19 |
NUT; HEADLAMP
(B)
|
1-82119-056-0 |
04 |
1 |
1511- |
| |
20 |
SCREW; HEADLAMP
|
1-82119-023-0 |
08 |
1 |
1511- |
| |
20 |
SCREW; HEADLAMP
|
1-82119-023-0 |
08 |
1 |
1511- |
| |
21 |
SPRING; ADJ HEADLAMP
|
1-82119-105-0 |
02 |
1 |
1511- |
| |
21 |
SPRING; ADJ HEADLAMP
|
1-82119-105-0 |
02 |
1 |
1511- |
| |
22 |
SCREW; ADJ,HEADLAMP
|
1-82119-095-0 |
04 |
1 |
1511- |
| |
22 |
SCREW; ADJ,HEADLAMP
|
1-82119-095-0 |
04 |
1 |
1511- |
| |
25 |
SCREW; LAMP
M5X20 W/LK&PL WASHER
|
0-36230-520-0 |
16 |
1 |
1511- |
| |
26 |
BRACKET ASM; HEADLAMP
IDN
|
1-82117-188-0 |
04 |
1 |
1511- |
| |
32 |
LAMP ASM; FOG
FOG LAMP<T96>
|
8-98232-065-1 |
01 |
1 |
1511- |
| |
32 |
LAMP ASM; FOG
FOG LAMP<T96>
|
8-98232-064-1 |
01 |
1 |
1511- |
| |
36 |
CORD; FOG LAMP
FOG LAMP<T96>
|
1-82118-016-0 |
01 |
1 |
1511- |
| |
36 |
CORD; FOG LAMP
FOG LAMP<T96>
|
1-82118-015-0 |
01 |
1 |
1511- |
| |
44 |
NUT; FOG LAMP
FOG LAMP<T96>
M6
|
8-98217-430-0 |
02 |
1 |
1511- |
| |
47 |
WASHER; PL,FOG LAMP
FOG LAMP<T96>
|
8-98217-429-0 |
02 |
1 |
1511- |
| |
49 |
BRACKET; LAMP
FOG LAMP<T96>
|
8-98051-437-0 |
01 |
1 |
1511- |
| |
49 |
BRACKET; LAMP
FOG LAMP<T96>
|
8-98051-438-0 |
01 |
1 |
1511- |
| |
60 |
LAMP ASM; FRT COMB
|
8-98020-167-1 |
01 |
1 |
1511- |
| |
60 |
LAMP ASM; FRT COMB
|
8-98020-168-1 |
01 |
1 |
1511- |
| |
67 |
GASKET; FRT COMB LAMP
|
8-98056-334-0 |
01 |
1 |
1511- |
| |
67 |
GASKET; FRT COMB LAMP
|
8-98056-335-0 |
01 |
1 |
1511- |
| |
68 |
BULB; FRT COMB LAMP
(B)
24V 10W
IDN
|
1-82194-037-0 |
02 |
1 |
1511- |
| |
68 |
BULB; FRT COMB LAMP
(A)
24V 21W
|
1-82194-104-0 |
04 |
1 |
1511- |
| |
73 |
BOLT; BRKT,HEADLAMP
(B)
M6X20 FLANGE
IDN
|
0-28650-620-0 |
08 |
1 |
1511- |
| |
73 |
BOLT; BRKT,HEADLAMP
(A)
M10X30 FLANGE
|
0-28651-030-0 |
12 |
1 |
1511- |
| |
75 |
SCREW; FRT COMB LAMP
(C)
M5X20 W/LK&PL WASHER
|
0-36230-520-0 |
08 |
1 |
1511- |
| |
75 |
SCREW; FRT COMB LAMP
(A)
M4X50
|
1-09106-004-0 |
04 |
1 |
1511- |
| |
75 |
SCREW; FRT COMB LAMP
(B)
M4X16
|
1-09106-005-0 |
04 |
1 |
1511- |
| |
77 |
SHADE; FRT TURN SIGNAL LAMP
(A)
|
1-82219-020-0 |
01 |
1 |
1511- |
| |
77 |
SHADE; FRT TURN SIGNAL LAMP
(B)
|
1-82219-021-0 |
01 |
1 |
1511- |
| |
77 |
SHADE; FRT TURN SIGNAL LAMP
(A)
|
1-82219-027-0 |
01 |
1 |
1511- |
| |
77 |
SHADE; FRT TURN SIGNAL LAMP
(B)
|
1-82219-028-0 |
01 |
1 |
1511- |
| |
78 |
LENS ASM; FRT COMB
|
8-98252-895-0 |
01 |
1 |
1511- |
| |
78 |
LENS ASM; FRT COMB
|
8-98252-896-0 |
01 |
1 |
1511- |
| |
131 |
NUT; BRKT,HEADLAMP
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
1511- |
| |
140 |
NUT
M5
|
0-91110-505-0 |
12 |
1 |
1511- |
| |
227 |
SEAT; SET SCREW,FRT COMB LAMP
|
1-09503-132-0 |
08 |
1 |
1511- |
| |
448 |
CAP ASM; LAMP
FOG LAMP<T96>
IDN
|
8-97378-874-0 |
02 |
1 |
1511- |
