11698 - LT134 RHD EURO2
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-40 - INSTRUMENT PANEL AND BOX
▶

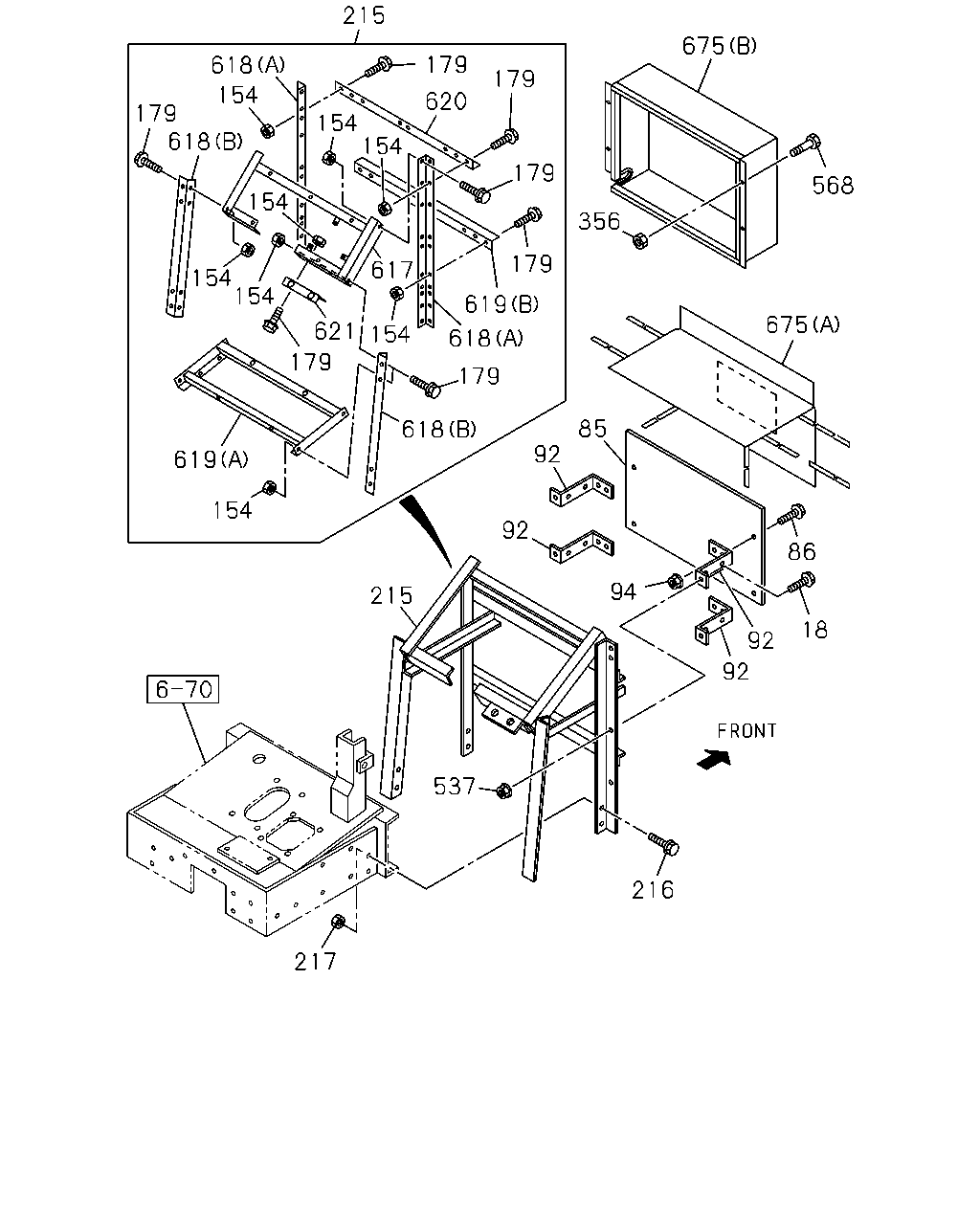

7-40 — INSTRUMENT PANEL AND BOX
(#169111) — 22 parça
215
618
154
179
618
154
154
154
154
154
179
179
620
179
179
619
618
179
618
154
617
621
179
619
154
356
675
568
675
86
18
92
92
94
92
92
85
215
537
216
217
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
BOLT; BRKT
M8X25 FLANGE IDN
0-28650-825-0
04
1
1511-
85
PANEL; ELEC
1-65600-732-1
01
1
1511-
86
BOLT; ELEC PNL
M8X25 FLANGE IDN
0-28650-825-0
04
1
1511-
92
BRACKET; ELEC PANEL
8-94300-644-3
04
1
1511-
94
NUT; PANEL BRKT
M8 FLANGE
0-91180-108-0
04
1
1511-
154
NUT
M10
0-91110-510-0
14
1
1511-
179
BOLT; STAY,INST PANEL
M10X20 FLANGE IDN
0-28051-020-0
14
1
1511-
215
BOARD ASM; DASH
IDN
1-65600-720-1
01
1
1511-
216
BOLT; DASH BOARD
M10X30 FLANGE
0-28651-030-0
08
1
1511-
217
NUT; DASH BOARD
M10 FLANGE
0-91180-210-0
08
1
1511-
356
NUT; COVER
M8 FLANGE
0-91180-108-0
04
1
1511-
537
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
1511-
568
BOLT; COVER
M8X25 FLANGE IDN
0-28650-825-0
04
1
1511-
617
STAY; DASH BOARD
IDN
1-65600-600-2
01
1
1511-
618
STAY; PEDAL BOARD
(A) IDN
1-65600-565-0
02
1
1511-
618
STAY; PEDAL BOARD
(B) IDN
1-65600-731-0
02
1
1511-
619
STAY; PEDAL BRKT
(B) IDN
1-65600-467-2
01
1
1511-
619
STAY; PEDAL BRKT
(A) IDN
1-65600-601-3
01
1
1511-
620
STAY; BACK MIRROR
IDN
1-65600-467-2
01
1
1511-
621
PEDAL; IDLING CONT
IDN
1-65600-730-1
01
1
1511-
675
COVER; ELEC PANEL
(A)
8-97531-011-1
01
1
1511-
675
COVER; ELEC PANEL
(B)
8-98147-340-0
01
1
1511-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
