Isuzu WW
▶
BUSES
▶
LT
▶
11698 - LT134 RHD EURO2
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶

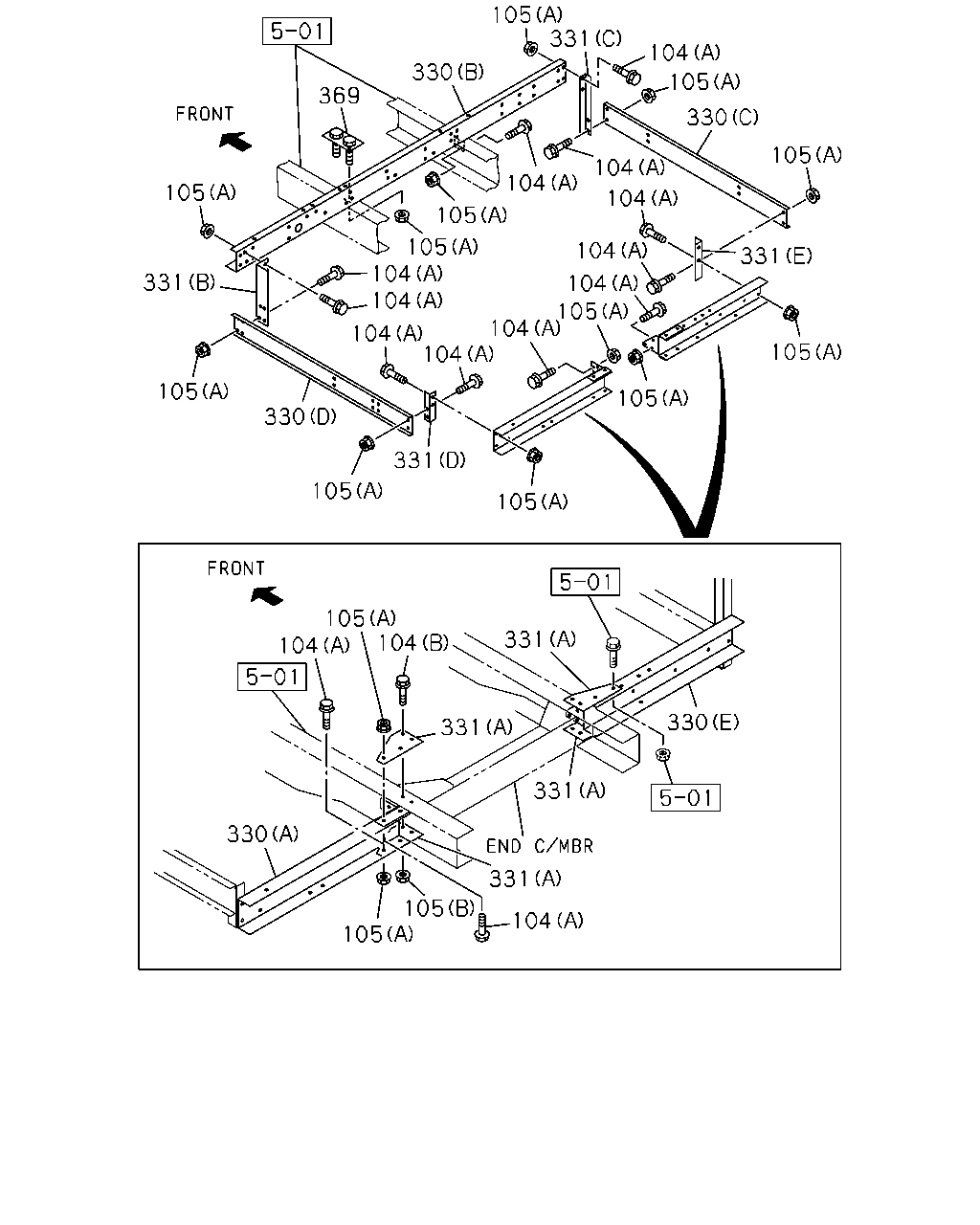

6-47 — MUD GUARD AND INSULATOR
(#169104) — 15 parça
105
105
104
104
104
104
105
104
330
105
331
105
105
331
105
330
105
331
105
105
104
104
104
105
330
369
105
104
331
105
104
104
331
331
331
104
105
105
330
330
104
104
331
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
104
BOLT; BRKT
(A) M10X30 FLANGE
0-28651-030-0
36
1
1511-
104
BOLT; BRKT
(B) M12X30 FLANGE
0-28651-230-0
08
1
1511-
105
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
38
1
1511-
105
NUT; BRKT
(B) M12 FLANGE
0-91180-212-0
08
1
1511-
330
BRACKET; ENG COVER
(A)
1-65600-696-0
01
1
1511-
330
BRACKET; ENG COVER
(B) IDN
1-65600-722-5
01
1
1511-
330
BRACKET; ENG COVER
(C) IDN
1-65600-723-2
01
1
1511-
330
BRACKET; ENG COVER
(D) IDN
1-65600-724-0
01
1
1511-
330
BRACKET; ENG COVER
(E) IDN
8-98133-779-1
01
1
1511-
331
BRACKET; ENG COVER BRKT
(A) IDN
1-65600-677-0
04
1
1511-
331
BRACKET; ENG COVER BRKT
(C) IDN
1-65600-726-1
01
1
1511-
331
BRACKET; ENG COVER BRKT
(E) IDN
1-65600-728-0
01
1
1511-
331
BRACKET; ENG COVER BRKT
(B) IDN
1-65600-725-0
01
1
1511-
331
BRACKET; ENG COVER BRKT
(D) IDN
1-65600-727-0
01
1
1511-
369
PLATE
1-53497-674-0
01
1
1511-
