Isuzu WW
▶
BUSES
▶
LT
▶
11698 - LT134 RHD EURO2
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

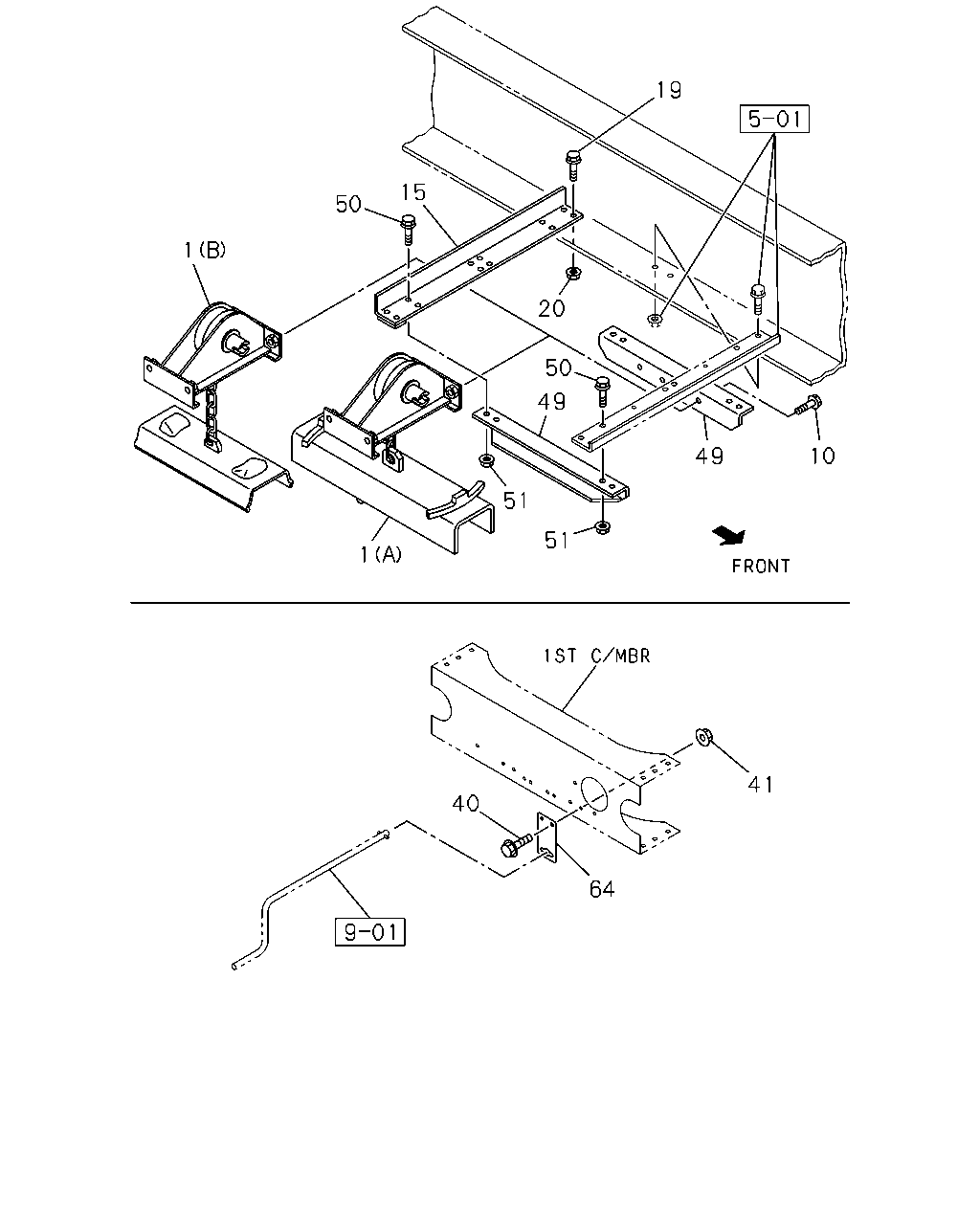

5-30 — SPARE TIRE CARRIER AND COVER
(#169102) — 12 parça
19
20
49
10
50
51
51
49
1
50
15
1
40
64
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE WHEEL CARRIER(SFB) (A)
1-53630-210-4
01
1
1511-
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER(SFB) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)
1-53630-208-3
01
1
1511-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER(SFB) M12X30 FLANGE
0-28651-230-0
04
1
1511-
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER(SFB) IDN
1-53618-064-1
01
1
1511-
19
BOLT; C/MBR
SPARE WHEEL CARRIER(SFB) M12X30 FLANGE
0-28651-230-0
04
1
1511-
20
NUT; C/MBR
SPARE WHEEL CARRIER(SFB) M12 FLANGE
0-91180-212-0
02
1
1511-
40
BOLT; GUIDE TO FRAME
SPARE WHEEL CARRIER(SFB) M8X25 FLANGE IDN
0-28650-825-0
02
1
1511-
41
NUT; GUIDE
SPARE WHEEL CARRIER(SFB) M8 FLANGE
0-91180-108-0
02
1
1511-
49
STAY; TIRE CARRIER
SPARE WHEEL CARRIER(SFB)
1-53618-068-0
02
1
1511-
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER(SFB) M12X30 FLANGE
0-28651-230-0
08
1
1511-
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER(SFB) M12 FLANGE
0-91180-212-0
08
1
1511-
64
GUIDE; HANDLE
SPARE WHEEL CARRIER(SFB)
1-53631-465-0
01
1
1511-
