◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#1691) — 58 parça

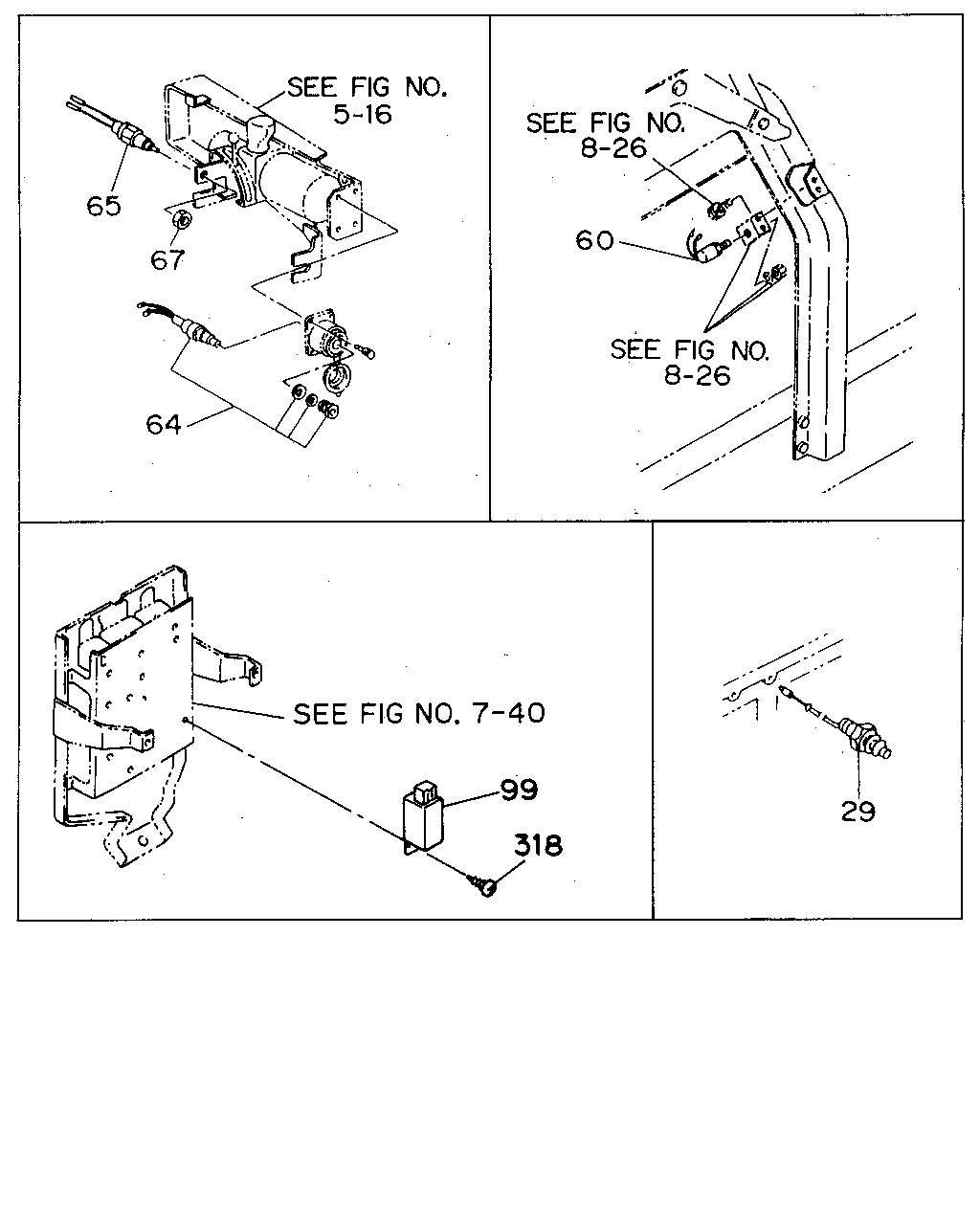

çizim 29810
65 67 64 60 99 318 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E
29 SWITCH; DOOR 1-82440-091-0 01 1 9207- ● ● ● ● ●
60 SWITCH; IGNITION SUB 1-82380-065-0 01 1 9207- ● ● ● ● ●
64 SWITCH; CAB TILT MAIN 1-82380-085-0 01 1 9207- ●
65 SWITCH; CAB TILT LK 1-82380-074-0 01 1 9207- ●
67 NUT; SW,CAB TILT
M16 		9-99111-416-0 01 1 9207- ●
99 RELAY; FOG LAMP
NEW ZEALAND EQUIPMENT(PK5) 24V 12.5A JIDECO 		1-82550-197-0 01 1 9207- ●
318 SCREW; RELAY
NEW ZEALAND EQUIPMENT(PK5) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9207- ●

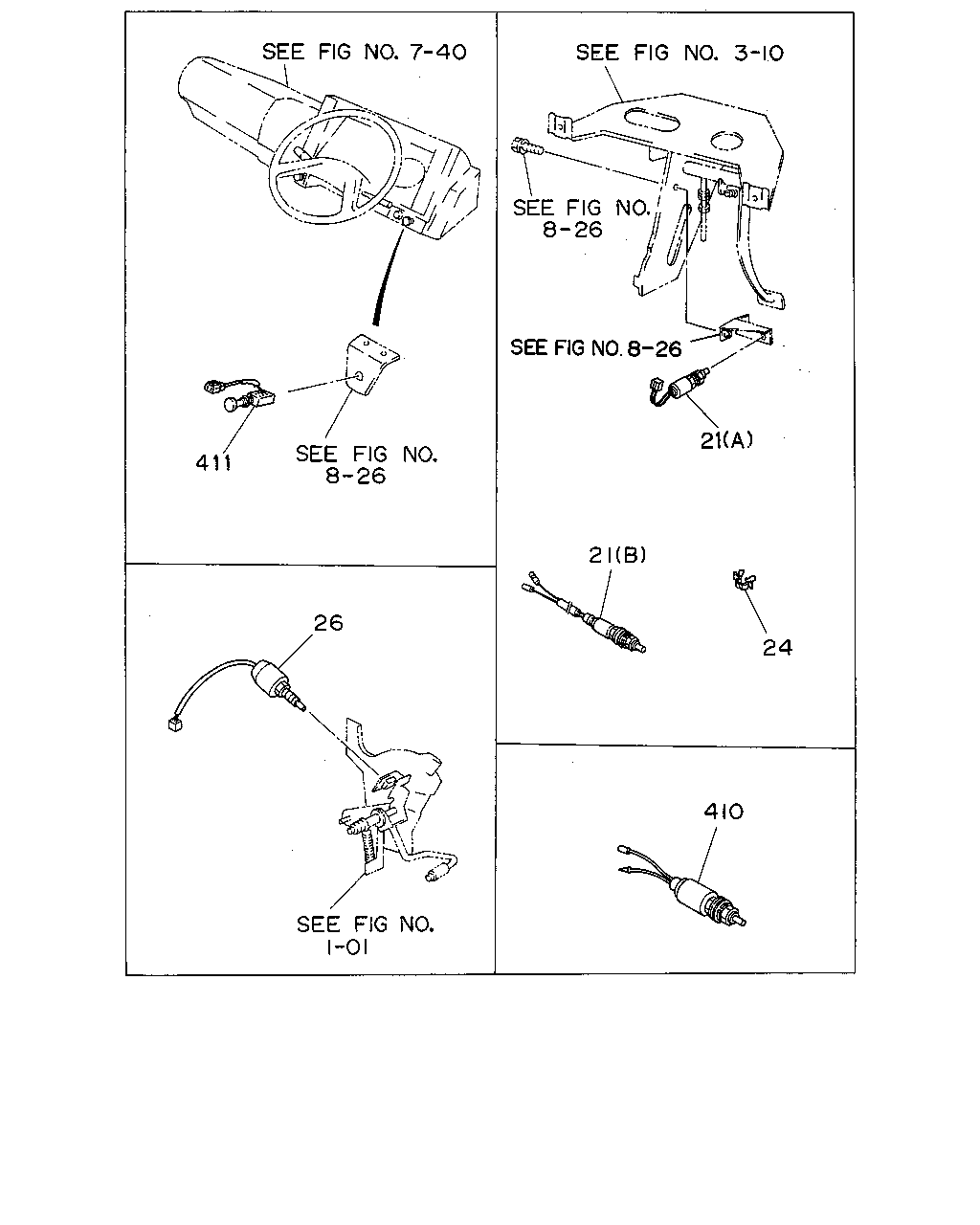

çizim 29819
411 21 21 24 26 410
BalonParca AdiParca NoAdetTipApplied Date A B C D E
21 SWITCH; CLU
(B) 		1-82380-009-3 01 1 9207- ● ● ● ● ●
21 SWITCH; CLU
(A) 		1-82440-049-1 01 1 9207- ● ● ● ● ●
24 CLIP; CLU SW,EXH BRK 1-09987-161-0 01 1 9207- ● ● ● ● ●
26 SWITCH; ACCEL 1-82380-089-0 01 1 9207- ● ● ● ● ●
410 SWITCH; FRT DRIVE 1-82380-009-3 01 1 9207-9208 ● ● ● ● ●
411 SWITCH; TRANSFER 1-82340-348-1 01 1 9207- ● ● ● ● ●

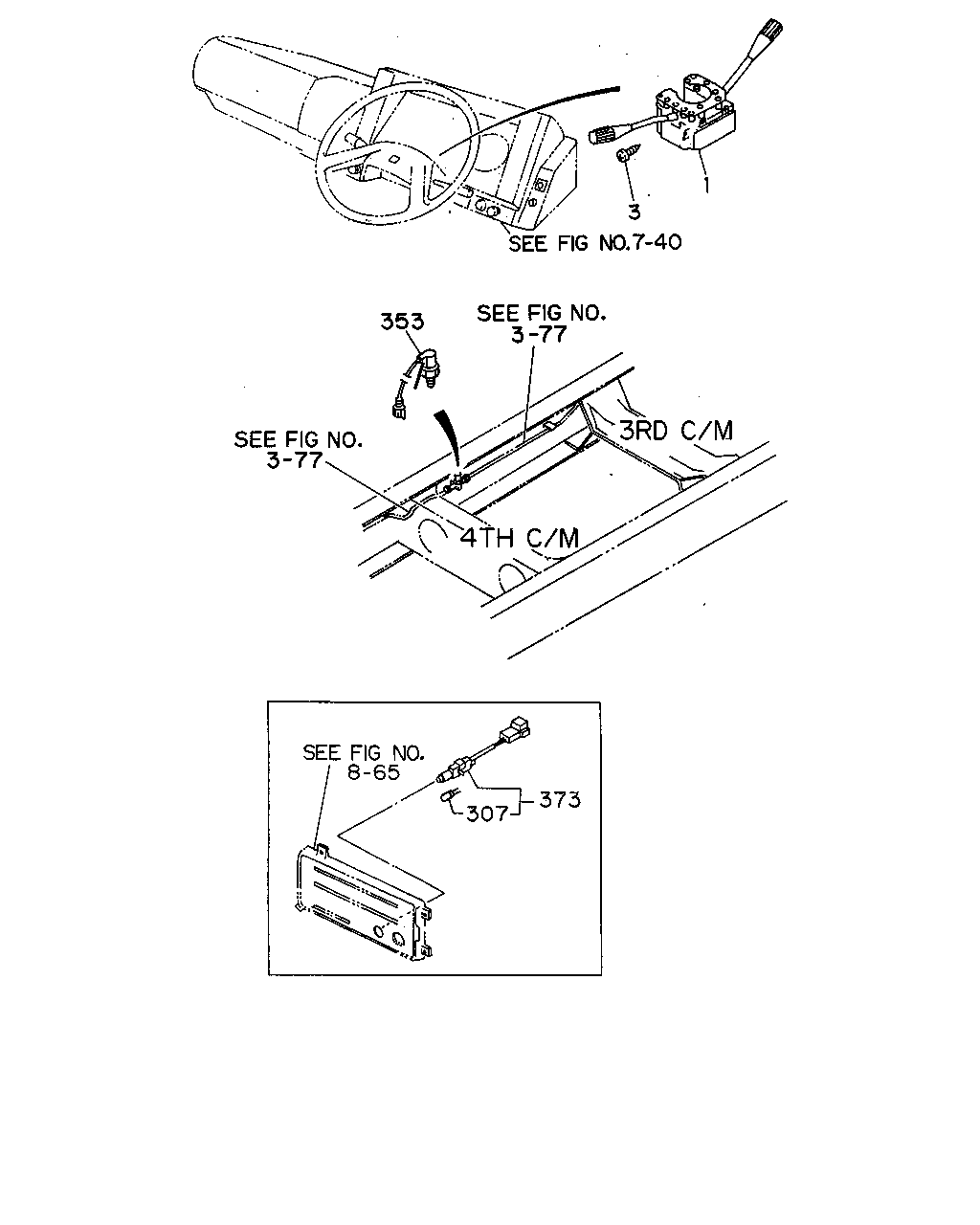

çizim 95479
3 1 353 307 373
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		1-82360-301-3 01 1 9207-9312 ● ● ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-301-3 01 1 9207-9312 ●
1 SWITCH; COMB 1-82360-301-3 01 1 9401-9409 ● ● ● ●
1 SWITCH; COMB
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-301-3 01 1 9401-9409 ●
1 SWITCH; COMB 1-82360-338-0 01 1 9410- ● ● ● ●
1 SWITCH; COMB
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-338-0 01 1 9410- ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		1-82360-323-1 01 1 9207-9312 ● ● ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,NEW ZEALAND EQUIPMENT(PK5) 		1-82360-323-1 01 1 9207-9312 ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> NEW ZEALAND EQUIPMENT(PK5) 		1-82360-314-1 01 1 9207-9312 ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) 		1-82360-314-1 01 1 9401-9409 ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) 		1-82360-383-0 01 1 9410- ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) EXC. INTERMITTENT WIPER<C13> 		1-82360-331-1 01 1 9207-9312 ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 03 1 9207-9409 ● ● ● ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9410- ● ● ● ● ●
307 BULB ASM; SW
AIR CONDITIONER MANUAL CONTROL<C60> 		1-82194-082-0 01 1 9207- ● ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING(B3A) 		1-82410-138-0 01 1 9207-9502 ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING(B3A) 		1-82410-163-0 01 1 9503- ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING(B3A) 		1-82410-094-0 01 1 9207-9502 ● ● ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING(B3A) 		1-82410-162-0 01 1 9503- ● ● ●
373 SWITCH; A/C
AIR CONDITIONER MANUAL CONTROL<C60> 		1-82340-197-0 01 1 9207- ● ●

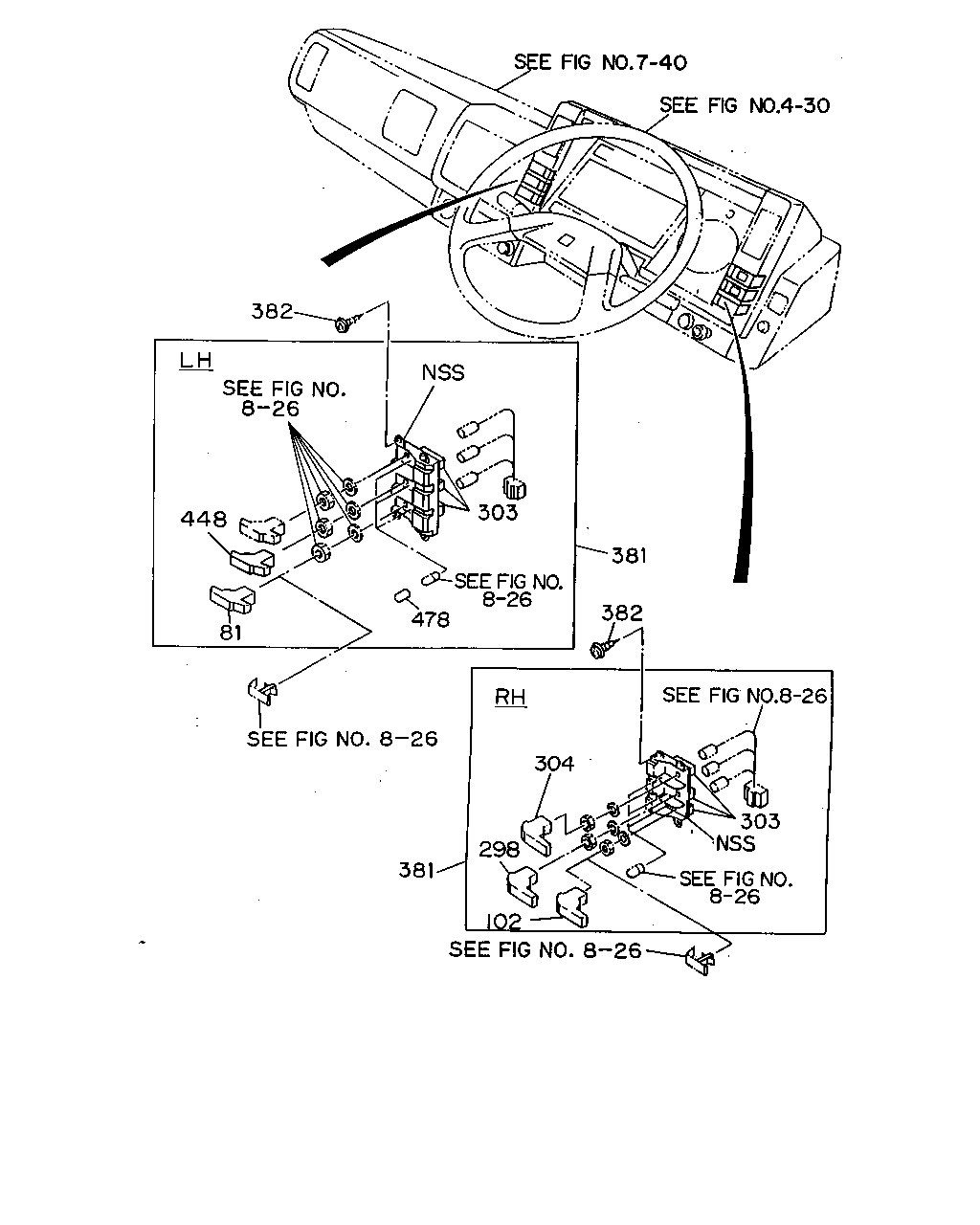

çizim 96417
382 448 81 478 303 381 382 381 304 298 102 303
BalonParca AdiParca NoAdetTipApplied Date A B C D E
81 KNOB ASM; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 		1-82356-073-0 01 1 9207- ● ● ● ● ●
81 KNOB ASM; PTO
TRANSMISSION FRONT PTO<RC2> PTO CONTROL<SV6> 		1-82356-080-0 01 1 9207- ● ●
102 KNOB ASM; FOG LAMP 1-82356-031-0 01 1 9207- ● ●
102 KNOB ASM; FOG LAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82356-031-0 01 1 9207- ● ● ●
298 KNOB ASM; PARKING LAMP 1-82356-028-0 01 1 9207- ● ●
298 KNOB ASM; PARKING LAMP
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82356-028-0 01 1 9207- ● ● ●
303 SWITCH; MICRO
4WD 		1-82350-224-0 01 1 9207- ● ● ● ● ●
303 SWITCH; MICRO
HAZARD 		1-82350-181-0 01 1 9207- ● ● ● ● ●
303 SWITCH; MICRO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> PTO CONTROL 		1-82350-128-0 01 1 9207- ● ● ● ● ●
303 SWITCH; MICRO
TRANSMISSION FRONT PTO<RC2> PTO CONTROL<SV6> PTO CONTROL 		1-82350-128-0 01 1 9207- ● ●
303 SWITCH; MICRO
FOG 		1-82350-091-0 01 1 9207- ● ●
303 SWITCH; MICRO
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> FOG 		1-82350-091-0 01 1 9207- ● ● ●
303 SWITCH; MICRO
PARKING 		1-82350-127-0 01 1 9207- ● ●
303 SWITCH; MICRO
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> PARKING 		1-82350-127-0 01 1 9207- ● ● ●
304 KNOB ASM; HAZARD 1-82356-068-0 01 1 9207- ● ● ● ● ●
381 SWITCH ASM; METER CLUSTER SIDE
EXC. PTO CONTROL<SV6> 		1-82350-211-1 01 1 9207- ● ● ● ● ●
381 SWITCH ASM; METER CLUSTER SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 		1-82350-209-1 01 1 9207- ● ● ● ● ●
381 SWITCH ASM; METER CLUSTER SIDE 1-82350-171-0 01 1 9207- ● ●
381 SWITCH ASM; METER CLUSTER SIDE
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> 		1-82350-171-0 01 1 9207- ● ● ●
381 SWITCH ASM; METER CLUSTER SIDE
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> 		1-82350-206-0 01 1 9207- ● ● ●
381 SWITCH ASM; METER CLUSTER SIDE
TRANSMISSION FRONT PTO<RC2> PTO CONTROL<SV6> 		1-82350-210-1 01 1 9207- ● ●
382 SCREW; SW,METER CLUSTER SIDE
M5X14 W/PL WASHER 		5-09981-050-0 08 1 9207- ● ● ● ● ●
448 KNOB ASM; FULL WHEEL DRIVE 1-82356-094-0 01 1 9207- ● ● ● ● ●
478 CAP; COLLAR
PTO CONTROL<SV6> GREEN 		1-82199-001-0 02 1 9207- ● ● ● ● ●
478 CAP; COLLAR
EXC. PTO CONTROL<SV6> GREEN 		1-82199-001-0 01 1 9207- ● ● ● ● ●
