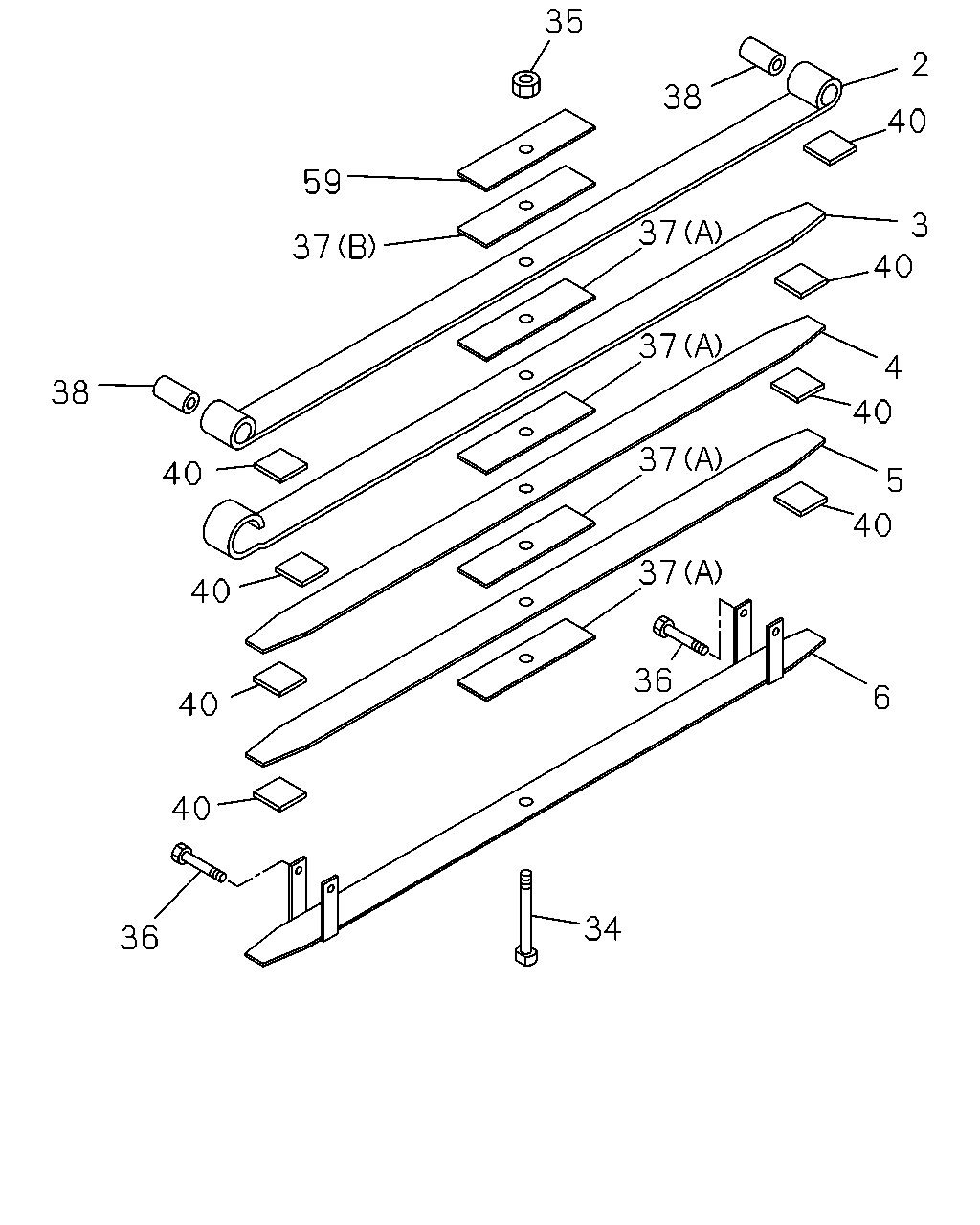

4-65 — REAR LEAF SPRING (#169098) — 13 parça

35 38 2 40 3 40 4 40 5 40 6 36 37 37 37 37 59 37 38 40 40 40 40 36 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN IDN ASM PART: A = 8-98205-939-0	8-98142-556-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN IDN ASM PART: A = 8-98205-939-0	8-98142-557-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN IDN ASM PART: A = 8-98205-939-0	8-98142-558-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN IDN ASM PART: A = 8-98205-939-0	8-98142-559-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN IDN ASM PART: A = 8-98205-939-0	8-98142-560-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=155, IDN ASM PART: A = 8-98205-939-0	8-98142-561-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12, IDN ASM PART: A = 8-98205-939-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X103, IDN ASM PART: A = 8-98205-939-0	1-09000-536-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), IDN ASM PART: A = 8-98205-939-0	8-98098-339-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR (B), IDN ASM PART: A = 8-98205-939-0	8-98098-340-0	01	1	-
38	BUSHING; LEAF SPR,RR OD=38, IDN ASM PART: A = 8-98205-939-0	1-51351-009-0	02	1	-
40	LINER; LEAF SPR,RR IDN ASM PART: A = 8-98205-939-0	8-98202-886-1	08	1	-
59	SEAT; RR SPRING,SUB T=9, IDN ASM PART: A = 8-98205-939-0	8-98098-341-0	01	1	-
