Isuzu WW
▶
BUSES
▶
LT
▶
11698 - LT134 RHD EURO2
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶
4-60 — REAR SUSPENSION
(#169096) — 33 parça
◀

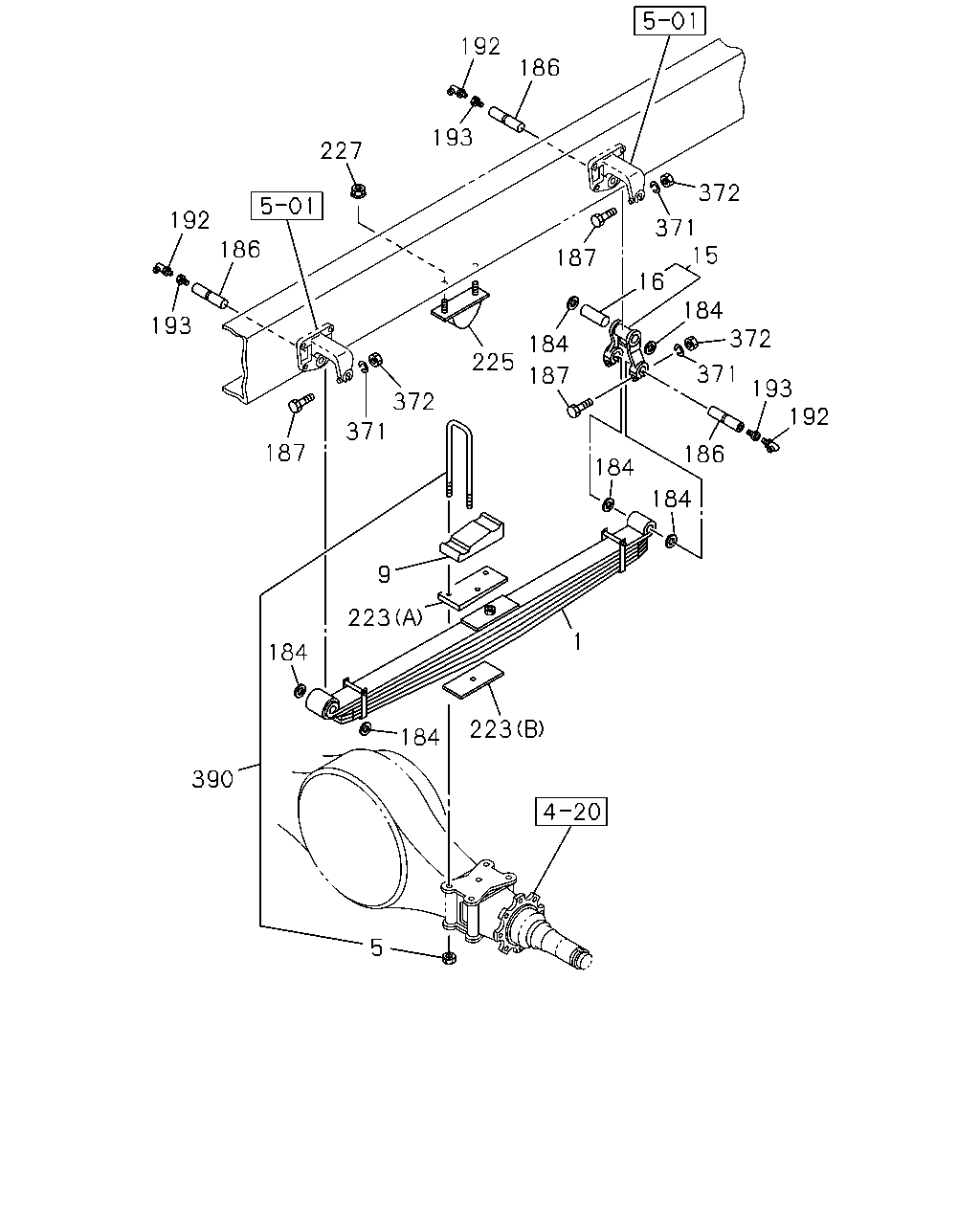

[460A] LEAF SPRING AND SHACKLE (17 parça)

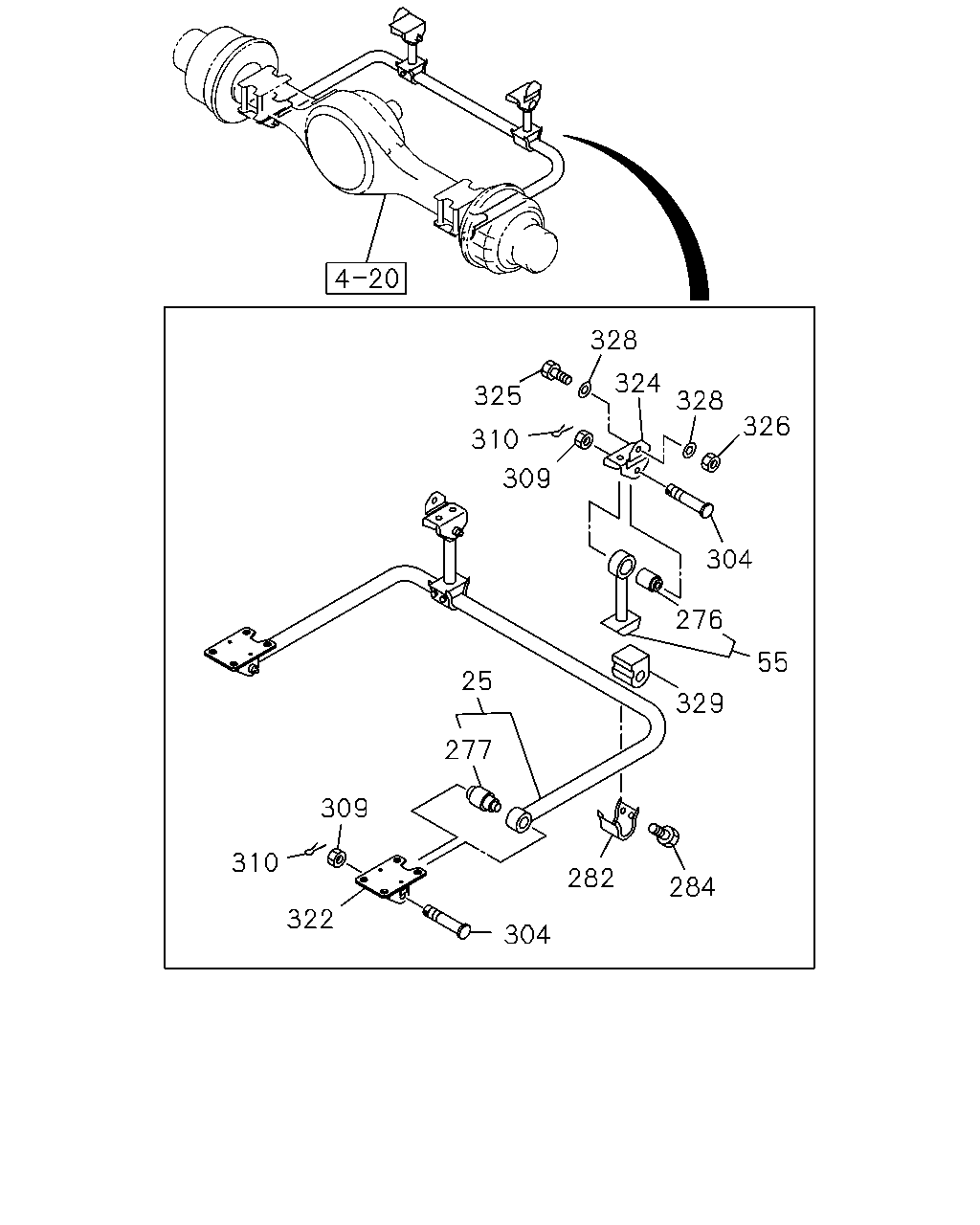

[460A] STABILIZER (16 parça)
▶
192
193
227
186
192
193
187
371
372
225
184
187
187
371
372
15
16
184
371
372
193
192
186
184
184
9
223
184
184
223
390
5
1
186
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. IDN
8-98205-939-0
02
1
1511-
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
1511-
9
PAD; U BOLT,RR SPR
1-51372-052-0
02
1
1511-
15
SHACKLE; RR SPR
1-51162-029-5
02
1
1511-
16
BUSHING; SHACKLE,RR SPR
OD=38
8-98081-829-0
02
1
1511-
184
WASHER; SPRING PIN
ID=32.4
1-51169-018-0
12
1
1511-
186
PIN; SHACKLE,RR SPR
1-51161-031-0
06
1
1511-
187
BOLT; SPR & SHACKLE
M12X80
0-10856-280-0
08
1
1511-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW
0-90301-610-0
06
1
1511-
193
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1511-
223
SPACER; U BOLT,RR SPR
(B) IDN
1-51377-177-0
02
1
1511-
223
SPACER; U BOLT,RR SPR
(A) IDN
1-51377-194-1
02
1
1511-
225
RUBBER; CUSHION,RR SPR
9-53366-088-3
02
1
1511-
227
NUT; CUSHION RUBBER
M10 FLANGE
0-91180-210-0
04
1
1511-
371
WASHER; LK,SHACKLE
ID=12.2
0-91510-812-0
08
1
1511-
372
NUT; SHACKLE
M12
0-91110-512-0
08
1
1511-
390
U-BOLT SET; RR SPRING
M24 L=425
1-87870-281-1
04
1
1511-
328
325
310
309
324
328
326
304
276
55
329
284
282
304
277
25
309
310
322
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BAR ASM; STAB,RR SUSP
1-51770-188-0
01
1
1511-
55
ROD; STAB
1-51770-024-1
02
1
1511-
276
BUSHING; STAB ROD
1-51779-019-0
02
1
1511-
277
BUSHING; STAB,RR UPR
1-51779-067-0
02
1
1511-
282
RETAINER; STAB BAR
1-51789-015-2
02
1
1511-
284
BOLT; RET TO RET
M10X25
8-94463-351-0
08
1
1511-
304
PIN; STAB ROD
1-51789-020-2
04
1
1511-
309
NUT; STAB ROD
M24
9-99116-424-0
04
1
1511-
310
PIN; SPLIT,STAB ROD
OD=4.6 L=45
0-81125-045-0
04
1
1511-
322
BRACKET; STAB BAR TO RR AXLE
1-51781-038-1
01
1
1511-
322
BRACKET; STAB BAR TO RR AXLE
1-51781-128-0
01
1
1511-
324
BRACKET; STAB BAR TO FRAME
1-51781-059-0
02
1
1511-
325
BOLT; BRKT TO FRAME
M14X40
0-20951-440-0
06
1
1511-
326
NUT; BRKT TO FRAME
M14
0-91110-514-0
06
1
1511-
328
WASHER; PL,BRKT
ID=15
8-98010-627-1
12
1
1511-
329
BUSHING; STAB ROD
1-51789-017-0
02
1
1511-
