◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11698 - LT134 RHD EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#169095) — 10 parça

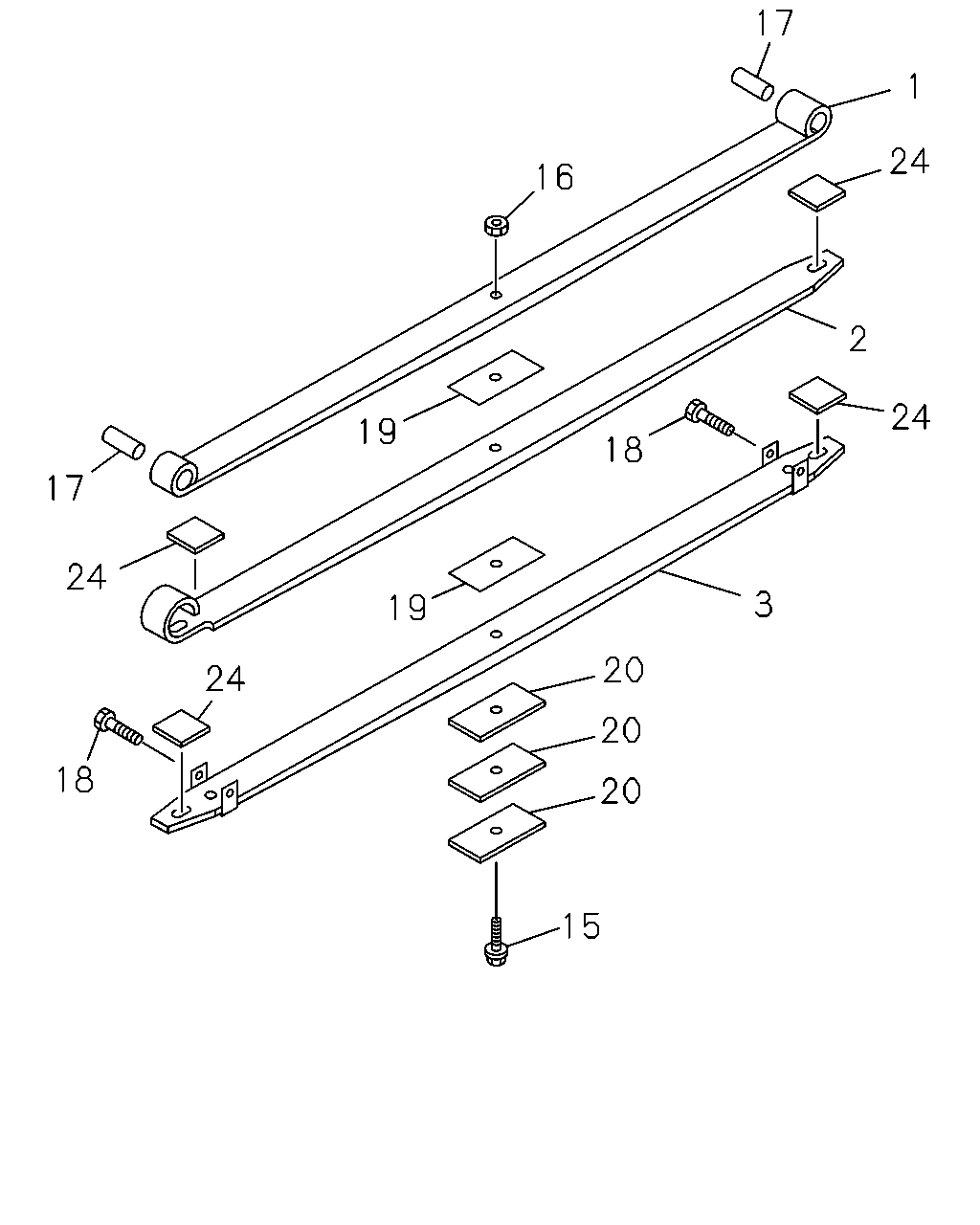

çizim 502343
1 24 17 16 19 18 17 24 24 18 19 20 20 20 15 3 24 2
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
IDN ASM PART: A = 8-98205-938-0 		8-98151-011-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
IDN ASM PART: A = 8-98205-938-0 		8-98151-012-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
IDN ASM PART: A = 8-98205-938-0 		8-98151-013-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130, IDN ASM PART: A = 8-98205-938-0 		1-51156-346-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16, IDN ASM PART: A = 8-98205-938-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38, IDN ASM PART: A = 8-98205-938-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99, IDN ASM PART: A = 8-98205-938-0 		1-09000-328-0 02 1 -
19 SPACER; LEAF SPRING,FRT
IDN ASM PART: A = 8-98205-938-0 		8-98098-338-0 02 1 -
20 SEAT; LEAF SPR,FRT
T=12 ASM PART: A = 8-98205-938-0 		1-51177-107-0 03 1 -
24 LINER; LEAF SPR,FWD FRT
IDN ASM PART: A = 8-98205-938-0 		8-98202-886-1 04 1 -
