4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#169090) — 222 parça

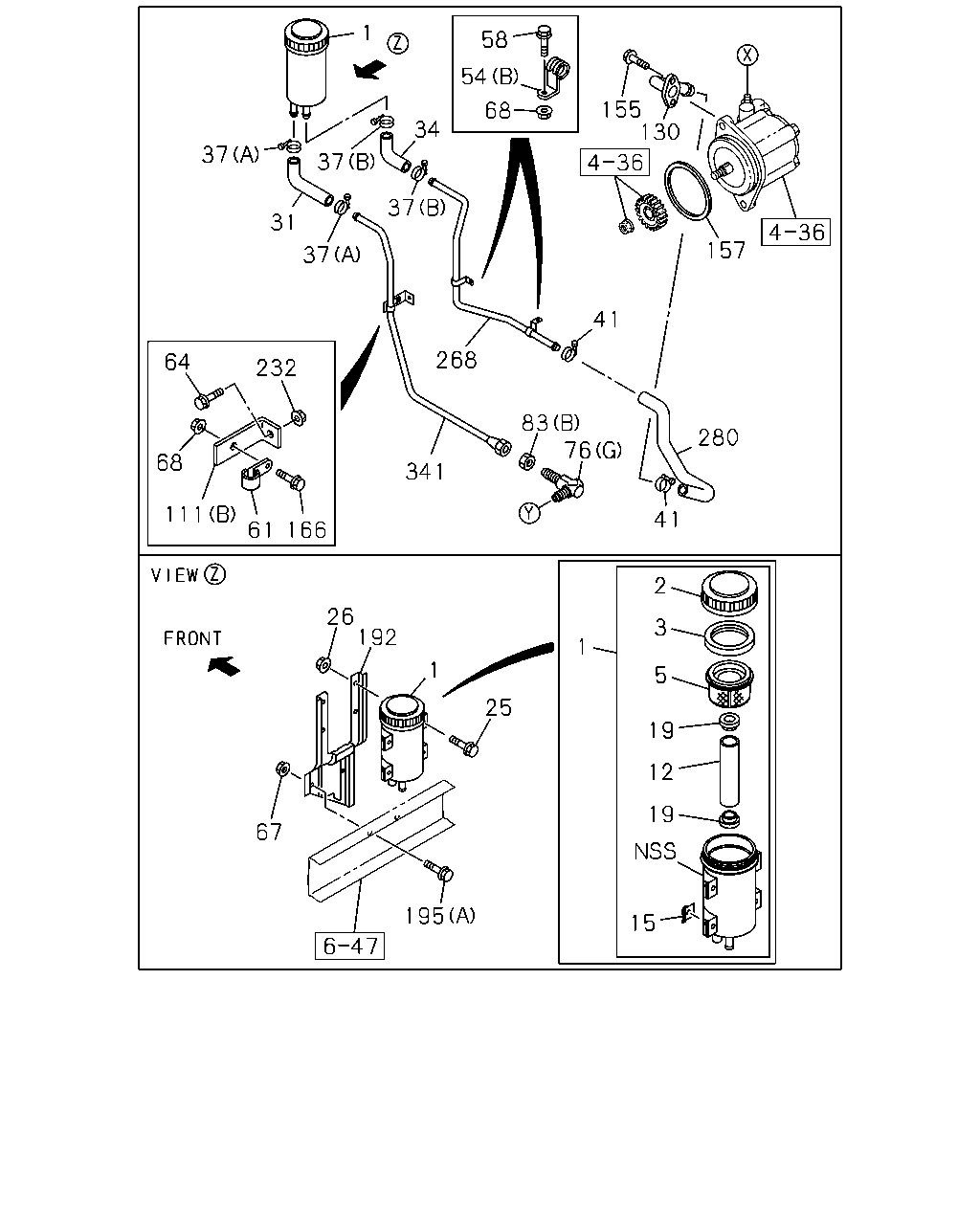

37 31 37 1 37 37 34 268 341 83 76 41 280 41 157 130 155 58 54 68 64 232 68 111 61 166 67 26 192 1 25 195 1 2 3 5 19 12 19 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-958-0	01	1	1511-
2	CAP; OIL TANK,P/S IDN	8-98166-876-0	01	1	1511-
3	GASKET; OIL TANK,P/S IDN	1-21249-003-1	01	1	1511-
5	STRAINER; OIL TANK,P/S IDN	1-21235-007-1	01	1	1511-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1511-
15	PLATE; FILTER,OIL TANK IDN	1-21249-016-0	04	1	1511-
19	SEAT; OIL TANK IDN	1-21249-004-0	02	1	1511-
25	BOLT; OIL TANK BRKT M8X25 FLANGE IDN	0-28650-825-0	04	1	1511-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	1511-
31	HOSE; P/S OIL TANK,INL	1-21115-101-0	01	1	1511-
34	HOSE; P/S OIL TANK,OUTLET	1-21116-093-1	01	1	1511-
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	1511-
37	CLIP; HOSE,P/S (B) ID=36	1-09704-094-0	02	1	1511-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1511-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	1511-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	1511-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	1511-
54	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	02	1	1511-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	1511-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1511-
58	BOLT; CLIP M8X25 FLANGE IDN	0-28650-825-0	03	1	1511-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	1511-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	03	1	1511-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	04	1	1511-
61	CLIP; OIL PIPE ID=16 L=20	0-95235-535-0	01	1	1511-
64	BOLT; CLIP BRKT M8X25 FLANGE IDN	0-28650-825-0	01	1	1511-
67	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1511-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	1511-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	1511-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	01	1	1511-
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	1511-
76	UNION; OIL PIPE (F) M20	0-92135-212-0	01	1	1511-
76	UNION; OIL PIPE (G) M22X2 ELBOW	0-92135-215-0	01	1	1511-
76	UNION; OIL PIPE (G) M22X2 ELBOW	0-92135-215-0	01	1	1511-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	1511-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	1511-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	1511-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	01	1	1511-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	1511-
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	1511-
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	1511-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	1511-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	1511-
111	BRACKET; OIL PIPE (A)	1-47475-427-1	02	1	1511-
111	BRACKET; OIL PIPE (B) L=76	1-47475-588-0	01	1	1511-
130	ADAPTER; P/S PUMP	8-94390-583-0	01	1	1511-
155	BOLT; CONNECTOR M8X16 FLANGE	0-28050-816-0	02	1	1511-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1511-
166	BOLT; CLIP M8X25 FLANGE IDN	0-28650-825-0	01	1	1511-
192	BRACKET; P/S OIL TANK	1-21219-093-2	01	1	1511-
195	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1511-
195	BOLT; BRKT (A) M10X25 FLANGE IDN	0-28651-025-0	03	1	1511-
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1511-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=509	8-98057-088-0	01	1	1511-
280	HOSE; P/S OIL PUMP,INL	1-21117-881-0	01	1	1511-
341	PIPE; OIL,UNION TO OIL TANK IDN	1-21117-875-0	01	1	1511-

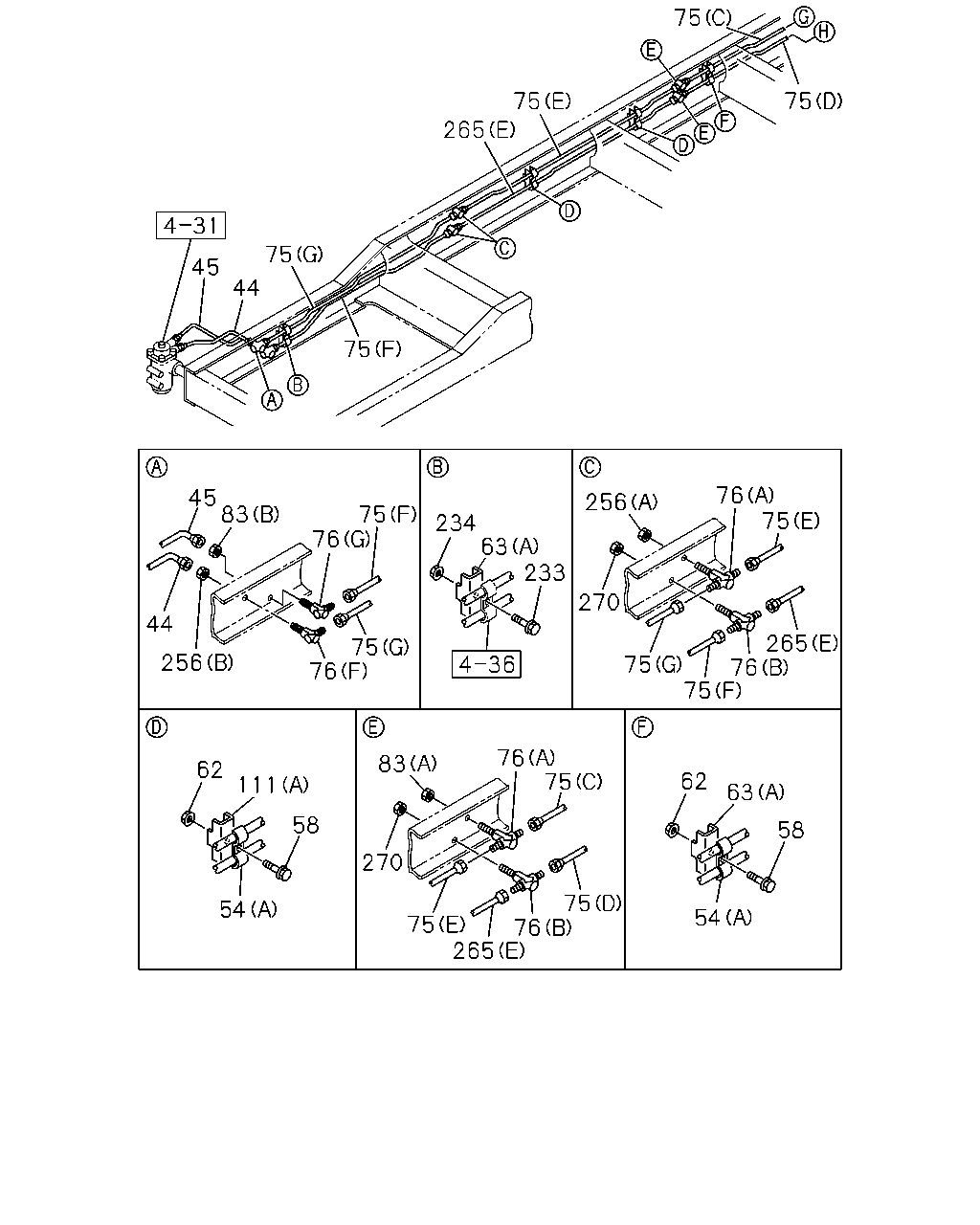

75 75 76 265 256 270 75 75 62 63 54 58 76 75 83 270 75 76 75 265 54 58 111 62 75 76 234 63 76 233 83 75 75 76 256 44 45 45 75 75 265 75 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	PIPE; OIL,P/S UNIT TO NIPPLE IDN	1-21117-869-0	01	1	1511-
45	PIPE; OIL,P/S UNIT TO UNION IDN	1-21117-871-0	01	1	1511-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	1511-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	1511-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	1511-
54	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	02	1	1511-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	1511-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1511-
58	BOLT; CLIP M8X25 FLANGE IDN	0-28650-825-0	03	1	1511-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	1511-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	03	1	1511-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	04	1	1511-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	1511-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1511-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1511-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	1511-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	03	1	1511-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	04	1	1511-
63	BRACKET; CLIP,P/S (B)	1-82699-199-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (F) L=906 IDN	1-21117-873-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (G) L=1112 SERVICED BY L=1200	1-49115-487-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1246 SERVICED BY L=1300	1-49115-488-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1827 SERVICED BY L=2000	1-49115-492-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1681	8-98288-443-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1607	8-98288-444-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (D) L=1832	8-98288-446-0	01	1	1511-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	1511-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	01	1	1511-
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	1511-
76	UNION; OIL PIPE (F) M20	0-92135-212-0	01	1	1511-
76	UNION; OIL PIPE (G) M22X2 ELBOW	0-92135-215-0	01	1	1511-
76	UNION; OIL PIPE (G) M22X2 ELBOW	0-92135-215-0	01	1	1511-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	1511-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	1511-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	1511-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	01	1	1511-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	1511-
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	1511-
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	1511-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	1511-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	1511-
111	BRACKET; OIL PIPE (A)	1-47475-427-1	02	1	1511-
111	BRACKET; OIL PIPE (B) L=76	1-47475-588-0	01	1	1511-
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28650-840-0	01	1	1511-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1511-
256	NUT; UNION (A) M14	0-91111-514-0	01	1	1511-
256	NUT; UNION (A) M14	0-91111-514-0	02	1	1511-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	1511-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	1511-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (B) L=2072 SERVICED BY L=2250	1-49115-493-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (D) L=1428	8-98057-084-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (C) L=2456 IDN	8-98057-086-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (A) L=1337 IDN	8-98057-087-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (E) L=1623 IDN	8-98288-445-0	01	1	1511-
270	NUT; UNION TO OIL PIPE M14	0-91111-514-0	02	1	1511-

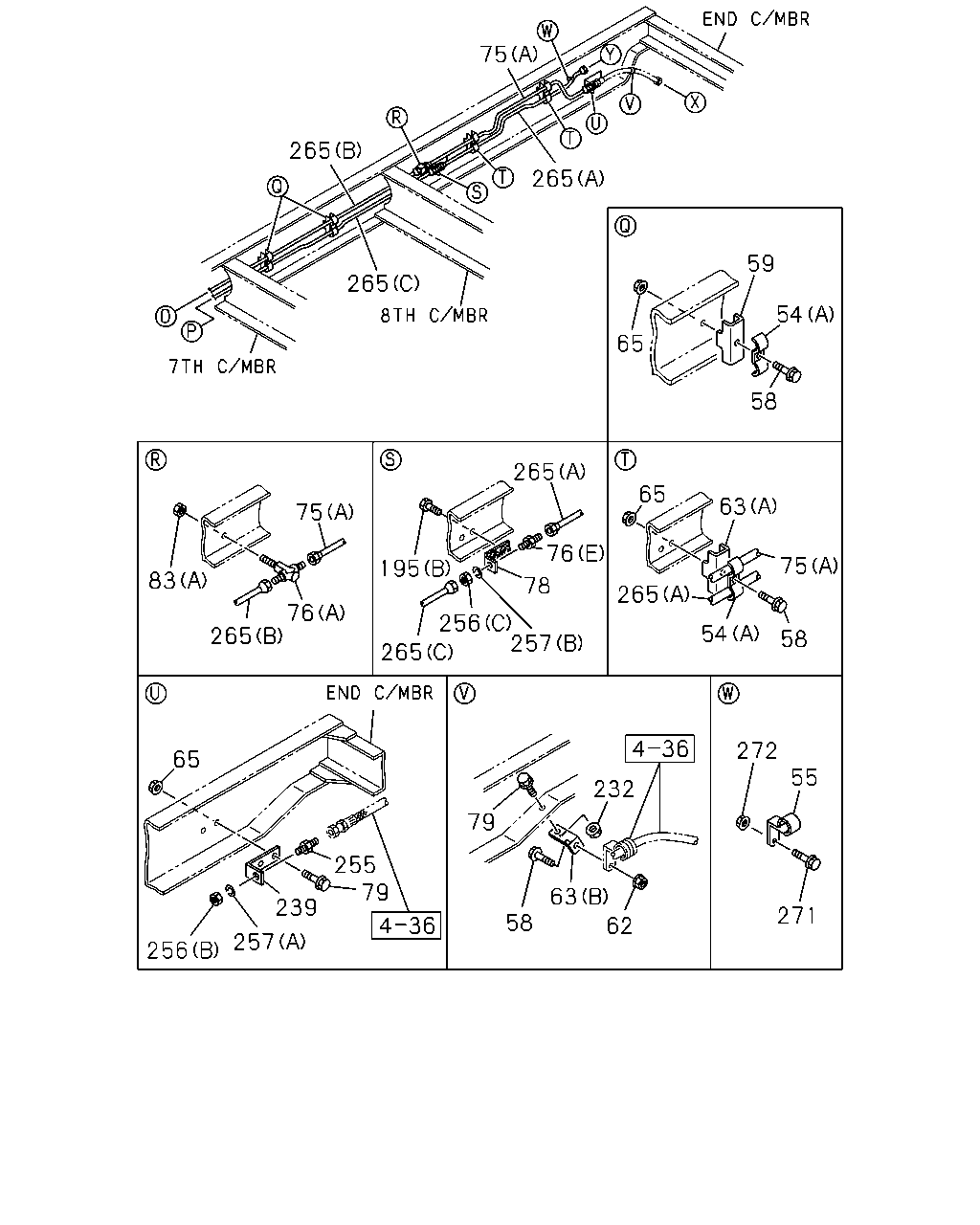

75 265 265 265 59 54 65 58 83 265 76 75 195 265 76 78 256 257 265 65 265 63 75 58 54 272 55 271 62 58 232 79 63 65 255 79 239 257 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	1511-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	1511-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	1511-
54	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	02	1	1511-
55	CLIP; P/S RUBBER HOSE ID=15 H=24 L=20	1-09700-606-0	01	1	1511-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	1511-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1511-
58	BOLT; CLIP M8X25 FLANGE IDN	0-28650-825-0	03	1	1511-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	1511-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	03	1	1511-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	04	1	1511-
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	1511-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	1511-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1511-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1511-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	1511-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	03	1	1511-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	04	1	1511-
63	BRACKET; CLIP,P/S (B)	1-82699-199-0	01	1	1511-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1511-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (F) L=906 IDN	1-21117-873-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (G) L=1112 SERVICED BY L=1200	1-49115-487-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1246 SERVICED BY L=1300	1-49115-488-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1827 SERVICED BY L=2000	1-49115-492-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1681	8-98288-443-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1607	8-98288-444-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (D) L=1832	8-98288-446-0	01	1	1511-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	1511-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	01	1	1511-
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	1511-
76	UNION; OIL PIPE (F) M20	0-92135-212-0	01	1	1511-
76	UNION; OIL PIPE (G) M22X2 ELBOW	0-92135-215-0	01	1	1511-
76	UNION; OIL PIPE (G) M22X2 ELBOW	0-92135-215-0	01	1	1511-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	1511-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	1511-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	1511-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	01	1	1511-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	1511-
78	BRACKET; UNION	1-47476-729-1	01	1	1511-
79	BOLT; BRKT M8X25 FLANGE IDN	0-28650-825-0	03	1	1511-
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	1511-
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	1511-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	1511-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	1511-
195	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1511-
195	BOLT; BRKT (A) M10X25 FLANGE IDN	0-28651-025-0	03	1	1511-
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1511-
239	BRACKET; FLEX HOSE	1-47478-324-0	01	1	1511-
255	UNION; FLEX HOSE	1-09650-045-1	01	1	1511-
256	NUT; UNION (A) M14	0-91111-514-0	01	1	1511-
256	NUT; UNION (A) M14	0-91111-514-0	02	1	1511-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	1511-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	1511-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	1511-
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	01	1	1511-
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (B) L=2072 SERVICED BY L=2250	1-49115-493-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (D) L=1428	8-98057-084-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (C) L=2456 IDN	8-98057-086-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (A) L=1337 IDN	8-98057-087-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (E) L=1623 IDN	8-98288-445-0	01	1	1511-
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE IDN	0-28650-825-0	01	1	1511-
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91180-108-0	01	1	1511-

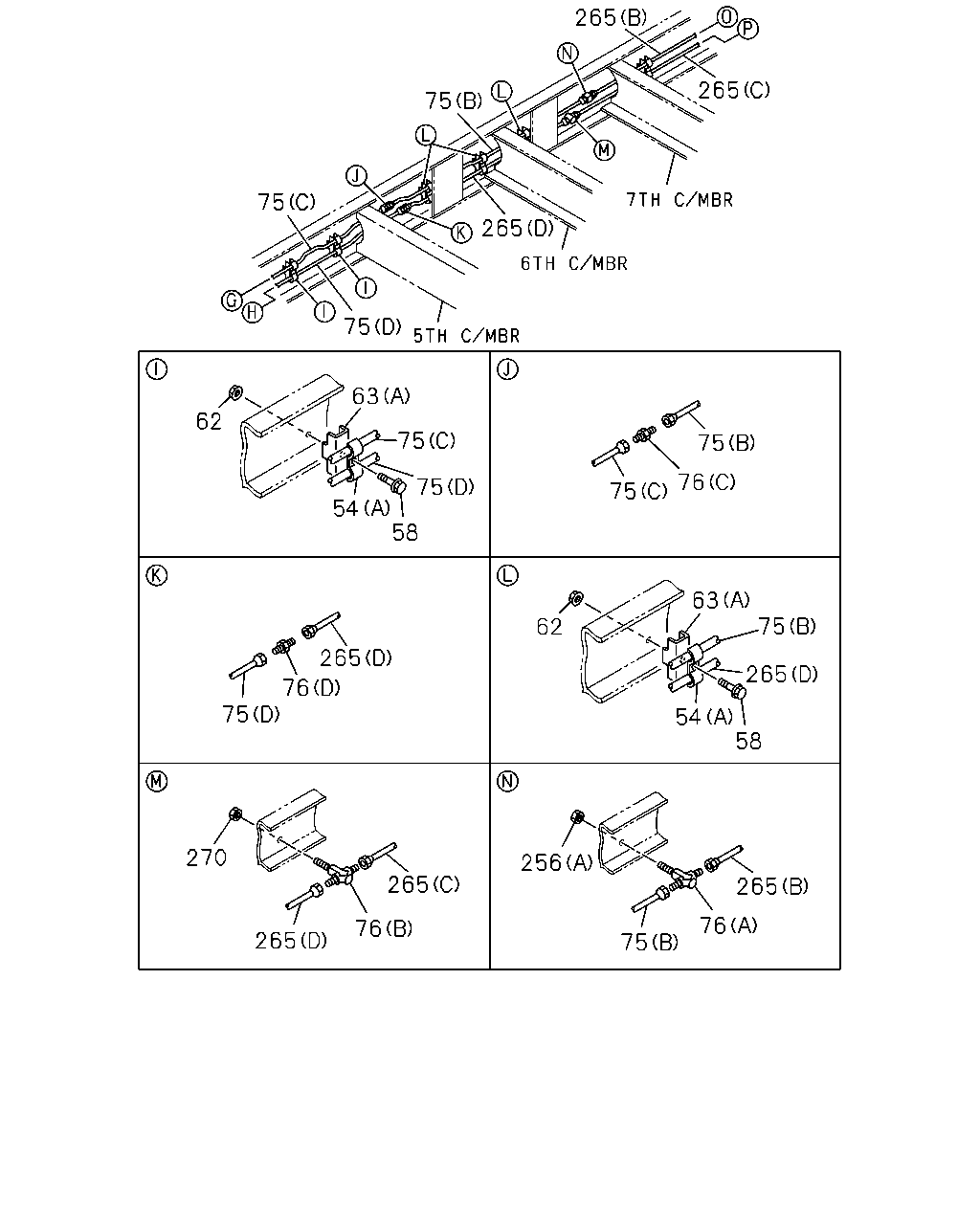

75 75 265 265 265 75 62 63 75 75 54 58 75 76 265 270 265 265 76 256 75 76 265 54 58 265 75 63 62 75 76 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	1511-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	1511-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	1511-
54	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	02	1	1511-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	1511-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1511-
58	BOLT; CLIP M8X25 FLANGE IDN	0-28650-825-0	03	1	1511-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	1511-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	03	1	1511-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	04	1	1511-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	1511-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1511-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1511-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	1511-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	03	1	1511-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	04	1	1511-
63	BRACKET; CLIP,P/S (B)	1-82699-199-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (F) L=906 IDN	1-21117-873-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (G) L=1112 SERVICED BY L=1200	1-49115-487-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1246 SERVICED BY L=1300	1-49115-488-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1827 SERVICED BY L=2000	1-49115-492-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1681	8-98288-443-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1607	8-98288-444-0	01	1	1511-
75	PIPE; OIL,P/S,UNION TO UNION (D) L=1832	8-98288-446-0	01	1	1511-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	1511-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	01	1	1511-
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	1511-
76	UNION; OIL PIPE (F) M20	0-92135-212-0	01	1	1511-
76	UNION; OIL PIPE (G) M22X2 ELBOW	0-92135-215-0	01	1	1511-
76	UNION; OIL PIPE (G) M22X2 ELBOW	0-92135-215-0	01	1	1511-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	1511-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	1511-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	1511-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	01	1	1511-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	1511-
256	NUT; UNION (A) M14	0-91111-514-0	01	1	1511-
256	NUT; UNION (A) M14	0-91111-514-0	02	1	1511-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	1511-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	1511-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (B) L=2072 SERVICED BY L=2250	1-49115-493-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (D) L=1428	8-98057-084-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (C) L=2456 IDN	8-98057-086-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (A) L=1337 IDN	8-98057-087-0	01	1	1511-
265	PIPE; OIL,UNION TO UNION (E) L=1623 IDN	8-98288-445-0	01	1	1511-
270	NUT; UNION TO OIL PIPE M14	0-91111-514-0	02	1	1511-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
