4-25 — REAR FINAL DRIVE (#169086) — 72 parça

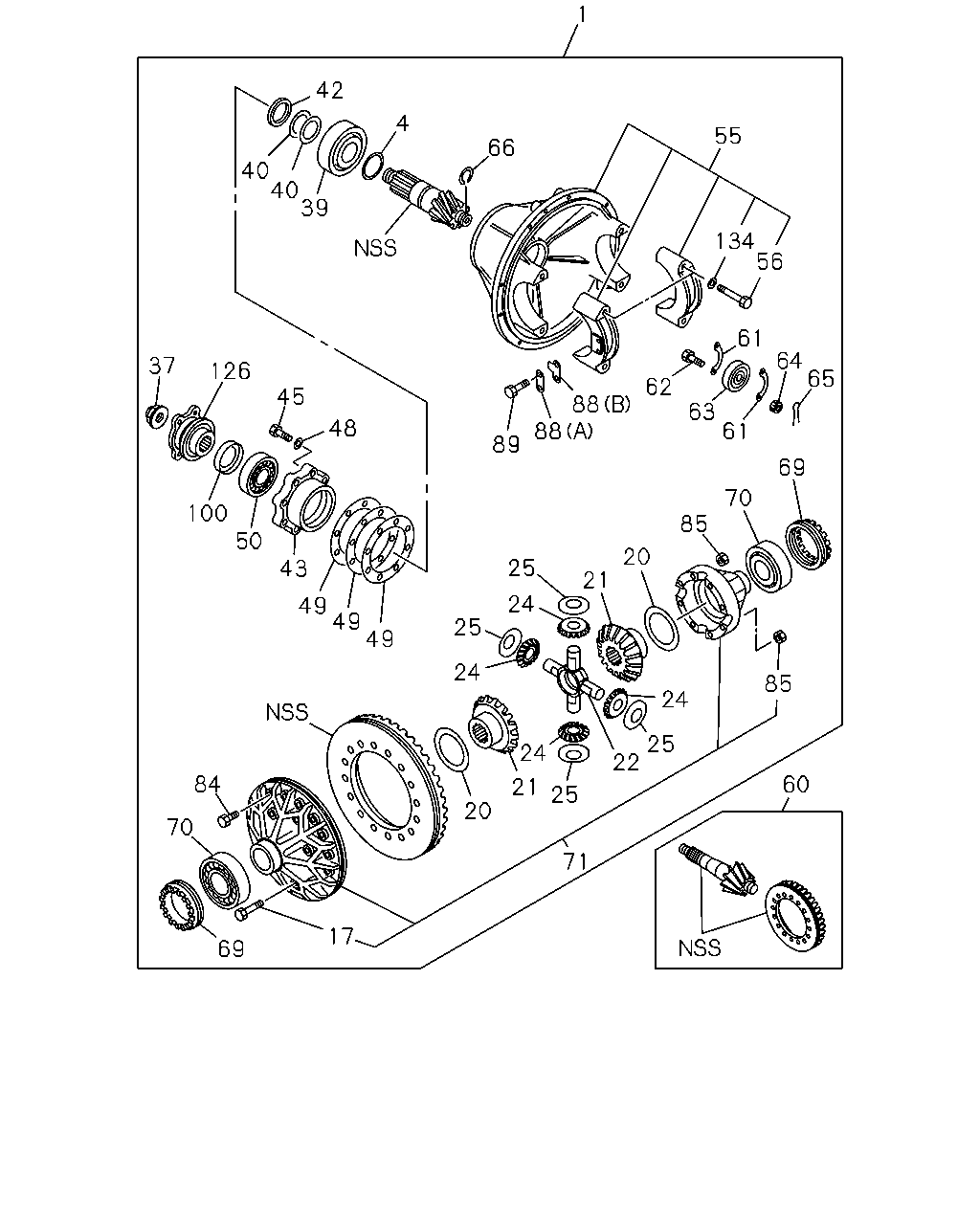

çizim 501965
37 100 126 48 45 50 43 49 49 49 84 70 69 17 71 20 24 25 21 22 24 85 60 24 25 25 21 85 69 65 64 61 62 61 89 66 55 134 63 39 40 40 42 70 4 1 56 25 20 24 88 88
BalonParca AdiParca NoAdetTipApplied Date
1 DRIVE ASM; FINAL,RR
39/7 		1-41001-276-0 01 1 1511-
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 1511-
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 12 1 1511-
20 WASHER; THRUST,SIDE GEAR
T=2.75 		1-41562-139-0 AR 1 1511-
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-140-0 AR 1 1511-
20 WASHER; THRUST,SIDE GEAR
T=2.85 		1-41562-141-0 AR 1 1511-
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-142-0 AR 1 1511-
20 WASHER; THRUST,SIDE GEAR
T=2.95 		1-41562-143-0 AR 1 1511-
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-144-0 AR 1 1511-
20 WASHER; THRUST,SIDE GEAR
T=3.05 		1-41562-145-0 AR 1 1511-
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-146-0 AR 1 1511-
20 WASHER; THRUST,SIDE GEAR
T=3.15 		1-41562-147-0 AR 1 1511-
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-148-0 AR 1 1511-
20 WASHER; THRUST,SIDE GEAR
T=3.25 		1-41562-149-0 AR 1 1511-
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-150-0 AR 1 1511-
20 WASHER; THRUST,SIDE GEAR
T=3.35 		1-41562-151-0 AR 1 1511-
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-152-0 AR 1 1511-
20 WASHER; THRUST,SIDE GEAR
T=3.45 		1-41562-153-0 AR 1 1511-
21 GEAR; SIDE,DIFF
Z=16 		1-41561-160-0 02 1 1511-
22 SPIDER; DIFF PINION 1-41521-061-0 01 1 1511-
24 GEAR; PINION,DIFF
Z=10 		1-41551-051-0 04 1 1511-
25 WASHER; THRUST,PINION 1-41552-012-0 04 1 1511-
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-067-0 01 1 1511-
39 BEARING; FINAL PINION
JTEKT 		1-09812-218-0 01 1 1511-
40 SHIM; FINAL PINION
T=3.50 		1-41229-256-0 AR 1 1511-
40 SHIM; FINAL PINION
T=3.51 		1-41229-257-0 AR 1 1511-
40 SHIM; FINAL PINION
T=3.52 		1-41229-258-0 AR 1 1511-
40 SHIM; FINAL PINION
T=3.53 		1-41229-259-0 AR 1 1511-
40 SHIM; FINAL PINION
T=3.54 		1-41229-260-0 AR 1 1511-
40 SHIM; FINAL PINION
T=3.55 		1-41229-261-0 AR 1 1511-
40 SHIM; FINAL PINION
T=3.56 		1-41229-262-0 AR 1 1511-
40 SHIM; FINAL PINION
T=3.57 		1-41229-263-0 AR 1 1511-
40 SHIM; FINAL PINION
T=3.58 		1-41229-264-0 AR 1 1511-
40 SHIM; FINAL PINION
T=3.59 		1-41229-265-0 AR 1 1511-
40 SHIM; FINAL PINION
T=3.60 		1-41229-266-0 AR 1 1511-
42 COLLAR; DIST,COLLAPSIBLE
T=7.40 		1-41229-267-0 AR 1 1511-
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-268-0 AR 1 1511-
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-269-0 AR 1 1511-
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-270-0 AR 1 1511-
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-271-0 AR 1 1511-
43 CAGE; FINAL PINION 1-41151-028-1 01 1 1511-
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 1511-
48 WASHER; LK,FINAL PINION
ID=14.2 		0-91510-514-0 08 1 1511-
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-063-0 AR 1 1511-
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-064-0 AR 1 1511-
49 SHIM; FINAL PINION CAGE
T=1.00 		9-41154-013-0 AR 1 1511-
49 SHIM; FINAL PINION CAGE
T=0.50 		9-41154-014-0 AR 1 1511-
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 1511-
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 1511-
55 CARRIER; DIFF 1-41110-052-0 01 1 1511-
56 BOLT; BRG CAP
M18X107 		1-09050-002-1 04 1 1511-
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-280-3 01 1 1511-
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 1511-
62 BOLT; RET
M8X36 W/PIN HOLE 		1-09042-035-0 02 1 1511-
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 1511-
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 1511-
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1511-
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1511-
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 1511-
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 1511-
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 1511-
70 BEARING; DIFF CAGE
NSK 		1-09812-150-0 02 1 1511-
70 BEARING; DIFF CAGE
NACHI 		1-09812-151-0 02 1 1511-
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 1511-
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 1511-
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 1511-
88 PLATE; LK,ADJ NUT
(B) T=2.3 		1-41124-002-0 02 1 1511-
88 PLATE; LK,ADJ NUT
(A) T=1.0 		9-41124-005-0 02 1 1511-
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1511-
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 1511-
126 COUPLING; DRIVING PINION 1-37245-388-0 01 1 1511-
134 WASHER; LK,BRG CAP
ID=18.2 		0-91510-518-0 04 1 1511-
