Isuzu WW
▶
BUSES
▶
LT
▶
11698 - LT134 RHD EURO2
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-01 - PROPELLER SHAFT
▶

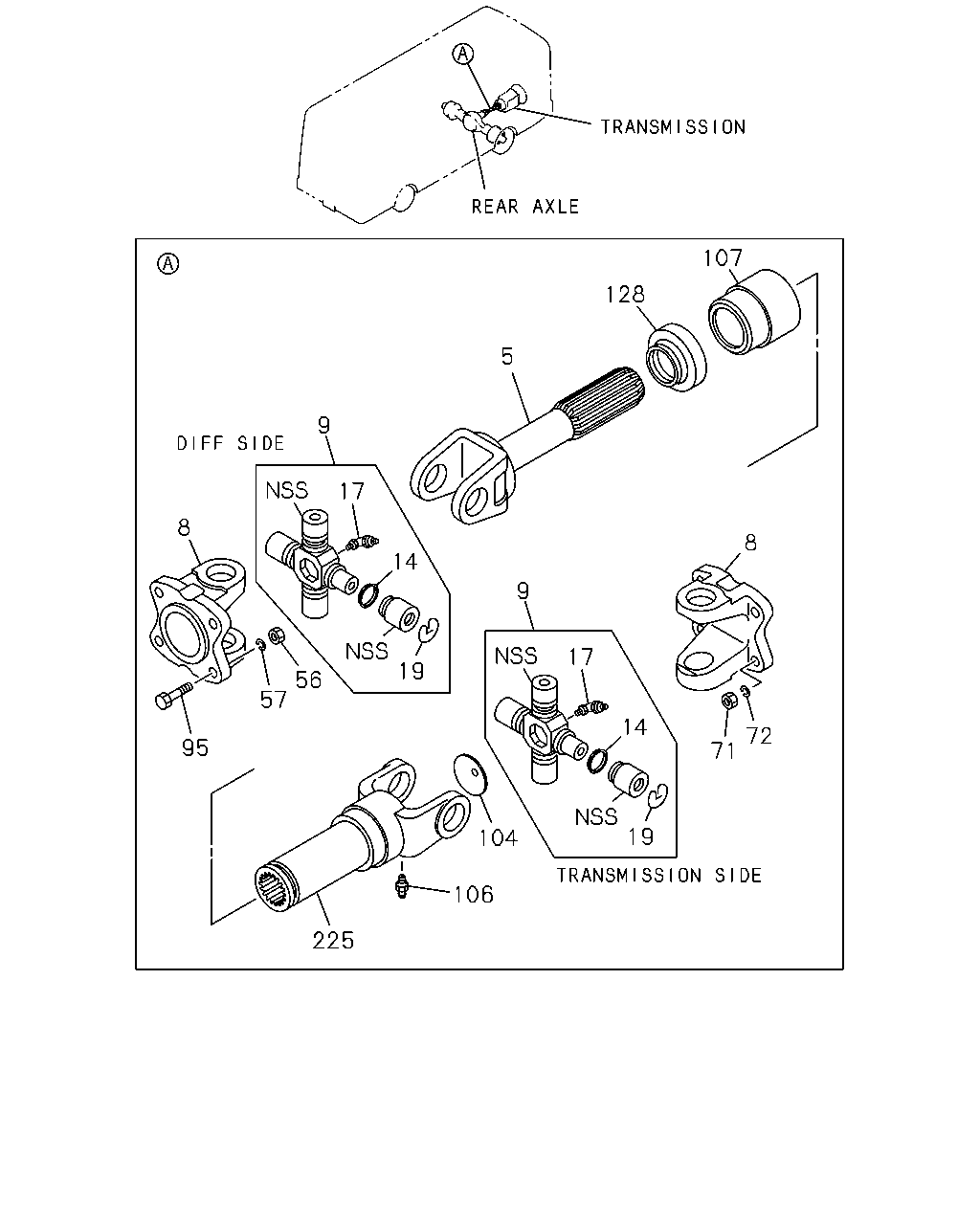

4-01 — PROPELLER SHAFT
(#169082) — 18 parça
128
107
8
72
71
14
19
17
9
5
104
106
225
19
14
17
9
8
56
57
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
YOKE; STUB,PROP SHAFT
L=387
1-37171-086-1
01
1
1511-
8
YOKE; FLANGE,PROP SHAFT
1-37211-056-3
02
1
1511-
9
JOURNAL ASM; PROP SHAFT
8-98048-925-1
AR
1
1511-
14
COVER; DUST,SPIDER
8-98020-800-0
08
1
1511-
17
NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
1511-
19
RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE
1-09587-086-0
08
1
1511-
19
RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE
1-09587-087-2
08
1
1511-
19
RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW
1-09587-088-1
08
1
1511-
56
NUT; YOKE
M14
0-91110-514-0
04
1
1511-
57
WASHER; LK,YOKE
ID=14.2
0-91510-614-0
04
1
1511-
71
NUT; YOKE
M14
0-91110-514-0
04
1
1511-
72
WASHER; LK,YOKE
ID=14.2
0-91510-614-0
04
1
1511-
95
BOLT; YOKE,FINAL
M14X37
1-09000-121-0
04
1
1511-
104
PLUG; SLEEVE YOKE
1-09600-064-0
01
1
1511-
106
NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT
0-90301-410-0
01
1
1511-
107
COVER; RET,SLEEVE
1-37249-060-1
01
1
1511-
128
SEAL; SLEEVE
1-37247-024-0
01
1
1511-
225
YOKE; SLEEVE,PROP SHAFT
L=271
1-37241-099-2
01
1
1511-
