Isuzu WW
▶
BUSES
▶
LT
▶
11698 - LT134 RHD EURO2
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#169077) — 36 parça
◀
[346A] FIXING (7 parça)
[346A] REPAIR KIT AND PISTON KIT (8 parça)
[346A] COMPONENT (21 parça)
▶
16
10
11
9
8
12
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98225-296-0
01
1
1511-
8
CONNECTOR; OUT,AIR DRYER
M22 & PT1/2 ELBOW IDN
0-92134-315-0
01
1
1511-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 FLARE
0-92121-815-0
01
1
1511-
10
BOLT; AIR DRYER
M12X25 FLANGE
0-28051-225-0
03
1
1511-
11
BRACKET; AIR DRYER
IDN
8-98055-761-0
01
1
1511-
12
BOLT; BRKT
M10X35 FLANGE IDN
0-28651-035-0
04
1
1511-
16
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1511-

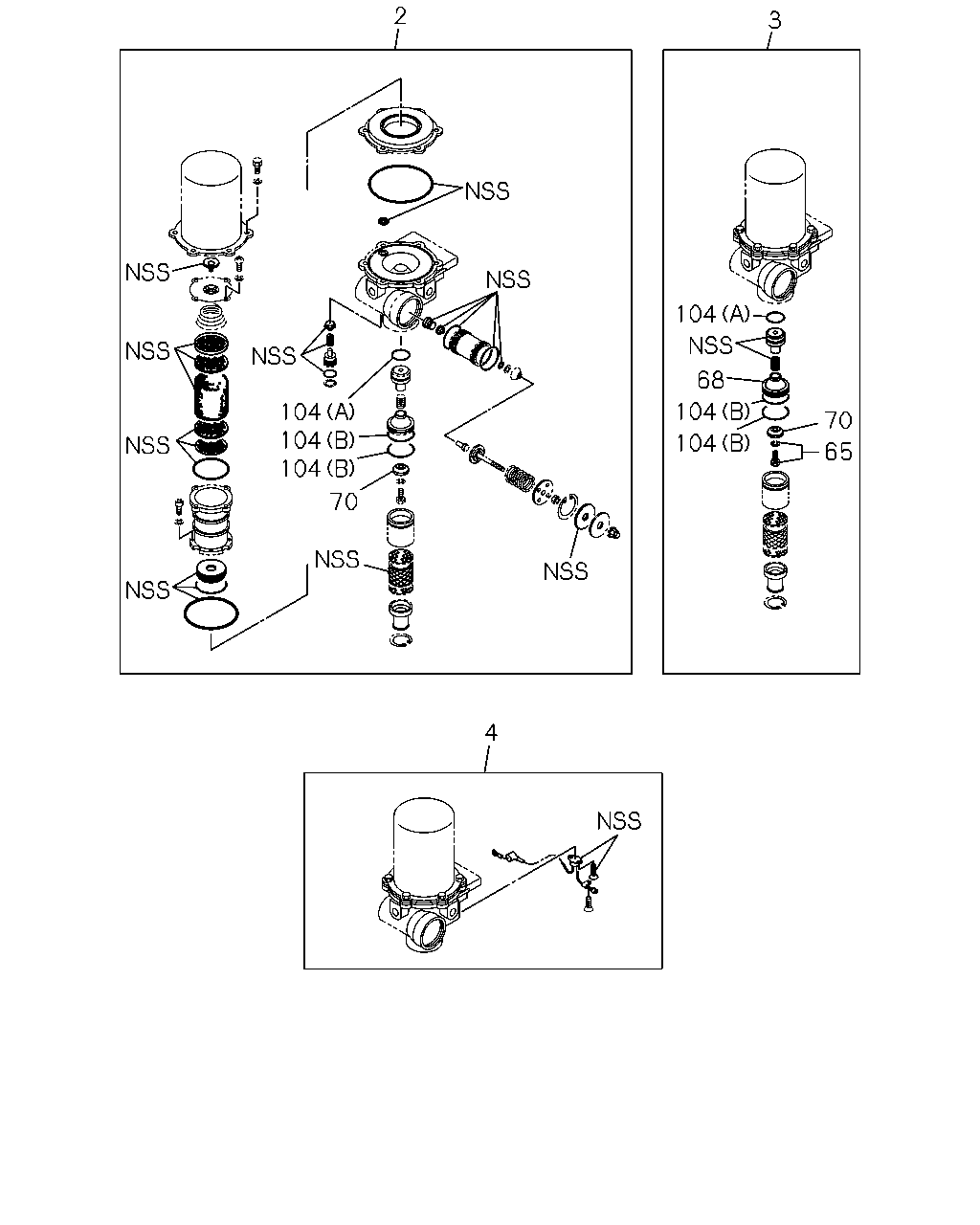

3
104
68
104
104
70
2
104
104
104
70
65
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
8-98226-329-0
01
1
1511-
3
PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1511-
4
THERMOSTAT KIT; AIR DRYER
1-85576-444-0
01
1
1511-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1511-
68
BODY; VALVE
1-48199-515-0
01
1
1511-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1511-
104
GASKET
(B)
1-48199-496-0
02
1
1511-
104
GASKET
(A)
8-98226-321-0
01
1
1511-

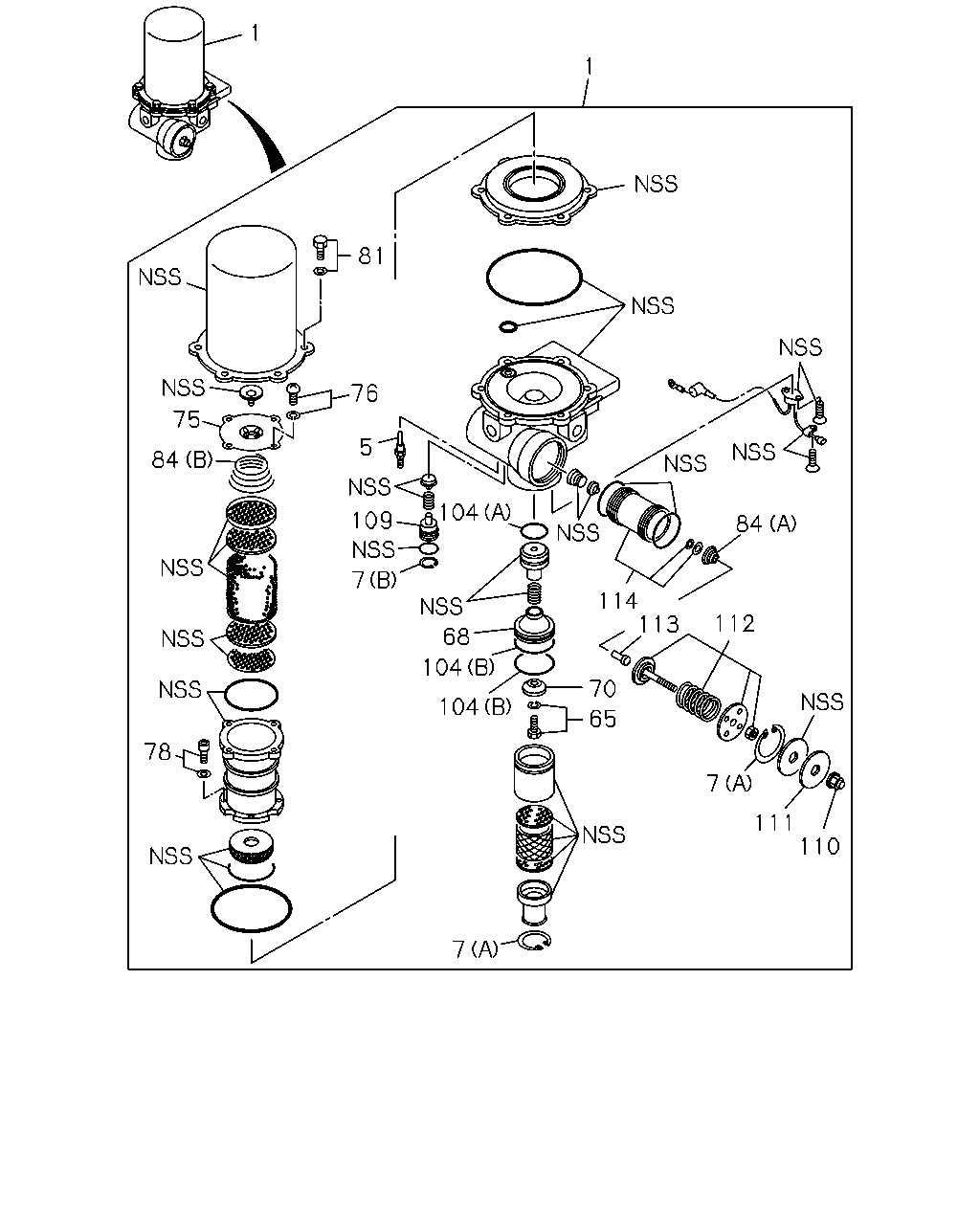

1
81
76
75
84
5
109
7
68
104
104
104
84
112
114
113
70
65
7
111
110
7
78
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98225-296-0
01
1
1511-
5
HEATER ASM; AIR DRYER
1-48199-530-0
01
1
1511-
7
RING; SNAP,AIR DRYER
(A)
1-48199-520-0
02
1
1511-
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1511-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1511-
68
BODY; VALVE
1-48199-515-0
01
1
1511-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1511-
75
COVER; CASE,AIR DRYER
1-48199-562-0
01
1
1511-
76
BOLT; COVER,AIR DRYER
1-48199-561-0
06
1
1511-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-557-0
04
1
1511-
81
BOLT; CASE,AIR DRYER
1-48199-436-0
08
1
1511-
84
SPRING; AIR DRYER
(A)
1-48199-523-0
01
1
1511-
84
SPRING; AIR DRYER
(B)
1-48199-564-0
01
1
1511-
104
GASKET
(B)
1-48199-496-0
02
1
1511-
104
GASKET
(A)
8-98226-321-0
01
1
1511-
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
1511-
110
NUT; CAP
1-48199-527-0
01
1
1511-
111
PLATE; GOVERNOR
1-48199-526-0
01
1
1511-
112
SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
1511-
113
STEM; EXHAUST
1-48199-522-0
01
1
1511-
114
PISTON ASM; GOVERNOR
1-48199-521-0
01
1
1511-
