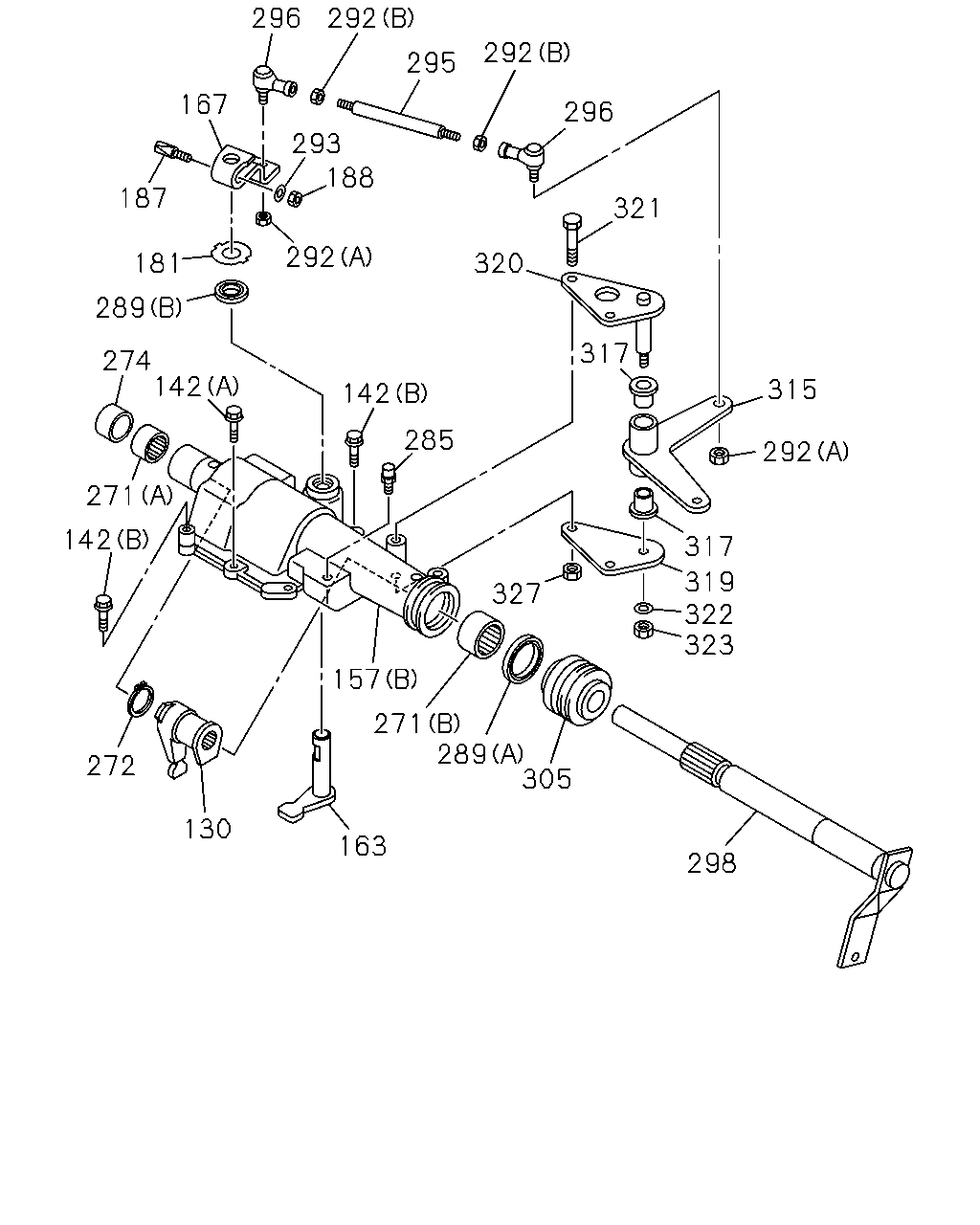

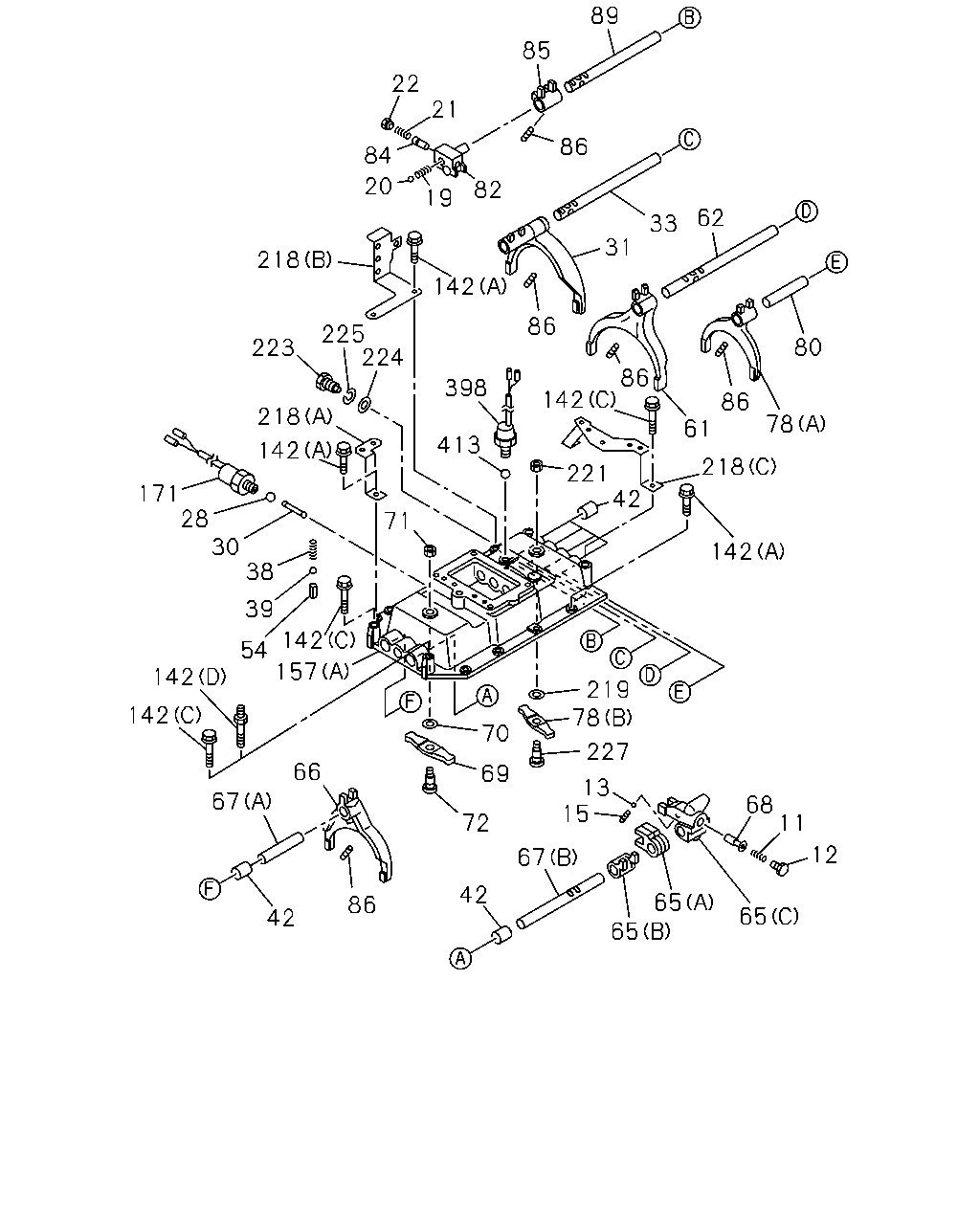

2-30 — GEAR SHIFTER AND QUADRANT BOX (#169064) — 89 parça

298 305 289 163 271 157 130 272 142 271 142 274 142 285 327 323 322 319 317 292 315 317 321 320 296 292 295 292 296 293 188 292 181 289 187 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	1511-
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28151-060-0	03	1	1511-
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	1511-
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1511-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	1511-
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	1511-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	1511-
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	1511-
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	1511-
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	1511-
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	1511-
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	1511-
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	1511-
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	1511-
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	1511-
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	1511-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1511-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	1511-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	1511-
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	1511-
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	1511-
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	1511-
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	1511-
296	ROD END L=45.5	1-09760-118-1	02	1	1511-
298	SHAFT; SHIFT LEVER	1-33522-186-0	01	1	1511-
305	BOOT; LEVER SHAFT	1-33529-028-0	01	1	1511-
315	LEVER; SELECT	1-33651-487-0	01	1	1511-
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	1511-
319	BRACKET; SELECT LEVER	1-33657-412-0	01	1	1511-
320	SHAFT; LEVER	1-33657-413-0	01	1	1511-
321	BOLT; BRKT,RELAY LEVER M10X80	0-10856-080-0	02	1	1511-
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	1511-
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	1511-
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91180-210-0	02	1	1511-

89 85 86 31 33 62 80 78 86 218 142 61 86 86 142 221 42 413 398 142 82 19 20 84 22 21 218 225 223 224 218 142 171 30 28 39 54 38 142 157 142 142 67 42 66 86 42 72 69 219 70 227 13 15 67 68 78 71 11 12 65 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	1511-
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	1511-
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	1511-
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	1511-
19	SPRING; COIL COMP	1-09580-441-0	01	1	1511-
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	1511-
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	1511-
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	1511-
28	BALL; INTER LK	9-00097-501-0	04	1	1511-
30	PIN; INTER LK	9-33534-003-0	03	1	1511-
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	1511-
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1511-
38	SPRING; DETENT	1-09580-379-0	04	1	1511-
39	BALL; DETENT	1-09843-012-0	04	1	1511-
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	1511-
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	1511-
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	1511-
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1511-
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	1511-
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	1511-
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	1511-
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	1511-
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1511-
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1511-
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	1511-
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	1511-
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	1511-
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	1511-
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	1511-
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	1511-
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	1511-
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1511-
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	1511-
84	SLEEVE; REV	1-33516-025-0	01	1	1511-
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	1511-
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	1511-
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1511-
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28151-060-0	03	1	1511-
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	1511-
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1511-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	1511-
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	1511-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	1511-
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1511-
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	1511-
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	1511-
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	1511-
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	1511-
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	1511-
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	1511-
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	1511-
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	1511-
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	1511-
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1511-
413	BALL; BACK SW	9-00097-013-0	01	1	1511-
