11698 - LT134 RHD EURO2
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶

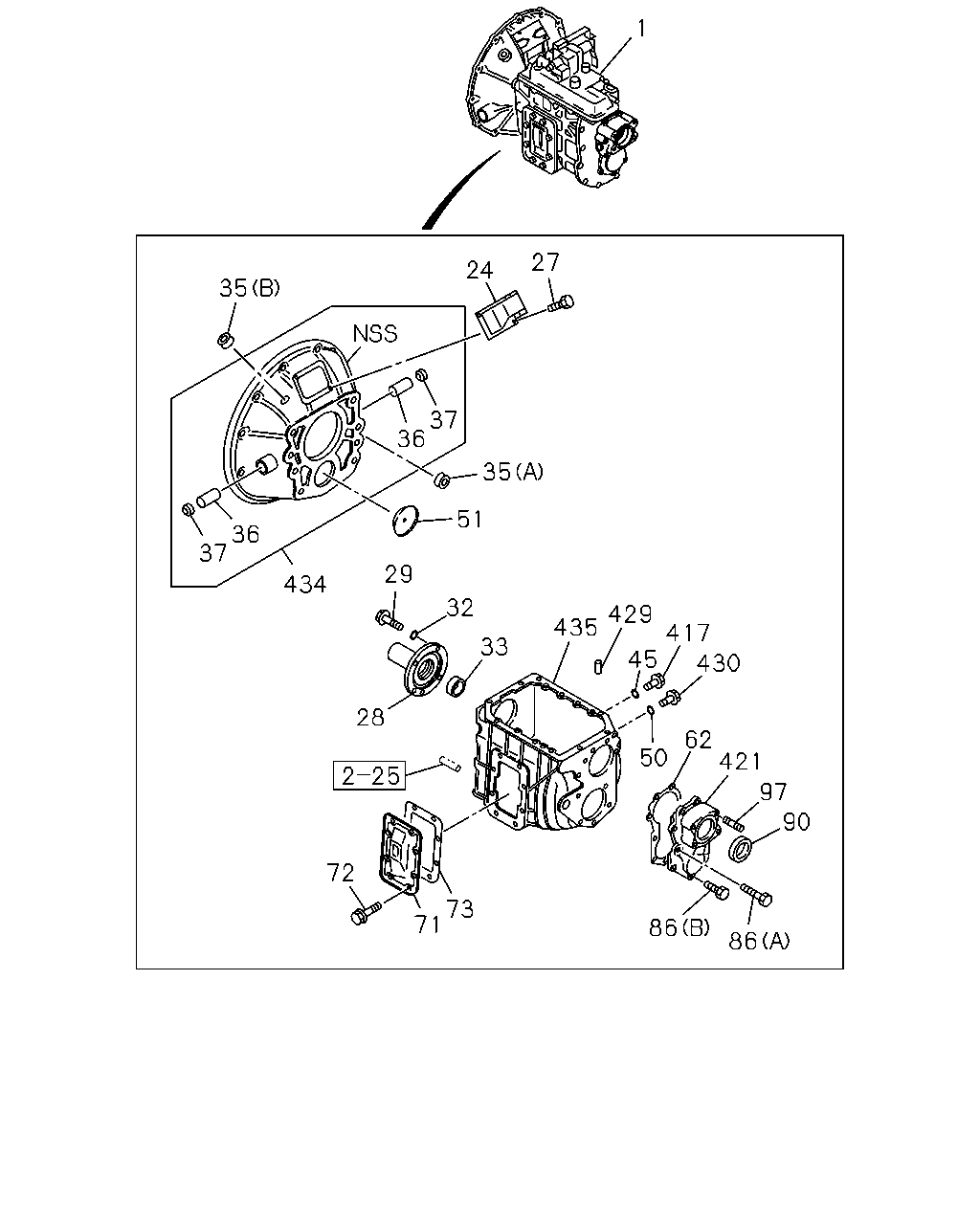

2-20 — MANUAL TRANSMISSION ASM AND CASE
(#169061) — 28 parça
1
27
24
35
37
36
434
29
51
35
37
36
32
33
28
72
71
73
86
86
90
97
421
62
50
430
417
45
429
435
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSMISSION ASM; MANUAL
1-33043-754-0
01
1
1511-
24
COVER; CHECK HOLE,DUST
8-98284-107-0
01
1
1511-
27
BOLT; COVER TO CLU HSG
M8X16 FLANGE
0-28050-816-0
02
1
1511-
28
COVER; FRT,TRANS CASE
1-33121-108-1
01
1
1511-
29
BOLT; FRT COVER
M10X28 FLANGE REAMER
8-97365-375-0
04
1
1511-
32
GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). ID=10
1-09623-369-0
04
1
1511-
33
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-497-0
01
1
1511-
35
GROMMET; CLU HSG
(A) OD=15 T=6.6
8-97037-246-0
01
1
1511-
35
GROMMET; CLU HSG
(B)
9-09575-796-0
01
1
1511-
36
BEARING; NEEDLE,CLU HSG
NTN
1-09811-002-1
02
1
1511-
37
SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-002-0
02
1
1511-
45
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8
1-09623-058-0
01
1
1511-
50
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8
1-09623-058-0
01
1
1511-
51
COVER; SEAL,COUNTER,FRT
1-33319-107-1
01
1
1511-
62
GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
1-33132-045-2
01
1
1511-
71
COVER; SIDE,TRANS CASE
1-33141-033-0
01
1
1511-
72
BOLT; SIDE COVER
M10X16 FLANGE
0-28151-016-0
08
1
1511-
73
GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
1-33142-036-0
01
1
1511-
86
BOLT; RR COVER
(B) M17X35
1-09044-076-0
08
1
1511-
86
BOLT; RR COVER
(A) M12X60
1-09044-084-0
01
1
1511-
90
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-513-0
01
1
1511-
97
STUD; PARKING BRK
M14X27 L=49
1-09302-099-1
01
1
1511-
417
PLUG; OIL FILLER,TRANS
M24X17 FLANGE
1-09604-022-0
01
1
1511-
421
COVER; RR,TRANS
1-33131-177-1
01
1
1511-
429
PIN; STRAIGHT
OD=10 L=18
9-08151-018-0
02
1
1511-
430
PLUG; OIL DRAIN
M24X17 FLANGE
1-09604-023-0
01
1
1511-
434
HOUSING; CLU
1-31110-169-0
01
1
1511-
435
CASE; TRANS
1-33111-355-0
01
1
1511-
