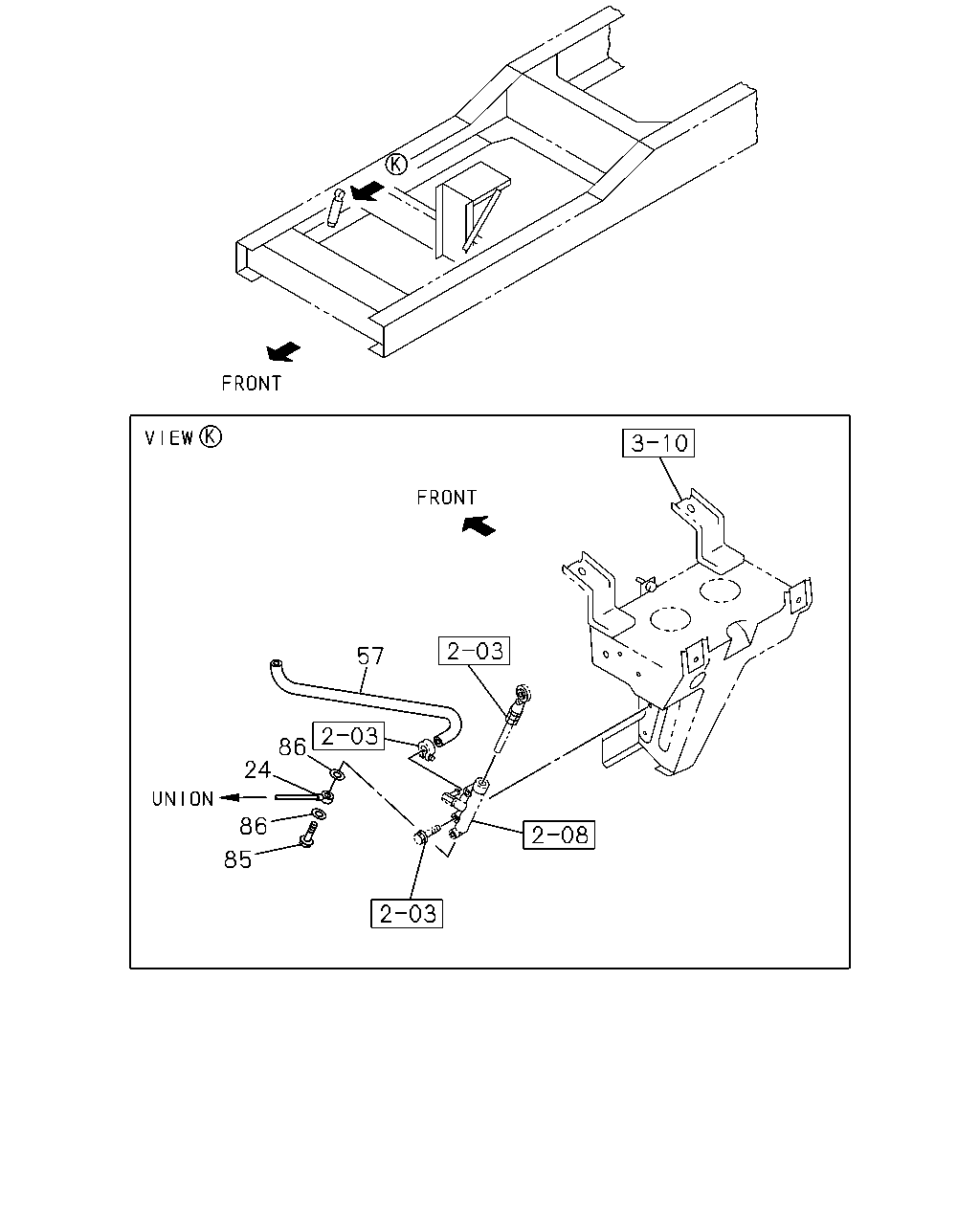

2-05 — CLUTCH PIPING (#169057) — 56 parça

57 86 24 86 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION IDN	1-49167-507-0	01	1	1511-
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	1511-
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	1511-
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	1511-

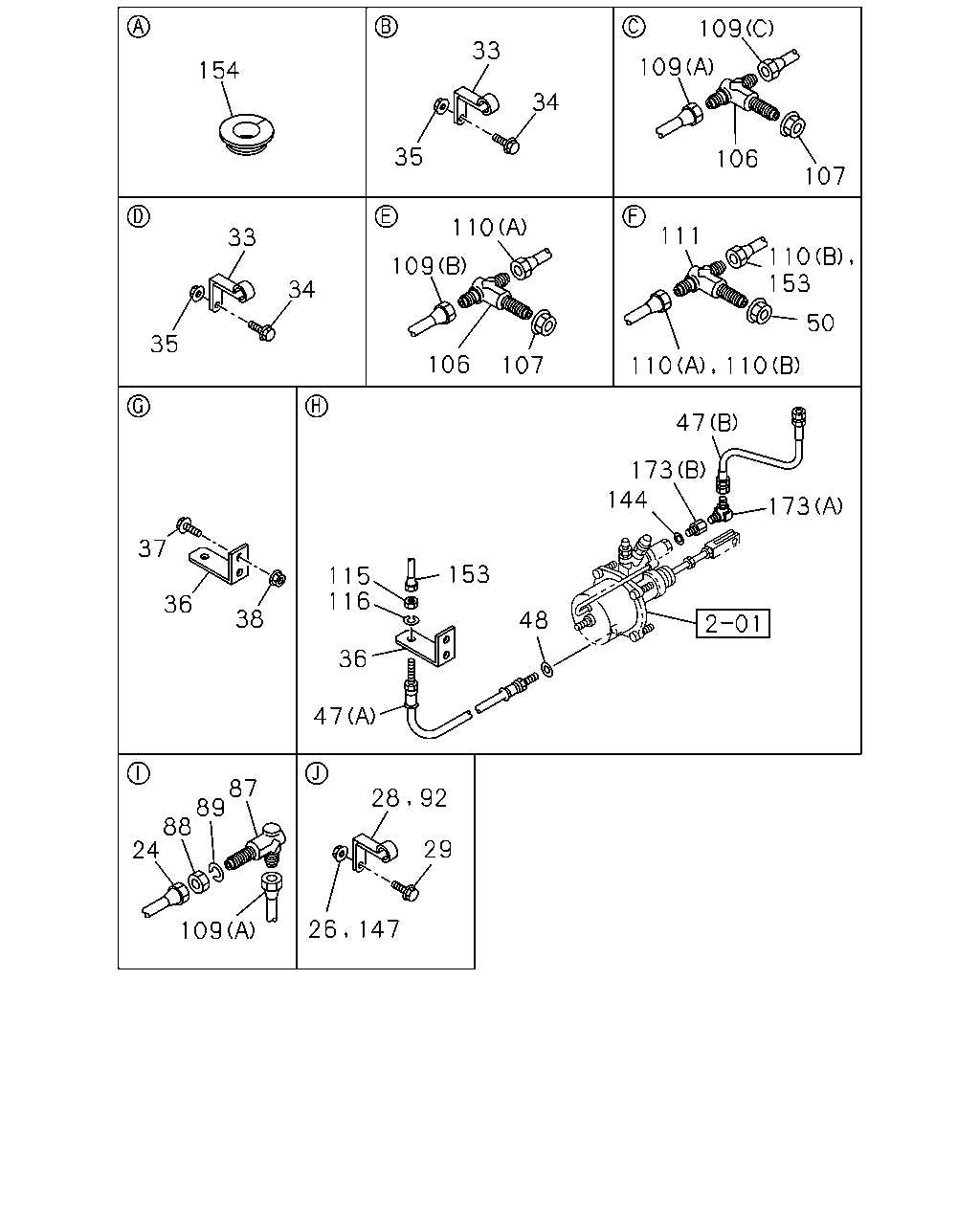

147 29 92 28 26 87 89 88 24 109 47 36 116 115 153 48 38 36 37 144 173 47 173 110 110 50 153 110 111 107 106 109 110 34 33 35 154 35 34 33 107 106 109 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION IDN	1-49167-507-0	01	1	1511-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1511-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	1511-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE IDN	0-28650-825-0	01	1	1511-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE IDN	0-28650-825-0	01	1	1511-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	05	1	1511-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	06	1	1511-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	07	1	1511-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	05	1	1511-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	06	1	1511-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	07	1	1511-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	1511-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	06	1	1511-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	07	1	1511-
36	BRACKET; CLIP IDN	1-47477-865-0	01	1	1511-
37	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	1511-
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1511-
47	HOSE; FLEX,CLU CONT (B) AIR L=300	1-09363-611-0	01	1	1511-
47	HOSE; FLEX,CLU CONT (A) OIL L=500	1-09364-329-0	01	1	1511-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	1511-
50	NUT; UNION M12 FLANGE	0-91180-212-0	01	1	1511-
50	NUT; UNION M12 FLANGE	0-91180-212-0	01	1	1511-
87	UNION; OIL PIPE M14	0-92125-108-0	01	1	1511-
88	NUT; PIPE UNION M14	0-91111-514-0	01	1	1511-
89	WASHER; LK,PIPE UNION ID=14.2	0-91510-814-0	01	1	1511-
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	1511-
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	1511-
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	02	1	1511-
107	NUT; UNION,OIL PIPE M12 FLANGE	0-91180-212-0	01	1	1511-
107	NUT; UNION,OIL PIPE M12 FLANGE	0-91180-212-0	02	1	1511-
109	PIPE; AIR,UNION TO UNION (C) L=1071 SERVICED BY L=1100 IDN	1-47426-387-0	01	1	1511-
109	PIPE; AIR,UNION TO UNION (A) L=1132 SERVICED BY L=1250 IDN	1-47428-764-0	01	1	1511-
109	PIPE; AIR,UNION TO UNION (B) L=2358 SERVICED BY L=2400 IDN	1-47428-771-0	01	1	1511-
110	PIPE; OIL,UNION TO UNION (B) L=1017 SERVICED BY L=1100 IDN	1-47428-763-0	01	1	1511-
110	PIPE; OIL,UNION TO UNION (A) L=1935 SERVICED BY L=1950 IDN	1-47428-769-0	01	1	1511-
111	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	1511-
111	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	1511-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1511-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	1511-
144	GASKET; AIR PIPE ID=14.2 OD=20.0	9-09571-414-0	01	1	1511-
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1511-
153	PIPE ASM; CLU,UNION TO FLEX L=2249 SERVICED BY L=2400 IDN	1-47428-771-0	01	1	1511-
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	1511-
173	CONNECTOR (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1511-
173	CONNECTOR (B) M14 & PT1/4 STRAIGHT	1-09669-130-0	01	1	1511-

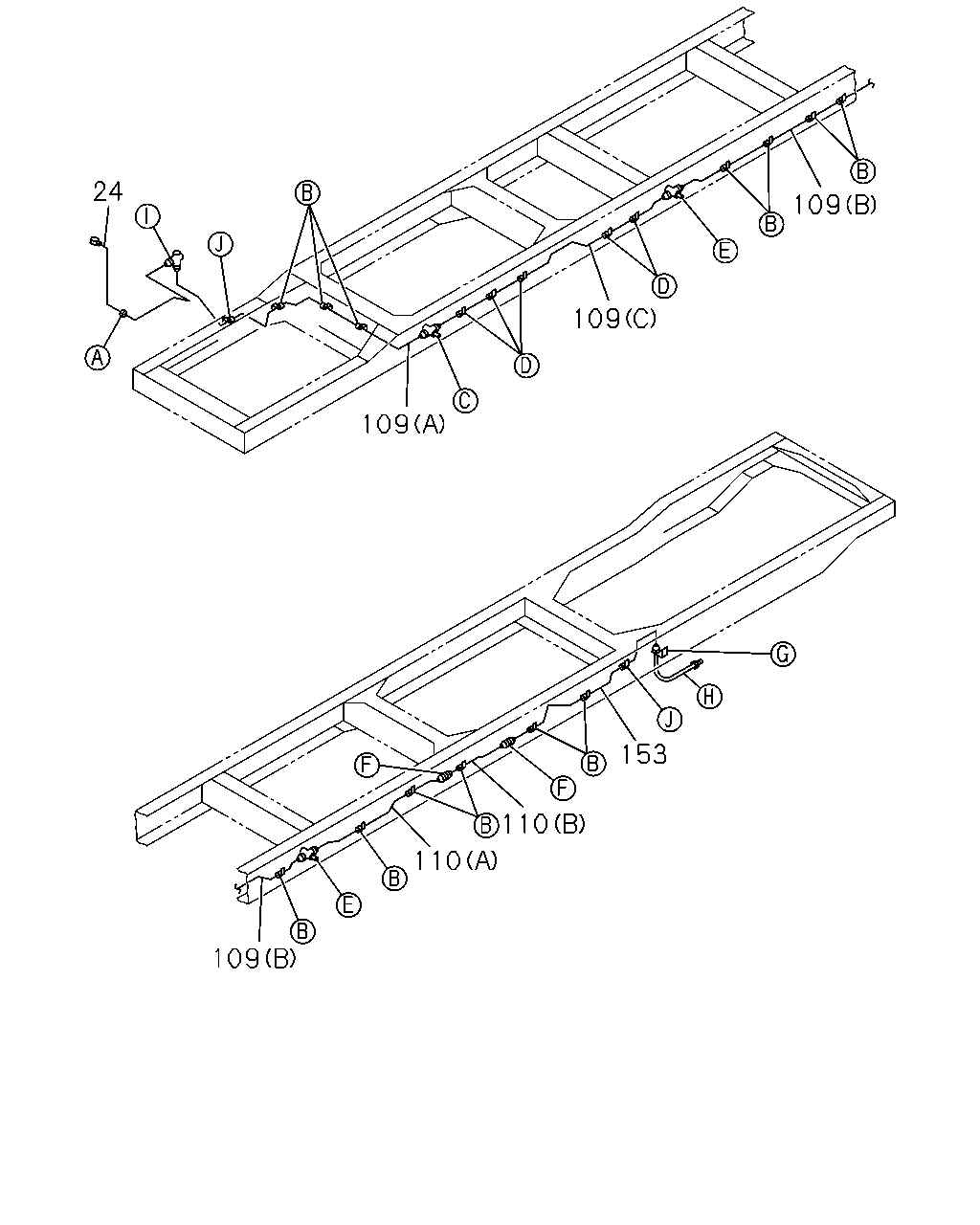

109 109 109 24 110 110 153 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION IDN	1-49167-507-0	01	1	1511-
109	PIPE; AIR,UNION TO UNION (C) L=1071 SERVICED BY L=1100 IDN	1-47426-387-0	01	1	1511-
109	PIPE; AIR,UNION TO UNION (A) L=1132 SERVICED BY L=1250 IDN	1-47428-764-0	01	1	1511-
109	PIPE; AIR,UNION TO UNION (B) L=2358 SERVICED BY L=2400 IDN	1-47428-771-0	01	1	1511-
110	PIPE; OIL,UNION TO UNION (B) L=1017 SERVICED BY L=1100 IDN	1-47428-763-0	01	1	1511-
110	PIPE; OIL,UNION TO UNION (A) L=1935 SERVICED BY L=1950 IDN	1-47428-769-0	01	1	1511-
153	PIPE ASM; CLU,UNION TO FLEX L=2249 SERVICED BY L=2400 IDN	1-47428-771-0	01	1	1511-
