11698 - LT134 RHD EURO2
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

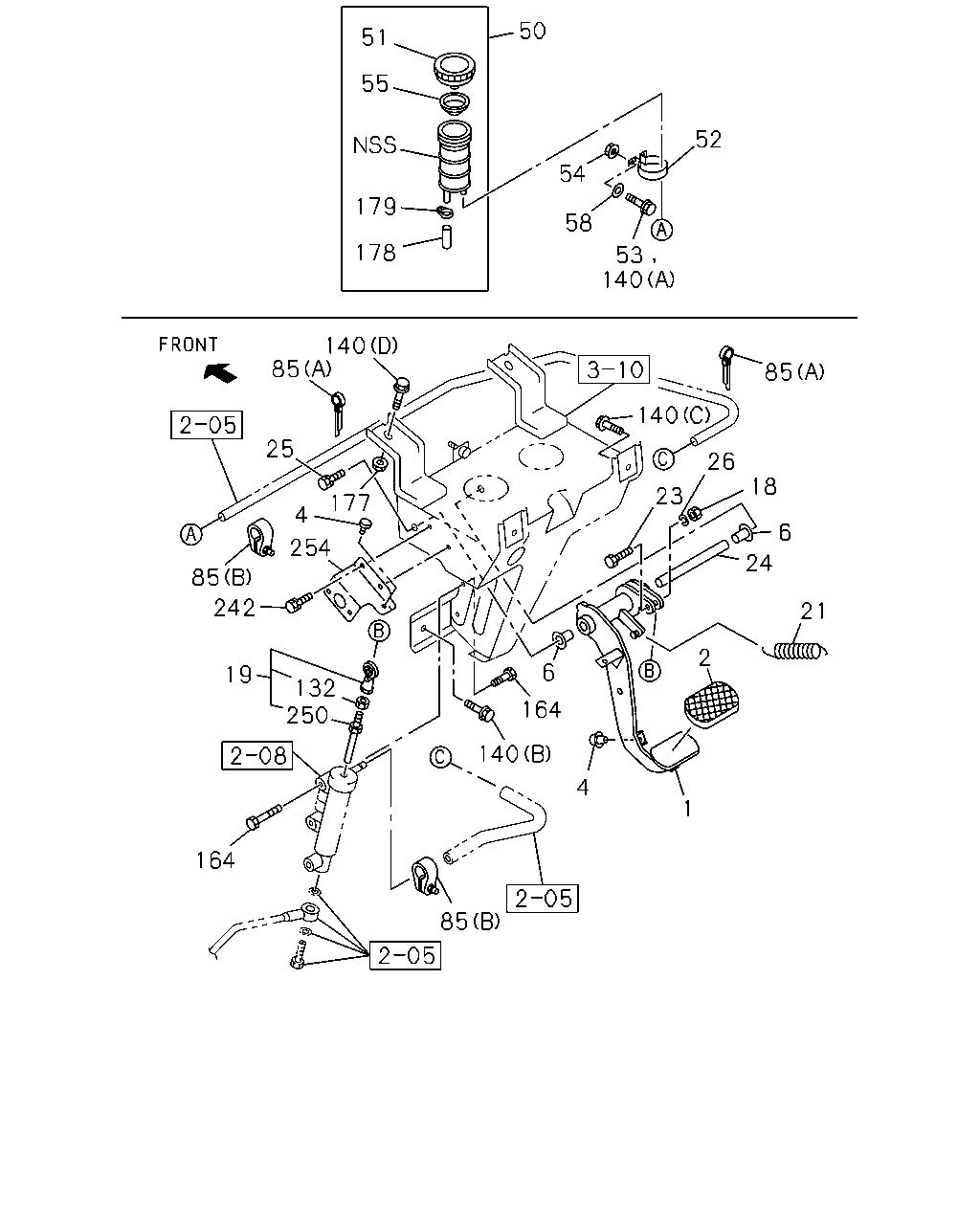

2-03 — CLUTCH PEDAL AND CONTROL
(#169056) — 32 parça
51
55
50
54
58
52
53
140
140
85
25
4
177
254
85
242
19
132
164
85
140
164
140
23
26
6
18
24
2
4
1
21
250
179
178
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
1-73908-171-3
01
1
1511-
2
COVER; CLU PEDAL
8-97893-618-1
01
1
1511-
4
STOPPER; CLU PEDAL
1-47319-014-1
04
1
1511-
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
1511-
18
NUT; PUSH ROD
M8 IDN
0-91110-508-0
01
1
1511-
19
ROD ASM; PUSH,CLU
1-73996-144-1
01
1
1511-
21
SPRING; RETURN,CLU PEDAL
1-73908-265-0
01
1
1511-
23
BOLT; PUSH ROD
M8X35
0-10960-835-0
01
1
1511-
24
SHAFT; CLU PEDAL
1-73998-936-1
01
1
1511-
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
1511-
26
WASHER; LK,PUSH ROD
ID=8.2
0-91510-608-0
01
1
1511-
50
TANK; OIL,CLU
1-47530-183-1
01
1
1511-
51
CAP; OIL TANK,CLU
9-47525-032-1
01
1
1511-
52
BRACKET; OIL TANK,CLU M/CYL
9-47537-023-1
01
1
1511-
53
BOLT; BRKT,OIL TANK,CLU M/CYL
M5X16
0-20800-516-0
01
1
1511-
54
NUT; BRKT,OIL TANK,CLU M/CYL
M5
1-09984-124-0
03
1
1511-
55
BAFFLE; RUBBER,CLU M/CYL
9-47529-031-0
01
1
1511-
58
WASHER; PL,BRKT,OIL TANK,CLU M/CYL
ID=5.3
0-91610-505-0
02
1
1511-
85
CLIP; HOSE TO M/CYL
(B) ID=15
9-09715-098-0
02
1
1511-
85
CLIP; HOSE TO M/CYL
(A) ID=14 L=44
9-09917-427-0
02
1
1511-
132
NUT; LK,PUSH ROD
M8 IDN
0-91110-508-0
01
1
1511-
140
BOLT; BRKT
(A) M5X16
0-20800-516-0
02
1
1511-
140
BOLT; BRKT
(B) M8X20 FLANGE IDN
0-28650-820-0
02
1
1511-
140
BOLT; BRKT
(C) M8X30 FLANGE
0-28650-830-0
02
1
1511-
140
BOLT; BRKT
(D) M10X25 FLANGE IDN
0-28651-025-0
02
1
1511-
164
BOLT; CLU M/CYL
M10X70 FLANGE IDN
0-28051-070-0
02
1
1511-
177
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1511-
178
CAP; OIL TANK HOSE
1-47539-005-0
01
1
1511-
179
CLIP; CAP TO OIL TANK
ID=15
9-09715-098-0
01
1
1511-
242
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
0-50540-616-0
02
1
1511-
250
ROD; PUSH,CLU
1-73996-219-0
01
1
1511-
254
BRACKET; CLU SENSOR
1-73998-979-5
01
1
1511-
