1-50 — EXHAUST PIPE AND SILENCER (#169052) — 86 parça

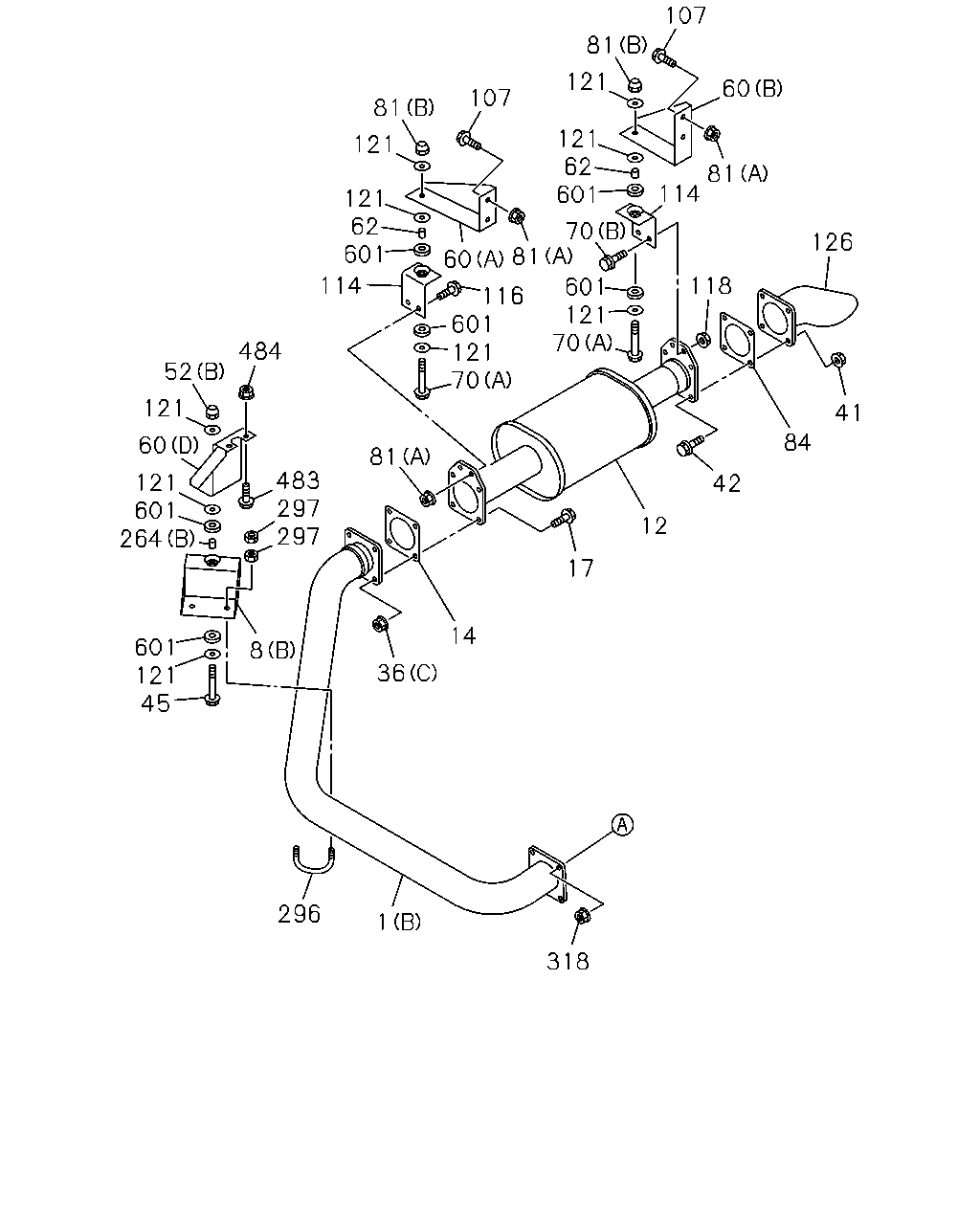

çizim 501102
41 84 42 12 17 14 36 318 1 296 45 121 601 8 297 297 483 264 601 121 60 121 52 484 81 70 121 601 116 60 114 601 62 121 121 81 107 81 107 121 121 62 601 70 81 601 121 70 118 126 81 114 60
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98132-642-1 01 1 1511-
1 PIPE; EXH
(C) 		8-98133-584-1 01 1 1511-
1 PIPE; EXH
(A) 		8-98133-586-2 01 1 1511-
8 BRACKET; EXH PIPE
(A) 		8-98055-633-0 01 1 1511-
8 BRACKET; EXH PIPE
(B) 		8-98133-457-0 01 1 1511-
8 BRACKET; EXH PIPE
(C) 		8-98133-593-0 01 1 1511-
12 SILENCER ASM; EXH 8-98142-620-0 01 1 1511-
14 GASKET; SILENCER TO EXH PIPE
IDN 		8-98096-305-0 01 1 1511-
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28651-235-0 04 1 1511-
36 NUT; EXH PIPE
(A) M10 		0-91110-510-0 04 1 1511-
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 1511-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 1511-
41 NUT; EXH PIPE TO EXH SILENCER
M12 FLANGE 		0-91180-212-0 04 1 1511-
42 BOLT; EXH PIPE TO EXH SILENCER
M12X35 FLANGE 		0-28651-235-0 04 1 1511-
45 BOLT; BRKT
M10X60 FLANGE IDN 		0-28051-060-0 01 1 1511-
45 BOLT; BRKT
M10X60 FLANGE IDN 		0-28051-060-0 02 1 1511-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1511-
52 NUT; BRKT
(B) M10 LOCK NUT IDN 		0-91370-010-0 01 1 1511-
52 NUT; BRKT
(B) M10 LOCK NUT IDN 		0-91370-010-0 02 1 1511-
60 BRACKET; FRAME TO BRKT
(C) 		8-98055-632-0 01 1 1511-
60 BRACKET; FRAME TO BRKT
(D) 		8-98117-581-1 01 1 1511-
60 BRACKET; FRAME TO BRKT
(A) IDN 		8-98117-587-1 01 1 1511-
60 BRACKET; FRAME TO BRKT
(B) IDN 		8-98117-588-0 01 1 1511-
62 TUBE; DIST,BRKT
L=25 IDN 		1-14234-083-0 02 1 1511-
70 BOLT; BRKT
(A) M10X60 FLANGE IDN 		0-28051-060-0 02 1 1511-
70 BOLT; BRKT
(B) M10X35 FLANGE IDN 		0-28651-035-0 02 1 1511-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1511-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1511-
81 NUT; BRKT
(B) M10 LOCK NUT IDN 		0-91370-010-0 02 1 1511-
84 GASKET; EXH PIPE
IDN 		8-98096-305-0 01 1 1511-
107 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 1511-
114 BRACKET; EXH SILENCER 8-98117-589-0 02 1 1511-
116 BOLT; BRKT
M10X35 FLANGE IDN 		0-28651-035-0 02 1 1511-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1511-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 03 1 1511-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 1511-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 1511-
126 PIPE; EXH,RR 8-98117-593-0 01 1 1511-
264 TUBE; DIST,SUPPORT RUBBER
(A) L=25 IDN 		1-14234-083-0 02 1 1511-
264 TUBE; DIST,SUPPORT RUBBER
(B) L=22 		9-22159-024-0 01 1 1511-
296 U-BOLT; FRT EXH PIPE 1-22113-101-0 01 1 1511-
297 NUT; U-BOLT,FRT EXH PIPE
M8 IDN 		0-91110-508-0 04 1 1511-
318 NUT; EXH PIPE,FRT
M12 FLANGE 		0-91180-212-0 04 1 1511-
483 BOLT; BRKT,HEAT PROTECTOR
M8X30 FLANGE 		0-28650-830-0 02 1 1511-
484 NUT; BRKT,HEAT PROTECTOR
M8 FLANGE 		0-91180-108-0 02 1 1511-
601 MOUNTING 8-98055-817-0 02 1 1511-
601 MOUNTING 8-98055-817-0 04 1 1511-
601 MOUNTING 8-98055-817-0 04 1 1511-

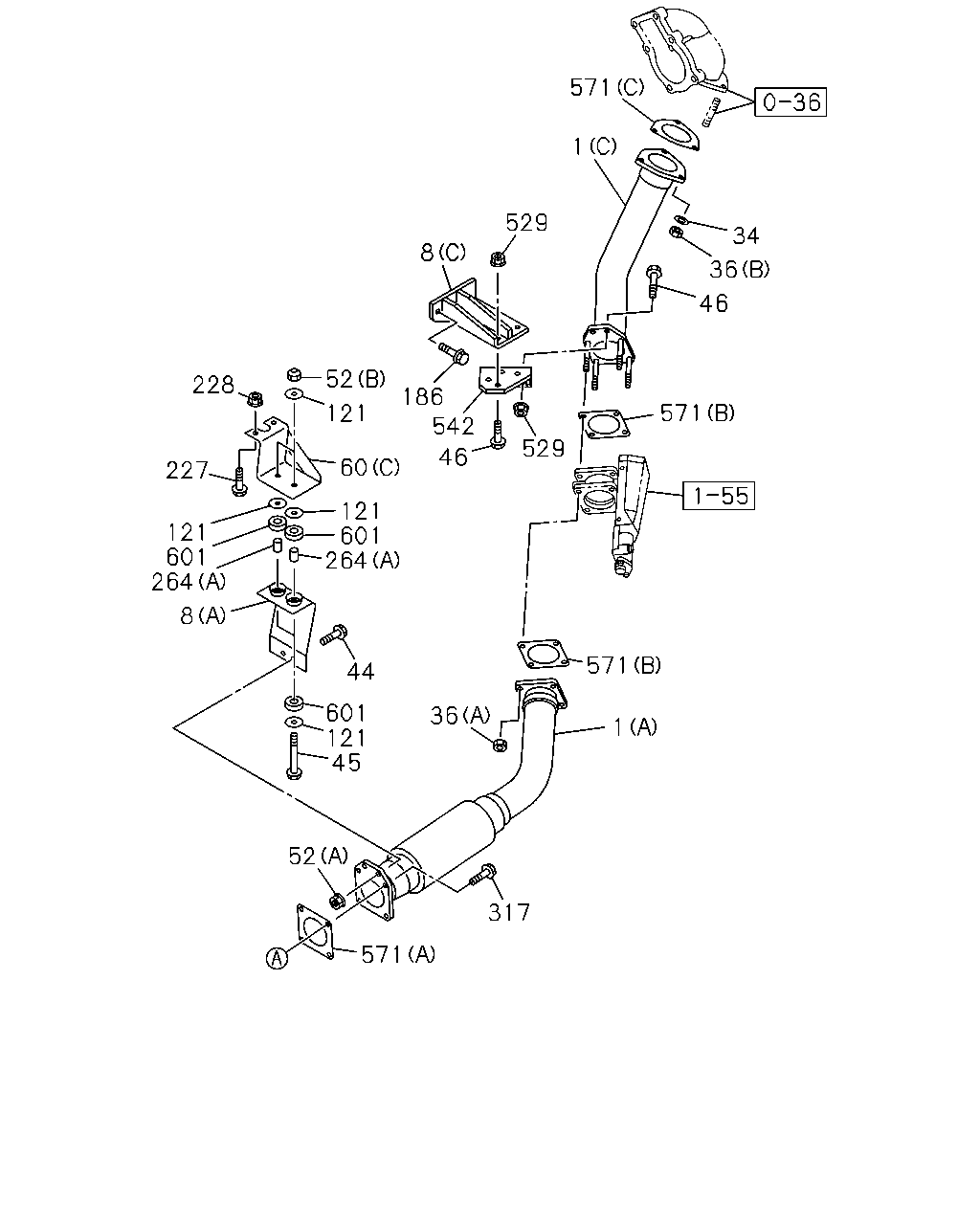

çizim 501166
571 1 34 36 46 571 529 8 186 542 46 529 52 121 228 227 121 60 601 264 121 601 264 8 44 601 121 45 36 571 1 317 571 52
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98132-642-1 01 1 1511-
1 PIPE; EXH
(C) 		8-98133-584-1 01 1 1511-
1 PIPE; EXH
(A) 		8-98133-586-2 01 1 1511-
8 BRACKET; EXH PIPE
(A) 		8-98055-633-0 01 1 1511-
8 BRACKET; EXH PIPE
(B) 		8-98133-457-0 01 1 1511-
8 BRACKET; EXH PIPE
(C) 		8-98133-593-0 01 1 1511-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1511-
36 NUT; EXH PIPE
(A) M10 		0-91110-510-0 04 1 1511-
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 1511-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 1511-
44 BOLT; BRKT
M10X35 FLANGE IDN 		0-28651-035-0 02 1 1511-
45 BOLT; BRKT
M10X60 FLANGE IDN 		0-28051-060-0 01 1 1511-
45 BOLT; BRKT
M10X60 FLANGE IDN 		0-28051-060-0 02 1 1511-
46 BOLT; BRKT,EXH PIPE
M10X35 FLANGE IDN 		0-28651-035-0 06 1 1511-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1511-
52 NUT; BRKT
(B) M10 LOCK NUT IDN 		0-91370-010-0 01 1 1511-
52 NUT; BRKT
(B) M10 LOCK NUT IDN 		0-91370-010-0 02 1 1511-
60 BRACKET; FRAME TO BRKT
(C) 		8-98055-632-0 01 1 1511-
60 BRACKET; FRAME TO BRKT
(D) 		8-98117-581-1 01 1 1511-
60 BRACKET; FRAME TO BRKT
(A) IDN 		8-98117-587-1 01 1 1511-
60 BRACKET; FRAME TO BRKT
(B) IDN 		8-98117-588-0 01 1 1511-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 03 1 1511-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 1511-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 1511-
186 BOLT; BRKT TO ENG
M10X20 FLANGE 		0-28151-020-0 03 1 1511-
227 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1511-
228 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1511-
264 TUBE; DIST,SUPPORT RUBBER
(A) L=25 IDN 		1-14234-083-0 02 1 1511-
264 TUBE; DIST,SUPPORT RUBBER
(B) L=22 		9-22159-024-0 01 1 1511-
317 BOLT; EXH PIPE,FRT
M12X35 FLANGE 		0-28651-235-0 04 1 1511-
529 NUT; BRKT,EXH PIPE
M10 FLANGE 		0-91180-210-0 06 1 1511-
542 BRACKET 8-98133-594-0 01 1 1511-
571 GASKET
(A) 		1-22116-040-0 01 1 1511-
571 GASKET
(B) ID=85.8 		1-22116-043-0 02 1 1511-
571 GASKET
(C) ID=81 		8-98043-481-0 01 1 1511-
601 MOUNTING 8-98055-817-0 02 1 1511-
601 MOUNTING 8-98055-817-0 04 1 1511-
601 MOUNTING 8-98055-817-0 04 1 1511-
