1-41 — FUEL PIPING; CHASSIS (#169050) — 54 parça

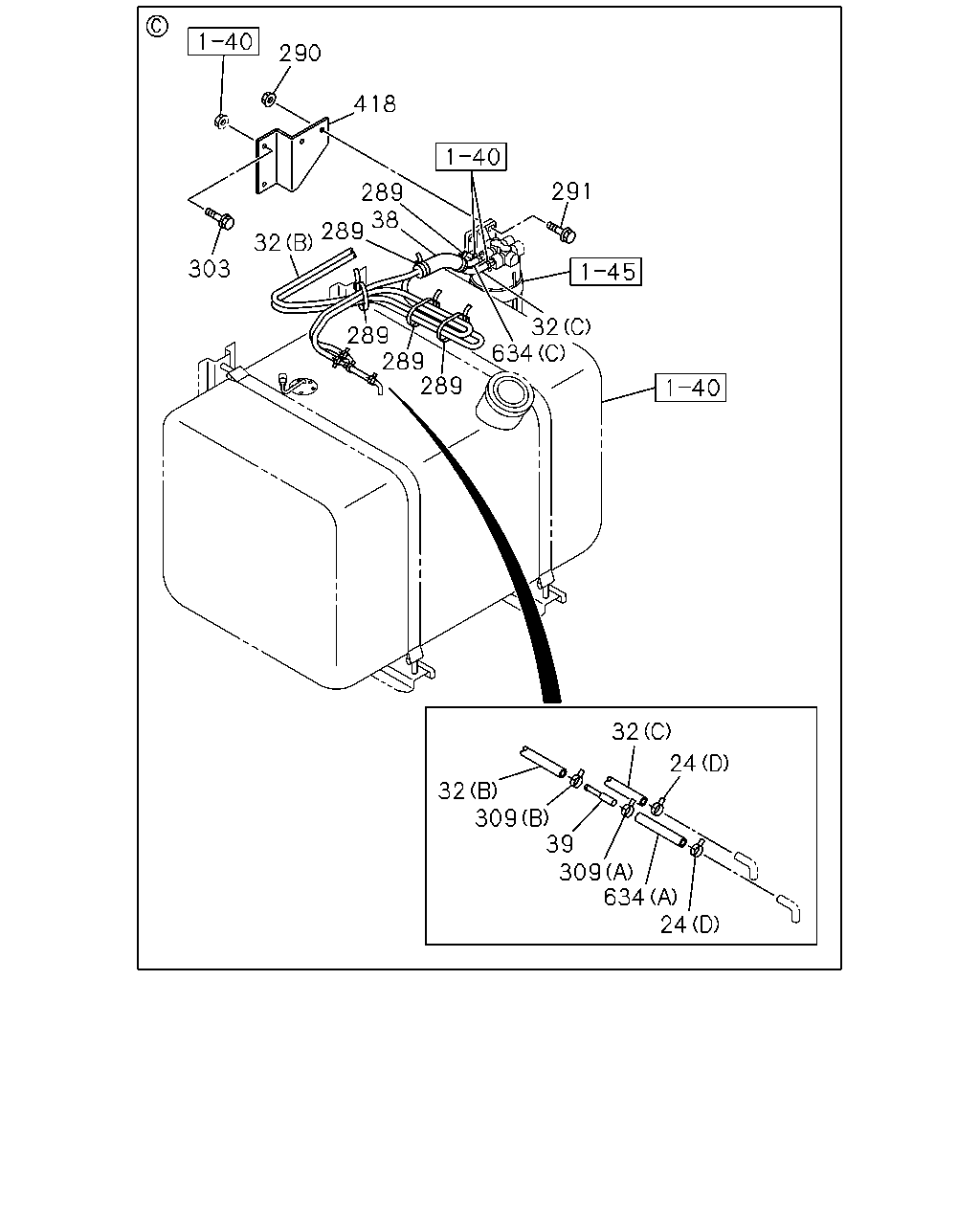

çizim 500740
290 418 291 32 634 289 289 289 32 289 38 289 303 32 309 39 309 634 24 24 32
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(C) ID=29 L=35 		1-09701-301-0 01 1 1511-
24 CLIP; FUEL HOSE
(A) ID=15 & 19 H=33 L=25 		1-09701-317-0 13 1 1511-
24 CLIP; FUEL HOSE
(D) ID=16 IDN 		8-94238-568-0 02 1 1511-
24 CLIP; FUEL HOSE
(B) ID=13 IDN 		8-94238-571-0 02 1 1511-
32 PIPE; DELIVERY,FUEL TANK
(C) L=820 SERVICED BY L=3000 IDN 		0-01859-300-0 01 1 1511-
32 PIPE; DELIVERY,FUEL TANK
(A) L=1250 SERVICED BY L=3000 IDN 		0-01859-300-0 01 1 1511-
32 PIPE; DELIVERY,FUEL TANK
(B) SERVICED BY L=7000 		0-01859-700-0 01 1 1511-
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 1511-
39 PIPE; FUEL
IDN 		8-98009-438-1 01 1 1511-
289 CLIP; BAND,HOSE
L=250 IDN 		5-09707-030-1 02 1 1511-
289 CLIP; BAND,HOSE
L=250 IDN 		5-09707-030-1 03 1 1511-
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 1511-
291 BOLT; FILER TO BRKT
M10X50 FLANGE 		0-28051-050-0 02 1 1511-
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 1511-
309 CLIP; PIPE
(A) ID=16 IDN 		8-94238-568-0 01 1 1511-
309 CLIP; PIPE
(B) ID=13 IDN 		8-94238-571-0 01 1 1511-
418 BRACKET; PRE FUEL FILTER
IDN 		8-98119-021-0 01 1 1511-
634 HOSE; RUBBER RETURN
(B) L=1200 SERVICED BY L=3000 		0-01558-300-0 01 1 1511-
634 HOSE; RUBBER RETURN
(C) SERVICED BY L=7000 		0-01558-700-0 01 1 1511-
634 HOSE; RUBBER RETURN
(A) L=100 SERVICED BY L=3000 IDN 		0-01859-300-0 01 1 1511-

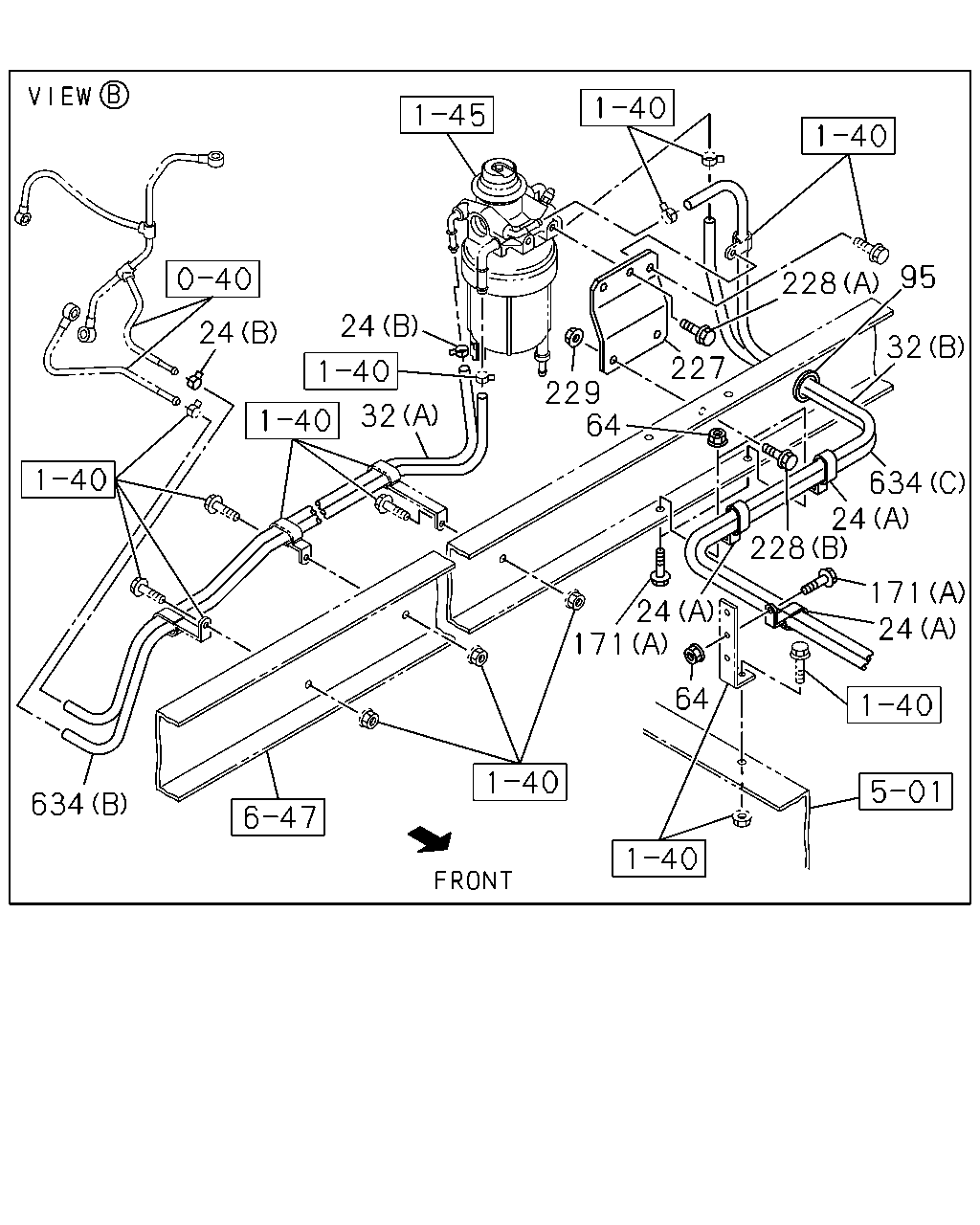

çizim 500748
24 24 228 171 634 32 95 228 227 229 32 24 24 634 171 64 24 64
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(C) ID=29 L=35 		1-09701-301-0 01 1 1511-
24 CLIP; FUEL HOSE
(A) ID=15 & 19 H=33 L=25 		1-09701-317-0 13 1 1511-
24 CLIP; FUEL HOSE
(D) ID=16 IDN 		8-94238-568-0 02 1 1511-
24 CLIP; FUEL HOSE
(B) ID=13 IDN 		8-94238-571-0 02 1 1511-
32 PIPE; DELIVERY,FUEL TANK
(C) L=820 SERVICED BY L=3000 IDN 		0-01859-300-0 01 1 1511-
32 PIPE; DELIVERY,FUEL TANK
(A) L=1250 SERVICED BY L=3000 IDN 		0-01859-300-0 01 1 1511-
32 PIPE; DELIVERY,FUEL TANK
(B) SERVICED BY L=7000 		0-01859-700-0 01 1 1511-
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 14 1 1511-
95 BUSHING; PIPE,FUEL TANK 9-09575-632-0 01 1 1511-
171 BOLT; CLIP
(A) M8X20 FLANGE IDN 		0-28650-820-0 04 1 1511-
171 BOLT; CLIP
(B) M8X25 FLANGE IDN 		0-28650-825-0 10 1 1511-
227 BRACKET; FUEL SEDIMENTER
IDN 		1-19755-234-1 01 1 1511-
228 BOLT; BRKT,SEDIMENTER
(A) M8X20 FLANGE IDN 		0-28650-820-0 02 1 1511-
228 BOLT; BRKT,SEDIMENTER
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1511-
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 1511-
634 HOSE; RUBBER RETURN
(B) L=1200 SERVICED BY L=3000 		0-01558-300-0 01 1 1511-
634 HOSE; RUBBER RETURN
(C) SERVICED BY L=7000 		0-01558-700-0 01 1 1511-
634 HOSE; RUBBER RETURN
(A) L=100 SERVICED BY L=3000 IDN 		0-01859-300-0 01 1 1511-

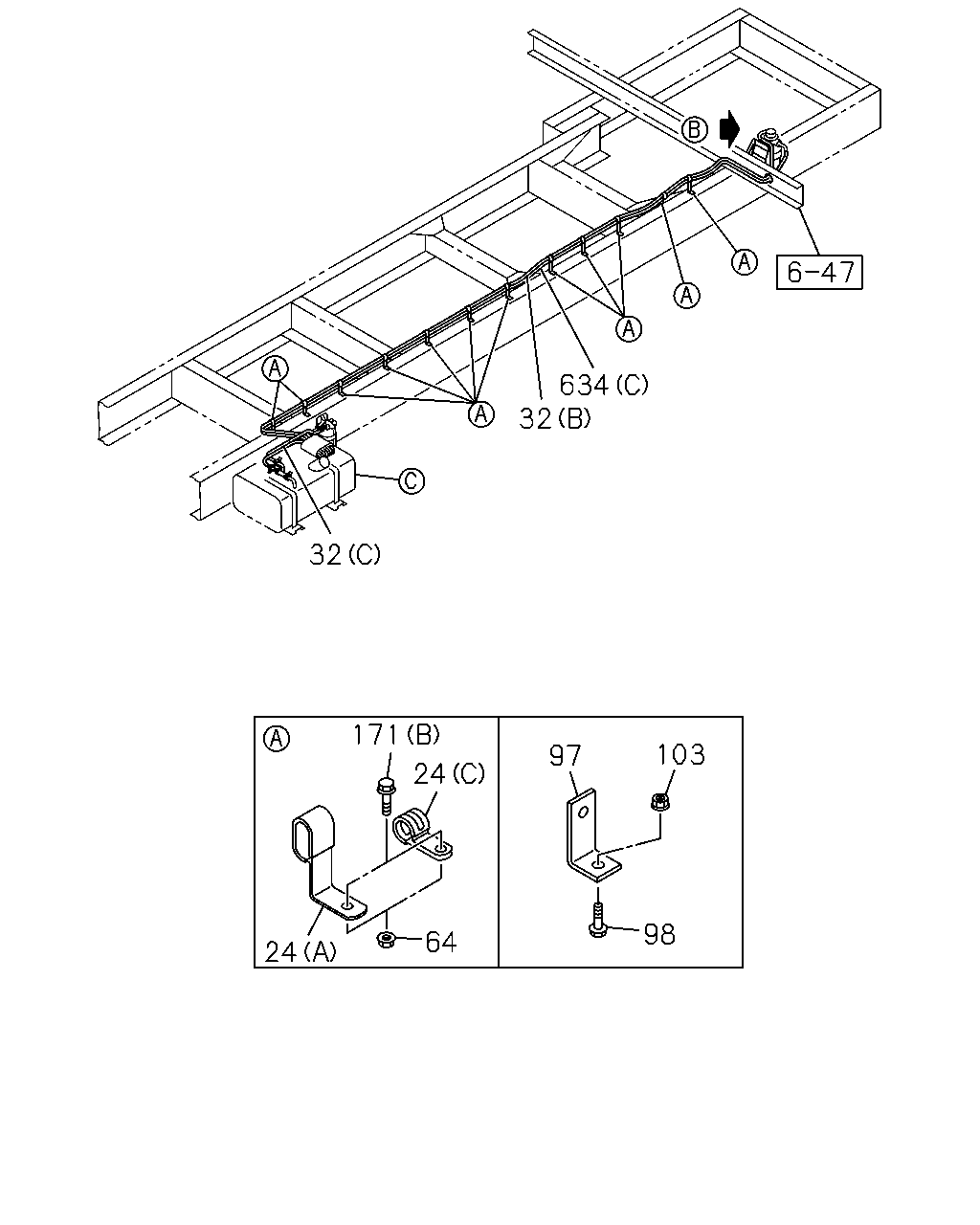

çizim 501394
103 97 98 64 24 171 24 32 634 32
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(C) ID=29 L=35 		1-09701-301-0 01 1 1511-
24 CLIP; FUEL HOSE
(A) ID=15 & 19 H=33 L=25 		1-09701-317-0 13 1 1511-
24 CLIP; FUEL HOSE
(D) ID=16 IDN 		8-94238-568-0 02 1 1511-
24 CLIP; FUEL HOSE
(B) ID=13 IDN 		8-94238-571-0 02 1 1511-
32 PIPE; DELIVERY,FUEL TANK
(C) L=820 SERVICED BY L=3000 IDN 		0-01859-300-0 01 1 1511-
32 PIPE; DELIVERY,FUEL TANK
(A) L=1250 SERVICED BY L=3000 IDN 		0-01859-300-0 01 1 1511-
32 PIPE; DELIVERY,FUEL TANK
(B) SERVICED BY L=7000 		0-01859-700-0 01 1 1511-
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 14 1 1511-
97 BRACKET; CLIP
L=50 		1-47475-663-1 02 1 1511-
98 BOLT; BRKT,FUEL PIPE
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1511-
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1511-
171 BOLT; CLIP
(A) M8X20 FLANGE IDN 		0-28650-820-0 04 1 1511-
171 BOLT; CLIP
(B) M8X25 FLANGE IDN 		0-28650-825-0 10 1 1511-
634 HOSE; RUBBER RETURN
(B) L=1200 SERVICED BY L=3000 		0-01558-300-0 01 1 1511-
634 HOSE; RUBBER RETURN
(C) SERVICED BY L=7000 		0-01558-700-0 01 1 1511-
634 HOSE; RUBBER RETURN
(A) L=100 SERVICED BY L=3000 IDN 		0-01859-300-0 01 1 1511-
