Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#169049) — 45 parça

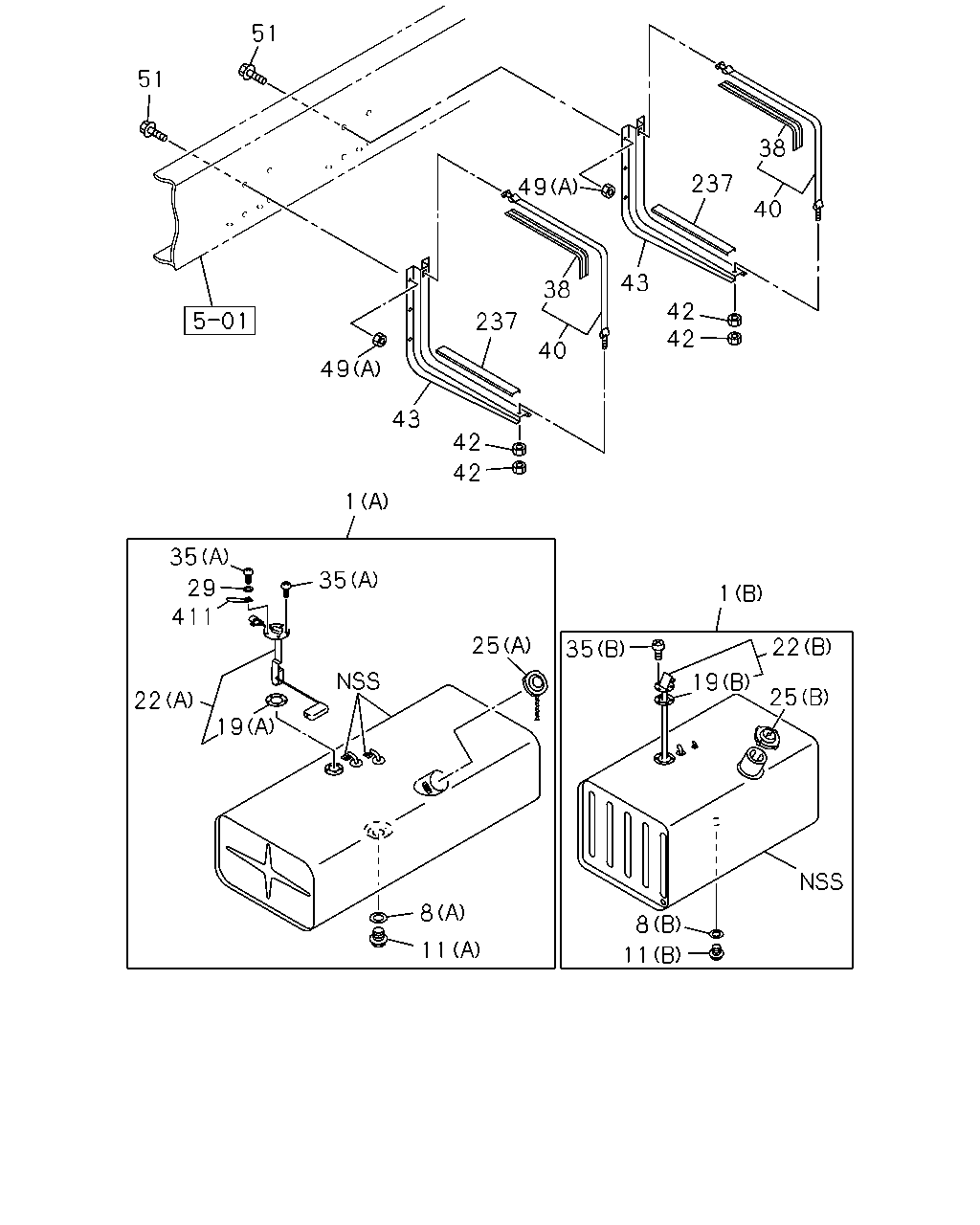

11 8 25 19 22 411 35 29 35 35 19 25 22 1 8 11 1 42 42 43 49 237 40 38 42 42 43 40 237 38 49 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1220X533X323 200L	1-22400-995-2	01	1	1511-
1	TANK; FUEL FUEL TANK 280L<RF4> (B) 880X649X549 300L	8-98298-799-0	01	1	1511-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=2.0	8-98030-375-0	01	1	1511-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 280L<RF4> (B) ID=14.2 OD=23.0 IDN	9-09572-014-0	01	1	1511-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M36	1-09604-052-0	01	1	1511-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 280L<RF4> (B) M14X14 IDN	9-09862-156-0	01	1	1511-
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> (A) ID=42 OD=71	5-83148-001-0	01	1	1511-
19	GASKET; FUEL TANK UNIT FUEL TANK 280L<RF4> (B) ID=45 OD=67 IDN	1-83149-003-0	01	1	1511-
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) IDN	1-83141-084-1	01	1	1511-
22	UNIT; FUEL TANK FUEL TANK 280L<RF4> (B)	8-98296-673-0	01	1	1511-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-22440-028-0	01	1	1511-
25	CAP; FILLER,FUEL TANK FUEL TANK 280L<RF4> (B)	1-22440-046-1	01	1	1511-
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	0-91610-505-0	01	1	1511-
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> (A) M5X10 W/LK WASHER	0-36220-510-0	05	1	1511-
35	SCREW; FUEL TANK UNIT FUEL TANK 280L<RF4> (B) M4X10 W/LK WASHER	0-36220-410-0	05	1	1511-
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=540	1-22553-014-2	02	1	1511-
38	INSULATION; SUPPORT BELT FUEL TANK 280L<RF4> L=650	1-22553-022-1	02	1	1511-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=790	1-22550-186-2	02	1	1511-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 280L<RF4>	1-22550-222-3	02	1	1511-
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1511-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-206-1	02	1	1511-
43	BRACKET; FUEL TANK FUEL TANK 280L<RF4>	1-53461-544-0	02	1	1511-
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	1511-
49	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	08	1	1511-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=480	1-22553-002-0	02	1	1511-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 280L<RF4> L=580	1-22553-003-0	02	1	1511-
411	CLIP; FUEL TANK UNIT HARNESS FUEL TANK 200L FRAME SIDE<N20> L=50	1-09700-416-0	01	1	1511-

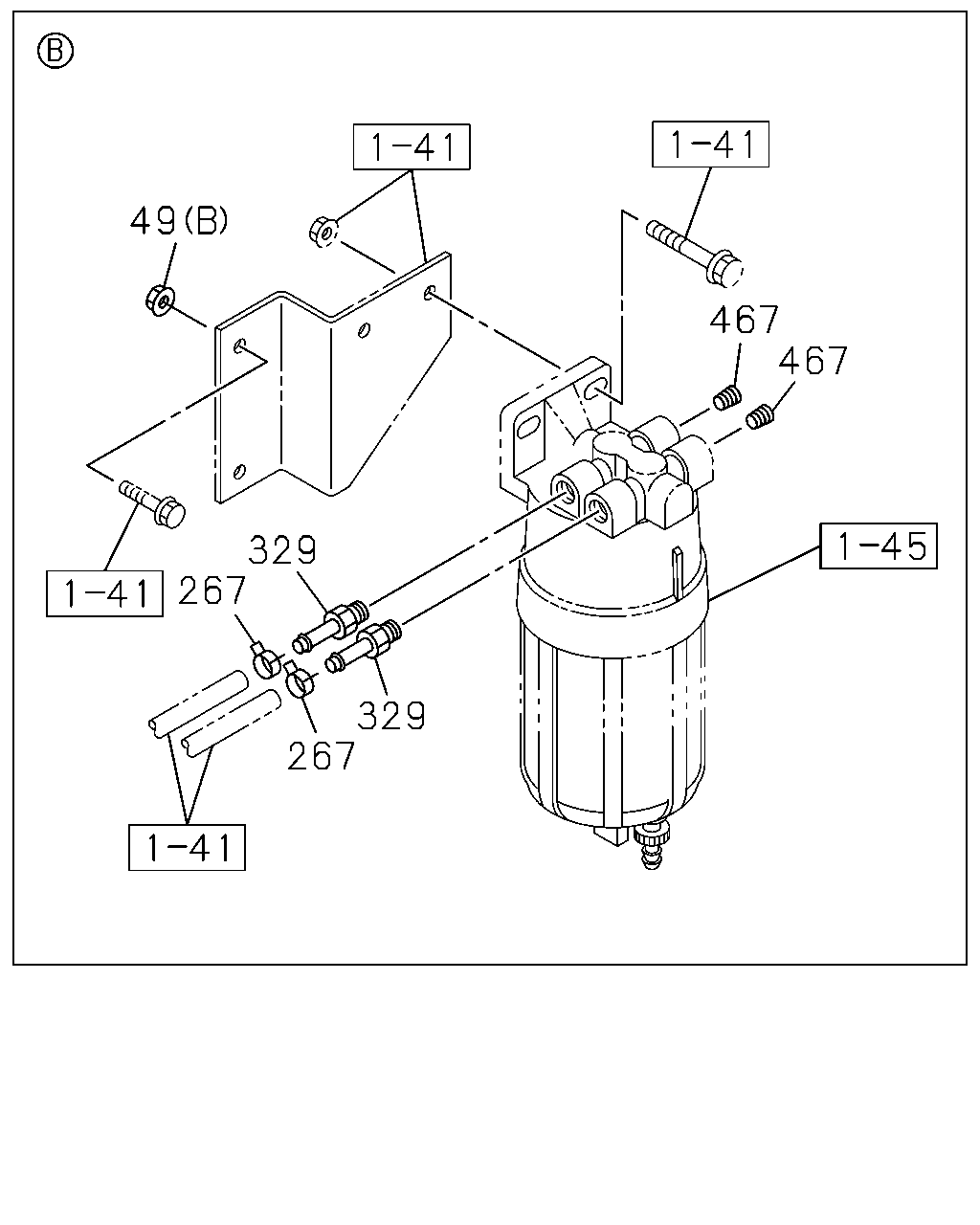

467 467 49 267 329 267 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	1511-
49	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-
267	CLIP; BAND,VINYL PIPE ID=16 IDN	8-94238-568-0	04	1	1511-
329	JOINT ASM; EYE,FUEL PIPE NPTF3/8-18 OD=10	8-98122-953-0	02	1	1511-
467	BOLT NPTF3/8-18	8-97329-623-0	02	1	1511-

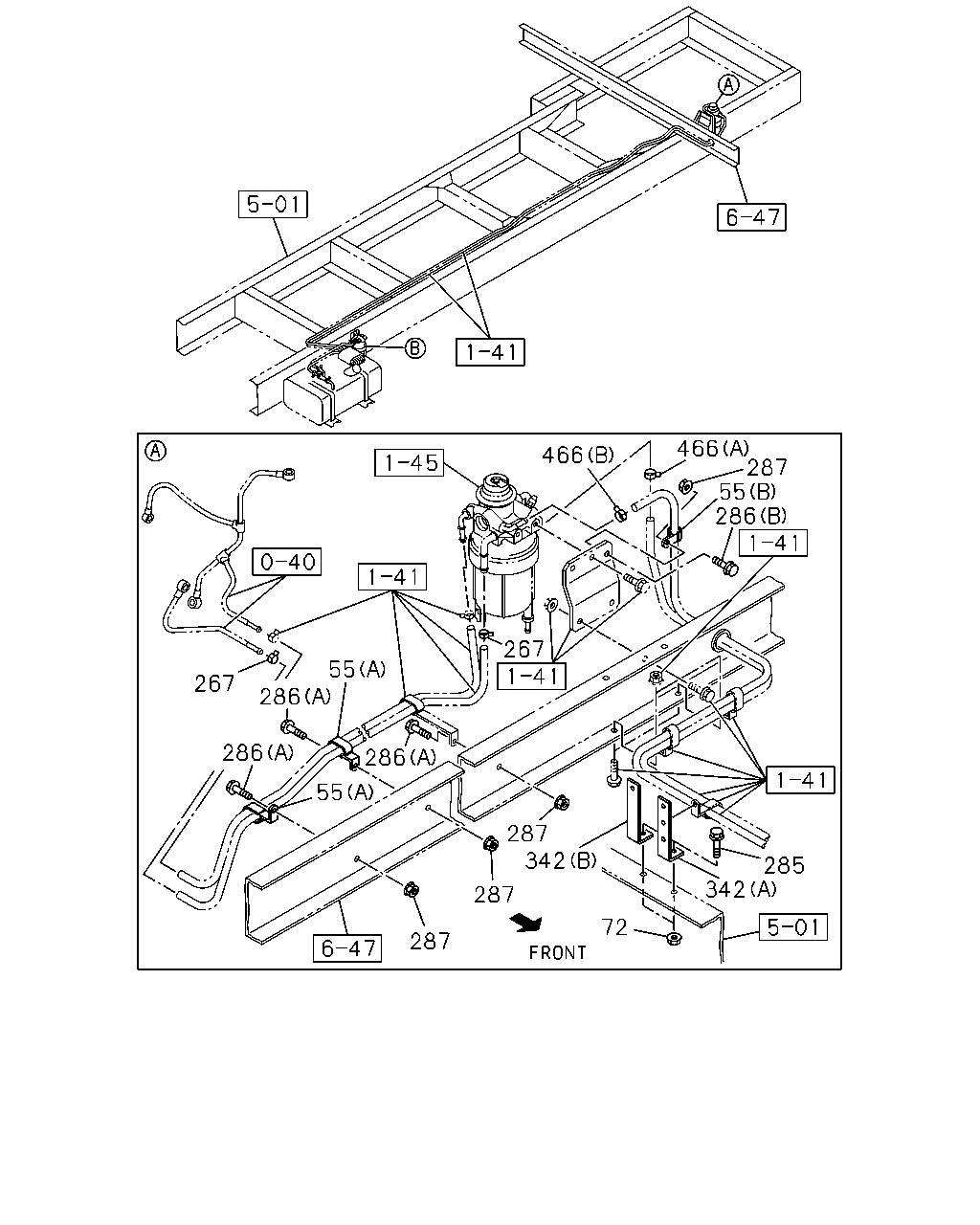

285 342 72 342 287 287 287 55 286 286 286 267 55 267 466 466 287 55 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	CLIP; FUEL PIPE (B) ID=14.5 L=20	1-09701-012-0	01	1	1511-
55	CLIP; FUEL PIPE (A)	8-94107-545-0	03	1	1511-
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1511-
267	CLIP; BAND,VINYL PIPE ID=16 IDN	8-94238-568-0	04	1	1511-
285	BOLT; BRKT M8X25 FLANGE IDN	0-28650-825-0	02	1	1511-
286	BOLT; CLIP (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1511-
286	BOLT; CLIP (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1511-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1511-
342	BRACKET; FUEL HOSE (B) L=80 H=30	1-38329-061-0	01	1	1511-
342	BRACKET; FUEL HOSE (A) L=120 H=35	1-82698-088-0	01	1	1511-
466	CLIP (A) ID=16 IDN	8-94238-568-0	01	1	1511-
466	CLIP (B) ID=13 IDN	8-94238-571-0	01	1	1511-
