Isuzu WW
▶
BUSES
▶
LT
▶
11698 - LT134 RHD EURO2
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#169044) — 28 parça
◀

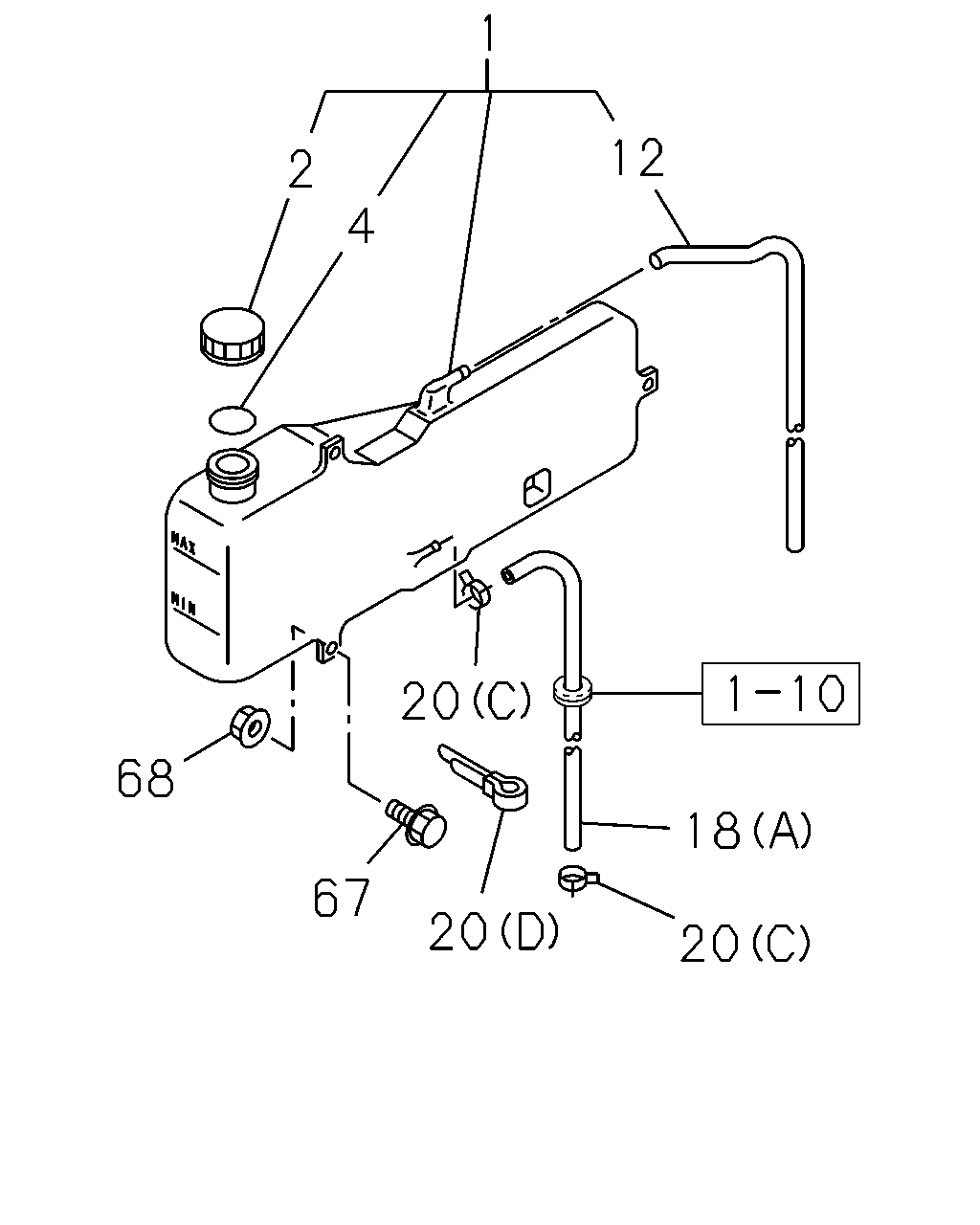

[111A] SURGE TANK (13 parça)

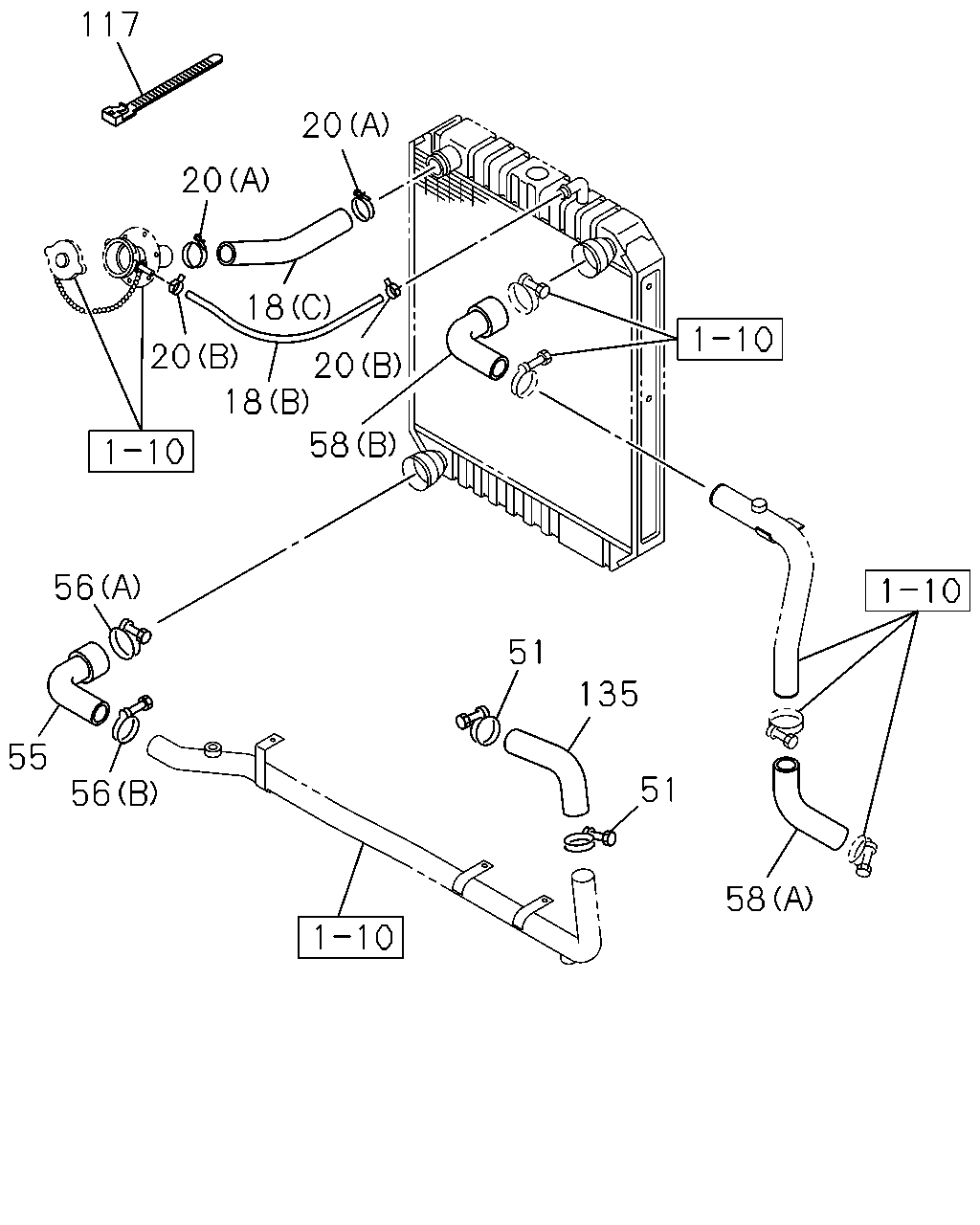

[111A] RADIATOR HOSE (15 parça)
▶
1
4
2
12
20
67
20
68
18
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
1-21480-078-1
01
1
1511-
2
CAP; SURGE TANK
OD=51 NO-HOLE
1-22440-039-0
01
1
1511-
4
GASKET; SURGE TANK
D=43 T=1.2
1-21489-093-0
01
1
1511-
12
HOSE; SURGE TANK
L=300
1-09366-199-0
01
1
1511-
18
HOSE; RAD TO SURGE TANK
(A) L=200 SERVICED BY L=3000
0-03557-300-0
01
1
1511-
18
HOSE; RAD TO SURGE TANK
(B) L=600 SERVICED BY L=3000
0-03559-300-0
01
1
1511-
18
HOSE; RAD TO SURGE TANK
(C)
1-21437-914-0
01
1
1511-
20
CLIP; HOSE,RAD
(A) ID=48
1-09704-064-0
02
1
1511-
20
CLIP; HOSE,RAD
(B) ID=14 IDN
1-09704-102-0
02
1
1511-
20
CLIP; HOSE,RAD
(C) ID=12 IDN
8-94238-610-0
02
1
1511-
20
CLIP; HOSE,RAD
(D) ID=16 L=46
9-09917-428-0
01
1
1511-
67
BOLT; BRKT
M10X25 FLANGE IDN
0-28651-025-0
02
1
1511-
68
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1511-
117
20
20
18
18
20
20
58
51
135
51
58
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
HOSE; RAD TO SURGE TANK
(A) L=200 SERVICED BY L=3000
0-03557-300-0
01
1
1511-
18
HOSE; RAD TO SURGE TANK
(B) L=600 SERVICED BY L=3000
0-03559-300-0
01
1
1511-
18
HOSE; RAD TO SURGE TANK
(C)
1-21437-914-0
01
1
1511-
20
CLIP; HOSE,RAD
(A) ID=48
1-09704-064-0
02
1
1511-
20
CLIP; HOSE,RAD
(B) ID=14 IDN
1-09704-102-0
02
1
1511-
20
CLIP; HOSE,RAD
(C) ID=12 IDN
8-94238-610-0
02
1
1511-
20
CLIP; HOSE,RAD
(D) ID=16 L=46
9-09917-428-0
01
1
1511-
51
CLIP; WATER HOSE,RAD
ID=63
1-09704-106-0
02
1
1511-
55
HOSE; WATER,RAD OUTLET
1-21437-773-1
01
1
1511-
56
CLIP; WATER HOSE,RAD
(A) ID=72
1-09704-068-0
01
1
1511-
56
CLIP; WATER HOSE,RAD
(B) ID=63
1-09704-106-0
01
1
1511-
58
HOSE; WATER,RAD TO PIPE
(A) L=130
1-09360-578-1
01
1
1511-
58
HOSE; WATER,RAD TO PIPE
(B)
1-21437-774-1
01
1
1511-
117
CLIP; BAND
L=250 IDN
5-09707-030-1
01
1
1511-
135
HOSE; WATER,ENG TO CONN
L=130
1-09360-578-1
01
1
1511-
