11698 - LT134 RHD EURO2
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶

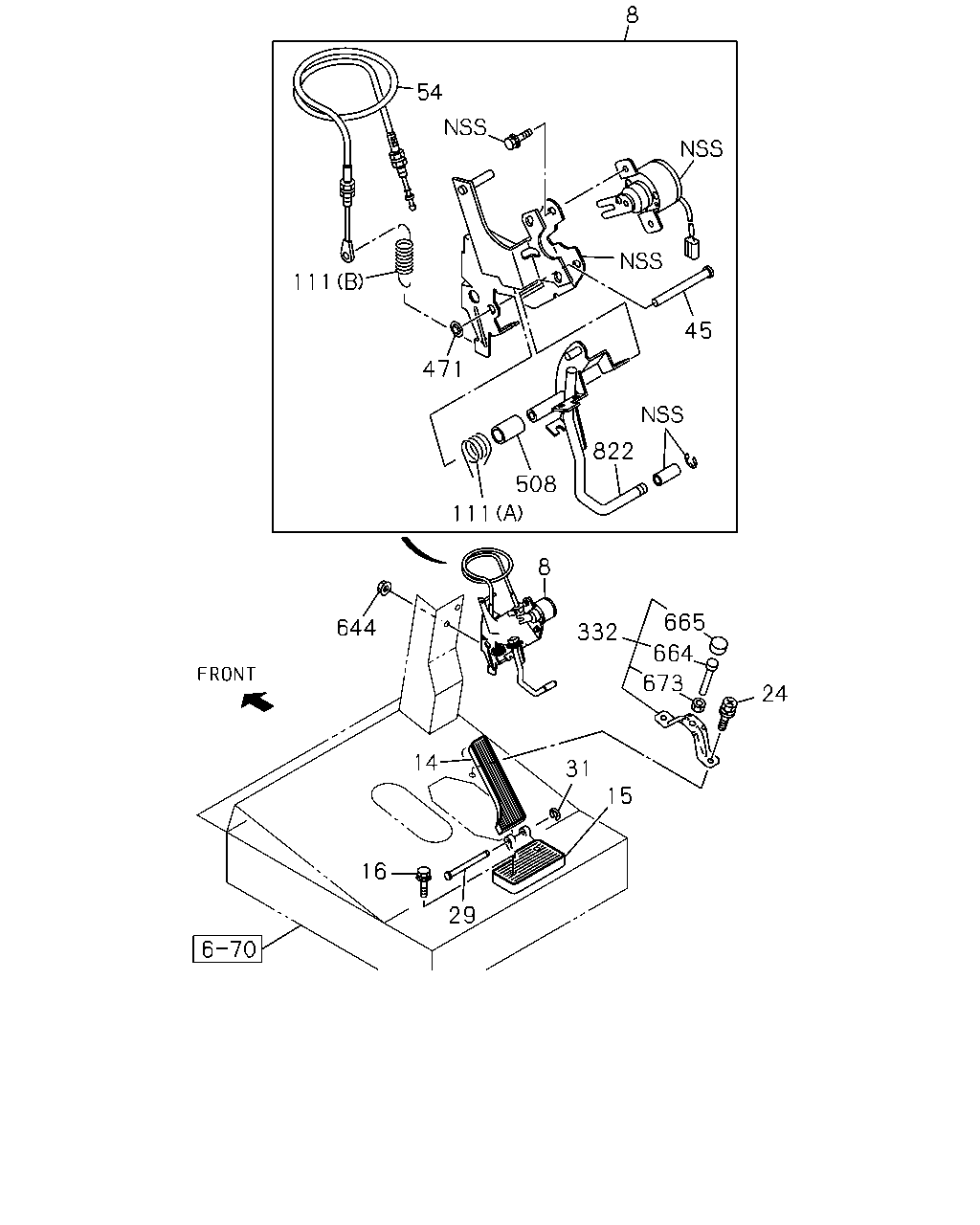

1-01 — ACCELERATOR PEDAL AND CONTROL
(#169042) — 19 parça
8
45
822
508
111
471
111
54
8
332
665
664
673
24
15
31
14
29
16
644
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
LINK ASM; ENG CONT
1-23240-112-2
01
1
1511-
14
PAD; PEDAL,ACCEL
1-73907-563-0
01
1
1511-
15
STAND; HEEL,ACCEL PEDAL
1-73907-266-3
01
1
1511-
16
SCREW; HEEL STAND,ACCEL PEDAL
M6X30 W/PL WASHER
1-09981-448-0
02
1
1511-
24
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1511-
29
SHAFT; ACCEL PEDAL
OD=8 L=74
1-09987-206-0
01
1
1511-
31
RING; SNAP,ACCEL PEDAL
ID=6
0-91805-506-0
01
1
1511-
45
PIN; ACCEL CONT PEDAL
OD=8.0 L=69
1-71907-298-0
01
1
1511-
54
CABLE; ENG CONT
L=846
1-71907-634-1
01
1
1511-
111
SPRING; RETURN
(A)
8-97853-205-1
01
1
1511-
111
SPRING; RETURN
(B)
8-97997-917-0
01
1
1511-
332
BRACKET; ACCEL PEDAL STOPPER
1-73998-937-1
01
1
1511-
471
NUT; LEVER
ID=7.9 PUSH NUT
8-94368-617-0
01
1
1511-
508
BUSHING; LINK ROD
L=31.5
1-53459-627-0
01
1
1511-
644
NUT; LINK,ENG CONT
M8 FLANGE
0-91180-108-0
02
1
1511-
664
BOLT; STOPPER
M8X45 IDN
0-20800-845-0
01
1
1511-
665
COVER; STOPPER
RUBBER
1-23249-009-0
01
1
1511-
673
NUT; STOPPER
M8
0-91111-508-0
01
1
1511-
822
LEVER ASM; ENG CONT
1-23249-030-1
01
1
1511-
