11698 - LT134 RHD EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-52 - OIL AND VACUUM PIPING; ENGINE
▶

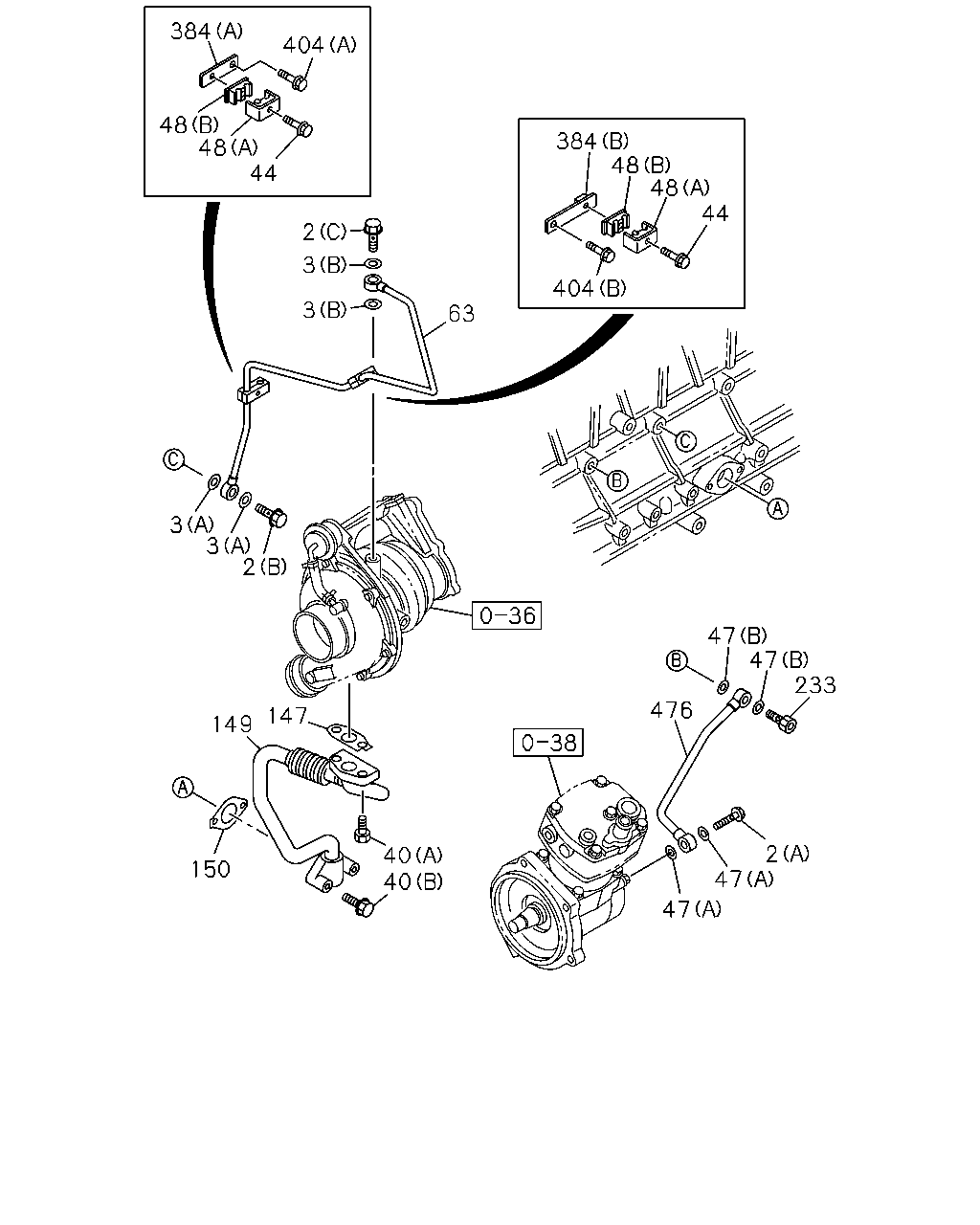

0-52 — OIL AND VACUUM PIPING; ENGINE
(#169036) — 22 parça
384
404
48
44
2
3
3
63
404
44
48
48
384
47
47
233
476
2
47
47
40
40
150
149
2
147
3
3
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE
1-09675-086-0
01
1
1511-
2
BOLT; EYE,OIL PIPE
(C) M12X25
5-09675-006-1
01
1
1511-
2
BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE
8-97372-238-0
01
1
1511-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2
8-98251-344-0
02
1
1511-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1511-
40
BOLT; OIL PIPE
(A) M10X30 FLANGE
0-28151-030-0
02
1
1511-
40
BOLT; OIL PIPE
(B) M8X25 FLANGE IDN
0-28650-825-0
02
1
1511-
44
BOLT; CLIP,OIL PIPE
M6X30 FLANGE
0-28050-630-0
02
1
1511-
47
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2
1-09630-083-0
02
1
1511-
47
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2
8-98251-345-0
02
1
1511-
48
CLIP; OIL PIPE
(A) ID=7 & 9 L=25
1-09701-228-3
02
1
1511-
48
CLIP; OIL PIPE
(B) ID=7 & 9 L=25
1-09701-229-2
02
1
1511-
63
PIPE; OIL,TURBOCHARGER FEED
8-98074-254-0
01
1
1511-
147
GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09637-058-2
01
1
1511-
149
PIPE; OIL RETURN,TURBOCHARGER
8-98147-092-0
01
1
1511-
150
GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30
8-94394-671-0
01
1
1511-
233
BOLT; EYE
8-98046-713-0
01
1
1511-
384
BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A)
1-13319-020-0
01
1
1511-
384
BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B)
1-13319-041-0
01
1
1511-
404
BOLT; BRKT
(B) M8X20
0-20950-820-0
01
1
1511-
404
BOLT; BRKT
(A) M8X15
1-09000-114-0
01
1
1511-
476
PIPE; OIL,C/BL TO AIR CMPR
8-97608-935-0
01
1
1511-
