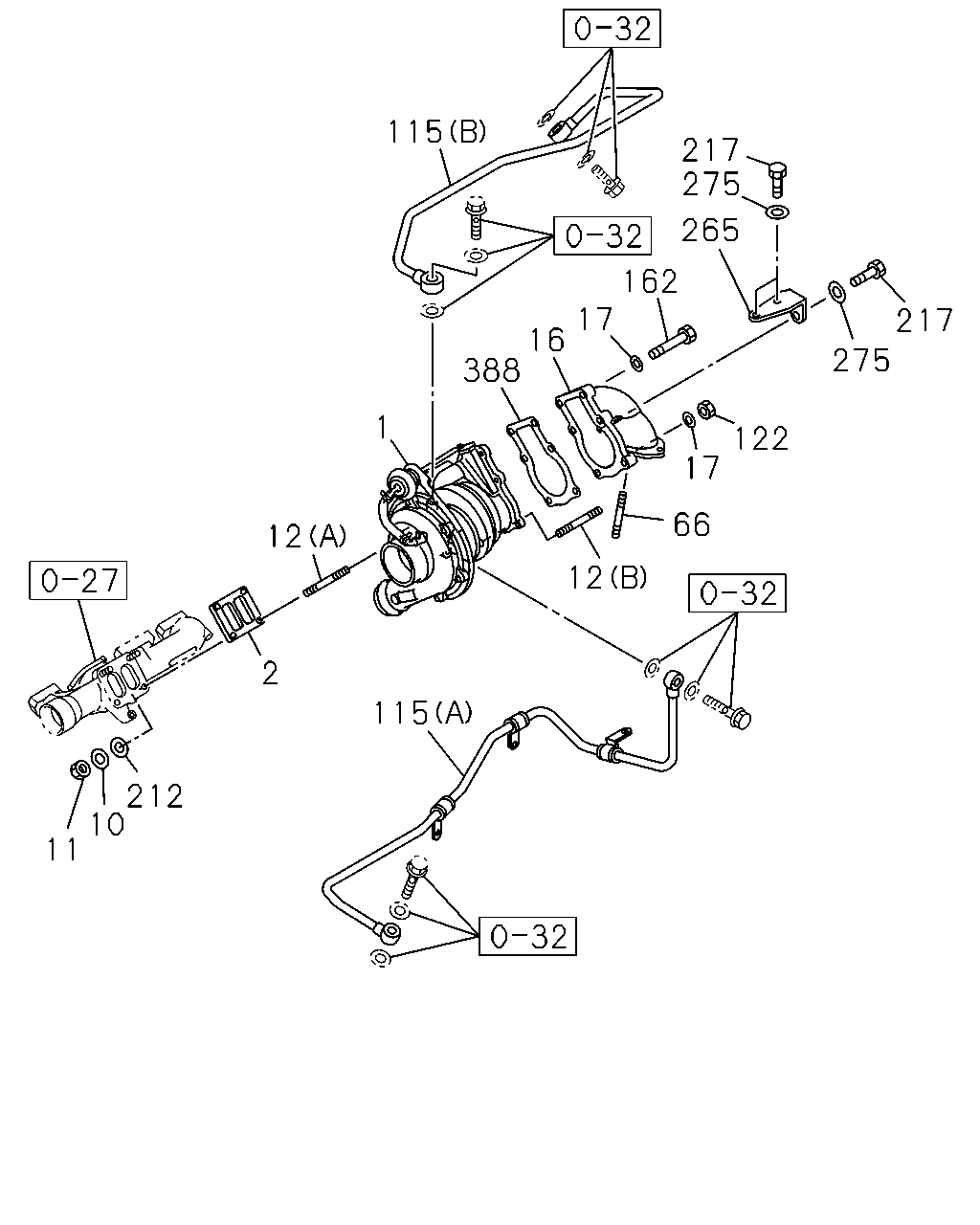

0-36 — TURBOCHARGER SYSTEM
(#169028) — 18 parça
217
265
275
217
275
122
17
66
12
115
12
1
388
16
17
162
115
212
11
2
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-98139-615-0
01
1
1511-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-044-0
01
1
1511-
10
WASHER; LK,TURBOCHARGER
T=2.2
1-09556-015-0
02
1
1511-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
04
1
1511-
12
STUD; TURBOCHARGER
(B) M8X25
9-04130-825-0
01
1
1511-
12
STUD; TURBOCHARGER
(A) M10X80
9-04731-080-0
02
1
1511-
16
ADAPTER; EXH PIPE
8-98069-083-0
01
1
1511-
17
WASHER; PL,ADAPTER
T=1.9
5-09500-012-0
06
1
1511-
66
STUD; EXH PIPE
M12X30 L=48
8-98059-951-0
03
1
1511-
115
PIPE; WATER,TURBOCHARGER OUT
(A)
8-98123-401-0
01
1
1511-
115
PIPE; WATER,TURBOCHARGER OUT
(B)
8-98137-196-0
01
1
1511-
122
NUT; ADAPTER
M8
1-09400-118-1
01
1
1511-
162
BOLT; ADAPTER
M8X57
5-09000-275-0
05
1
1511-
212
WASHER; PL,TURBOCHARGER
ID=10
1-09503-033-1
04
1
1511-
217
BOLT; BRKT
M12X30
8-94394-324-0
03
1
1511-
265
BRACKET; EXH PIPE
8-94395-764-2
01
1
1511-
275
WASHER; PL
ID=12.2
1-09503-008-0
03
1
1511-
388
GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94394-248-2
01
1
1511-
