0-31 — THERMOSTAT AND HOUSING (#169025) — 10 parça

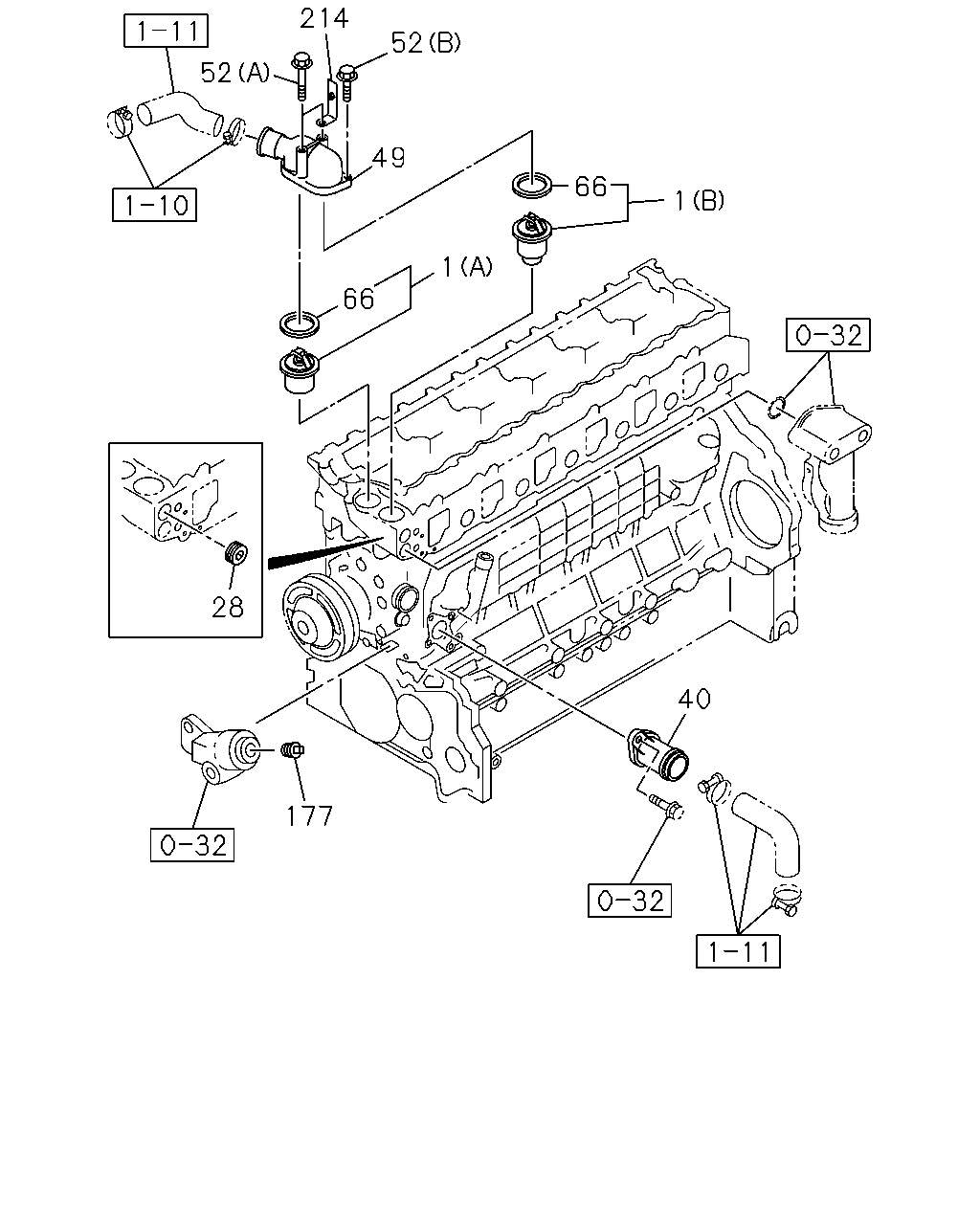

çizim 500102
52 214 49 1 66 66 1 40 177 28 52
BalonParca AdiParca NoAdetTipApplied Date
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 1511-
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1511-
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 1511-
40 DUCT; WATER,SUCTION 8-94391-091-1 01 1 1511-
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 1511-
52 BOLT; JOINT,THERMOSTAT
(A) M8X80 FLANGE 		0-28050-880-0 02 1 1511-
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 1511-
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1511-
177 PLUG; PIPE,WATER DUCT
PT1/2 		9-09204-521-0 01 1 1511-
214 BRACKET; HARNESS 8-94393-074-1 01 1 1511-
