11698 - LT134 RHD EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

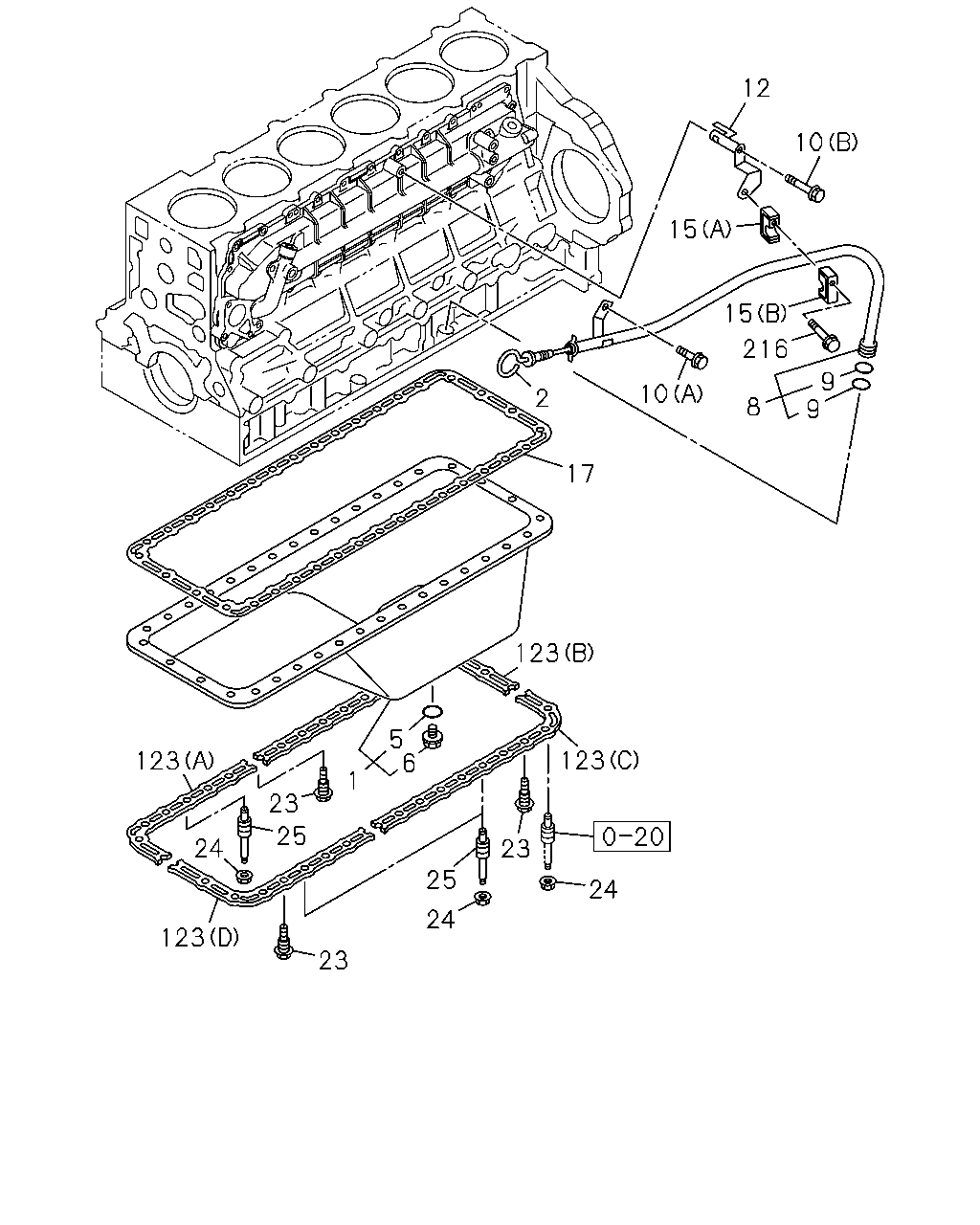

0-13 — OIL PAN AND LEVEL GAUGE
(#169016) — 20 parça
12
10
15
15
8
9
9
10
2
17
123
123
24
23
25
24
6
5
1
23
25
24
123
123
23
216
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-98061-363-0
01
1
1511-
2
GAUGE; OIL LEVEL
8-98100-835-1
01
1
1511-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
1511-
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
1511-
8
TUBE; GUIDE,OIL LEVEL GAUGE
8-98137-214-0
01
1
1511-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1511-
10
BOLT; GUIDE TUBE
(A) M8X16 FLANGE
0-28050-816-0
01
1
1511-
10
BOLT; GUIDE TUBE
(B) M10X110 FLANGE
0-28156-011-0
01
1
1511-
12
BRACKET; TUBE,OIL LEVEL GAUGE
8-98137-303-0
01
1
1511-
15
CLIP; GUIDE TUBE
(A) ID=8 L=14
8-98060-970-0
01
1
1511-
15
CLIP; GUIDE TUBE
(B) ID=8 L=14
8-98060-971-0
01
1
1511-
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94390-617-1
01
1
1511-
23
BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97087-634-0
27
1
1511-
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
07
1
1511-
25
STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER
8-97087-632-2
04
1
1511-
123
RUBBER; SEAL OIL
(A)
8-94391-755-0
01
1
1511-
123
RUBBER; SEAL OIL
(B)
8-94391-757-0
01
1
1511-
123
RUBBER; SEAL OIL
(C)
8-94391-758-0
01
1
1511-
123
RUBBER; SEAL OIL
(D)
8-94392-548-0
01
1
1511-
216
BOLT; BRKT
M6X40 FLANGE
0-28050-640-0
01
1
1511-
