Isuzu WW
▶
TRUCKS
▶
FVR
▶
11409 - FVR(RHD)EURO1
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

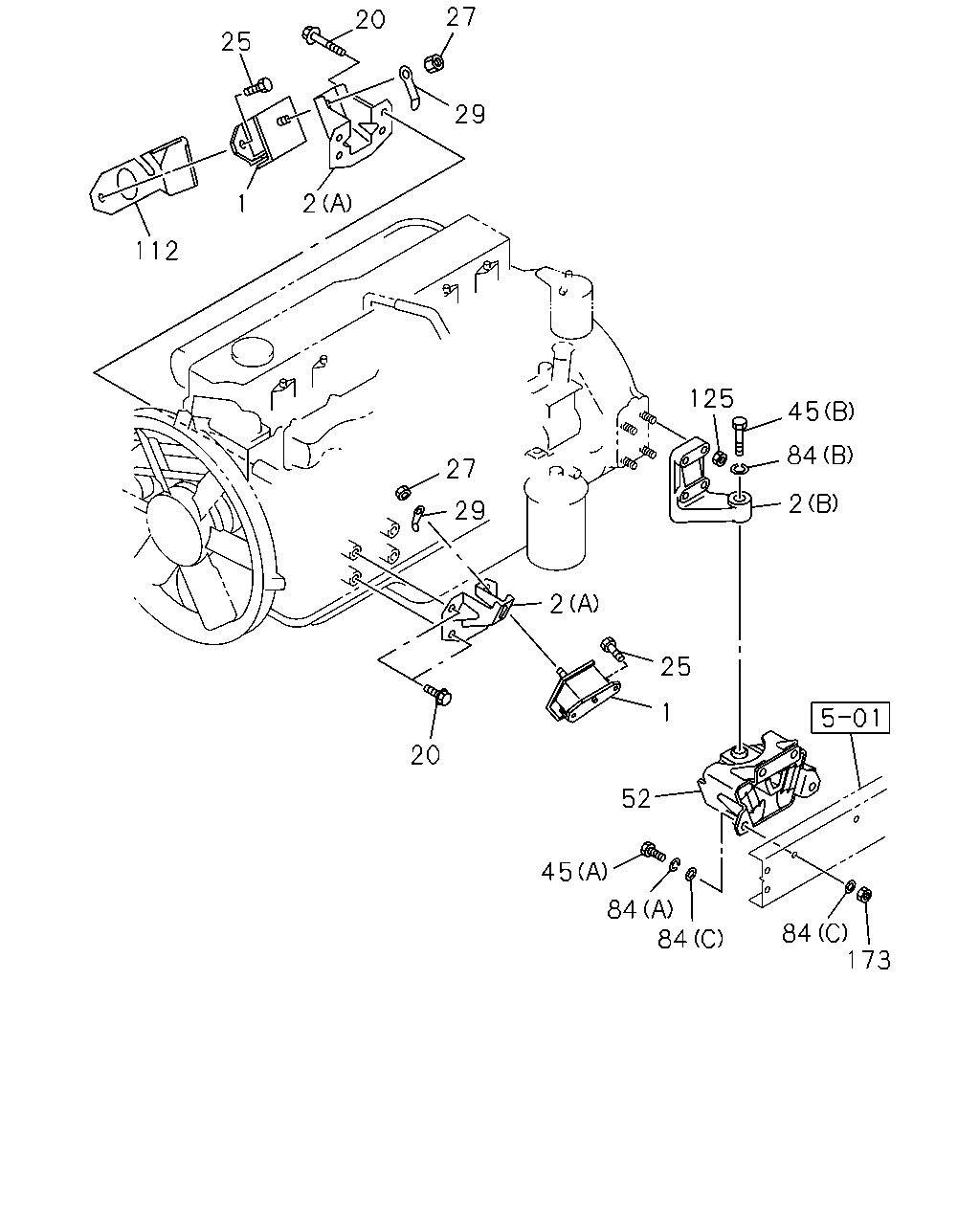

0-22 — ENGINE MOUNTING
(#16893) — 17 parça
173
84
84
84
45
52
1
2
25
20
29
27
125
84
45
2
29
27
2
20
25
1
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-172-0
02
1
1110-
2
FOOT; ENG
(B)
8-94390-114-0
01
1
1110-
2
FOOT; ENG
(B)
8-94390-115-0
01
1
1110-
2
FOOT; ENG
(A)
8-94393-491-1
02
1
1110-
20
BOLT; ENG FOOT
M10X20 FLANGE
8-94395-721-0
08
1
1110-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
1110-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
1110-
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
1110-
45
BOLT; CUSHION RUBBER TO FRAME
(A) M14X50
0-20951-450-0
08
1
1110-
45
BOLT; CUSHION RUBBER TO FRAME
(B) M22X75
1-09020-087-2
02
1
1110-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-302-0
02
1
1110-
84
WASHER; PL,ENG MTG RR TO FRAME
(A) ID=14.2
0-91510-814-0
08
1
1110-
84
WASHER; PL,ENG MTG RR TO FRAME
(B) ID=23
0-91614-522-0
02
1
1110-
84
WASHER; PL,ENG MTG RR TO FRAME
(C) ID=15
8-98010-627-1
16
1
1110-
112
PROTECTOR; HEAT
1-53219-629-4
01
1
1110-
125
NUT; ENG FOOT
M12 FLANGE
8-94394-704-0
08
1
1110-
173
NUT; ENG MTG RR TO FRAME
M14
0-91110-514-0
08
1
1110-
