0-22 — ENGINE MOUNTING (#16887) — 70 parça

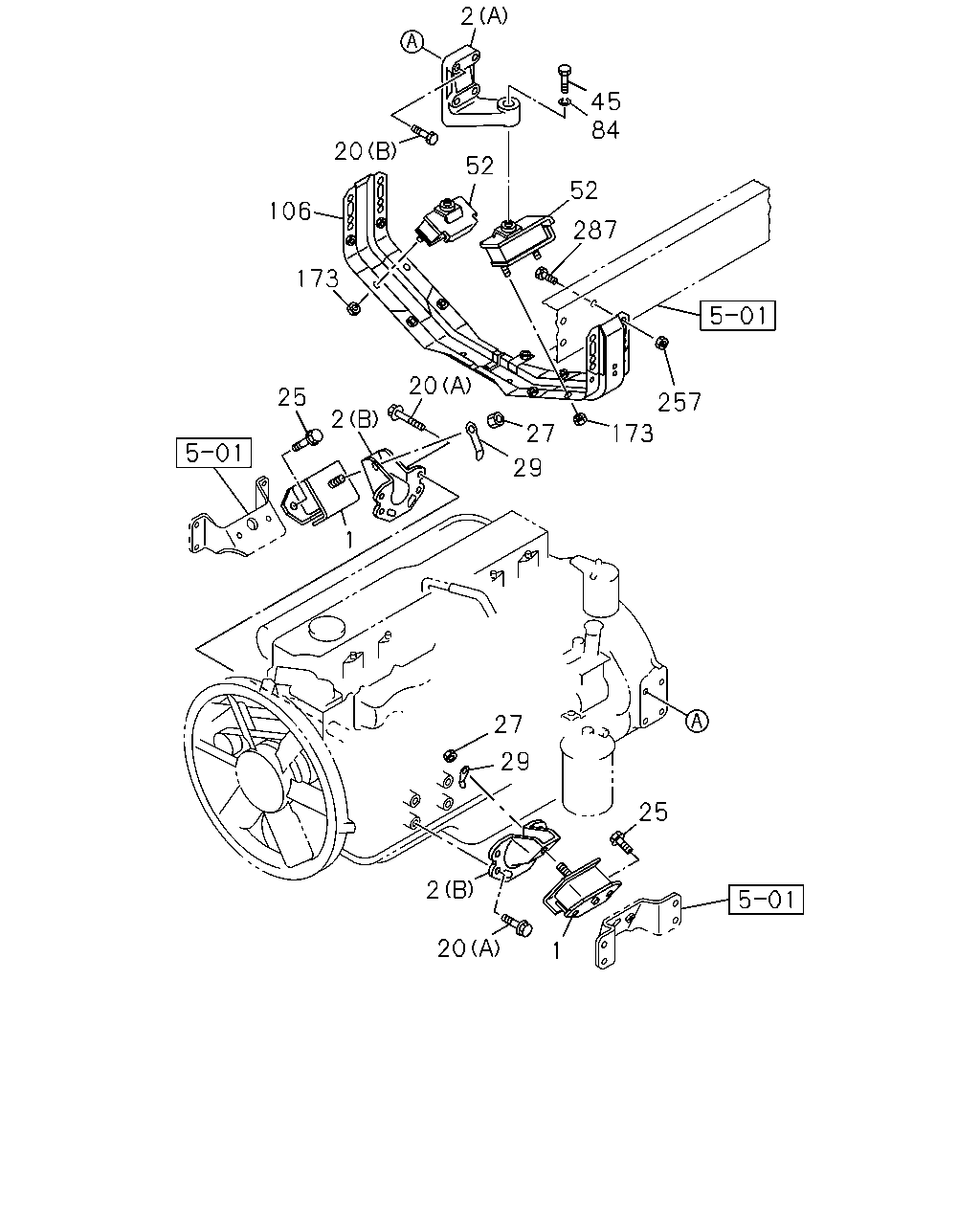

1 20 2 25 29 29 27 27 173 257 20 2 25 287 52 52 20 106 173 84 45 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RUBBER; ENG FOOT,FRT	1-53215-184-0	02	1	1205-	●
1	RUBBER; ENG FOOT,FRT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W)	1-53215-173-0	02	1	0906-		●
1	RUBBER; ENG FOOT,FRT WHEEL BASE 4900MM(49W)	1-53215-172-0	02	1	0906-		●
2	FOOT; ENG (C)	8-97376-076-1	02	1	1205-	●
2	FOOT; ENG (B)	8-94392-141-3	02	1	0906-1008		●
2	FOOT; ENG (B)	8-97602-589-1	02	1	1009-		●
2	FOOT; ENG (A)	8-97609-900-0	01	1	0906-		●
2	FOOT; ENG (A)	8-97609-899-0	01	1	0906-		●
20	BOLT; ENG FOOT (C) M10X30 FLANGE	0-28161-030-0	08	1	1205-	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	0906-		●
20	BOLT; ENG FOOT (A) M10X30	8-97011-732-0	08	1	0906-1008		●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	1009-		●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	0906-1204		●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	1205-	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0906-1204		●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	1205-	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	8-98010-312-0	02	1	0906-1204		●
29	PLATE; LK,CUSHION RUBBER,FRT	8-98010-312-0	02	1	1205-	●	●
45	BOLT; CUSHION RUBBER TO FRAME M16X60	0-10956-660-0	02	1	0906-		●
52	RUBBER; CUSHION,ENG MTG,RR	8-97039-277-0	02	1	1205-	●
52	RUBBER; CUSHION,ENG MTG,RR	8-98010-331-0	01	1	0906-		●
52	RUBBER; CUSHION,ENG MTG,RR	8-98010-330-1	01	1	0906-		●
84	WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	1205-	●
84	WASHER; PL,ENG MTG RR TO FRAME ID=17	9-09164-516-0	02	1	0906-		●
106	MEMBER; MTG,RR	8-97608-414-1	01	1	0906-		●
173	NUT; ENG MTG RR TO FRAME M10 FLANGE	0-91180-210-0	04	1	1205-	●
173	NUT; ENG MTG RR TO FRAME M12 FLANGE	0-91180-212-0	04	1	0906-		●
257	NUT; MEMBER M12 FLANGE	0-91180-212-0	08	1	0906-		●
287	BOLT; MEMBER M12X40 FLANGE	0-28651-240-0	08	1	0906-		●

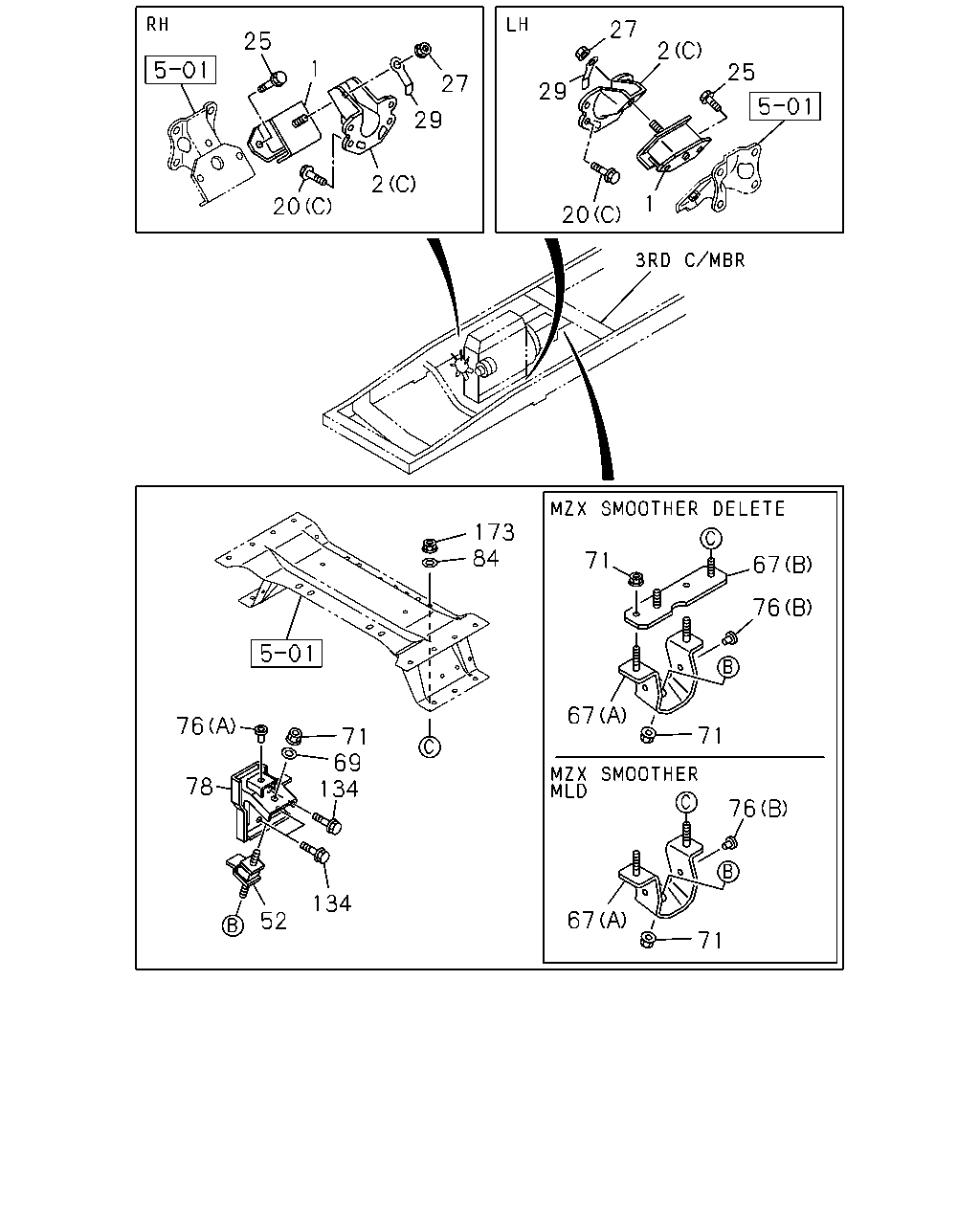

27 25 2 1 25 27 29 29 2 1 20 20 173 84 71 67 76 67 76 71 71 69 134 78 76 134 67 52 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RUBBER; ENG FOOT,FRT	1-53215-184-0	02	1	1205-	●
1	RUBBER; ENG FOOT,FRT WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W)	1-53215-173-0	02	1	0906-		●
1	RUBBER; ENG FOOT,FRT WHEEL BASE 4900MM(49W)	1-53215-172-0	02	1	0906-		●
2	FOOT; ENG (C)	8-97376-076-1	02	1	1205-	●
2	FOOT; ENG (B)	8-94392-141-3	02	1	0906-1008		●
2	FOOT; ENG (B)	8-97602-589-1	02	1	1009-		●
2	FOOT; ENG (A)	8-97609-900-0	01	1	0906-		●
2	FOOT; ENG (A)	8-97609-899-0	01	1	0906-		●
20	BOLT; ENG FOOT (C) M10X30 FLANGE	0-28161-030-0	08	1	1205-	●
20	BOLT; ENG FOOT (B) M12X55	8-94399-884-1	08	1	0906-		●
20	BOLT; ENG FOOT (A) M10X30	8-97011-732-0	08	1	0906-1008		●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	1009-		●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	0906-1204		●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	1205-	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0906-1204		●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	1205-	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	8-98010-312-0	02	1	0906-1204		●
29	PLATE; LK,CUSHION RUBBER,FRT	8-98010-312-0	02	1	1205-	●	●
52	RUBBER; CUSHION,ENG MTG,RR	8-97039-277-0	02	1	1205-	●
52	RUBBER; CUSHION,ENG MTG,RR	8-98010-331-0	01	1	0906-		●
52	RUBBER; CUSHION,ENG MTG,RR	8-98010-330-1	01	1	0906-		●
67	BRACKET; SUPPORT,ENG MTG,RR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98055-142-0	02	1	1205-	●
67	BRACKET; SUPPORT,ENG MTG,RR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98013-942-0	02	1	1205-	●
67	BRACKET; SUPPORT,ENG MTG,RR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98051-917-0	01	1	1205-	●
67	BRACKET; SUPPORT,ENG MTG,RR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98051-918-0	01	1	1205-	●
69	WASHER; PL,SUPPORT RUBBER TO BRKT ID=10.5 OD=22 T=4	1-09503-045-0	02	1	1205-	●
71	NUT; SUPPORT RUBBER TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE	0-91180-110-0	04	1	1205-	●
71	NUT; SUPPORT RUBBER TO BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-110-0	08	1	1205-	●
76	STOPPER; ENG MTG RUBBER (A)	8-94111-904-0	02	1	1205-	●
76	STOPPER; ENG MTG RUBBER (B)	8-97039-947-1	04	1	1205-	●
78	BRACKET; ENG MTG,RR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-070-0	01	1	1205-	●
78	BRACKET; ENG MTG,RR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-071-1	01	1	1205-	●
78	BRACKET; ENG MTG,RR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98127-067-0	01	1	1205-1302	●
78	BRACKET; ENG MTG,RR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98229-167-0	01	1	1303-	●
78	BRACKET; ENG MTG,RR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98127-068-1	01	1	1205-1302	●
78	BRACKET; ENG MTG,RR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98229-175-0	01	1	1303-	●
84	WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	1205-	●
84	WASHER; PL,ENG MTG RR TO FRAME ID=17	9-09164-516-0	02	1	0906-		●
134	BOLT; SUPPORT BRKT M14X35 FLANGE	0-28751-435-0	08	1	1205-	●
173	NUT; ENG MTG RR TO FRAME M10 FLANGE	0-91180-210-0	04	1	1205-	●
173	NUT; ENG MTG RR TO FRAME M12 FLANGE	0-91180-212-0	04	1	0906-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
