◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#1688) — 232 parça

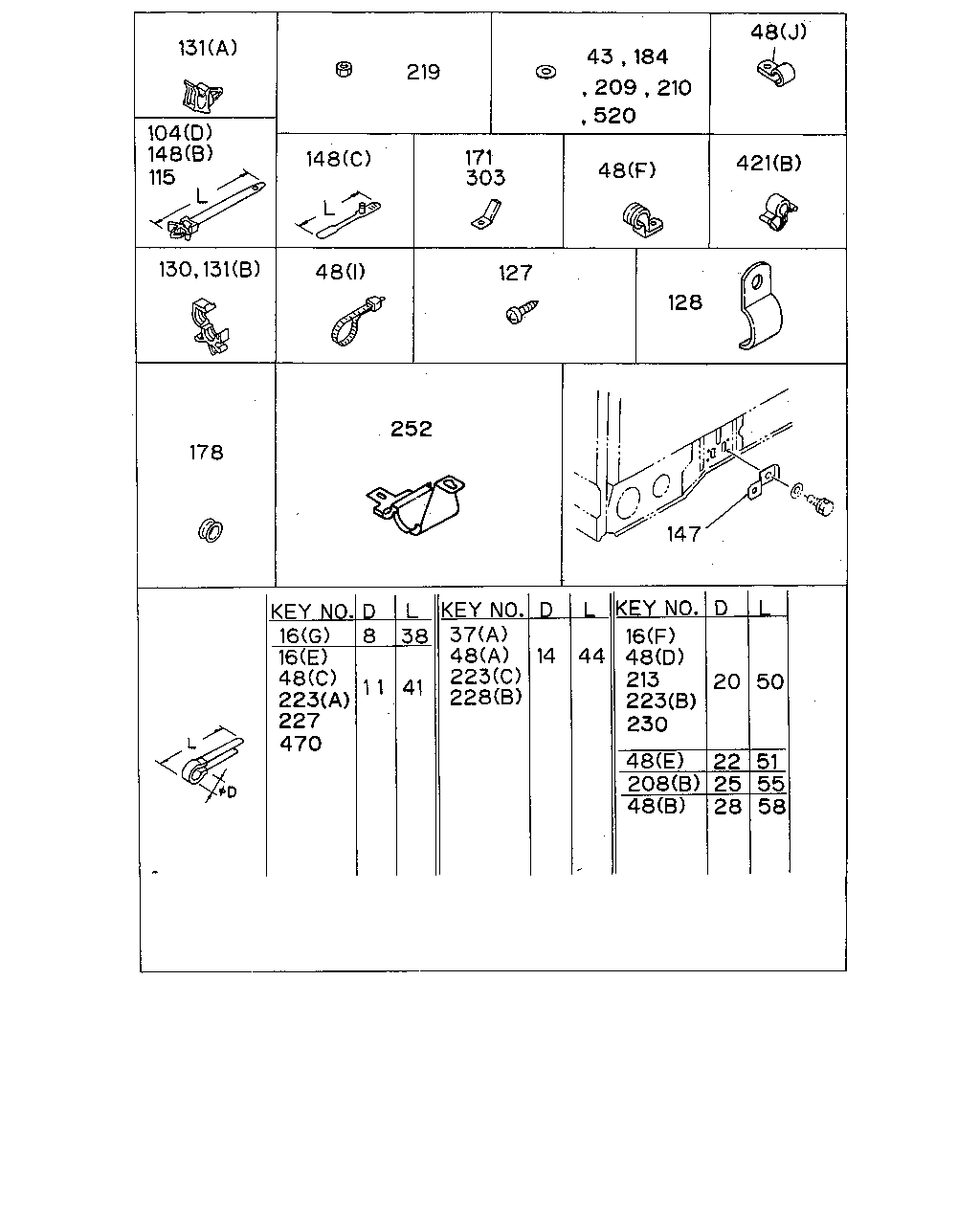

çizim 27928
131 104 148 115 130 131 178 219 43 184 209 210 520 48 148 171 303 48 421 48 127 128 252 147 16 16 48 223 227 470 37 48 223 228 16 48 213 223 230 48 208 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 CLIP; HARNESS
(G) ID=8 L=38 		9-09917-424-0 02 1 9207- ● ●
16 CLIP; HARNESS
(E) ID=11 L=41 		1-09700-403-0 02 1 9207- ● ● ● ● ●
16 CLIP; HARNESS
(C) L=145 		1-09987-143-1 03 1 9207- ● ● ● ● ●
16 CLIP; HARNESS
(D) L=140 		5-09707-031-0 02 1 9207-9208 ● ● ● ● ●
16 CLIP; HARNESS
(D) L=140 		5-09707-031-0 06 1 9209-9210 ● ● ● ● ●
16 CLIP; HARNESS
(H) L=250 		5-09707-030-1 02 1 9211- ● ● ● ● ●
16 CLIP; HARNESS
(F) ID=20 L=50 		9-09917-430-0 03 1 9207- ● ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> EXC. RADIO CLARION(SK2),RADIO MATSUSHITA(SM9), RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2SPEAKERS<UX6> (D) L=140 		5-09707-031-1 01 1 9207- ● ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (B) L=219.5 		1-09987-136-0 05 1 9207- ● ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A) L=100 		5-09707-036-1 02 1 9207- ● ● ● ● ●
16 CLIP; HARNESS
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> (B) L=219.5 		1-09987-136-0 04 1 9207- ● ● ● ● ●
16 CLIP; HARNESS
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> (D) L=140 		5-09707-031-0 03 1 9207-9210 ● ● ● ● ●
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 03 1 9211- ● ● ● ● ●
16 CLIP; HARNESS
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> (D) L=140 		5-09707-031-1 03 1 9211- ● ● ● ● ●
16 CLIP; HARNESS
MLD6D M/T(X5Q) (E) ID=11 L=41 		1-09700-403-0 01 1 9207- ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=16 L=40 		9-09525-575-0 01 1 9207- ●
37 CLIP; HARNESS,POWER TILT
(B) ID=19 L=40 		9-09525-875-0 02 1 9207- ●
37 CLIP; HARNESS,POWER TILT
VERTICAL TAIL PIPE<NC4> (A) ID=14 L=44 		9-09917-427-0 01 1 9207- ●
43 WASHER; LK,HARNESS
MLD6D M/T(X5Q) ID=8.2 		9-09150-508-0 01 1 9207- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 08 1 9207- ●
48 CLIP; FRAME HARNESS
(I) L=300 BAND 		1-09707-001-0 01 1 9207- ● ●
48 CLIP; FRAME HARNESS
(E) ID=22 L=51 		9-09917-431-0 03 1 9207- ● ●
48 CLIP; FRAME HARNESS
(F) D=19 L=24 		1-09700-109-1 02 1 9207- ● ● ●
48 CLIP; FRAME HARNESS
MBG5B M/T(X4K) (F) D=19 L=24 		1-09700-109-1 02 1 9207- ● ●
48 CLIP; FRAME HARNESS
(H) ID=15 L=24 		1-09700-606-0 01 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 09 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=22 L=51 		9-09917-431-0 01 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=28 L=58 		1-09700-400-0 01 1 9207- ● ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 9207-9210 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 9207-9210 ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 9211- ● ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 9211- ● ●
48 CLIP; FRAME HARNESS
(G) ID=28 L=45 		1-09700-825-1 02 1 9207- ● ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 9207-9210 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 04 1 9211- ● ●
48 CLIP; FRAME HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 9207- ● ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 05 1 9207-9208 ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 05 1 9209-9210 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 9211- ● ● ● ● ●
48 CLIP; FRAME HARNESS
AUSTRALIA EQUIPMENT(RR3) WHEEL BASE 3600MM(36W) (C) ID=11 L=41 		1-09700-403-0 07 1 9207-9210 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 9211- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM(36W) (D) ID=20 L=50 		9-09917-430-0 11 1 9207- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 11 1 9207- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) (C) ID=11 L=41 		1-09700-403-0 06 1 9207-9208 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) (C) ID=11 L=41 		1-09700-403-0 06 1 9209-9210 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 06 1 9209-9210 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 06 1 9211- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) (D) ID=20 L=50 		9-09917-430-0 10 1 9207- ●
48 CLIP; FRAME HARNESS
(E) ID=22 L=51 		9-09917-431-0 02 1 9207- ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 08 1 9207-9208 ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 9209- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 13 1 9207- ● ●
48 CLIP; FRAME HARNESS
MLD6D M/T(X5Q) (J) ID=19 L=28 		9-09525-856-0 02 1 9207- ● ●
48 CLIP; FRAME HARNESS
(J) ID=19 L=60 		9-09525-893-0 01 1 9207- ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 03 1 9207- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 07 1 9207- ●
104 CLIP; HEADLAMP HARNESS
(D) L=142 		8-94232-619-0 02 1 9207- ● ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(B) ID=19 L=20 		9-09525-832-0 01 1 9207- ● ● ● ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> (A) ID=12 H=24 L=20 		1-09700-605-0 02 1 9207- ● ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> (A) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 9207- ● ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> (C) ID=15 L=42 		9-09716-203-1 02 1 9207- ● ● ●
115 CLIP; DOOR HARNESS
AUSTRALIA PACKAGE<D2Y> L=142 		8-94232-619-0 02 1 9312- ● ● ●
127 SCREW; FACIA HARNESS CLIP
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING W/PL WASHER 		0-74100-516-0 01 1 9207- ● ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN 1-09987-193-0 01 1 9207- ● ● ● ● ●
130 CLIP; WASHER HARNESS
ID=7-10 		8-94472-578-0 01 1 9207- ● ● ● ● ●
131 CLIP; HARNESS,A/C SW
(A) ID=6.5 		8-94206-730-0 01 1 9207-9301 ● ● ● ● ●
131 CLIP; HARNESS,A/C SW
(B) ID=7-10 		8-94472-578-0 01 1 9302- ● ● ● ● ●
147 BRACKET; HARNESS,HEADLAMP 1-71998-471-0 02 1 9207- ● ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=85 		8-94232-611-0 03 1 9207- ●
148 CLIP; BAND,HEADLAMP HARNESS
EXC. DUAL AIR GAUGE<UG2> (B) L=85 		8-94232-611-0 03 1 9207- ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 01 1 9207- ● ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
EXC. DUAL AIR GAUGE<UG2> (B) L=142 		8-94232-619-0 07 1 9207- ● ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
DUAL AIR GAUGE<UG2> (C) L=85 		8-94232-611-0 02 1 9207- ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
DUAL AIR GAUGE<UG2> (B) L=142 		8-94232-619-0 08 1 9207- ● ● ● ●
171 CLIP; STARTER HARNESS
L=63 		1-09700-418-1 01 1 9207- ● ● ● ●
178 GROMMET; HARNESS
ID=15 T=17.5 		9-09956-178-0 01 1 9207- ● ● ● ● ●
178 GROMMET; HARNESS
ID=28 T=17 		9-09956-256-1 01 1 9207- ● ● ● ● ●
178 GROMMET; HARNESS
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> ID=15 T=17.5 		9-09956-178-0 02 1 9207- ● ● ● ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 		1-09503-265-0 01 1 9301- ● ● ● ● ●
208 CLIP; HARNESS,MAG VLV
(A) 		1-09700-418-1 04 1 9207- ● ● ● ● ●
208 CLIP; HARNESS,MAG VLV
(B) 		9-09917-573-0 01 1 9207- ● ● ● ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9207- ● ● ● ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9301- ● ● ● ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9207- ● ● ● ● ●
219 NUT
M8 		9-09110-408-0 02 1 9207- ● ● ● ● ●
219 NUT
M6 		9-09110-406-0 01 1 9207- ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 9207- ●
223 CLIP; AIR TANK HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=11 L=41 		1-09700-403-0 03 1 9207- ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 9207- ●
223 CLIP; AIR TANK HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=20 L=50 		9-09917-430-0 03 1 9207- ●
223 CLIP; AIR TANK HARNESS
AUSTRALIA EQUIPMENT(RR3) WHEEL BASE 3600MM(36W) (A) ID=11 L=41 		1-09700-403-0 05 1 9207- ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 05 1 9207- ● ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 05 1 9207- ● ● ●
227 CLIP; FOG LAMP HARNESS
EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> ID=11 L=41 		1-09700-403-0 02 1 9207- ● ● ● ● ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL<C60> (A) L=140 		5-09707-031-1 03 1 9207- ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL<C60> (B) ID=14 L=44 		9-09917-427-0 01 1 9207- ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9207- ● ● ● ● ●
252 CLIP; CONNECTOR FIX
W/SPONGE RUBBER 		1-09709-150-0 01 1 9207- ● ● ● ● ●
303 CLIP; HARNESS POWER TILT RELAY
L=63 		1-09700-418-1 01 1 9207- ●
421 CLIP; FLOOR HARNESS
(B) ID=9 		5-09707-027-0 01 1 9207- ●
421 CLIP; FLOOR HARNESS
(A) 		9-09525-032-0 05 1 9207- ●
470 CLIP; HARNESS,LICENSE LAMP
PINTLE HOOK<PP7> ID=11 L=41 		1-09700-403-0 01 1 9207- ● ● ● ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9301- ● ● ● ● ●

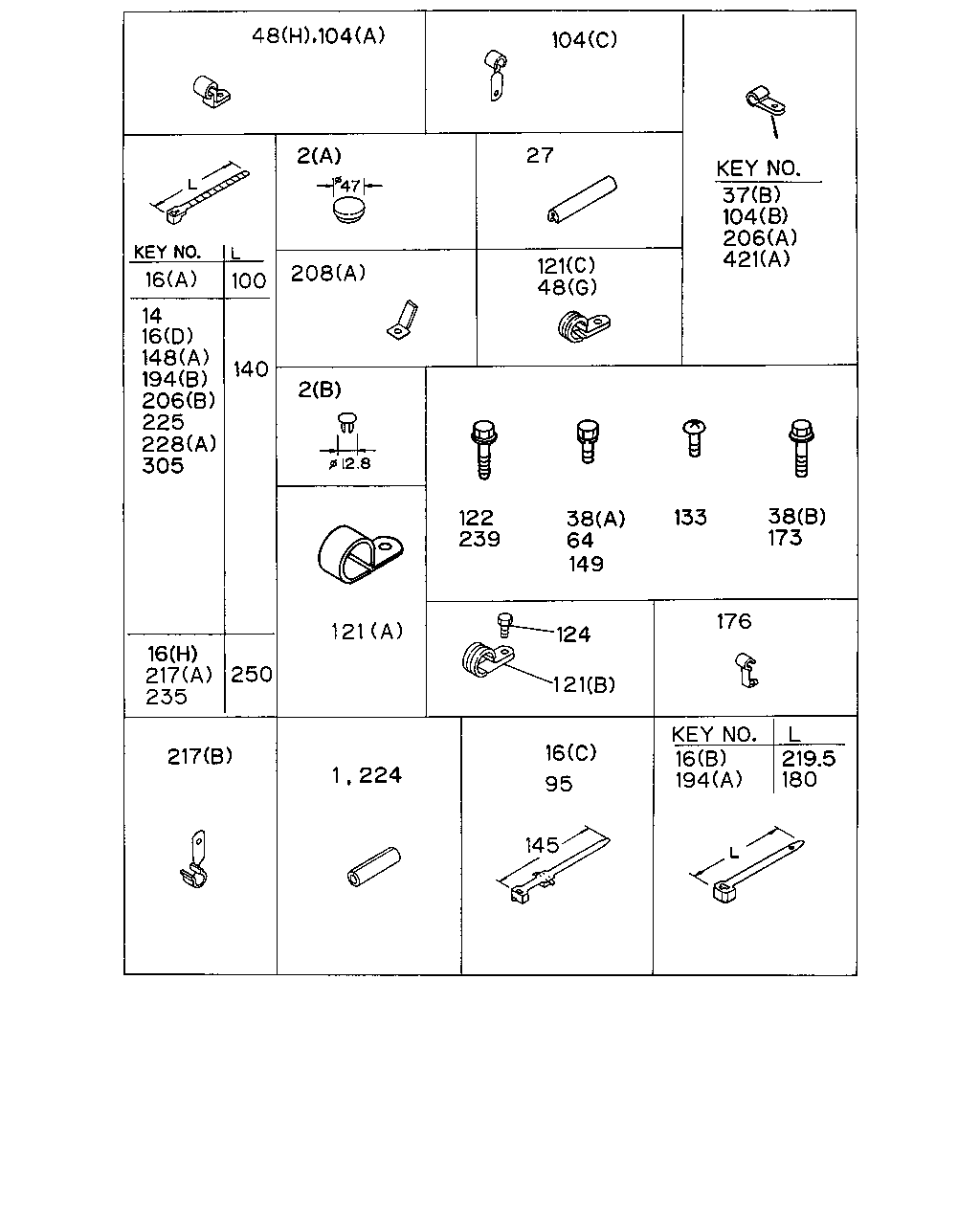

çizim 29820
48 104 104 2 27 37 104 206 421 16 14 16 148 194 206 225 228 305 208 121 48 2 16 217 235 122 239 38 64 149 133 38 173 121 217 1 224 124 121 176 16 95 16 194
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 9209- ● ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
(A) OD=47 		1-09983-039-1 02 1 9207-9311 ● ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
(A) OD=47 		1-09983-039-1 02 1 9312- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUSTRALIA PACKAGE<D2Y> (A) OD=47 		1-09983-039-1 02 1 9312- ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
(B) OD=12.8 		1-09983-065-0 04 1 9207-9311 ● ● ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
(B) OD=12.8 		1-09983-065-0 04 1 9312- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUSTRALIA PACKAGE<D2Y> (B) OD=12.8 		1-09983-065-0 04 1 9312- ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
AUSTRALIA PACKAGE<D2Y> (A) OD=47 		1-09983-038-1 02 1 9312- ● ● ●
2 GROMMET; CLIP HOLE,HARNESS
AUSTRALIA PACKAGE<D2Y> (B) OD=12.8 		1-09983-065-0 02 1 9312- ● ● ●
14 CLIP; BAND,HARNESS
L=140 		5-09707-031-1 03 1 9209- ● ● ● ● ●
16 CLIP; HARNESS
(G) ID=8 L=38 		9-09917-424-0 02 1 9207- ● ●
16 CLIP; HARNESS
(E) ID=11 L=41 		1-09700-403-0 02 1 9207- ● ● ● ● ●
16 CLIP; HARNESS
(C) L=145 		1-09987-143-1 03 1 9207- ● ● ● ● ●
16 CLIP; HARNESS
(D) L=140 		5-09707-031-0 02 1 9207-9208 ● ● ● ● ●
16 CLIP; HARNESS
(D) L=140 		5-09707-031-0 06 1 9209-9210 ● ● ● ● ●
16 CLIP; HARNESS
(H) L=250 		5-09707-030-1 02 1 9211- ● ● ● ● ●
16 CLIP; HARNESS
(F) ID=20 L=50 		9-09917-430-0 03 1 9207- ● ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> EXC. RADIO CLARION(SK2),RADIO MATSUSHITA(SM9), RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2SPEAKERS<UX6> (D) L=140 		5-09707-031-1 01 1 9207- ● ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (B) L=219.5 		1-09987-136-0 05 1 9207- ● ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A) L=100 		5-09707-036-1 02 1 9207- ● ● ● ● ●
16 CLIP; HARNESS
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> (B) L=219.5 		1-09987-136-0 04 1 9207- ● ● ● ● ●
16 CLIP; HARNESS
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> (D) L=140 		5-09707-031-0 03 1 9207-9210 ● ● ● ● ●
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 03 1 9211- ● ● ● ● ●
16 CLIP; HARNESS
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> (D) L=140 		5-09707-031-1 03 1 9211- ● ● ● ● ●
16 CLIP; HARNESS
MLD6D M/T(X5Q) (E) ID=11 L=41 		1-09700-403-0 01 1 9207- ● ●
27 PROTECTOR; EDGE
L=2040 		1-71997-513-1 02 1 9207- ● ● ● ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=16 L=40 		9-09525-575-0 01 1 9207- ●
37 CLIP; HARNESS,POWER TILT
(B) ID=19 L=40 		9-09525-875-0 02 1 9207- ●
37 CLIP; HARNESS,POWER TILT
VERTICAL TAIL PIPE<NC4> (A) ID=14 L=44 		9-09917-427-0 01 1 9207- ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ● ●
38 BOLT; CLIP,HARNESS
MBG5B M/T(X4K) (B) M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9207- ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28080-830-0 01 1 9207- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28080-825-0 01 1 9207- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> (B) M8X20 FLANGE 		0-28080-820-0 06 1 9207- ● ● ●
38 BOLT; CLIP,HARNESS
MLD6D M/T(X5Q) (B) M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28080-825-0 03 1 9207- ●
38 BOLT; CLIP,HARNESS
(A) M6X20 W/LK WASHER 		0-50040-620-0 01 1 9207- ●
38 BOLT; CLIP,HARNESS
(A) M6X20 W/LK&PL WASHER 		1-09980-493-0 03 1 9207- ●
38 BOLT; CLIP,HARNESS
(A) M6X16 W/LK&PL WASHER 		1-09980-506-0 01 1 9207- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 08 1 9207- ●
48 CLIP; FRAME HARNESS
(I) L=300 BAND 		1-09707-001-0 01 1 9207- ● ●
48 CLIP; FRAME HARNESS
(E) ID=22 L=51 		9-09917-431-0 03 1 9207- ● ●
48 CLIP; FRAME HARNESS
(F) D=19 L=24 		1-09700-109-1 02 1 9207- ● ● ●
48 CLIP; FRAME HARNESS
MBG5B M/T(X4K) (F) D=19 L=24 		1-09700-109-1 02 1 9207- ● ●
48 CLIP; FRAME HARNESS
(H) ID=15 L=24 		1-09700-606-0 01 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 09 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=22 L=51 		9-09917-431-0 01 1 9207- ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=28 L=58 		1-09700-400-0 01 1 9207- ● ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 9207-9210 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 9207-9210 ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 9211- ● ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 9211- ● ●
48 CLIP; FRAME HARNESS
(G) ID=28 L=45 		1-09700-825-1 02 1 9207- ● ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 9207-9210 ● ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 04 1 9211- ● ●
48 CLIP; FRAME HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 9207- ● ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 05 1 9207-9208 ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 05 1 9209-9210 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 9211- ● ● ● ● ●
48 CLIP; FRAME HARNESS
AUSTRALIA EQUIPMENT(RR3) WHEEL BASE 3600MM(36W) (C) ID=11 L=41 		1-09700-403-0 07 1 9207-9210 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 9211- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM(36W) (D) ID=20 L=50 		9-09917-430-0 11 1 9207- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 11 1 9207- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) (C) ID=11 L=41 		1-09700-403-0 06 1 9207-9208 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) (C) ID=11 L=41 		1-09700-403-0 06 1 9209-9210 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 06 1 9209-9210 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 06 1 9211- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) (D) ID=20 L=50 		9-09917-430-0 10 1 9207- ●
48 CLIP; FRAME HARNESS
(E) ID=22 L=51 		9-09917-431-0 02 1 9207- ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 08 1 9207-9208 ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 9209- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 13 1 9207- ● ●
48 CLIP; FRAME HARNESS
MLD6D M/T(X5Q) (J) ID=19 L=28 		9-09525-856-0 02 1 9207- ● ●
48 CLIP; FRAME HARNESS
(J) ID=19 L=60 		9-09525-893-0 01 1 9207- ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 03 1 9207- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 07 1 9207- ●
64 SCREW; CLIP
M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 9207- ● ● ● ● ●
95 CLIP; CABLE
L=145 		1-09987-143-1 02 1 9207- ● ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(D) L=142 		8-94232-619-0 02 1 9207- ● ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(B) ID=19 L=20 		9-09525-832-0 01 1 9207- ● ● ● ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> (A) ID=12 H=24 L=20 		1-09700-605-0 02 1 9207- ● ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> (A) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 9207- ● ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> (C) ID=15 L=42 		9-09716-203-1 02 1 9207- ● ● ●
121 CLIP; FACIA HARNESS
(A) ID=41 L=40 		1-09700-596-0 01 1 9207- ● ● ● ● ●
121 CLIP; FACIA HARNESS
(B) ID=27 L=32 		1-09700-712-1 03 1 9207- ● ● ● ● ●
121 CLIP; FACIA HARNESS
(C) ID=31 L=50 		1-09700-870-1 01 1 9207-9208 ● ● ● ● ●
122 BOLT; FACIA HARNESS CLIP
M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9207- ● ● ● ● ●
122 BOLT; FACIA HARNESS CLIP
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9207- ● ● ● ● ●
124 BOLT; GRAND,FACIA
M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9207-9303 ● ● ● ● ●
124 BOLT; GRAND,FACIA
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ● ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/LK&PL WASHER 		9-03920-612-0 01 1 9207- ● ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=85 		8-94232-611-0 03 1 9207- ●
148 CLIP; BAND,HEADLAMP HARNESS
EXC. DUAL AIR GAUGE<UG2> (B) L=85 		8-94232-611-0 03 1 9207- ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 01 1 9207- ● ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
EXC. DUAL AIR GAUGE<UG2> (B) L=142 		8-94232-619-0 07 1 9207- ● ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
DUAL AIR GAUGE<UG2> (C) L=85 		8-94232-611-0 02 1 9207- ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
DUAL AIR GAUGE<UG2> (B) L=142 		8-94232-619-0 08 1 9207- ● ● ● ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X22 GREEN 		1-09980-430-0 01 1 9207-9303 ● ● ● ● ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X20 W/LK&PL WASHER 		8-97086-824-0 02 1 9304- ● ● ● ● ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X22 W/LK&PL WASHER 		1-09980-537-0 01 1 9207-9303 ● ● ● ● ●
173 BOLT; STARTER EARTH
M10X16 FLANGE 		0-28081-016-0 01 1 9207-9212 ● ● ● ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9301- ● ● ● ● ●
176 CLIP; BACK SW HARNESS
MLD6D M/T(X5Q) ID=11 		1-09700-415-0 01 1 9207- ● ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 03 1 9207- ● ● ● ● ●
194 CLIP; BAND
REAR WHEEL PARKING(B3A) (B) L=140 		5-09707-031-1 01 1 9207- ● ● ● ●
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 02 1 9207- ● ● ●
206 CLIP; FUEL TANK HARNESS
EXC. FUEL TANK 200L FMCSR<PK6> (B) L=140 		5-09707-031-1 02 1 9207- ● ●
206 CLIP; FUEL TANK HARNESS
(A) 		9-09525-022-0 01 1 9207- ● ● ● ● ●
208 CLIP; HARNESS,MAG VLV
(A) 		1-09700-418-1 04 1 9207- ● ● ● ● ●
208 CLIP; HARNESS,MAG VLV
(B) 		9-09917-573-0 01 1 9207- ● ● ● ● ●
217 CLIP; RR BODY HARNESS
(B) ID=15 L=70 		1-09700-980-0 02 1 9207- ● ● ● ● ●
217 CLIP; RR BODY HARNESS
(A) L=250 		5-09707-030-1 02 1 9207- ● ● ● ● ●
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 02 1 9207- ●
224 SLEEVE; RUBBER,HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) ID=10 OD=14 L=30 		9-09956-682-0 02 1 9207- ●
224 SLEEVE; RUBBER,HARNESS
AUSTRALIA EQUIPMENT(RR3) WHEEL BASE 3600MM(36W) ID=10 OD=14 L=30 		9-09956-682-0 03 1 9207- ●
225 CLIP; AIR TANK HARNESS
L=140 		5-09707-031-1 02 1 9207- ●
225 CLIP; AIR TANK HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) L=140 		5-09707-031-1 02 1 9207- ●
225 CLIP; AIR TANK HARNESS
AUSTRALIA EQUIPMENT(RR3) WHEEL BASE 3600MM(36W) L=140 		5-09707-031-1 03 1 9207- ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL<C60> (A) L=140 		5-09707-031-1 03 1 9207- ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL<C60> (B) ID=14 L=44 		9-09917-427-0 01 1 9207- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=250 		5-09707-030-1 01 1 9207- ● ● ● ● ●
239 BOLT; GRAND
M5X20 		0-20800-508-0 01 1 9207- ● ● ● ● ●
239 BOLT; GRAND
M8X20 FLANGE 		0-28480-820-0 01 1 9207-9212 ● ● ● ● ●
239 BOLT; GRAND
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9301- ● ● ● ● ●
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> L=140 		5-09707-031-1 01 1 9211- ● ● ● ● ●
421 CLIP; FLOOR HARNESS
(B) ID=9 		5-09707-027-0 01 1 9207- ●
421 CLIP; FLOOR HARNESS
(A) 		9-09525-032-0 05 1 9207- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
