◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11230 - FRR-LHD(EU)SPACE EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#16874) — 52 parça

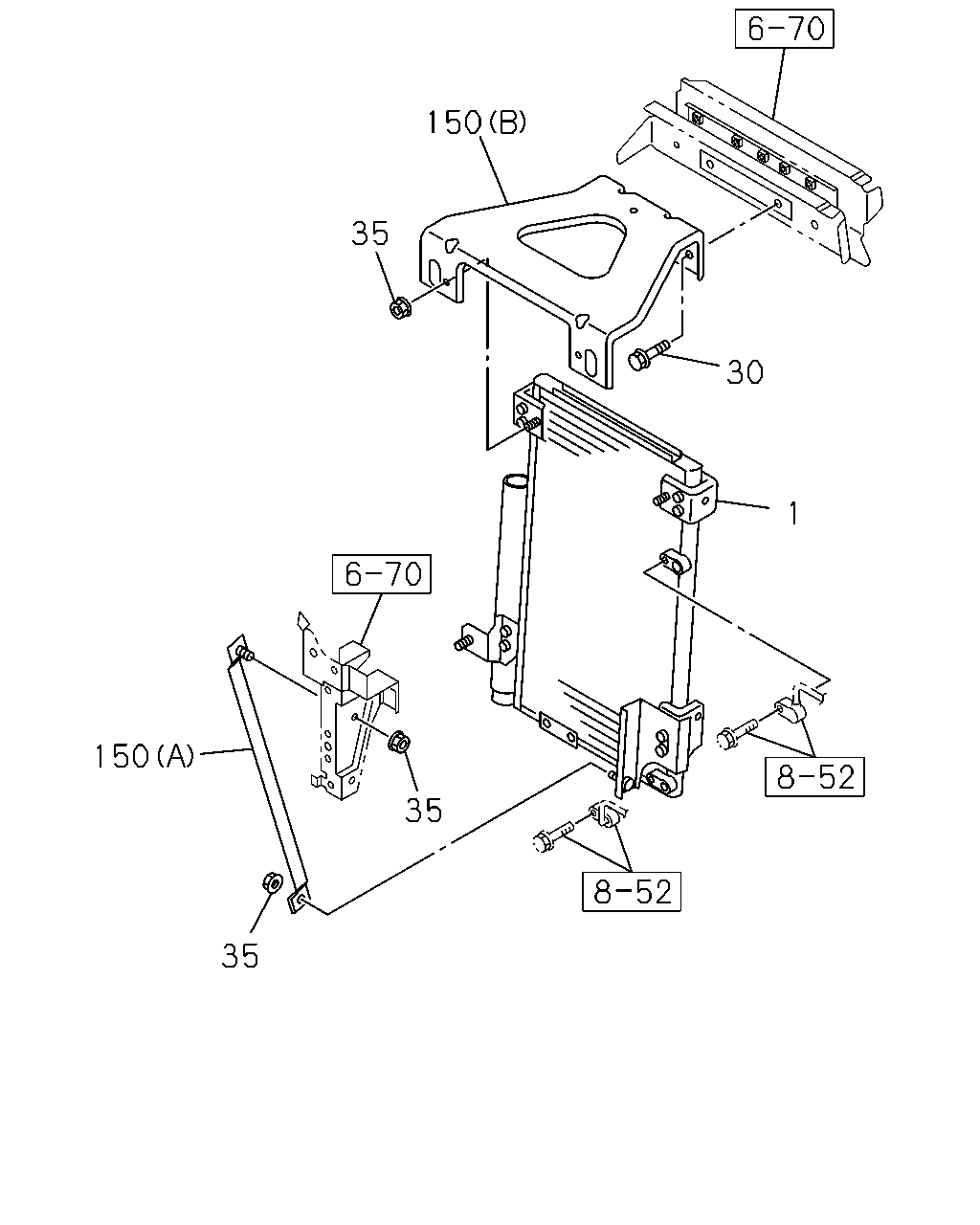

çizim 15261
150 35 30 1 150 35 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98115-513-2 01 1 0906-1204 ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98115-513-2 01 1 1205- ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28650-820-0 02 1 0906-1204 ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28650-820-0 02 1 1205- ● ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 05 1 0906-1204 ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 05 1 1205- ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-321-0 01 1 0906-1204 ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-321-0 01 1 1205-1405 ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98270-947-0 01 1 1406- ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98041-322-0 01 1 0906-1204 ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98041-322-0 01 1 1205-1409 ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98242-413-0 01 1 1410- ● ●

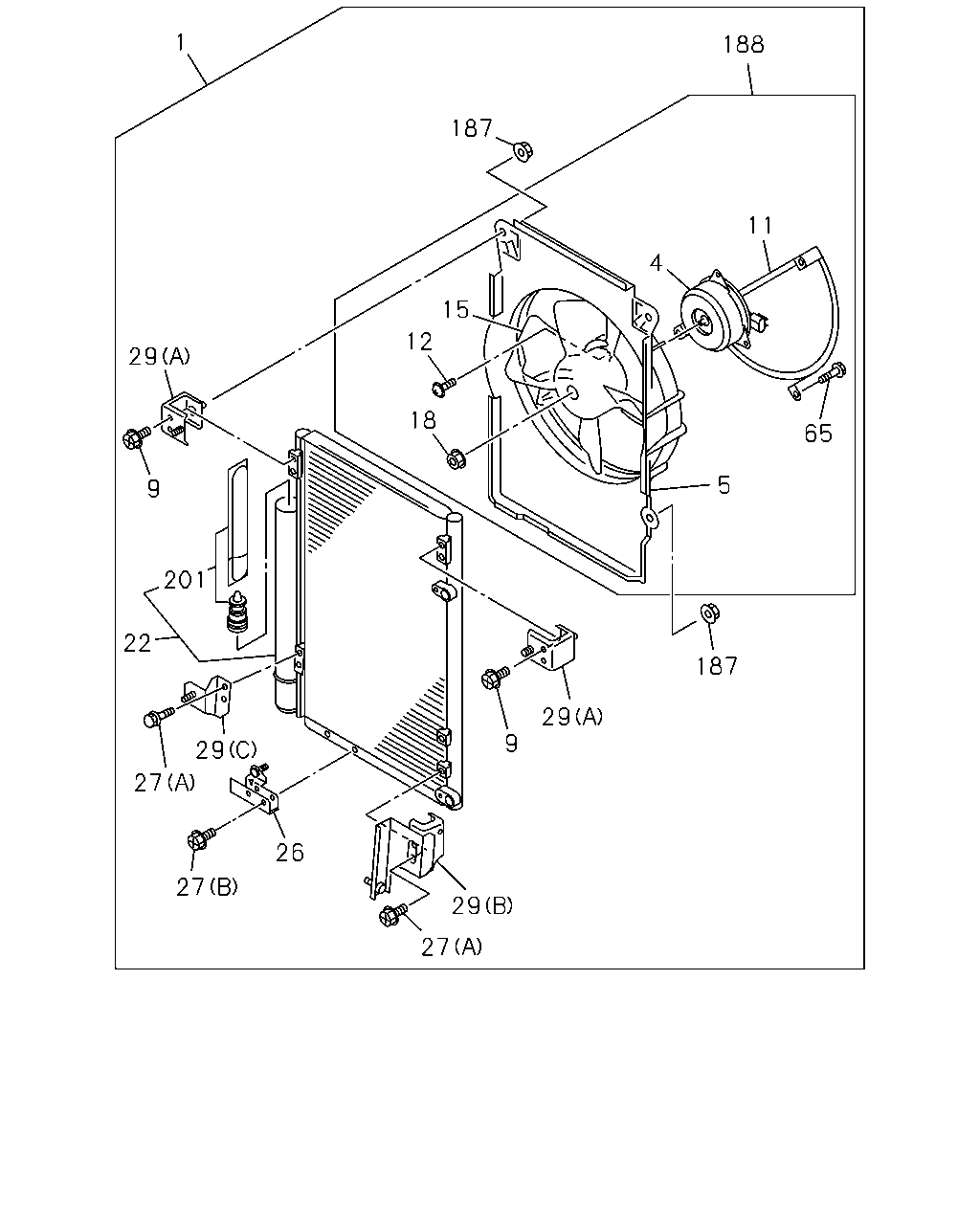

çizim 63121
1 188 187 11 4 15 12 29 18 65 5 9 201 22 187 29 9 29 27 26 27 29 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98115-513-2 01 1 0906-1204 ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98115-513-2 01 1 1205- ● ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98116-586-0 01 1 0906-1204 ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98116-586-0 01 1 1205- ● ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-093-0 01 1 0906-1204 ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-093-0 01 1 1205- ● ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X14 		1-83539-382-0 04 1 0906-1204 ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X14 		1-83539-382-0 04 1 1205- ● ●
11 COVER; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98068-234-0 01 1 0906-1204 ●
11 COVER; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98068-234-0 01 1 1205-1308 ● ●
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97180-269-0 03 1 0906-1204 ●
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97180-269-0 03 1 1205- ● ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-092-0 01 1 0906-1204 ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-092-0 01 1 1205-1409 ● ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98152-860-0 01 1 1410- ● ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) M5 FLANGE 		8-94157-075-0 01 1 0906-1204 ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) M5 FLANGE 		8-94157-075-0 01 1 1205- ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98092-767-1 01 1 0906-1204 ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98092-767-1 01 1 1205- ● ●
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98091-901-0 01 1 0906-1204 ●
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98091-901-0 01 1 1205- ● ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X14 		1-83539-382-0 04 1 0906-1204 ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X14 		1-83539-382-0 04 1 1205- ● ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25 		8-97178-770-0 02 1 0906-1204 ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25 		8-97178-770-0 02 1 1205- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98065-914-0 02 1 0906-1204 ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98065-914-0 02 1 1205- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98091-900-0 01 1 0906-1204 ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98091-900-0 01 1 1205- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98092-769-0 01 1 0906-1204 ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98092-769-0 01 1 1205- ● ●
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 		8-97096-525-0 03 1 0906-1204 ●
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 		8-97096-525-0 03 1 1205-1308 ● ●
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6 		1-83539-354-0 04 1 0906-1204 ●
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6 		1-83539-354-0 04 1 1205- ● ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98116-590-1 01 1 0906-1204 ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98116-590-1 01 1 1205- ● ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-097-0 01 1 0906-1204 ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-097-0 01 1 1205-1409 ● ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98282-482-0 01 1 1410- ● ●
