8-10 — WIRING HARNESS AND FUSE (#1687) — 89 parça

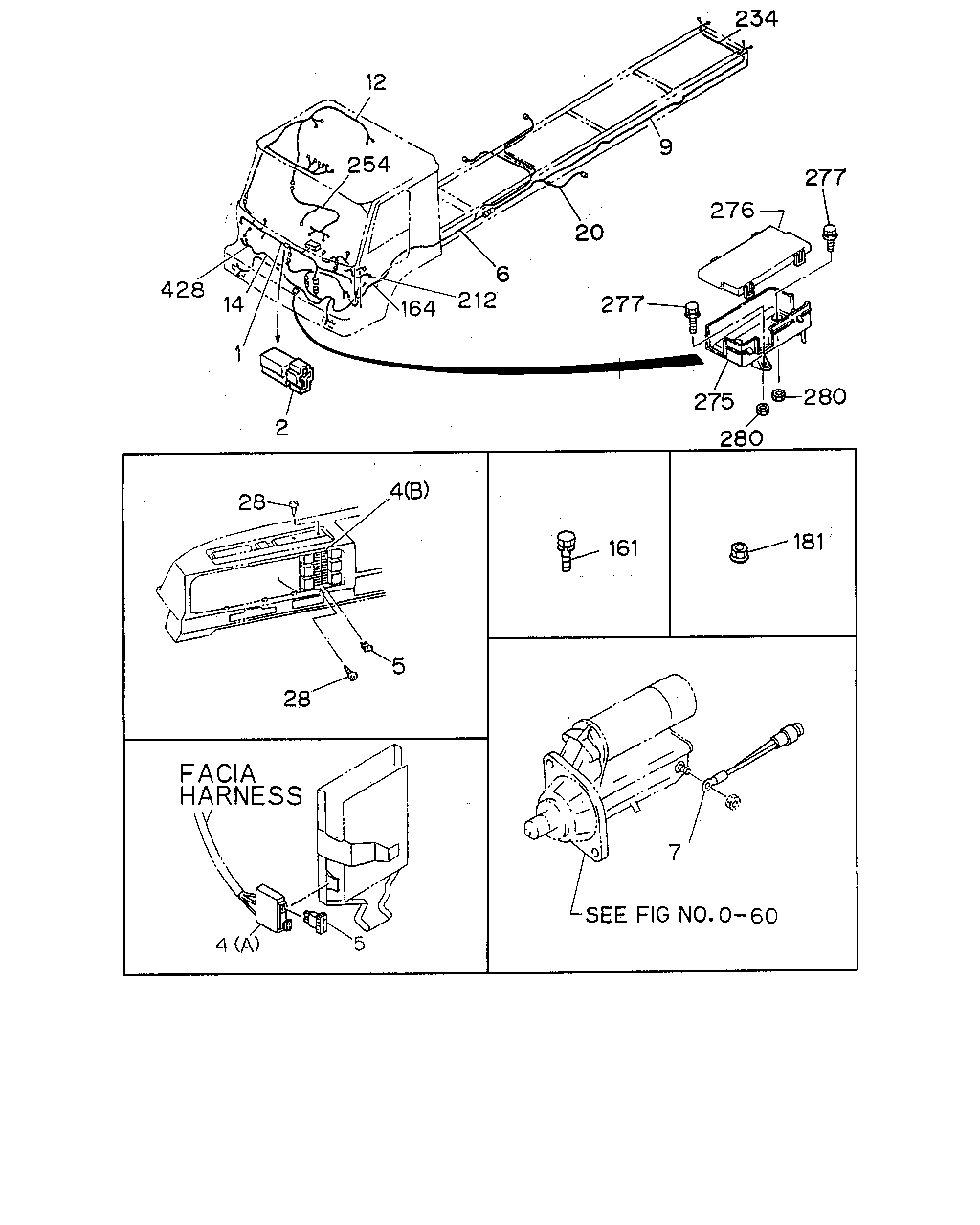

çizim 95092
234 9 12 254 428 14 1 2 164 212 6 20 277 276 277 275 280 280 28 4 28 5 4 5 7 161 181
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HARNESS; CAB 1-82624-834-2 01 1 9207- ●
1 HARNESS; CAB
EXC. AIR CONDITIONER MANUAL CONTROL<C60>,NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82624-834-2 01 1 9207- ● ● ●
1 HARNESS; CAB
EXC. AIR CONDITIONER MANUAL CONTROL<C60> 		1-82624-834-2 01 1 9207- ●
1 HARNESS; CAB
AUSTRALIA EQUIPMENT(RR3) BUMPER W/HEADLAMPS<SLB> RADIO AM/FM<U69> EXC. AIR CONDITIONER MANUAL CONTROL<C60>, SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-82624-843-2 01 1 9207- ● ● ●
1 HARNESS; CAB
AUSTRALIA EQUIPMENT(RR3) RADIO CLARION(SK2),RADIO MATSUSHITA(SM9),RADIO AM & TAPE PLAYER(UM1) BUMPER W/HEADLAMPS<SLB> EXC. AIR CONDITIONER MANUAL CONTROL<C60>, SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-82624-841-2 01 1 9207- ● ● ●
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL<C60> 		1-82624-835-2 01 1 9207- ●
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL<C60> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82624-835-2 01 1 9207- ●
1 HARNESS; CAB
NEW ZEALAND EQUIPMENT(PK5) EXC. AIR CONDITIONER MANUAL CONTROL<C60>, SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-82624-836-2 01 1 9207- ●
1 HARNESS; CAB
NEW ZEALAND EQUIPMENT(PK5) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. AIR CONDITIONER MANUAL CONTROL<C60> 		1-82624-840-2 01 1 9207- ●
2 DIODE; CABLE HARNESS
1.1A 2P 		8-94249-985-0 01 1 9207- ● ● ● ● ●
4 BOX ASM; FUSE,HARNESS
(B) 		1-82510-214-1 01 1 9207- ● ● ● ● ●
4 BOX ASM; FUSE,HARNESS
(A) 		1-82510-212-0 01 1 9207- ● ●
4 BOX ASM; FUSE,HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		1-82510-212-0 01 1 9207- ● ●
4 BOX ASM; FUSE,HARNESS
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		1-82510-212-0 01 1 9207- ●
4 BOX ASM; FUSE,HARNESS
AUSTRALIA EQUIPMENT(RR3) (A) 		1-83510-335-0 01 1 9207- ● ●
4 BOX ASM; FUSE,HARNESS
AUSTRALIA EQUIPMENT(RR3) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		1-83510-335-0 01 1 9207- ●
4 BOX ASM; FUSE,HARNESS
NEW ZEALAND EQUIPMENT(PK5) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		1-82510-335-0 01 1 9207- ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 09 1 9207- ● ● ● ● ●
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 12 1 9207- ● ●
5 FUSE; FACIA HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) 10A RED 		5-82516-002-0 12 1 9207- ● ●
5 FUSE; FACIA HARNESS
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 10A RED 		5-82516-002-0 12 1 9207- ●
5 FUSE; FACIA HARNESS
AUSTRALIA EQUIPMENT(RR3) 10A RED 		5-82516-002-0 11 1 9207- ● ●
5 FUSE; FACIA HARNESS
EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 10A RED 		5-82516-002-0 11 1 9207- ●
6 HARNESS; FRAME 1-82637-655-2 01 1 9207- ●
6 HARNESS; FRAME
AUSTRALIA EQUIPMENT(RR3) 		1-82637-658-3 01 1 9207- ●
6 HARNESS; FRAME
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82637-656-2 01 1 9207- ●
6 HARNESS; FRAME
AIR CONDITIONER MANUAL CONTROL<C60> 		1-82637-685-1 01 1 9207- ●
6 HARNESS; FRAME
EXC. AIR CONDITIONER MANUAL CONTROL<C60> 		1-82637-663-1 01 1 9207- ●
6 HARNESS; FRAME
MBG5B M/T(X4K) AIR CONDITIONER MANUAL CONTROL<C60> EXC. FIRE TRUCK(RA9) 		1-82637-666-1 01 1 9207- ●
6 HARNESS; FRAME
MBG5B M/T(X4K) EXC. AIR CONDITIONER MANUAL CONTROL<C60>,FIRE TRUCK(RA9) 		1-82637-665-1 01 1 9207- ●
6 HARNESS; FRAME
MBG5B M/T(X4K) FIRE TRUCK(RA9) 		1-82637-669-1 01 1 9207- ●
6 HARNESS; FRAME
MBG5B M/T(X4K) EXC. FIRE TRUCK(RA9) 		1-82637-670-1 01 1 9207- ●
6 HARNESS; FRAME
MLD6D M/T(X5Q) AUSTRALIA EQUIPMENT(RR3) 		1-82637-668-2 01 1 9207- ●
6 HARNESS; FRAME
MLD6D M/T(X5Q) NEW ZEALAND EQUIPMENT(PK5) 		1-82637-664-1 01 1 9207- ●
6 HARNESS; FRAME
MBG5B M/T(X4K) FIRE TRUCK(RA9) 		1-82637-674-1 01 1 9207- ●
6 HARNESS; FRAME
MLD6D M/T(X5Q) 		1-82637-673-2 01 1 9207- ●
7 LINK ASM; FUSIBLE
BLACK 		1-82659-031-1 01 1 9207- ● ● ● ● ●
7 LINK ASM; FUSIBLE
GREEN/RED L=150 GREEN,RED 		1-82659-054-0 01 1 9207- ● ● ● ● ●
9 HARNESS; FRAME,RR 1-82637-675-0 01 1 9207- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3600MM(36W) 		1-82637-676-0 01 1 9207- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 		1-82637-677-0 01 1 9207- ●
9 HARNESS; FRAME,RR
REAR WHEEL PARKING(B3A) 		1-82634-653-0 01 1 9207- ●
9 HARNESS; FRAME,RR
EXC. REAR WHEEL PARKING(B3A) 		1-82634-651-0 01 1 9207- ●
9 HARNESS; FRAME,RR
FIRE TRUCK(RA9) EXC. REAR WHEEL PARKING(B3A) 		1-82635-245-0 01 1 9207- ● ●
9 HARNESS; FRAME,RR
REAR WHEEL PARKING(B3A) EXC. FIRE TRUCK(RA9) 		1-82634-654-0 01 1 9207- ● ●
9 HARNESS; FRAME,RR
EXC. REAR WHEEL PARKING(B3A),FIRE TRUCK(RA9) 		1-82634-652-0 01 1 9207- ● ●
12 HARNESS; ROOF
RADIO AM & TAPE PLAYER(UM1) 		1-82622-551-0 01 1 9207- ● ● ●
12 HARNESS; ROOF
RADIO AM & TAPE PLAYER(UM1) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82622-551-0 01 1 9207- ●
12 HARNESS; ROOF
EXC. RADIO AM & TAPE PLAYER(UM1) 		1-82622-549-0 01 1 9207- ● ● ●
12 HARNESS; ROOF
EXC. NEW ZEALAND EQUIPMENT(PK5),RADIO AM & TAPEPLAYER(UM1) 		1-82622-549-0 01 1 9207- ●
12 HARNESS; ROOF
NEW ZEALAND EQUIPMENT(PK5) RADIO AM & TAPE PLAYER(UM1) 		1-82622-552-2 01 1 9207- ●
12 HARNESS; ROOF
NEW ZEALAND EQUIPMENT(PK5) EXC. RADIO AM & TAPE PLAYER(UM1) 		1-82622-550-2 01 1 9207- ●
12 HARNESS; ROOF
RADIO AM & TAPE PLAYER(UM1) 		1-82622-554-3 01 1 9207- ●
12 HARNESS; ROOF
EXC. RADIO AM & TAPE PLAYER(UM1) 		1-82622-553-3 01 1 9207- ●
14 HARNESS; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70) 		1-82622-762-2 01 1 9207- ● ● ● ● ●
14 HARNESS; HEADLAMP
HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70) EXC. BUMPER W/HEADLAMPS<SLB> 		1-82622-567-4 01 1 9207- ● ● ● ● ●
20 HARNESS; SIDE FLASHER
LIGHTING SYSTEM ECE<SLC> 		1-82634-795-0 02 1 9207- ● ● ●
28 SCREW; FUSE BOX
M5X16 W/LK&PL WASHER 		9-03920-516-0 02 1 9207- ● ● ● ● ●
161 BOLT; GROUND,HARNESS
M6X16 W/LK&PL WASHER 		1-09981-375-0 01 1 9207-9303 ● ● ● ● ●
161 BOLT; GROUND,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9304- ● ● ● ● ●
164 HARNESS; ELEC 1-82624-372-0 01 1 9207-9210 ● ●
164 HARNESS; ELEC
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82624-372-0 01 1 9207-9210 ● ● ●
164 HARNESS; ELEC 1-82625-108-0 01 1 9211- ● ●
164 HARNESS; ELEC
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82625-108-0 01 1 9211- ● ● ●
164 HARNESS; ELEC
AUSTRALIA EQUIPMENT(RR3) 		1-82624-374-0 01 1 9207-9210 ● ● ●
164 HARNESS; ELEC
AUSTRALIA EQUIPMENT(RR3) 		1-82625-110-0 01 1 9211- ● ● ●
164 HARNESS; ELEC
NEW ZEALAND EQUIPMENT(PK5) 		1-82624-373-0 01 1 9207-9210 ●
164 HARNESS; ELEC
NEW ZEALAND EQUIPMENT(PK5) 		1-82625-109-0 01 1 9211- ●
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 9207- ● ● ● ● ●
212 HARNESS; STEREO
RADIO AM & TAPE PLAYER(UM1) 		1-82622-737-0 01 1 9207- ● ● ● ● ●
234 HARNESS; LICENSE LAMP
PINTLE HOOK<PP7> 		1-82634-920-0 01 1 9207- ● ● ● ● ●
254 HARNESS; CAB FLOOR
RADIO AM & TAPE PLAYER(UM1) 		1-82622-990-1 01 1 9207- ● ● ● ●
254 HARNESS; CAB FLOOR
EXC. RADIO AM & TAPE PLAYER(UM1) 		1-82622-989-1 01 1 9207- ● ● ● ●
254 HARNESS; CAB FLOOR
RADIO AM & TAPE PLAYER(UM1) 		1-82622-992-1 01 1 9207- ●
254 HARNESS; CAB FLOOR
EXC. RADIO AM & TAPE PLAYER(UM1) 		1-82622-991-1 01 1 9207- ●
275 BOX ASM; FRAME HARNESS 1-82699-192-2 01 1 9207- ● ●
275 BOX ASM; FRAME HARNESS 1-82699-149-4 01 1 9207- ● ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-151-1 01 1 9207- ● ● ● ● ●
277 BOLT; BOX ASM FIX
M8X35 FLANGE 		0-28080-835-0 02 1 9207-9211 ● ● ● ● ●
277 BOLT; BOX ASM FIX
M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9212-9303 ● ● ● ● ●
277 BOLT; BOX ASM FIX
M8X35 		8-94152-039-0 02 1 9304-9304 ● ● ● ● ●
277 BOLT; BOX ASM FIX
M8X35 W/LK&PL WASHER 		0-50140-835-0 02 1 9305- ● ● ● ● ●
280 NUT; BOX ASM FIX
M8 		9-09110-408-0 02 1 9207- ● ● ● ● ●
428 HARNESS; COMB LAMP
AUSTRALIA PACKAGE<D2Y> BUMPER W/HEADLAMPS<SLB> HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70) 		1-82625-368-0 01 1 9311- ●
428 HARNESS; COMB LAMP
BUMPER W/HEADLAMPS<SLB> HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70) 		1-82624-330-2 01 1 9207-9310 ●
428 HARNESS; COMB LAMP
BUMPER W/HEADLAMPS<SLB> HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70) EXC. AUSTRALIA PACKAGE<D2Y> 		1-82624-330-2 01 1 9311- ●
428 HARNESS; COMB LAMP
AUSTRALIA PACKAGE<D2Y> BUMPER W/HEADLAMPS<SLB> HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70) 		1-82625-369-0 01 1 9311- ● ●
428 HARNESS; COMB LAMP
BUMPER W/HEADLAMPS<SLB> HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70) 		1-82624-344-3 01 1 9207-9310 ● ●
428 HARNESS; COMB LAMP
BUMPER W/HEADLAMPS<SLB> HALOGEN HEAD LAMP(TT5),HEAD LAMPS WHITE GLOW(T70) EXC. AUSTRALIA PACKAGE<D2Y> 		1-82624-344-3 01 1 9311- ● ●
